Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 464

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE–37

SE

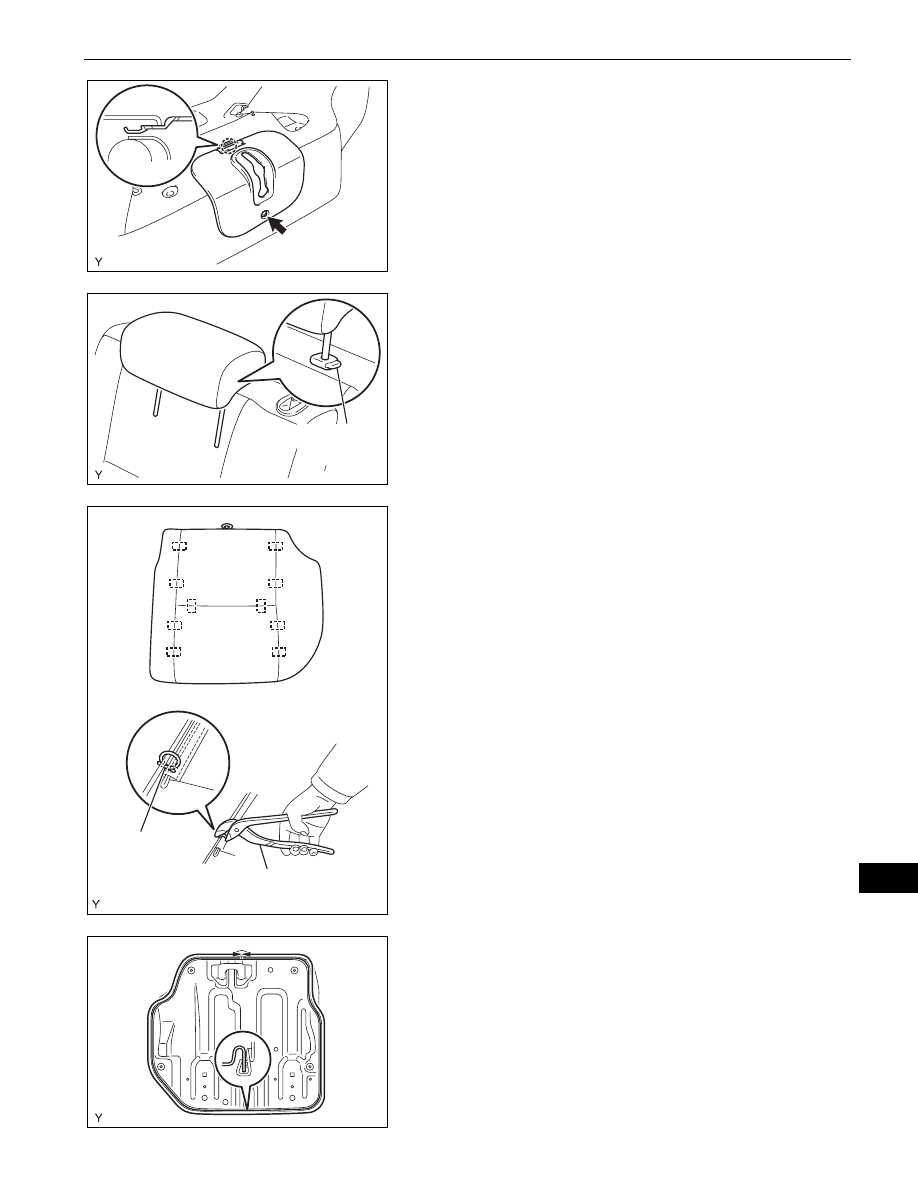

8.

INSTALL REAR SEATBACK LOCK COVER
(a) Engage the claw and install the rear seatback lock

cover.

(b) Tighten the screw.

9.

INSTALL REAR SEAT HEADREST ASSEMBLY
(a) Push the lock button of the rear seat headrest

support and install the rear seat headrest.

10. INSTALL REAR SEAT CUSHION COVER

(a) Using hog ring pliers, install the rear seat cushion

cover with 10 new hog rings.
NOTICE:
•

Do not soil or scratch the rear seat cushion
cover.

•

When installing the hog rings, minimize
wrinkles as far as possible.

11. INSTALL REAR SEAT CUSHION FRAME SUB-

ASSEMBLY
(a) Engage the hook and install the rear seat cushion

frame.

B130731

Lock Button

B130730E01

New Hog Ring

Hog Ring Pliers

B130728E01

B130726

SE–38

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE

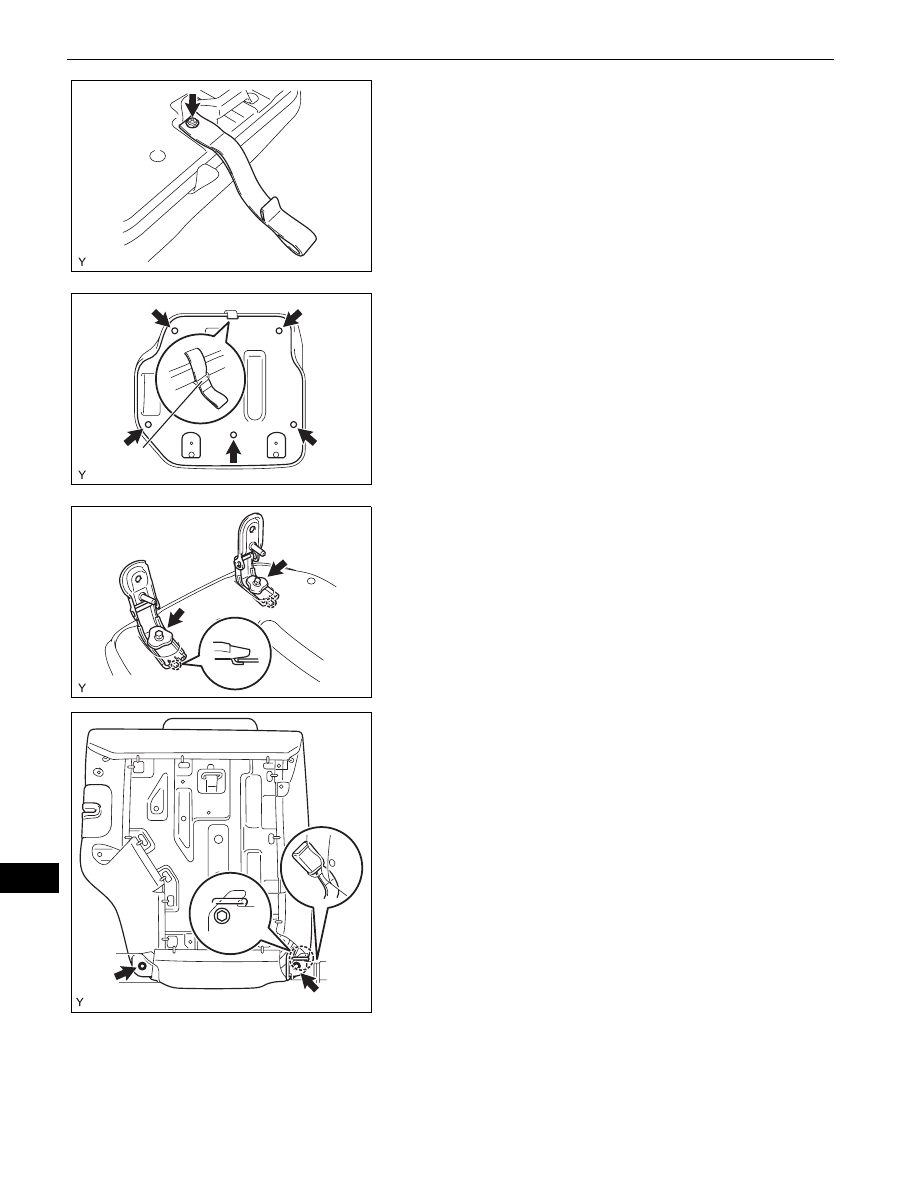

12. INSTALL REAR SEAT CUSHION STOPPER

(a) Install the rear seat cushion stopper with the screw.

13. INSTALL REAR SEAT CUSHION UNDER COVER

(a) Insert the rear seat cushion stopper into the slit of

the rear seat cushion under cover.

(b) Install the rear seat cushion under cover with the 5

clips.

(c) Install the rear seat cushion stopper into the rear

seat cushion cover band.

14. INSTALL REAR SEAT CUSHION HINGE SUB-

ASSEMBLY
HINT:
Use the same procedure for both sides.
(a) Engage the hook and install the rear seat cushion

hinge.

(b) Install the rear seat cushion hinge with the bolt.

Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

INSTALLATION

1.

INSTALL REAR SEATBACK ASSEMBLY
(a) Engage the hook and temporarily install the rear

seatback with the 2 bolts.

(b) Tighten the 2 bolts in the sequence shown in the

illustration.
Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

(c) Install the rear center seat inner belt into the rear

seatback holder.

B130725

Band

B130724E01

B130723

2

1

B130721E01

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE–39

SE

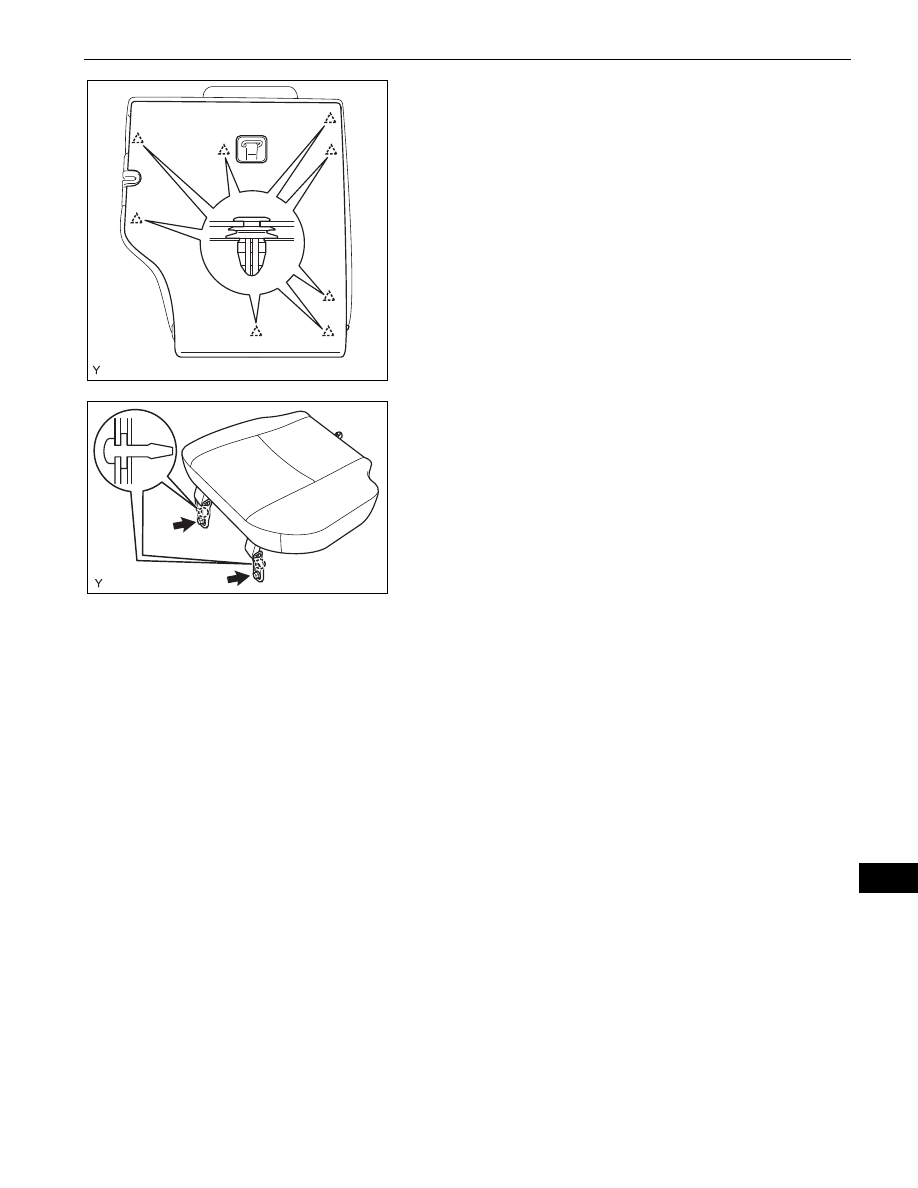

2.

INSTALL REAR SEATBACK BOARD CARPET
ASSEMBLY
(a) Engage the 8 clips and install the rear seatback

board carpet.

(b) Pull up the rear seatback.

3.

INSTALL REAR SEAT CUSHION ASSEMBLY
(a) Insert the 2 locating pins into the body hole.
(b) Temporarily install the rear seat cushion with the 2

bolts.

(c) Tighten the 2 bolts in the sequence shown in the

illustration.
Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

B130720

1

2

B130719E01

SEAT  –  REAR SEAT ASSEMBLY (for RH Side)

SE–39

SE

BODY

SEAT

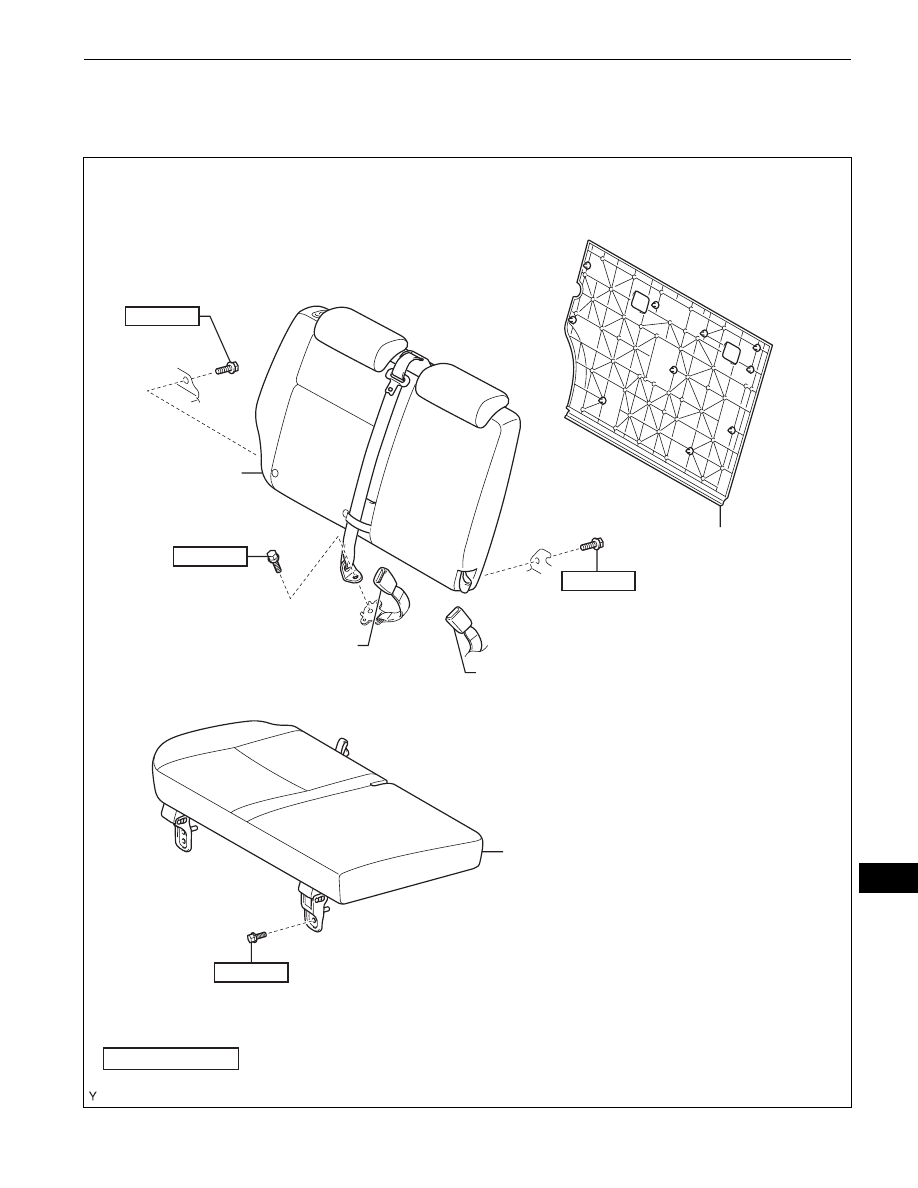

REAR SEAT ASSEMBLY (for RH Side)

COMPONENTS

REAR SEAT CUSHION
ASSEMBLY

REAR SEATBACK
ASSEMBLY

REAR SEATBACK BOARD
CARPET ASSEMBLY

REAR SEAT INNER
BELT ASSEMBLY RH

37 (375, 27)

N*m (kgf*cm, ft*lbf)  : Specified torque

REAR SEAT INNER
BELT ASSEMBLY LH

37 (375, 27)

42 (430, 31)

37 (375, 27)

x2

B130746E01
