SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE–33

SE

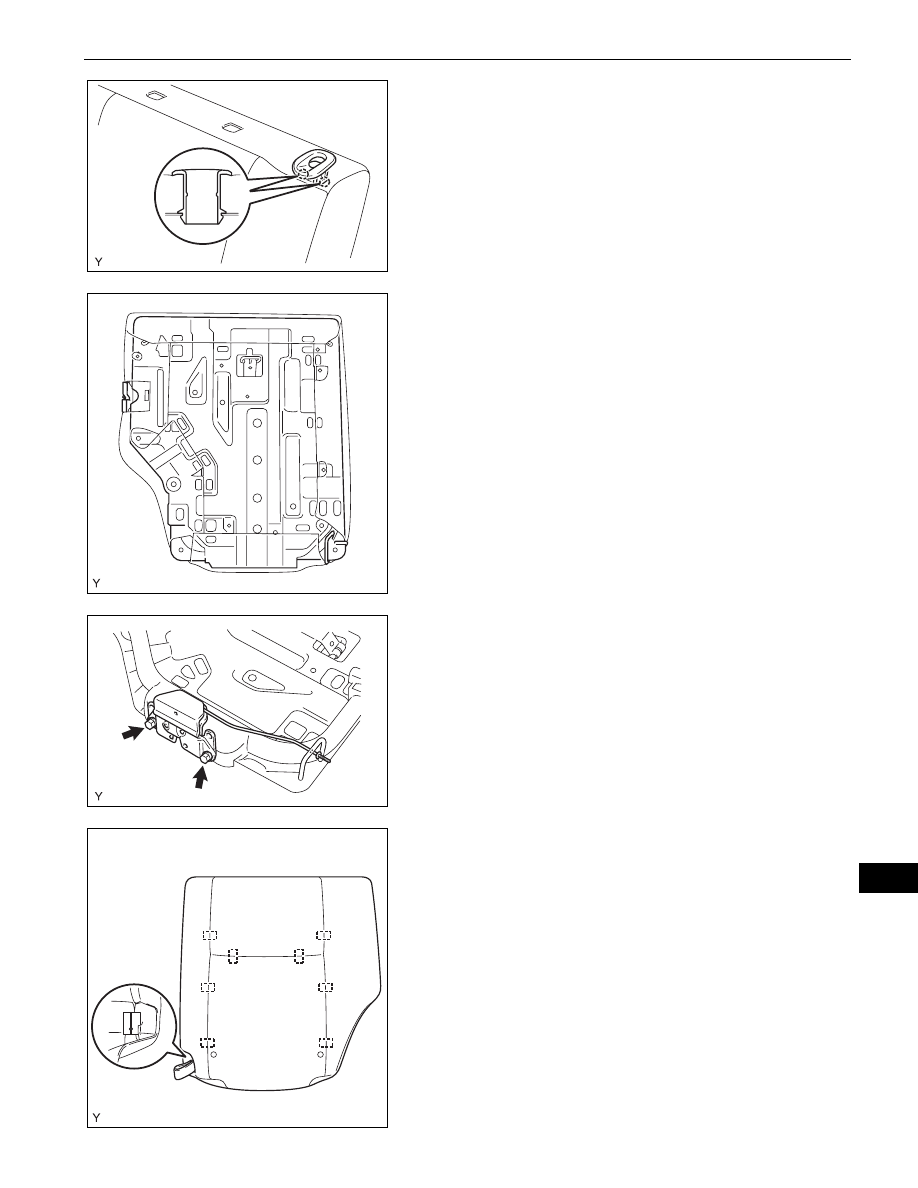

11. REMOVE REAR SEATBACK STOP BUTTON

GROMMET
(a) Disengage the 2 claws and remove the rear

seatback stop button grommet.

12. REMOVE REAR SEATBACK FRAME SUB-

ASSEMBLY
(a) Remove the rear seatback frame.

13. REMOVE REAR SEATBACK LOCK ASSEMBLY

(a) Remove the 2 bolts and the rear seatback lock.

14. REMOVE REAR SEATBACK COVER

(a) Pass the hook of the rear seatback cover through

the slit in the rear seatback pad.

(b) Remove the 8 hog rings and the rear seatback

cover.

B130741

B130738

B130742

B130744

SE–34

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE

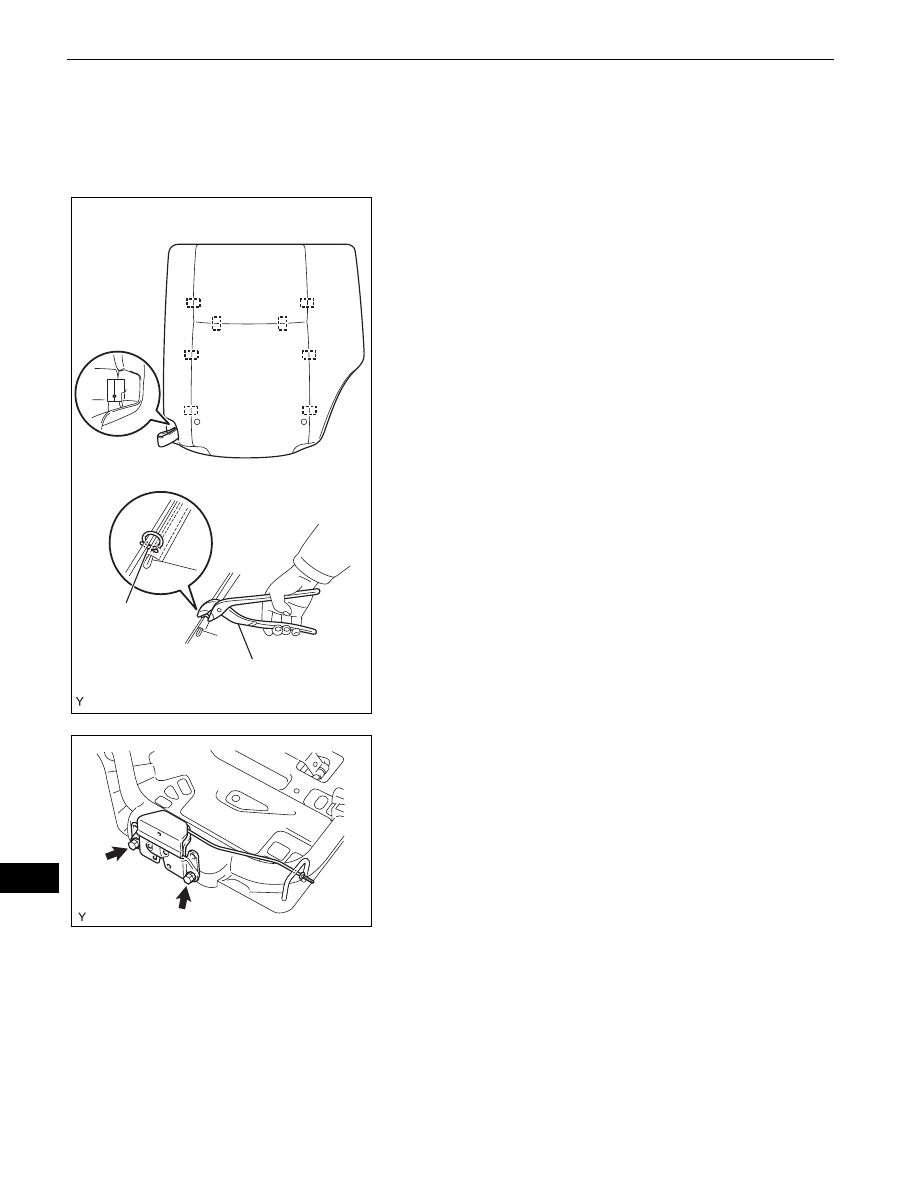

REASSEMBLY

CAUTION:
Wear protective gloves. Sharp surfaces on the rear seat
cushion frame and the rear seatback frame could cause
injuries to your hands.

1.

INSTALL REAR SEATBACK COVER
(a) Using hog ring pliers, install the rear seatback cover

with 8 new hog rings.
NOTICE:
•

Do not soil or scratch the rear seatback
cover.

•

When installing the hog rings, minimize
wrinkles as far as possible.

(b) Pass the hook of the rear seatback cover through

the slit in the rear seatback pad.

2.

INSTALL REAR SEATBACK LOCK ASSEMBLY
(a) Install the rear seatback lock with the 2 bolts.

Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

New Hog Ring

Hog Ring Pliers

B130745E01

B130742

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE–35

SE

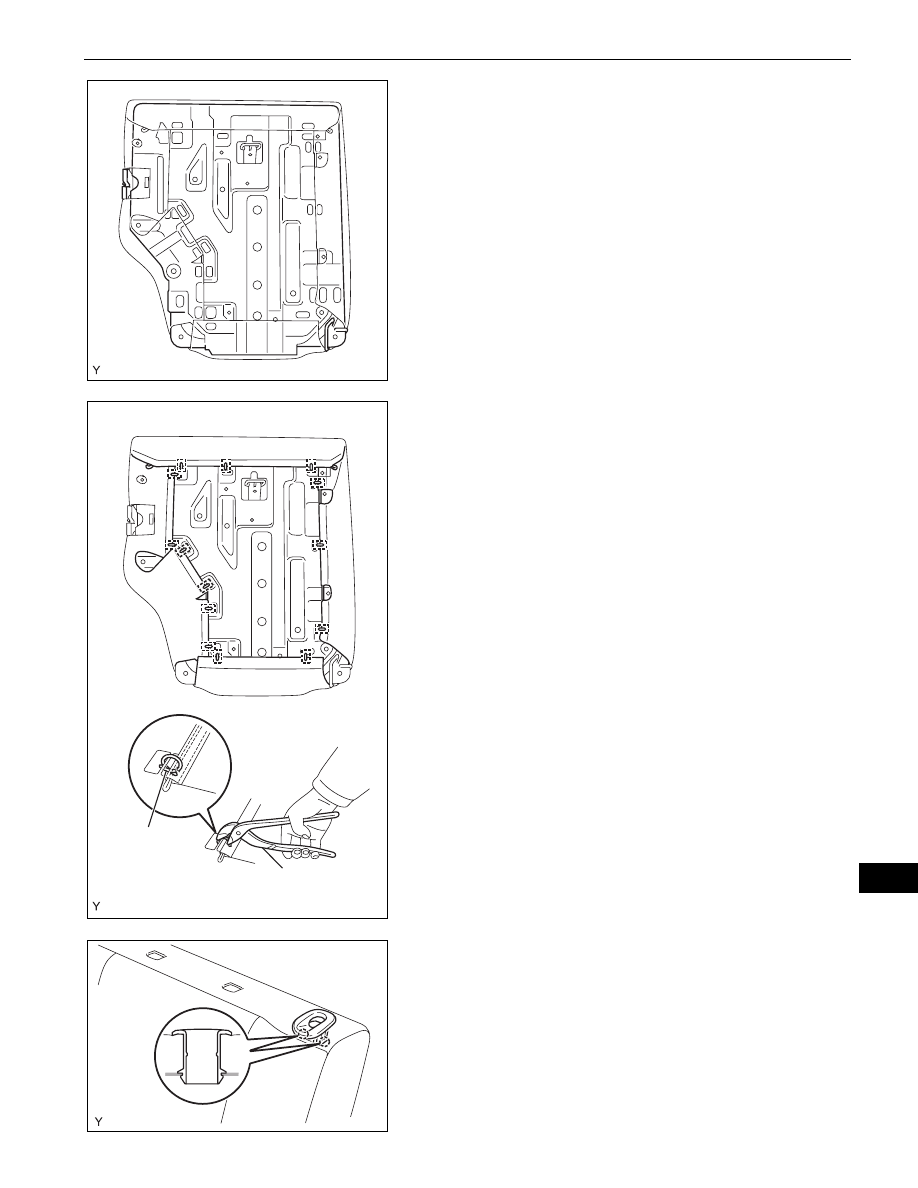

3.

INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY
(a) Install the rear seatback frame.

(b) Using hog ring pliers, install 14 new hog rings.

4.

INSTALL REAR SEATBACK STOP BUTTON
GROMMET
(a) Engage the 2 claws and install the rear seatback

stop button grommet.

B130738

New Hog Ring

Hog Ring Pliers

B130737E01

B130741

SE–36

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE

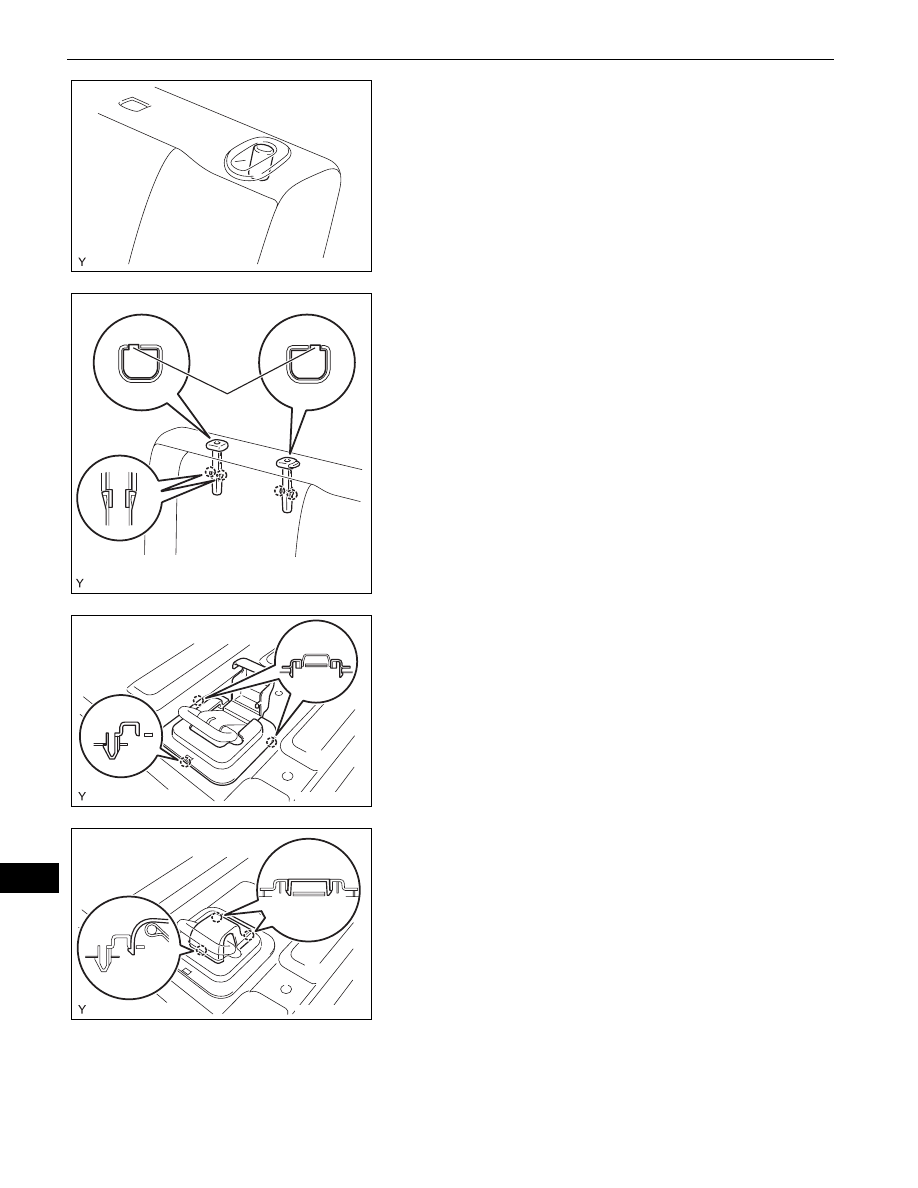

5.

INSTALL REAR SEATBACK LOCK RELEASE
BUTTON
(a) Install the rear seatback lock release button.

6.

INSTALL REAR SEAT HEADREST SUPPORT
HINT:
Use the same procedure for both sides.
(a) Align the protruding portion of the rear seat headrest

support with the installation groove of the rear
seatback frame.

(b) Engage the 2 claws and install the rear seat

headrest support.

7.

INSTALL TETHER ANCHOR COVER
(a) Engage the 3 claws and install the tether anchor

cover.

(b) Engage the 2 claws and close the cover.

B130743

Protrusion

B130740E01

B130735

B130733
