SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE–29

SE

REMOVAL

1.

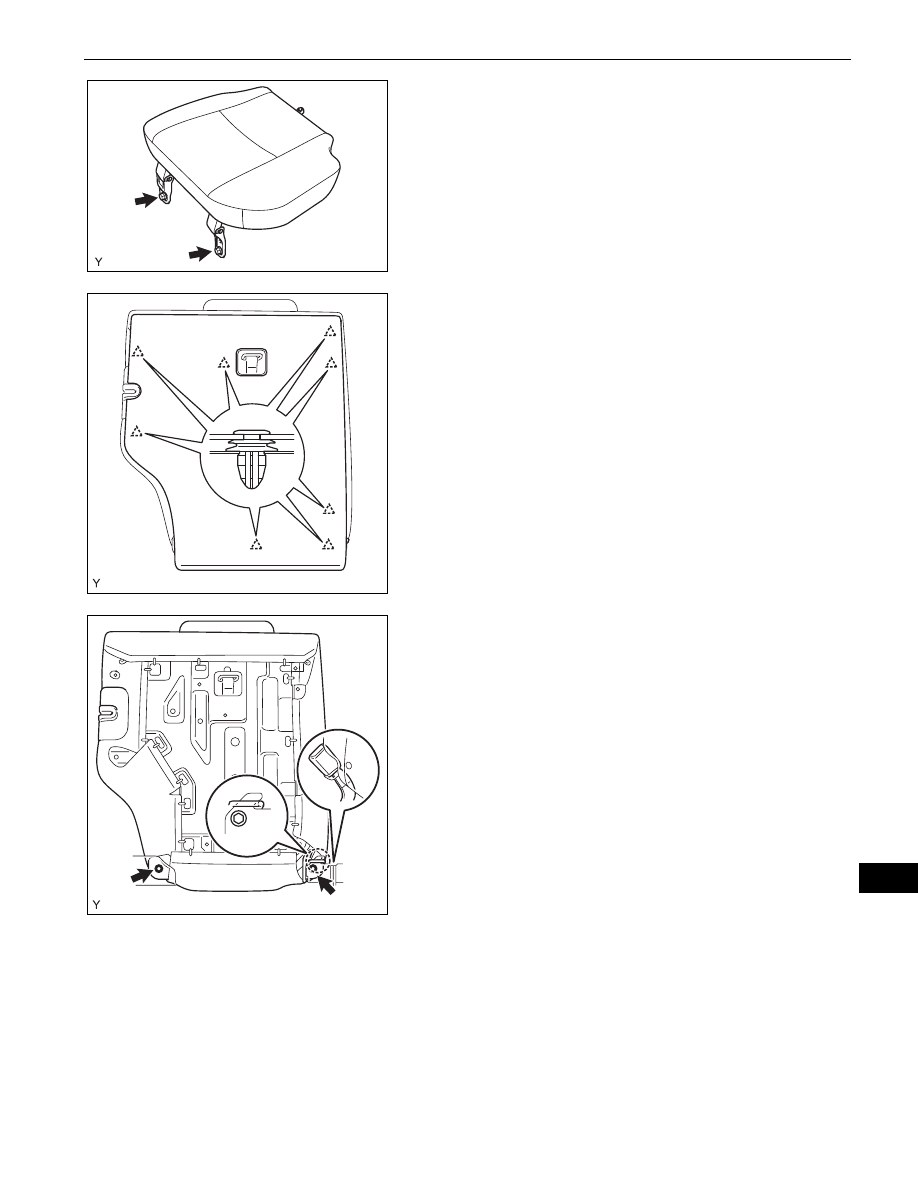

REMOVE REAR SEAT CUSHION ASSEMBLY
(a) Remove the 2 bolts and the rear seat cushion.

2.

REMOVE REAR SEATBACK BOARD CARPET
ASSEMBLY
(a) Pull the rear seatback lock release button and tilt

the rear seatback forward.

(b) Disengage the 8 clips and remove the rear seatback

board carpet.

3.

REMOVE REAR SEATBACK ASSEMBLY
(a) Remove the rear center seat inner belt from the rear

seatback holder.

(b) Remove the 2 bolts.
(c) Disengage the hook and remove the rear seatback.

B130718

B130720

B130721

SE–30

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE

DISASSEMBLY

CAUTION:
Wear protective gloves. Sharp surfaces on the rear seat
cushion frame and the rear seatback frame could cause
injuries to your hands.

1.

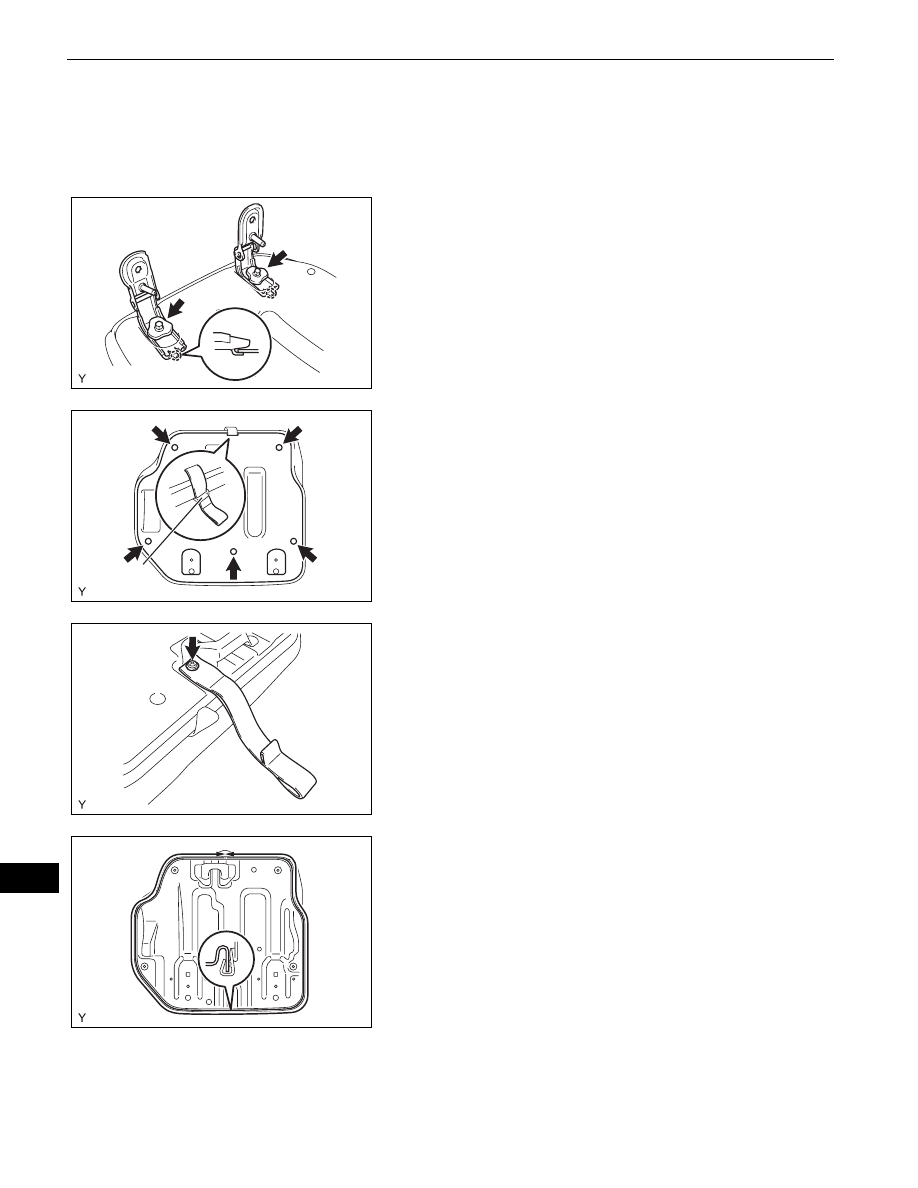

REMOVE REAR SEAT CUSHION HINGE SUB-
ASSEMBLY
HINT:
Use the same procedure for both sides.
(a) Remove the bolt.
(b) Disengage the hook and remove the rear seat

cushion hinge.

2.

REMOVE REAR SEAT CUSHION UNDER COVER
(a) Remove the rear seat cushion stopper from the rear

seat cushion cover band and the slit of the rear seat
cushion under cover.

(b) Using a clip remover, remove the 5 clips and the

rear seat cushion under cover.

3.

REMOVE REAR SEAT CUSHION STOPPER
(a) Remove the screw and the rear seat cushion

stopper.

4.

REMOVE REAR SEAT CUSHION FRAME SUB-
ASSEMBLY
(a) Disengage the hook and remove the rear seat

cushion frame.

B130723

Band

B130724E01

B130725

B130726

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE–31

SE

5.

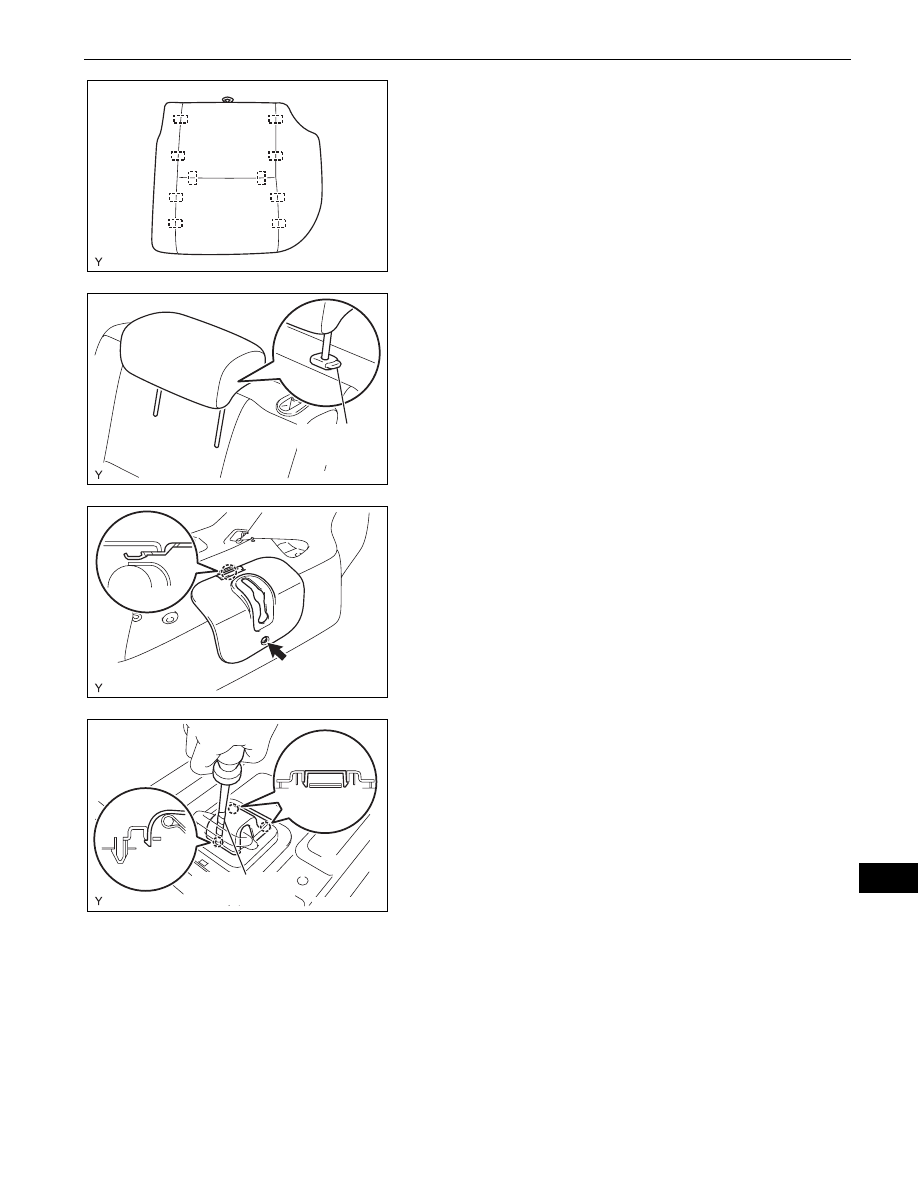

REMOVE REAR SEAT CUSHION COVER
(a) Remove the 10 hog rings and the rear seat cushion

cover.

6.

REMOVE REAR SEAT HEADREST ASSEMBLY
(a) Push the lock button of the rear seat headrest

support and remove the rear seat headrest.

7.

REMOVE REAR SEATBACK LOCK COVER
(a) Remove the screw.
(b) Disengage the claw and remove the rear seat back

lock cover.

8.

REMOVE TETHER ANCHOR COVER
(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 2 claws and open the
cover.

B130727

Lock Button

B130730E01

B130731

Protective Tape

B130732E01

SE–32

SEAT  –  REAR SEAT ASSEMBLY (for LH Side)

SE

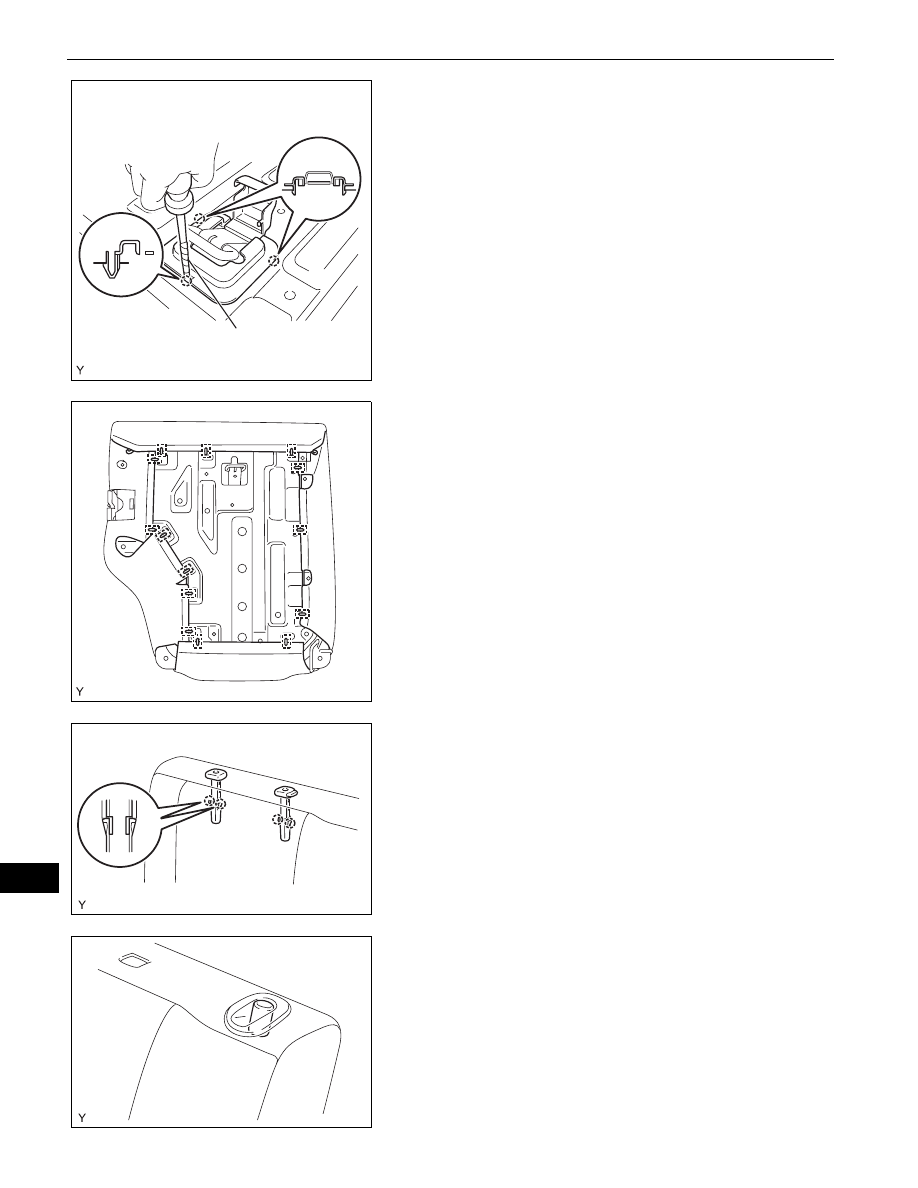

(b) Using a screwdriver with its tip wrapped in

protective tape, disengage the 3 claws and remove
the tether anchor cover.

9.

REMOVE REAR SEAT HEADREST SUPPORT
(a) Remove the 14 hog rings.

(b) Disengage the 2 claws and remove the rear seat

headrest support.
HINT:
Use the same procedure for both sides.

10. REMOVE REAR SEATBACK LOCK RELEASE

BUTTON
(a) Remove the rear seatback lock release button.

Protective Tape

B130734E01

B130736

B130739
