Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 460

SE–22

SEAT  –  FRONT SEAT ASSEMBLY

SE

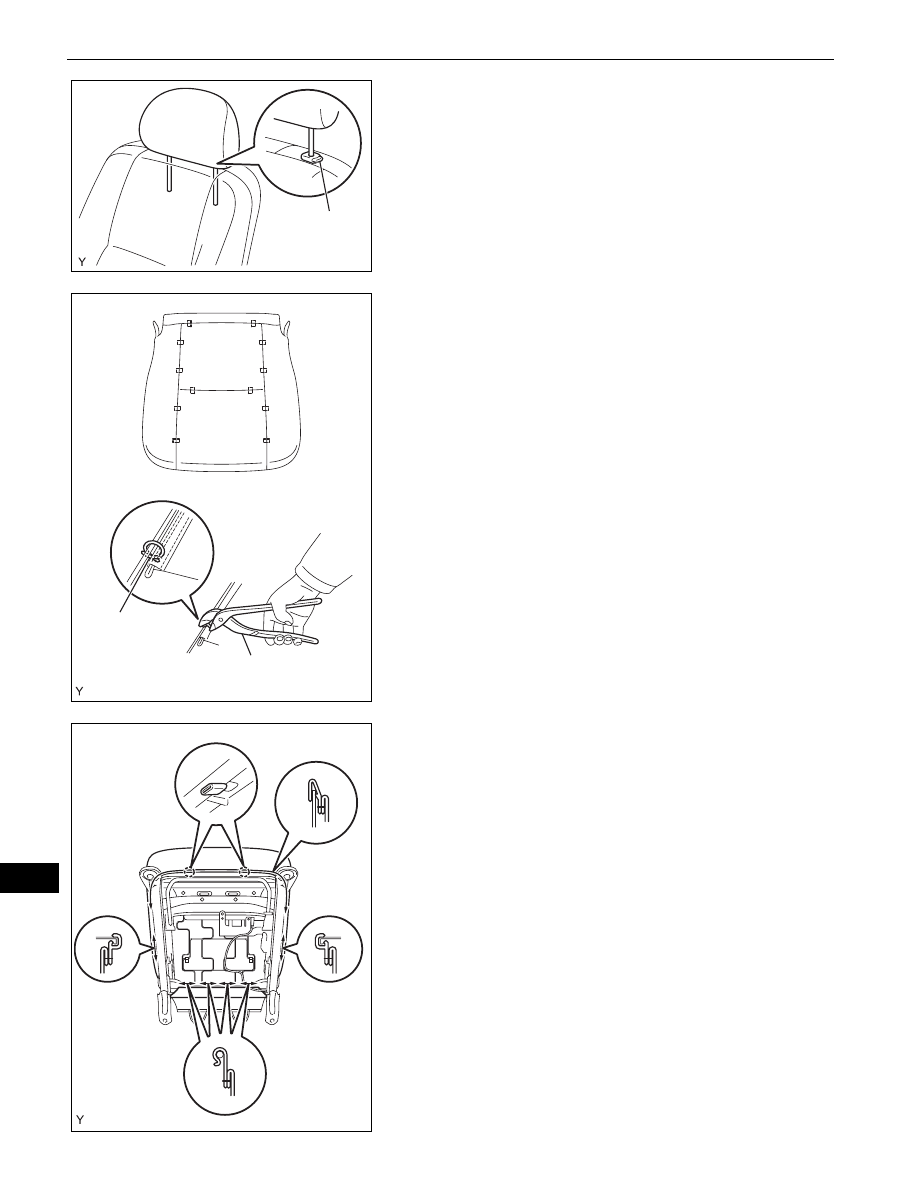

18. INSTALL FRONT SEAT HEADREST ASSEMBLY

(a) Push in the lock button of the front seat headrest

support and install the front seat headrest.

19. INSTALL FRONT SEAT CUSHION COVER

(a) Using hog ring pliers, install the front seat cushion

cover with 12 new hog rings.
NOTICE:
•

Do not soil or scratch the front seat cushion
cover.

•

When installing the hog rings, minimize
wrinkles as far as possible.

20. INSTALL FRONT SEAT CUSHION ASSEMBLY

(a) Engage the 2 claws and the 7 hooks and install the

front seat cushion.

Lock Button

B130684E01

New Hog Ring

Hog Ring Pliers

B130683E01

B130681

SEAT  –  FRONT SEAT ASSEMBLY

SE–23

SE

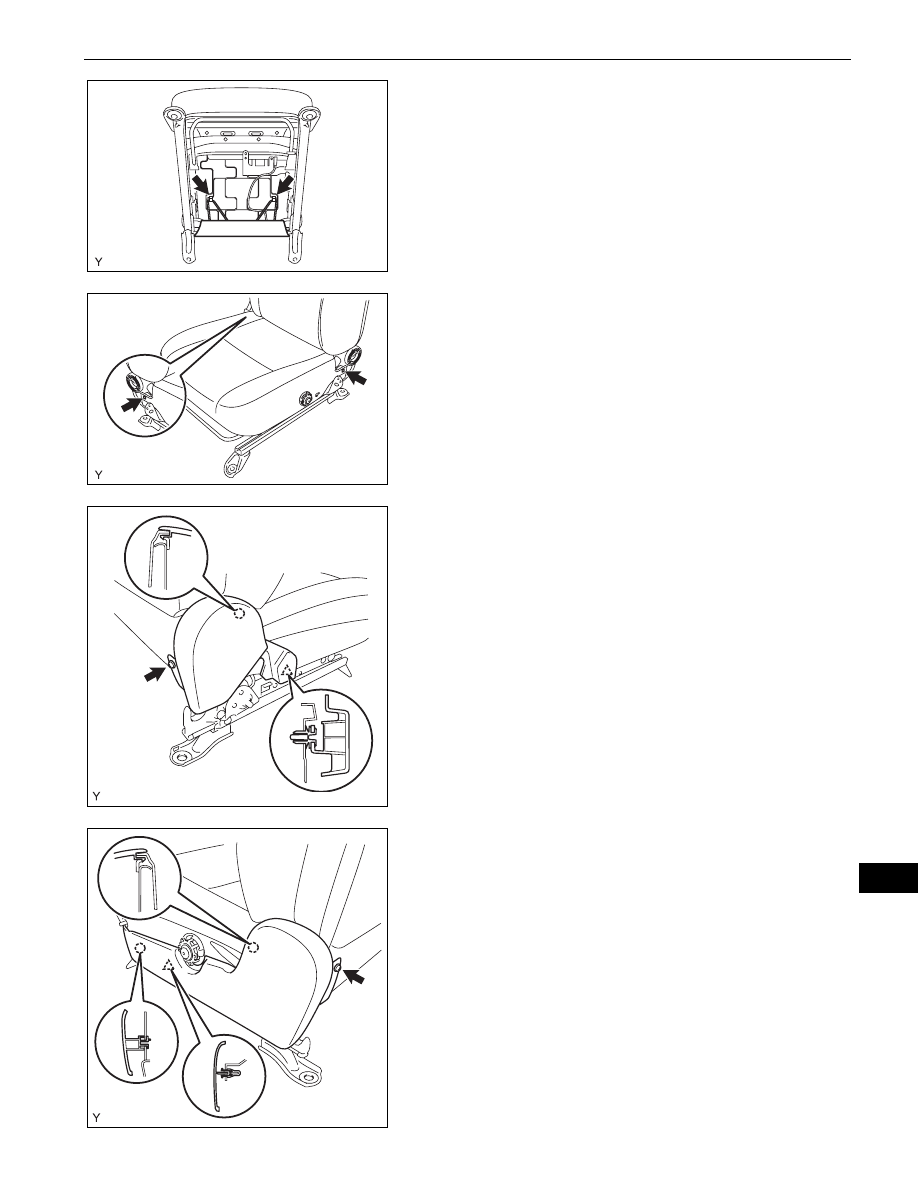

(b) Install the 2 front seatback cover bands.

(c) Install the 2 clips.

21. INSTALL FRONT SEAT CUSHION INNER SHIELD

(a) Engage the claw and the clip and install the front

seat cushion inner shield.

(b) Tighten the screw.

22. INSTALL FRONT SEAT INNER BELT ASSEMBLY (See

page

SB-32

)

23. INSTALL FRONT SEAT CUSHION OUTSIDE SHIELD

(a) Engage the 2 claws and the clip and install the front

seat cushion outside shield.

(b) Tighten the screw.

B130680

B130701

B130678

B130676

SE–24

SEAT  –  FRONT SEAT ASSEMBLY

SE

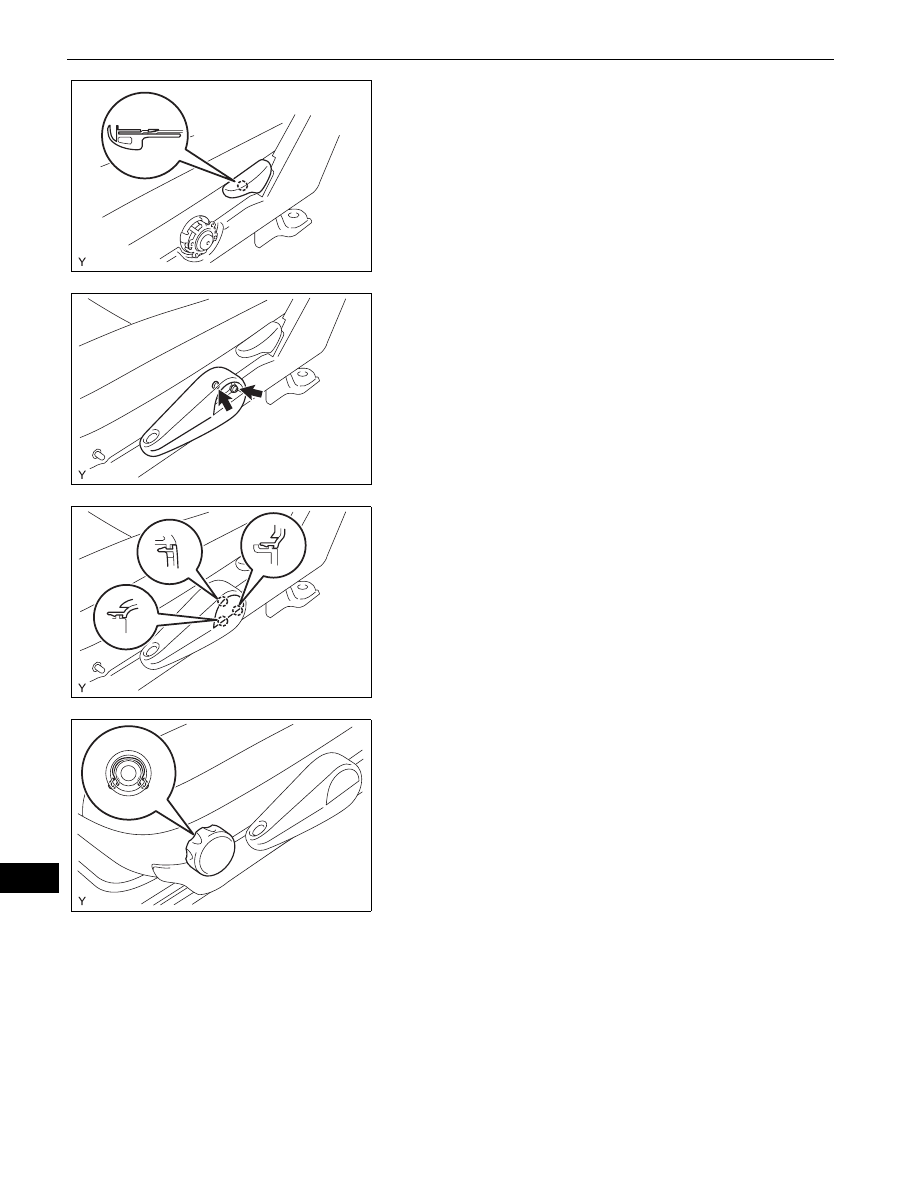

24. INSTALL RECLINING ADJUSTER RELEASE HANDLE

(a) Engage the claw and install the reclining adjuster

release handle.

25. INSTALL VERTICAL SEAT ADJUSTER HANDLE (for

Driver Side)
(a) Install the vertical seat adjuster handle with the 2

screws.

26. INSTALL VERTICAL SEAT ADJUSTER HANDLE

COVER (for Driver Side)
(a) Engage the 3 claws and install the vertical seat

adjuster handle cover.

27. INSTALL VERTICAL SEAT ADJUSTER KNOB (for

Driver Side)
(a) Engage the snap ring and install the vertical seat

adjuster knob.

B130674

B130672

B130671

B130669

SEAT  –  FRONT SEAT ASSEMBLY

SE–25

SE

INSTALLATION

HINT:
The procedure described below is for the driver side. Use the
same procedure for both the driver and front passenger
sides, unless otherwise specified.

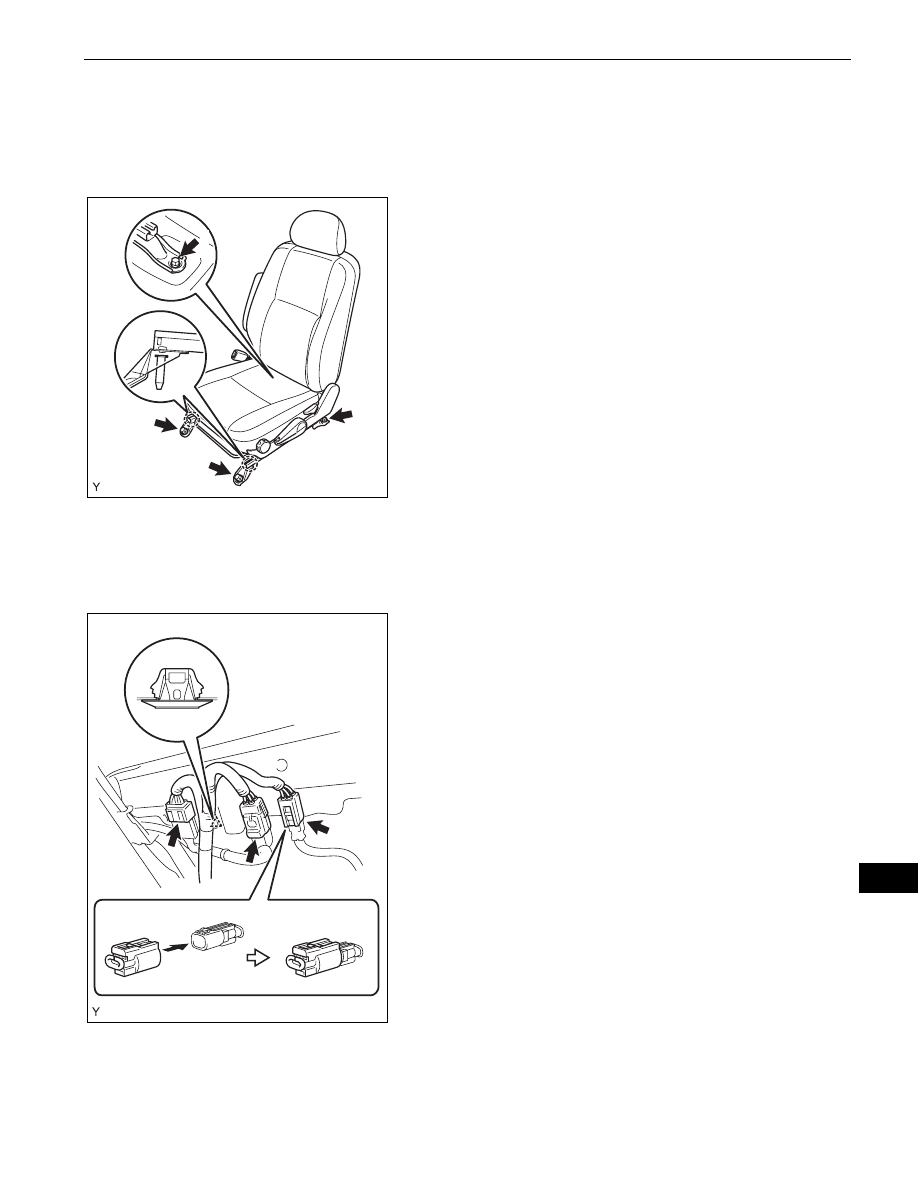

1.

INSTALL FRONT SEAT ASSEMBLY
NOTICE:
Follow the procedure described below in order to
prevent the seat tracks from locking separately.
(a) Insert the 2 locating pins through the 2 body holes,

place the front seat in the most rearward position
and make sure that the inner and outer seat tracks
are locked securely.

(b) Tighten bolt 1 and then bolt 2 onto the front side.

Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

(c) Move the front seat to the most forward position,

and then make sure that the inner and outer seat
tracks are locked securely.

(d) Tighten bolt 3 and then bolt 4 onto the rear side.

Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

(e) Make sure that the inner and outer seat tracks lock

simultaneously after the seat is moved.
HINT:
If the inner and outer seat tracks do not lock
simultaneously, loosen the bolts and adjust the seat
tracks.

(f)

for Driver Side:
(1) Connect the 2 buckle switch connectors.
(2) w/ Front Seat Side Airbag:

1. Connect the airbag connector.

(3) Install the clamp.

1

2

4

3

B130666E01

B135118
