Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 433

SEAT BELT  –  FRONT PASSENGER SEAT BELT WARNING LIGHT

SB–1

SB

RESTRAINTS

SEAT BELT

FRONT PASSENGER SEAT BELT WARNING LIGHT

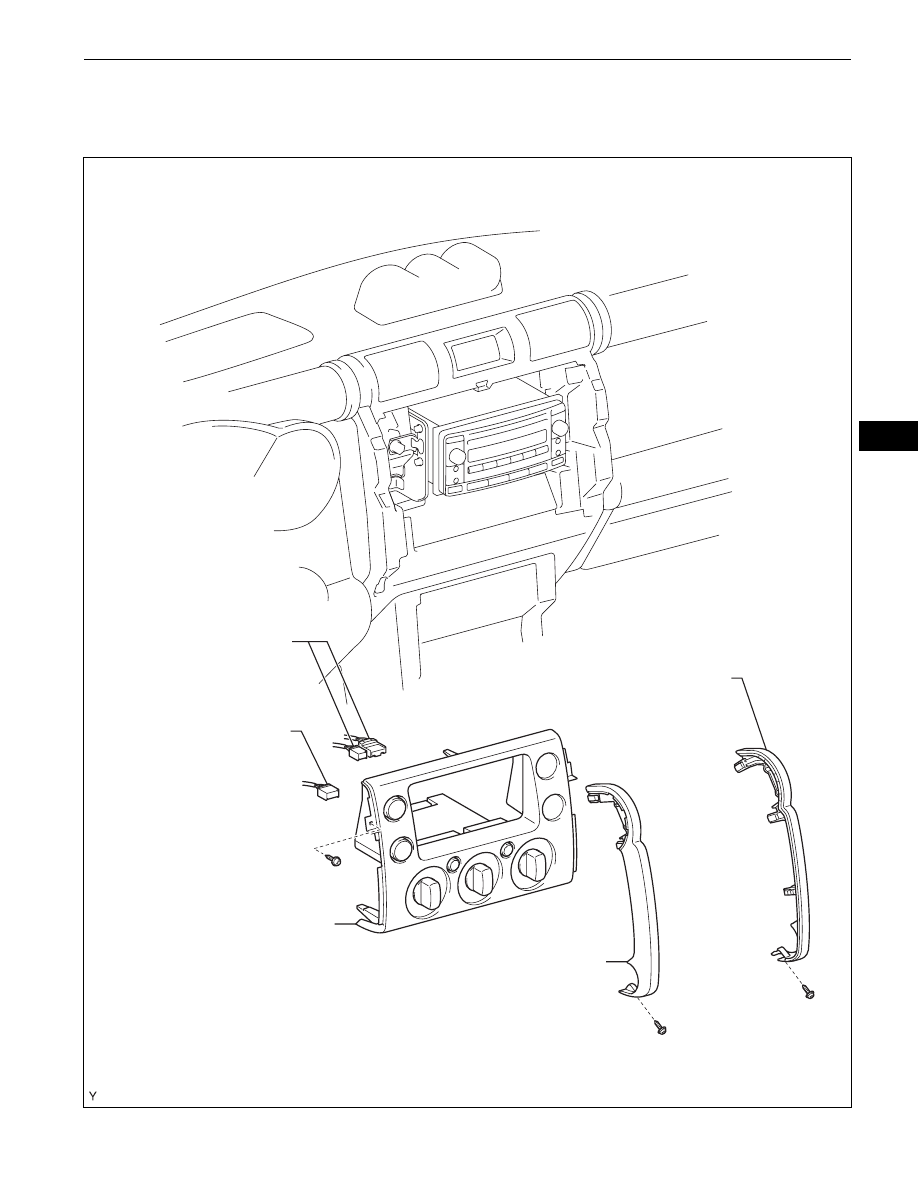

COMPONENTS

INTEGRATION CONTROL
PANEL ASSEMBLY
(Built-in Front Passenger
Seat Belt Warning Light)

INSTRUMENT PANEL
GARNISH LH

INSTRUMENT PANEL
GARNISH RH

x2

AIR CONDITIONER
AMPLIFIER CONNECTOR

BLOWER SWITCH
CONNECTOR

B138487E01

SB–2

SEAT BELT  –  FRONT PASSENGER SEAT BELT WARNING LIGHT

SB

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE INSTRUMENT PANEL GARNISH RH (See
page

IP-10

)

3.

REMOVE INSTRUMENT PANEL GARNISH LH (See
page

IP-10

)

4.

REMOVE INTEGRATION CONTROL PANEL
ASSEMBLY (Built-in Front Passenger Seat Belt
Warning Light)
(a) Remove the 2 screws.
(b) Disengage the 4 clips and remove the front

passenger seat belt warning light.

(c) Disconnect the 2 air conditioner amplifier

connectors and the blower switch connector.

INSPECTION

1.

INSPECT INTEGRATION CONTROL PANEL
ASSEMBLY (Built-in Front Passenger Seat Belt
Warning Light)
(a) Check the operation.

(1) Apply battery voltage to the terminals and

check that the indicator illuminates.
Standard

If the result is not as specified, replace the
integration control panel..

B138488

Battery

B138380E01

Condition

Standard

Positive battery - Terminal 1 (lG+)

Negative battery - Terminal 16 (PBEW) and 20 (GND)

Illuminates

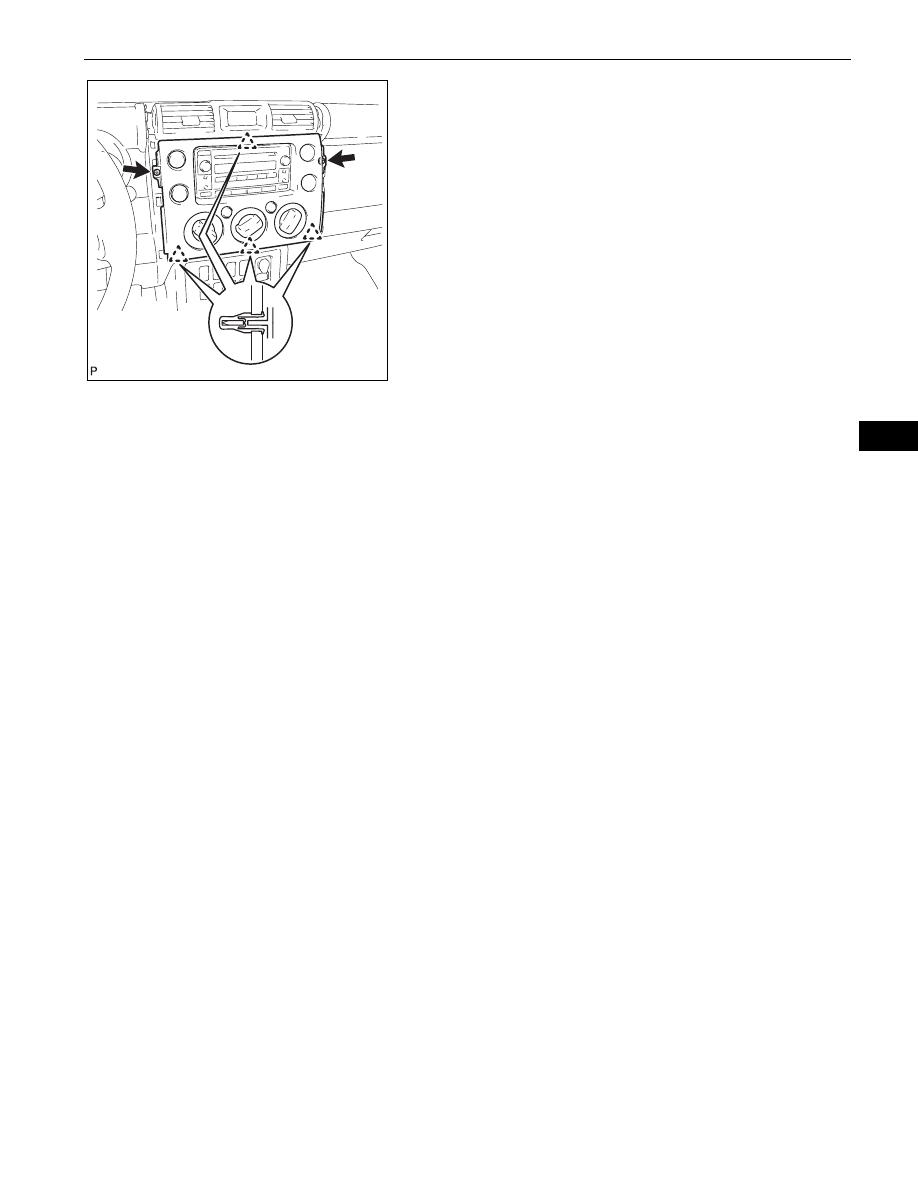

SEAT BELT  –  FRONT PASSENGER SEAT BELT WARNING LIGHT

SB–3

SB

INSTALLATION

1.

INSTALL INTEGRATION CONTROL PANEL
ASSEMBLY (Built-in Front Passenger Seat Belt
Warning Light)
(a) Connect the blower switch connector and the 2 air

conditioner amplifier connectors.

(b) Engage the 4 clips and install the front passenger

seat belt warning light.

(c) Tighten the 2 screws.

2.

INSTALL INSTRUMENT PANEL GARNISH RH (See
page

IP-33

)

3.

INSTALL INSTRUMENT PANEL GARNISH LH (See
page

IP-33

)

4.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B138488

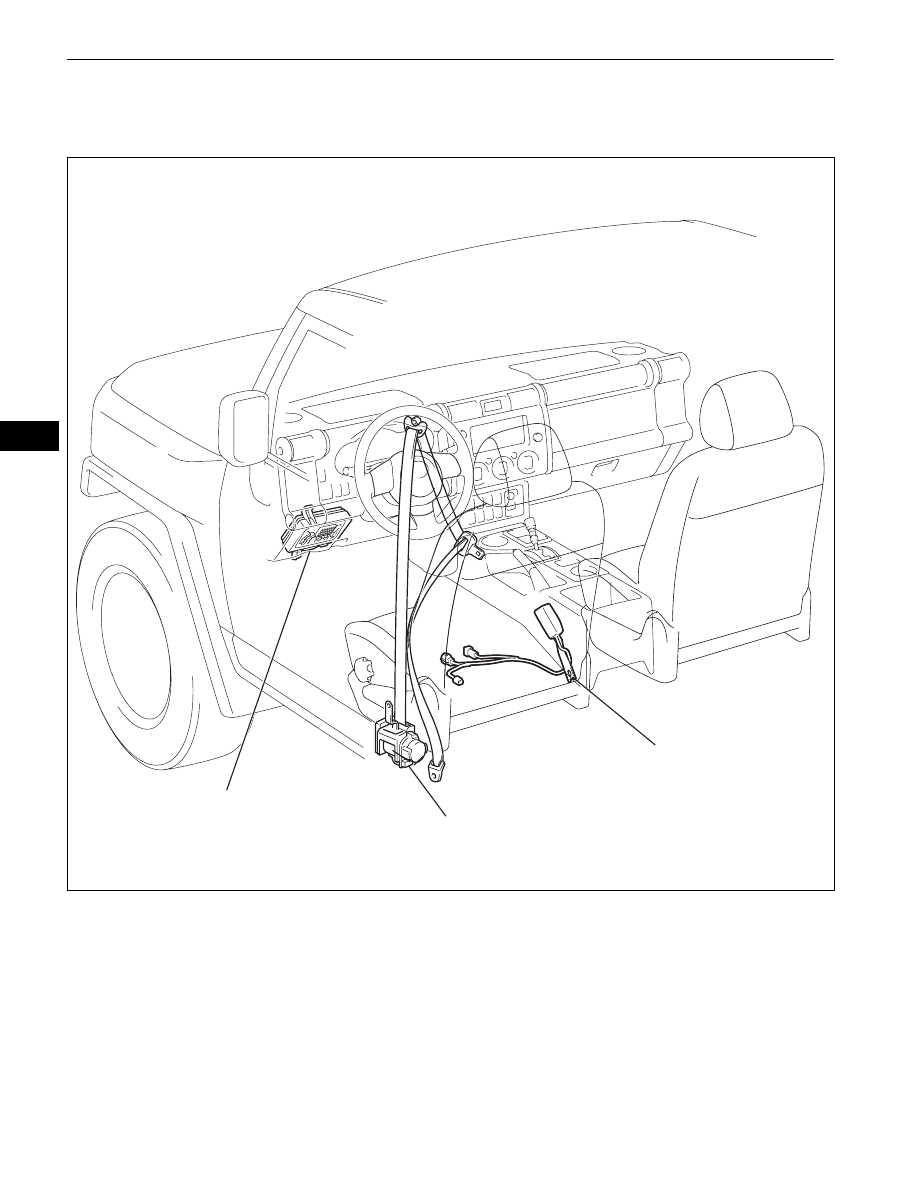

SB–4

SEAT BELT  –  SEAT BELT TENSION REDUCER

SB

RESTRAINTS

SEAT BELT

SEAT BELT TENSION REDUCER

PARTS LOCATION

MAIN BODY ECU
(INSTRUMENT PANEL JUNCTION BLOCK)

FRONT SEAT INNER
BELT ASSEMBLY LH

FRONT SEAT OUTER
BELT ASSEMBLY LH

C138611E01
