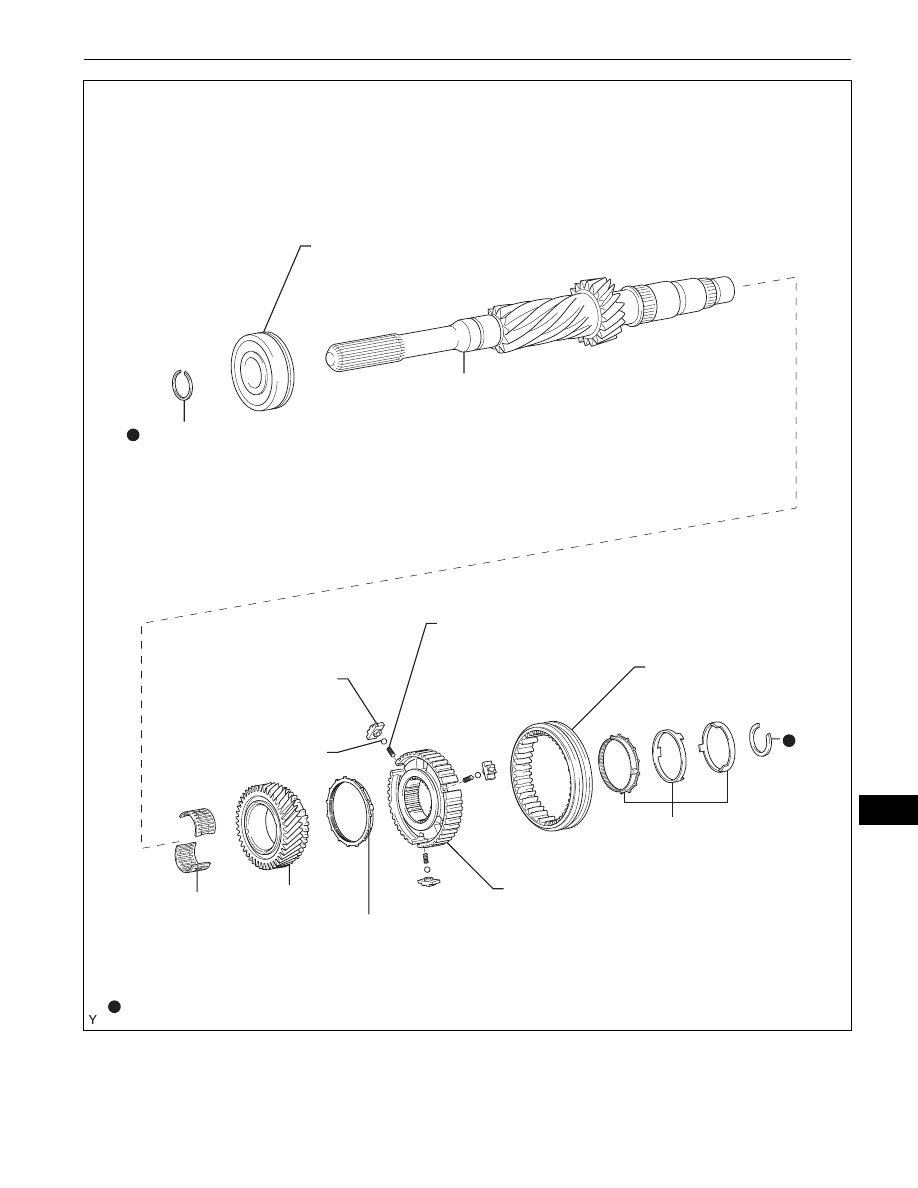

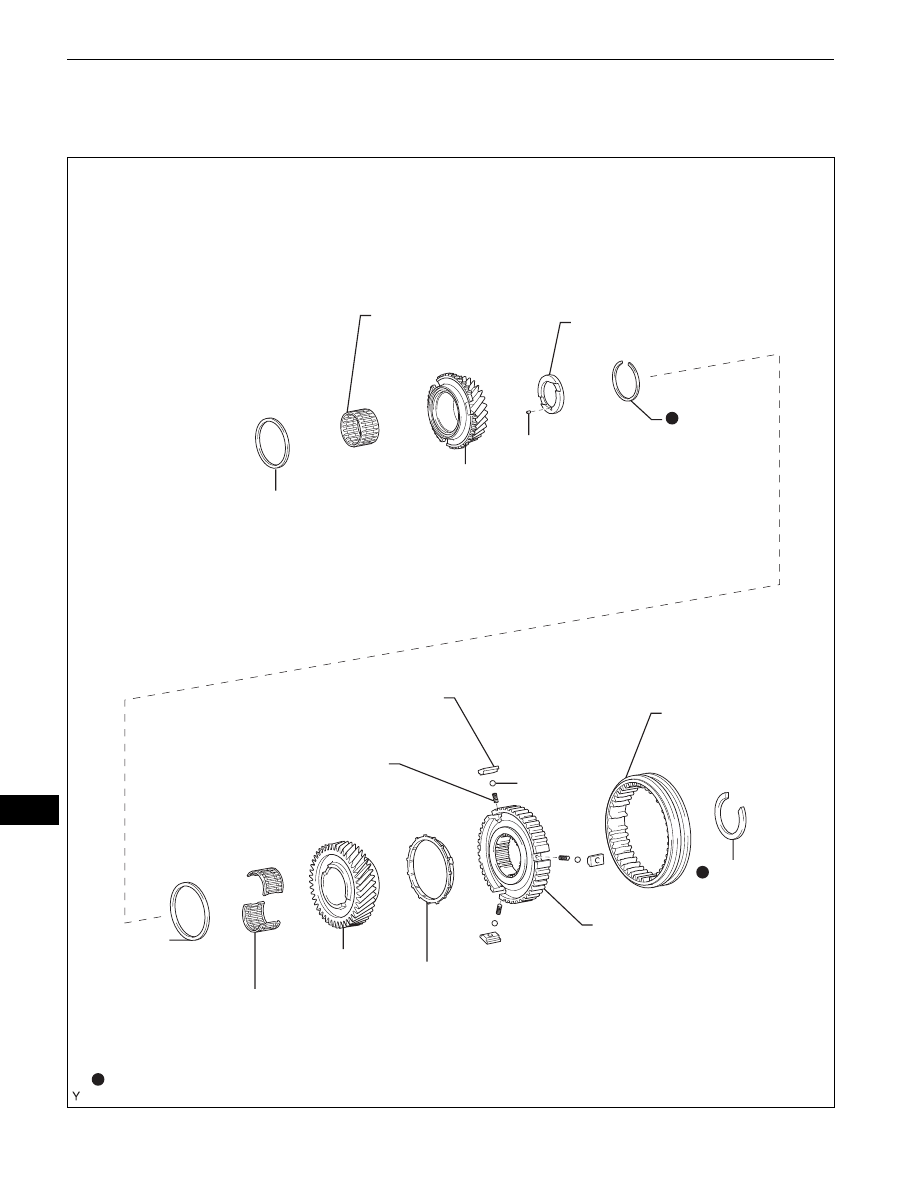

RA61F MANUAL TRANSMISSION – MANUAL TRANSMISSION UNIT
MT

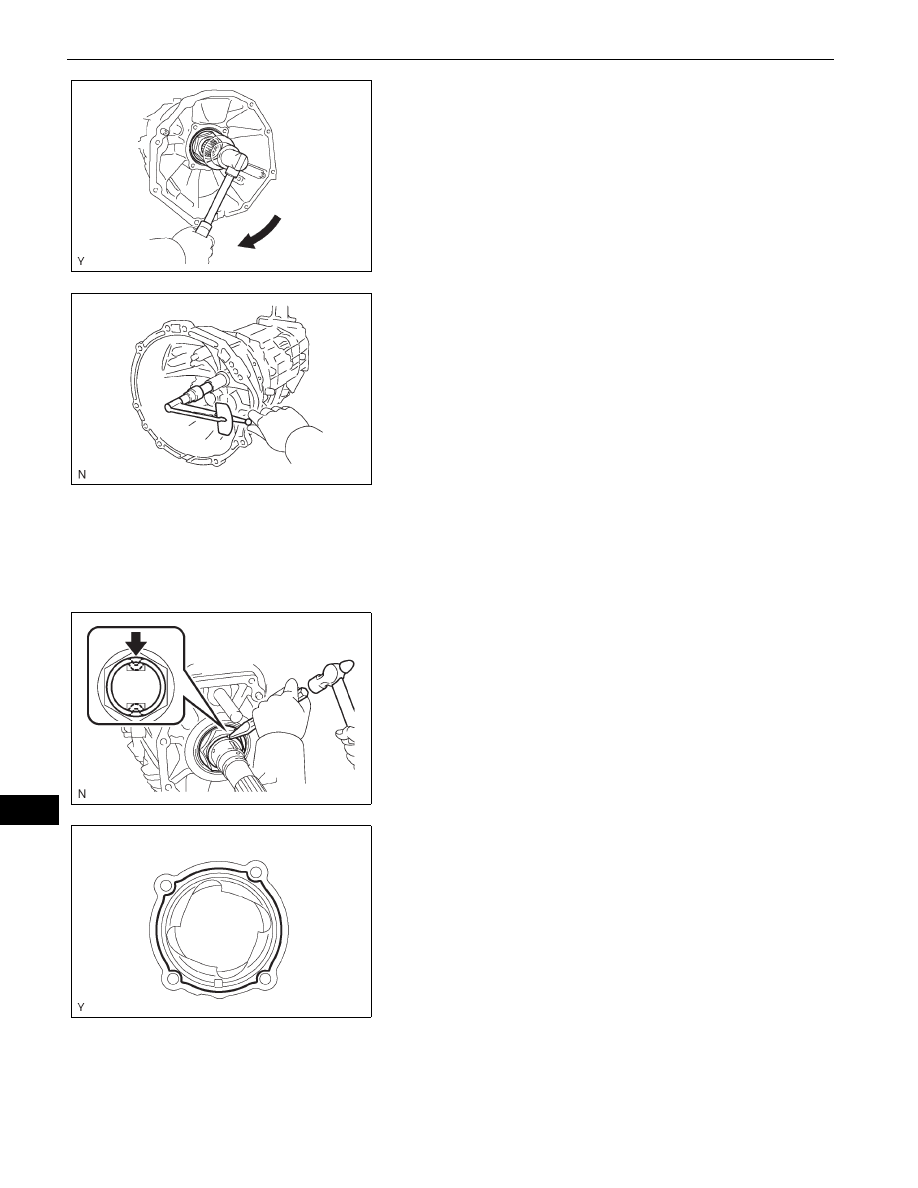

(c) Using a socket wrench (60 mm), provisionally
tighten a new nut until there is no slack in the output
shaft.
HINT:
No preload should be applied to the nut.
(d) Fit the bearing into the output shaft by turning the
output shaft 15 times.
(e) Place the gearshift into 5th gear and check the initial
torque of the input shaft.
(f)
Using a socket wrench (60 mm), tighten the nut.
(g) Place the gearshift into 5th gear and check the initial
torque of the input shaft.
(h) Confirm that the difference between (e) and (g) is
within the specified values.
Preload (at starting):
0.45 to 1.35 N*m (4.59 to 13.77 kgf*cm, 3.98 to
11.95 in.*lbf)
If the result is not as specified, tighten and adjust
the output shaft adjusting nut.
NOTICE:
If the output shaft adjusting nut is loose or
removed due to a large preload, always replace
the spacer with a new one.
(i)
Using a chisel and hammer, caulk the output shaft
adjust nut.
33. INSTALL MANUAL TRANSMISSION CASE COVER
SUB-ASSEMBLY

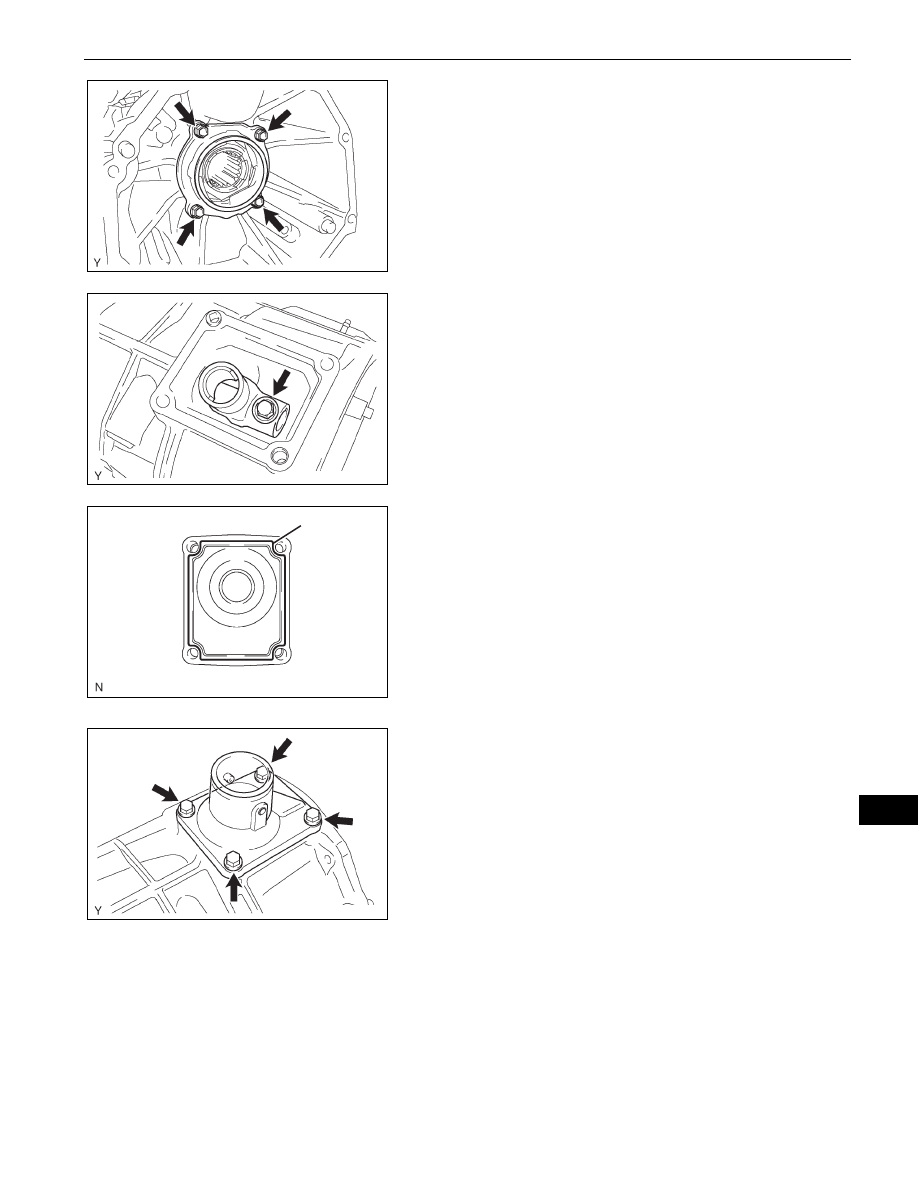

(a) Apply FIPG to the transmission case cover, as
shown in the illustration.
FIPG:
Toyota Genuine Seal Packing 1281, Three
Bond 1281 or Equivalent
NOTICE:
Parts must be assembled within 10 minutes of
the application. Otherwise, the packing (FIPG)
material must be removed and reapplied.
F051841
D033759
D033734
F051645
