MT–42

RA61F MANUAL TRANSMISSION  –  INPUT SHAFT

MT

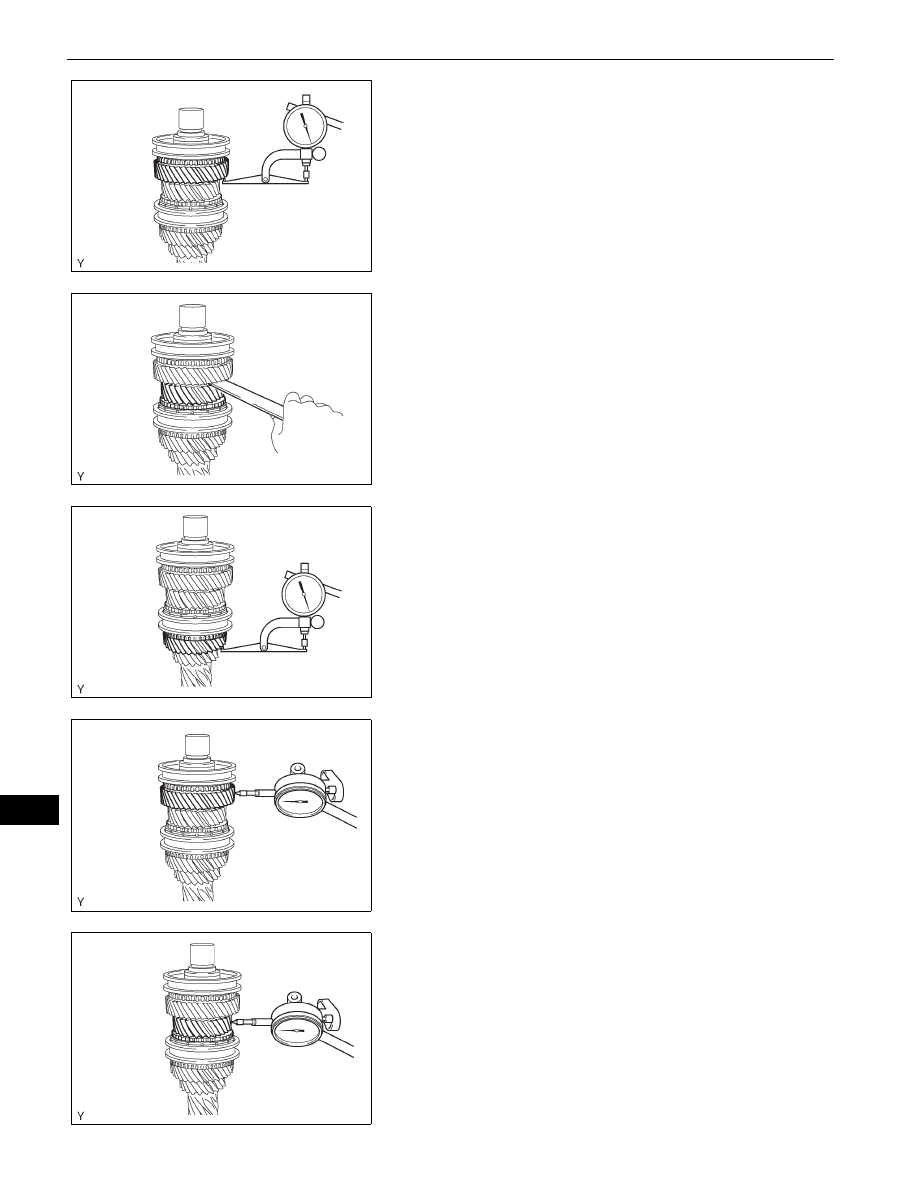

DISASSEMBLY

1.

INSPECT 6TH GEAR THRUST CLEARANCE
(a) Using a dial indicator, measure the 6th gear thrust

clearance.
Standard clearance:

0.20 to 0.49 mm (0.0079 to 0.0193 in.)

If the clearance is outside the specification, replace
the defective gear, spacer or shaft.

2.

INSPECT 3RD GEAR THRUST CLEARANCE
(a) Using a feeler gauge, measure the 3rd gear thrust

clearance.
Standard clearance:

0.09 to 0.52 mm (0.0035 to 0.0205 in.)

If the clearance is outside the specification, replace
the defective gear, thrust washer, clutch hub or
shaft.

3.

INSPECT 4TH GEAR THRUST CLEARANCE
(a) Using a dial indicator, measure the 4th gear thrust

clearance.
Standard clearance:

0.12 to 0.38 mm (0.0047 to 0.0150 in.)

If the clearance is outside the specification, replace
the defective gear, clutch hub or shaft.

4.

INSPECT 6TH GEAR RADIAL CLEARANCE
(a) Using a dial indicator, measure the 6th gear radial

clearance.
Standard clearance:

0.015 to 0.065 mm (0.0006 to 0.0026 in.)

If the clearance is outside the specification, replace
the defective gear, needle roller bearing or shaft.

5.

INSPECT 3RD GEAR RADIAL CLEARANCE
(a) Using a dial indicator, measure the 3rd gear radial

clearance.
Standard clearance:

0.015 to 0.067 mm (0.0006 to 0.0026 in.)

If the clearance is outside the specification, replace
the defective gear, needle roller bearing or shaft.

F051109E01

F051110E01

F051111E01

F051106E01

F051107E01

RA61F MANUAL TRANSMISSION  –  INPUT SHAFT

MT–43

MT

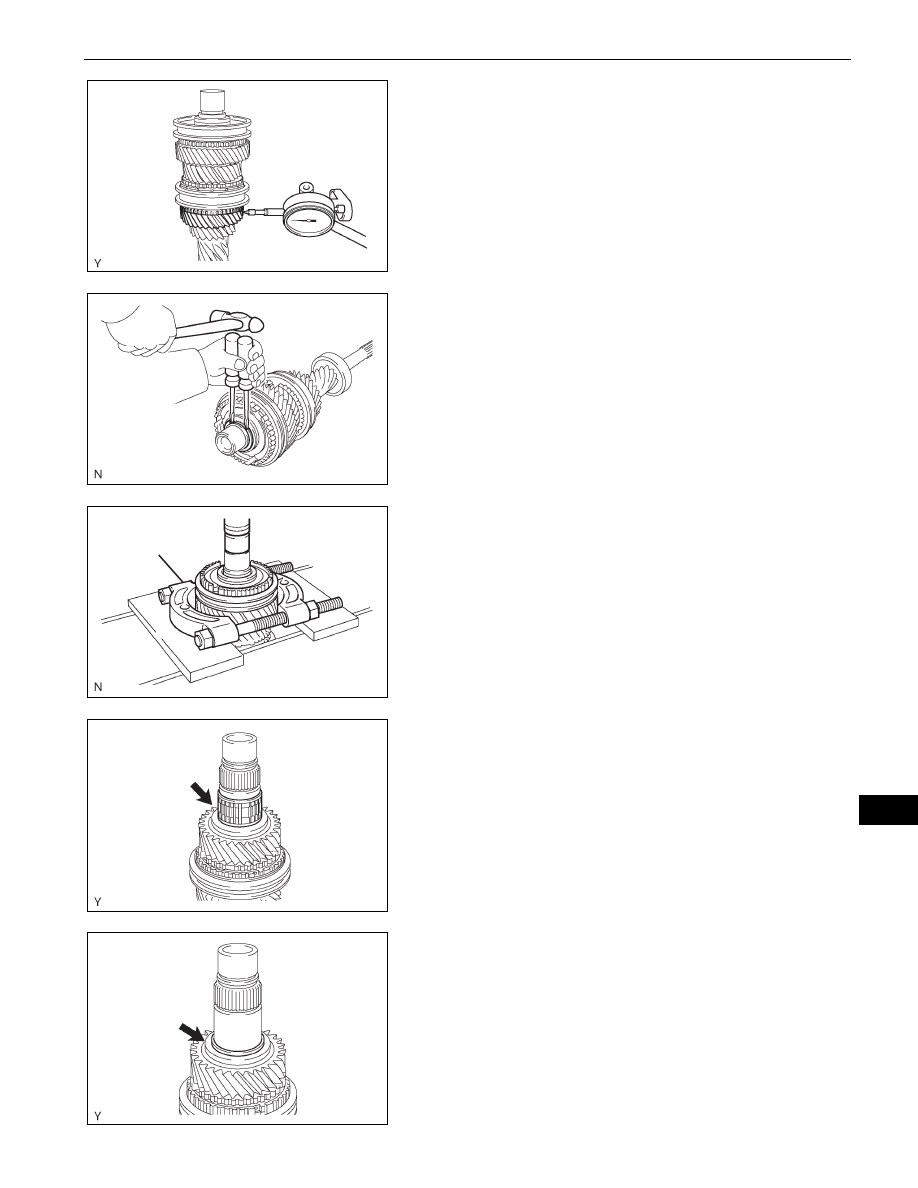

6.

INSPECT 4TH GEAR RADIAL CLEARANCE
(a) Using a dial indicator, measure the 4th gear radial

clearance.
Standard clearance:

0.015 to 0.067 mm (0.0006 to 0.0026 in.)

If the clearance is outside the specification, replace
the defective gear, needle roller bearing or shaft.

7.

REMOVE TRANSMISSION CLUTCH HUB NO.3
SHAFT SNAP RING
(a) Using 2 screwdrivers and a hammer, tap out the

snap ring.
HINT:
Use a shop rag or a piece of cloth to prevent the
snap ring from flying off.

8.

REMOVE 6TH GEAR
(a) Using SST and a press, remove transmission clutch

hub No. 3, the hub sleeve, synchronizer ring and 6th
gear from the input shaft.
SST

09950-00020, 09950-70010 (09951-07200),
09950-60010 (09951-00300)

NOTICE:
•

Do not tighten SST excessively.

•

Support the input shaft by hand so that it
does not fall off.

9.

REMOVE 6TH GEAR NEEDLE ROLLER BEARING
(a) Remove the 6th gear needle roller bearing from the

input shaft.

10. REMOVE SPACER

(a) Remove the spacer from the input shaft.

F051108E01

D033652E01

SST

D033653E01

F051087E01

F051088E01

MT–44

RA61F MANUAL TRANSMISSION  –  INPUT SHAFT

MT

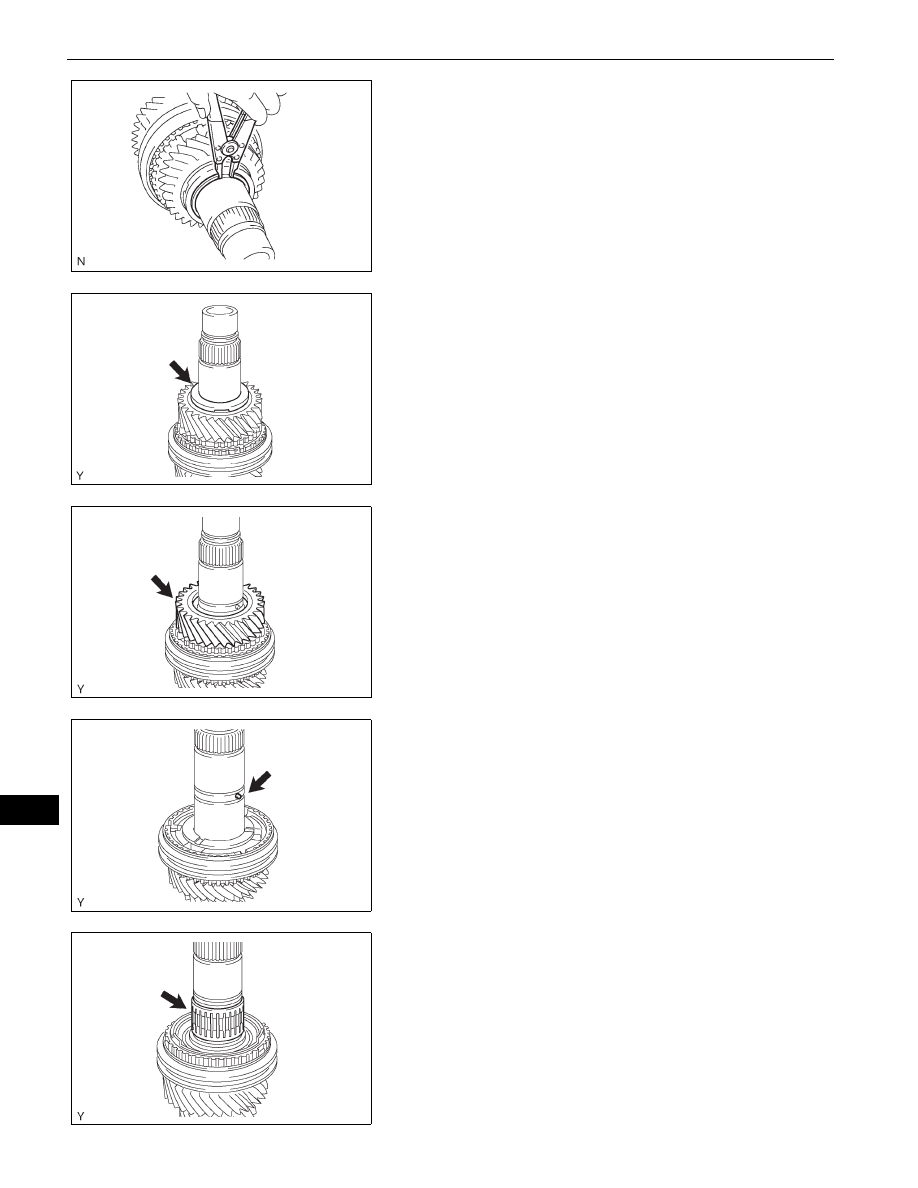

11. REMOVE GEAR THRUST WASHER SHAFT SNAP

RING
(a) Using a snap ring expander, remove the snap ring

from the input shaft.

12. REMOVE 3RD GEAR THRUST WASHER

(a) Remove the 3rd gear thrust washer from the input

shaft.

13. REMOVE 3RD GEAR

(a) Remove the 3rd gear from the input shaft.

14. REMOVE STRAIGHT PIN

(a) Remove the straight pin from the input shaft.

15. REMOVE 3RD GEAR NEEDLE ROLLER BEARING

(a) Remove the 3rd gear needle roller bearing from the

input shaft.

D033654E01

F051090E01

F051091E01

F051092E01

F051093E01

RA61F MANUAL TRANSMISSION  –  INPUT SHAFT

MT–45

MT

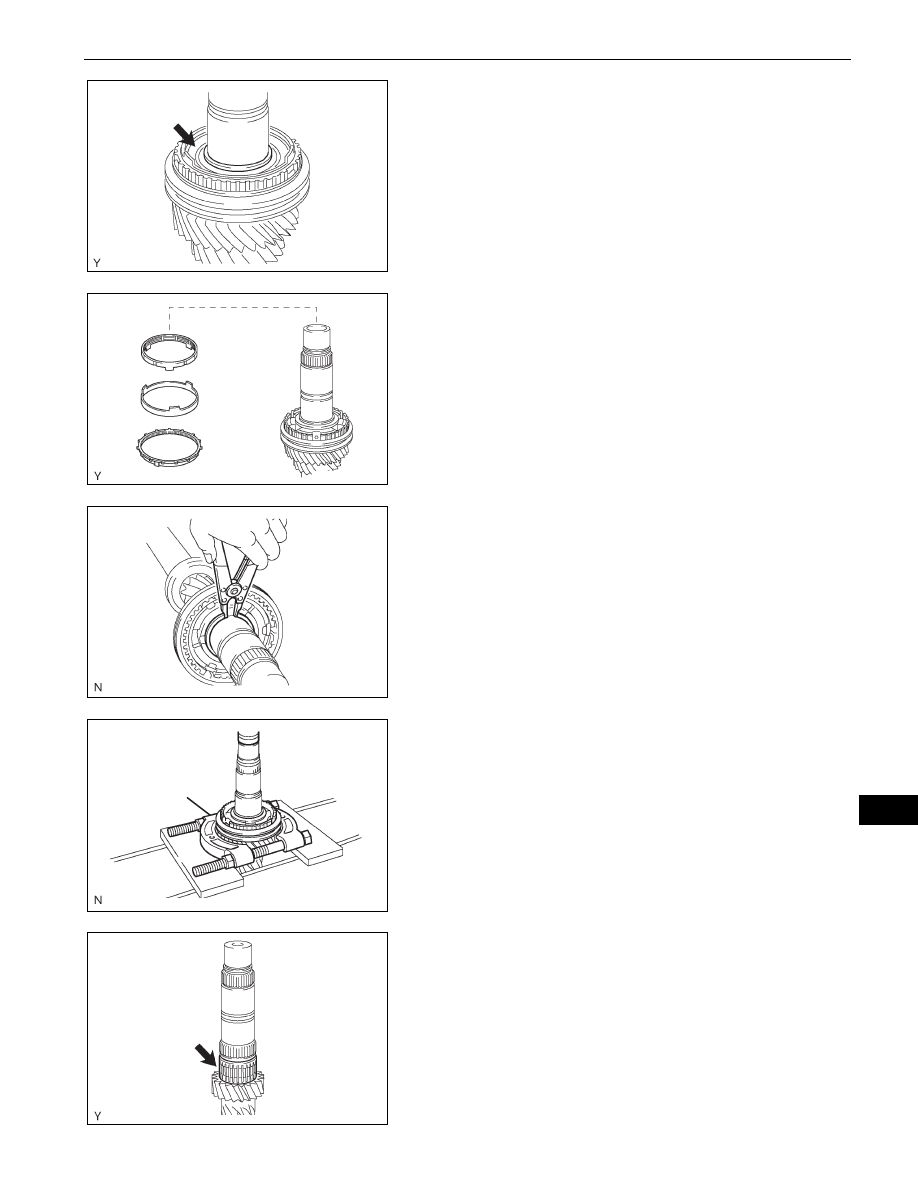

16. REMOVE  SPACER

(a) Remove the spacer from the input shaft.

17. REMOVE NO. 2 SYNCHRONIZER RING SET

(a) Remove the No. 2 synchronizer ring set from the

input shaft.

18. REMOVE CLUTCH HUB NO.2 SETTING SHAFT SNAP

RING
(a) Using a snap ring expander, remove the snap ring

from the input shaft.

19. REMOVE 4TH GEAR

(a) Using SST and a press, remove transmission clutch

hub No. 2, the hub sleeve, synchronizer ring and 4th
gear from the input shaft.
SST

09950-00020

NOTICE:
Support the input shaft by hand so that it does
not fall off.

20. REMOVE 4TH GEAR NEEDLE ROLLER BEARING

(a) Remove the 4th gear needle roller bearing from the

input shaft.

F051094E01

F051095E01

D033657E01

SST

D033658E01

F051098E01
