RA61F MANUAL TRANSMISSION  –  MANUAL TRANSMISSION UNIT

MT

REASSEMBLY

1.

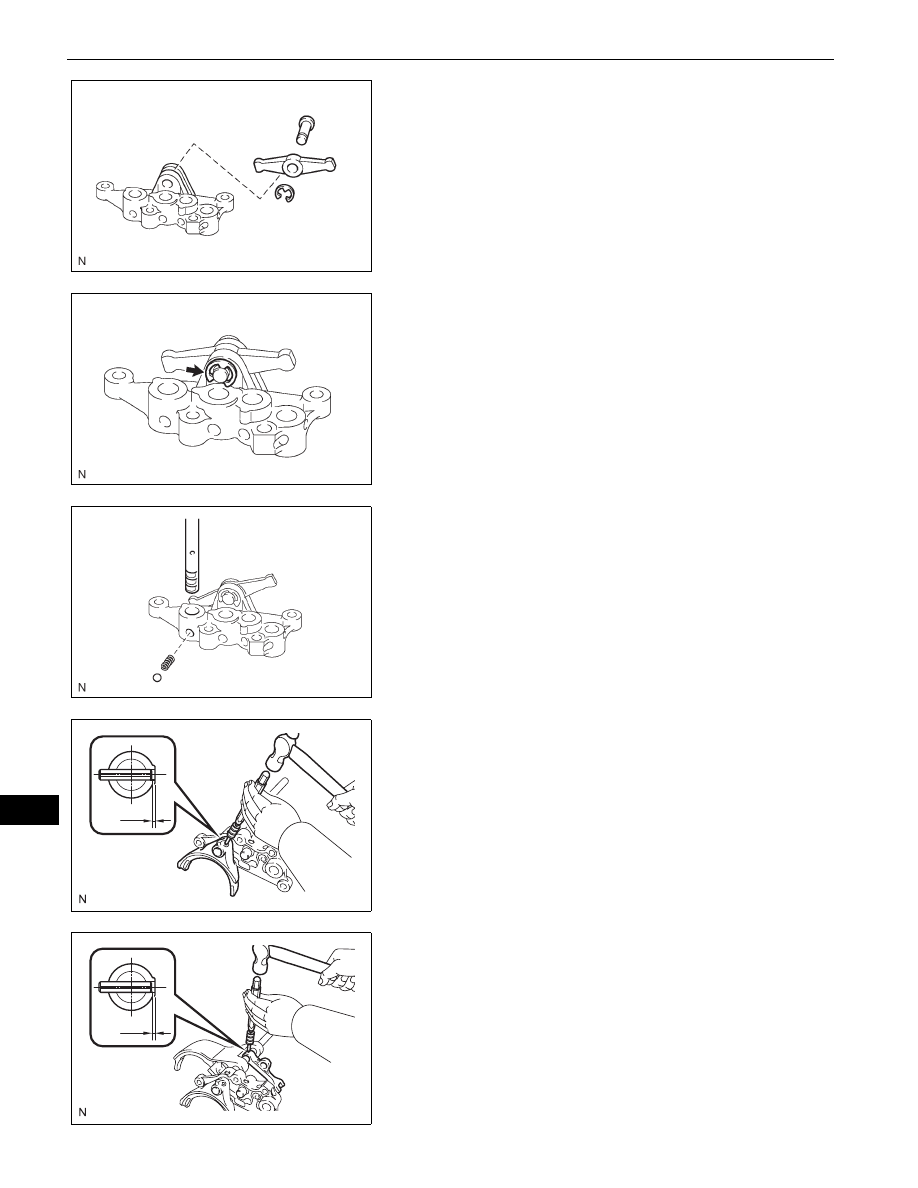

INSTALL 1ST AND REVERSE SHIFT ARM
(a) Install the shift arm and shift arm pivot onto the

interlock bracket.

(b) Install a new E-ring onto the shift arm pivot.

2.

INSTALL NO. 4 GEAR SHIFT FORK SHAFT
(a) Install the spring and ball onto the interlock bracket.
(b) Install the No. 4 shift fork shaft.

3.

INSTALL NO. 4 GEAR SHIFT FORK
(a) Install the No. 4 shift fork onto the No. 4 shift fork

shaft .

(b) Using a pin punch (5 mm (0.20 in.)) and hammer,

tap a new slotted pin into the No. 4 shaft fork and
No. 4 shift fork shaft.
Drive in depth:

0 to 0.5 mm (0 to 0.050 in.)

4.

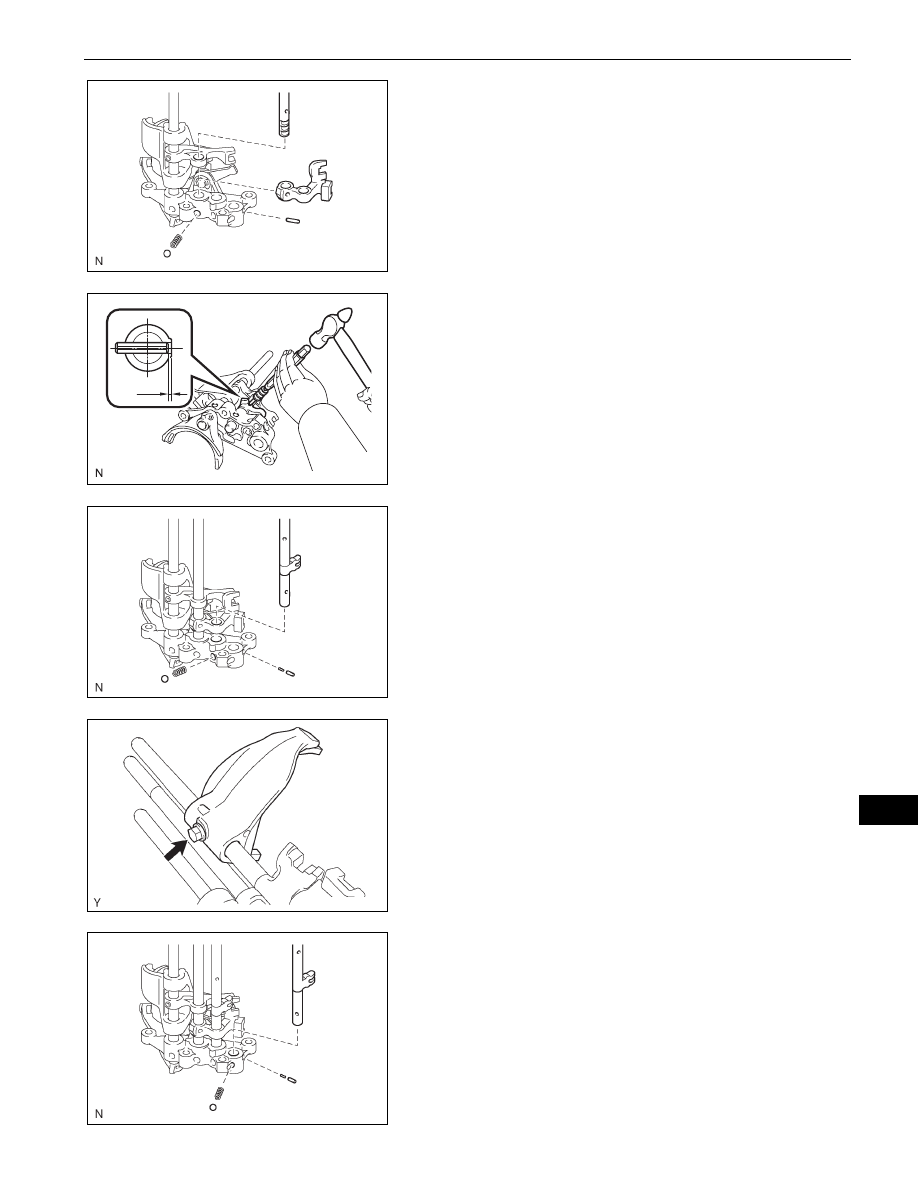

INSTALL NO. 1 GEAR SHIFT FORK
(a) Install the No. 1 shift fork and No. 2 shift head onto

the No. 4 shift fork shaft.

(b) Using a pin punch (5 mm (0.20 in.)) and hammer,

tap a new slotted pin into the No. 2 shaft head and
No. 4 shift fork shaft.
Drive in depth:

0 to 0.5 mm (0 to 0.050 in.)

D033725

D033724

D033723

C136398

C136399

RA61F MANUAL TRANSMISSION  –  MANUAL TRANSMISSION UNIT

MT–31

MT

5.

INSTALL NO. 1 GEAR SHIFT FORK SHAFT
(a) Apply MP grease to the No. 1 interlock pin and

install it into the interlock bracket.

(b) Install the spring and ball into the interlock bracket.
(c) Install the No. 1 shift fork shaft onto the interlock

bracket.
HINT:
Place the No. 4 shift fork shaft in the neutral
position.

6.

INSTALL NO. 1 GEAR SHIFT HEAD
(a) Install the No. 1 shift head into the No. 1 shift fork

shaft.

(b) Using a pin punch (5 mm (0.20 in.)) and hammer,

tap a new slotted pin into the No. 1 shaft head and
No. 1 shift fork shaft.
Drive in depth:

0 to 0.5 mm (0 to 0.050 in.)

7.

INSTALL NO. 2 GEAR SHIFT FORK SHAFT
(a) Apply MP grease to the No. 2 and No. 3 interlock

pins, then install them onto the interlock bracket.

(b) Install the spring and ball into the interlock bracket.
(c) Install the No. 2 shift fork shaft onto the interlock

bracket.
HINT:
Place the No. 3 and No. 4 shift fork shafts in the
neutral position.

8.

INSTALL NO. 2 GEAR SHIFT FORK
(a) Install the No. 2 shift fork with the bolt.

Torque: 20 N*m (199 kgf*cm, 14 ft.*lbf)

9.

INSTALL NO. 3 GEAR SHIFT FORK SHAFT
(a) Apply MP grease to the No. 2 and No. 3 interlock

pins, then install them onto the interlock bracket.

(b) Install the spring and ball into the interlock bracket.
(c) Install the No. 3 shift fork shaft onto the interlock

bracket.
HINT:
Place the No. 2, No. 1 and No. 4 shift fork shafts in
the neutral position.

F051831

C136400

F051830

F051589

F051829

MT–32

RA61F MANUAL TRANSMISSION  –  MANUAL TRANSMISSION UNIT

MT

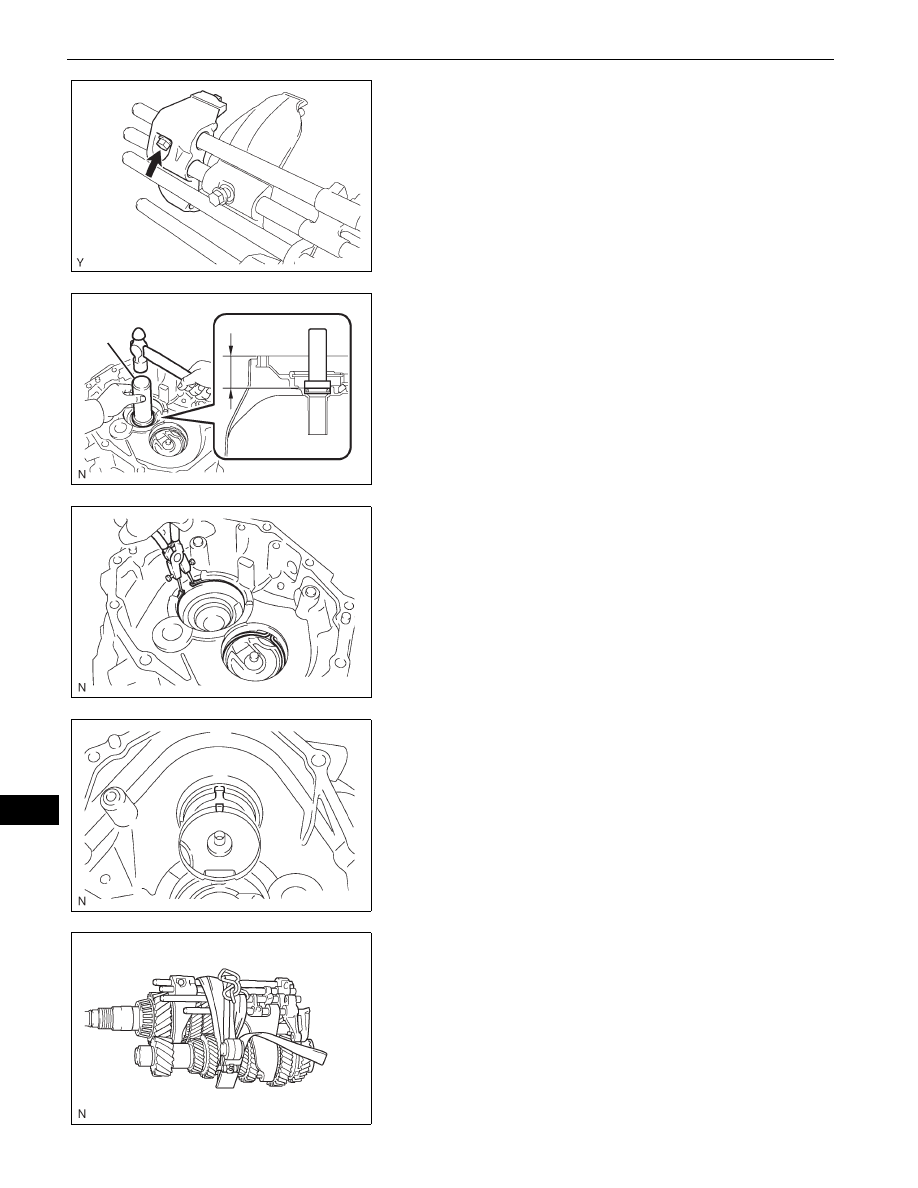

10. INSTALL NO. 3 GEAR SHIFT FORK

(a) Install the No. 3 shift fork with the bolt.

Torque: 20 N*m (199 kgf*cm, 14 ft.*lbf)

11. INSTALL TRANSMISSION CASE OIL SEAL

(a) Using SST and a hammer, tap a new oil seal into

the front case in accordance with the dimension
specified in the illustration.
SST

09950-70010 (09951-07100), 09950-60010
(09951-00470)

Dimension A:

60.0 to 60.8 mm (2.362 to 2.394 in.)

(b) Apply gear oil to the lip of the oil seal.

12. INSTALL FRONT BEARING SHAFT SNAP RING

(a) Using snap ring pliers, install the 2 snap rings.

13. INSTALL NO. 1 OIL RECEIVER PIPE

(a) Install the No. 1 oil receiver pipe onto the

transmission front case.
HINT:
Align the convex portion of the oil receiver pipe with
the cutout of the front case and install the oil
receiver pipe onto the clutch housing.

14. INSTALL TRANSMISSION FRONT CASE

(a) Apply gear oil to all sliding and rotating parts.
(b) Provisionally install the output shaft, input shaft,

counter gear shaft and control assembly, and tie
them with a piece of rope or string.

F051588

SST

A

D033643E01

D033639

D033642

D033644

RA61F MANUAL TRANSMISSION  –  MANUAL TRANSMISSION UNIT

MT–33

MT

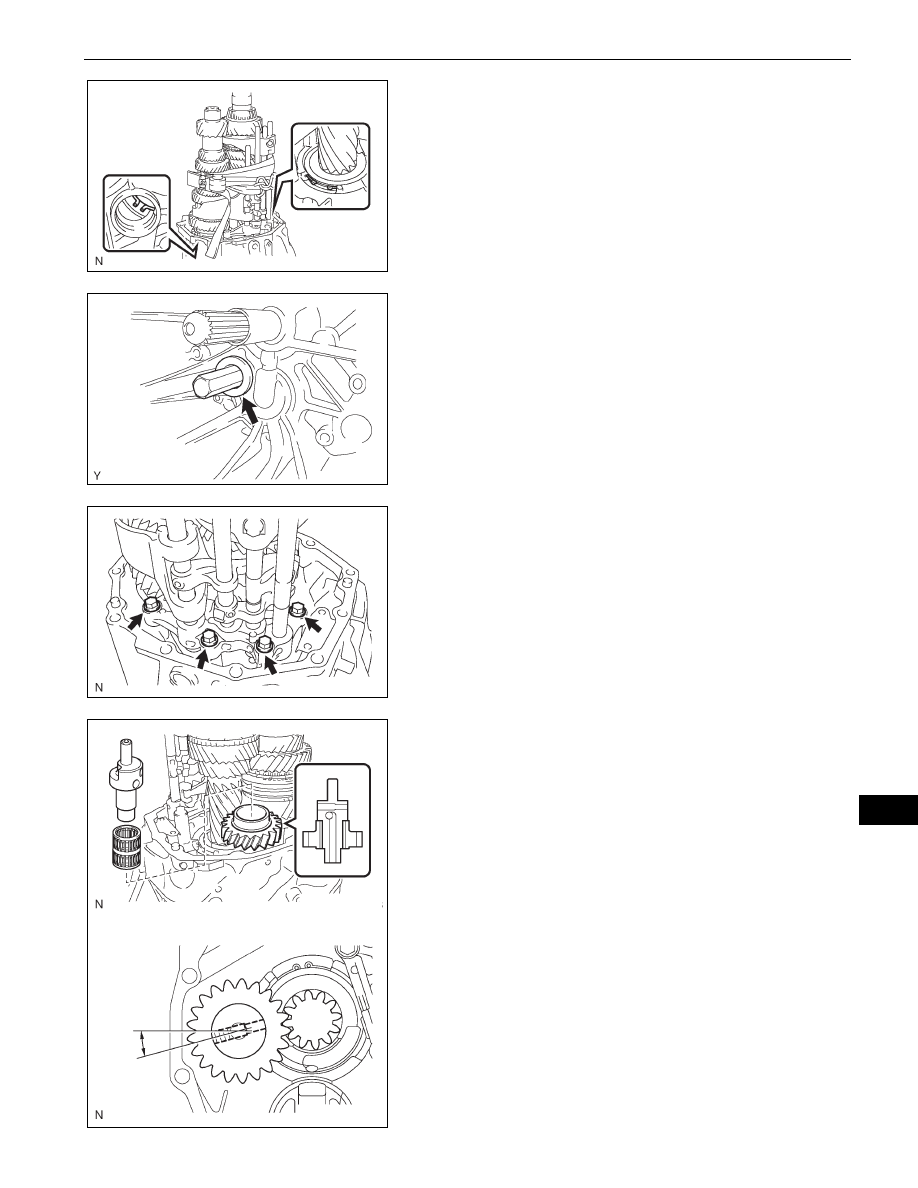

(c) Using a snap ring expander, extend the 2 snap rings

and install the output shaft, input shaft, counter gear
shaft and control assembly.
HINT:
Make sure that the snap ring is fitted into the
grooves of the input shaft and front bearing of the
counter gear shaft.

(d) Untie the output shaft, input shaft, counter gear

shaft and control assembly.

(e) Using a hexagonal wrench (24 mm), install the plug

onto the front case.
Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

(f)

Install the interlock bracket with the 4 bolts.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

15. INSTALL REVERSE IDLER GEAR

(a) Install the reverse idler gear, reverse idler gear

bearing and reverse idler gear shaft.
HINT:
Make sure that the reverse idler gear faces the
correct direction as shown in the illustration.
NOTICE:
Make sure that the hole in the reverse idler shaft
is in the position shown in the illustration.

D033637

F051583

D033635
