POWER STEERING  –  POWER STEERING LINK (for 2WD)

PS

6.

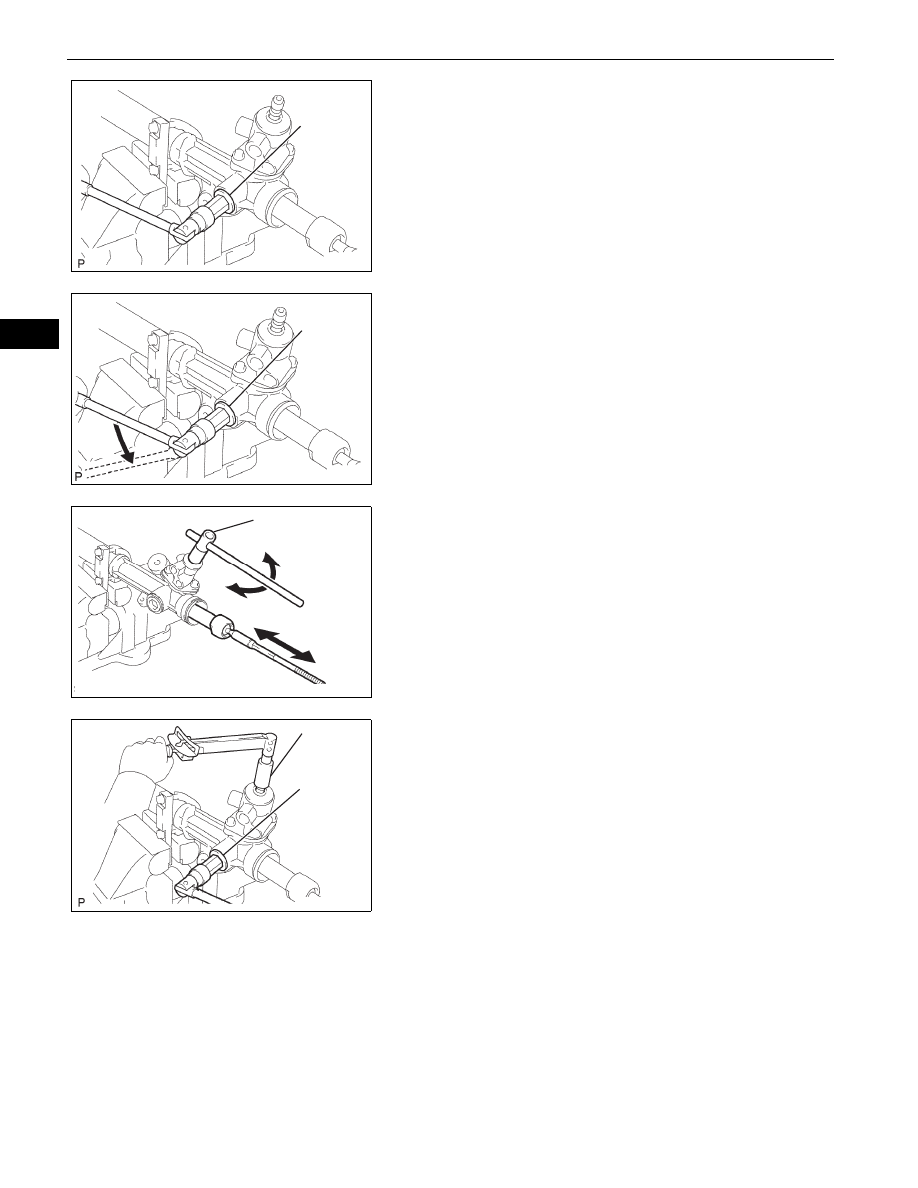

INSTALL RACK GUIDE
(a) Install the rack guide and spring.
(b) Apply sealant to 2 or 3 threads of the rack guide

spring cap.
Sealant:

Part No. 08833-00080, THREE BOND 1344,
LOCTITE 242 or the equivalent

(c) Using a 24 mm hexagon wrench, temporarily install

the spring cap.

7.

ADJUST TOTAL PRELOAD
(a) To prevent the steering rack teeth from damaging

the lip of the oil seal, temporarily install the RH and
LH rack ends.

(b) Using a 24 mm hexagon wrench, tighten the rack

guide spring cap.
Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

(c) Loosen the cap 30

°.

(d) Using SST, turn the control valve shaft right and left

1 or 2 times. The rack end will move in and out.
SST

09616-00011

(e) Using a 24 mm hexagon wrench, loosen the cap

until the rack guide spring does not function.

(f)

Using SST, a torque wrench and 24 mm hexagon
wrench, tighten the cap until the preload is within
the specification.
SST

09616-00011

Torque: Preload (turning)

0.8 to 1.6 N*m (8.2 to 16.3 kgf*cm,  7.1 to
14.2 in.*lbf)

NOTICE:
Perform adjustments in the tightening direction
of the spring cap.

(g) Apply sealant to 2 or 3 threads of the lock nut.

Sealant:

Part No. 08833-00080, THREE BOND 1344,
LOCTITE 242 or the equivalent.

(h) Temporarily install the lock nut.

24 mm
Hexagon
Wrench

F042802E02

24 mm
Hexagon
Wrench

30°

F043642E02

SST

G100341E01

24 mm
Hexagon
Wrench

SST

F043547E02

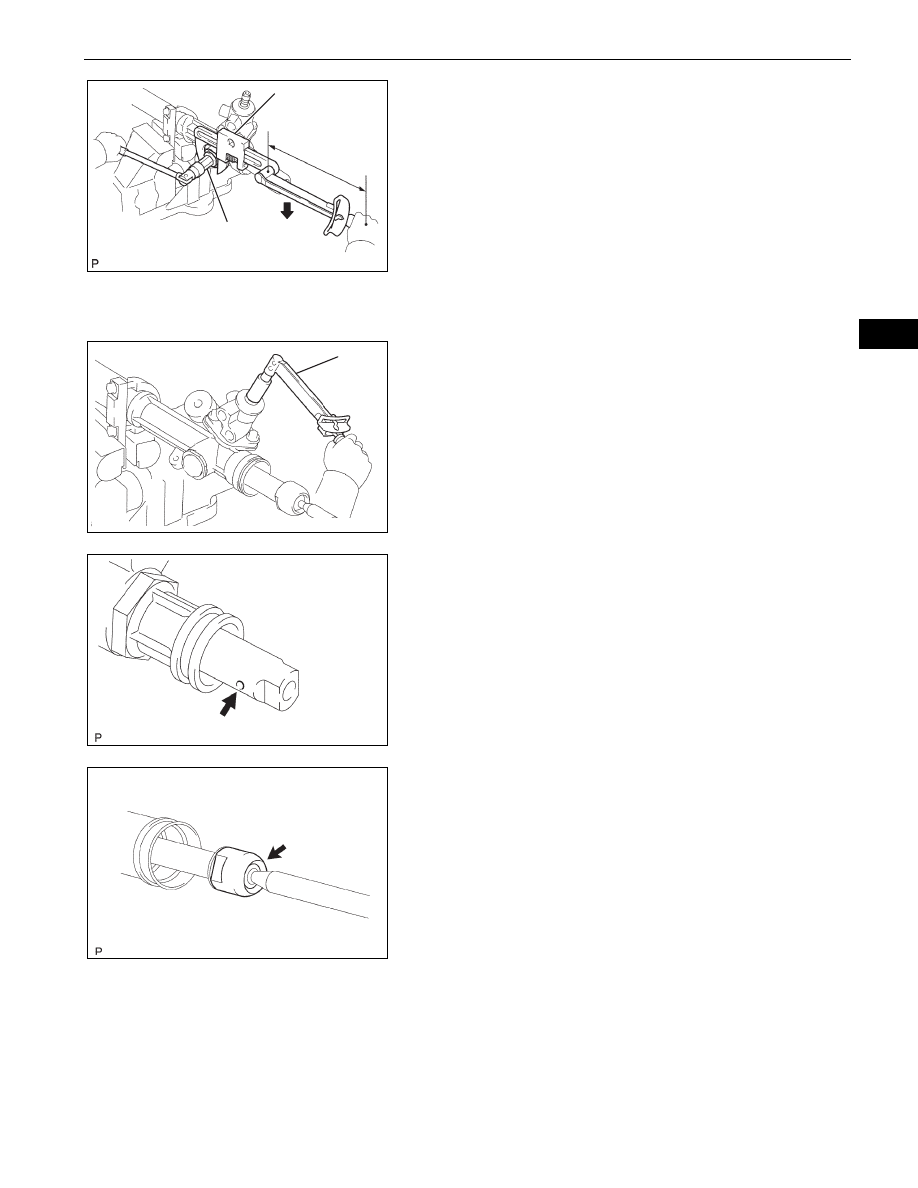

POWER STEERING  –  POWER STEERING LINK (for 2WD)

PS–27

PS

(i)

Using a 24 mm hexagon wrench, hold the rack
guide spring cap. Using SST, torque the nut.
SST

09922-10010

Torque: 69 N*m (704 kgf*cm, 51 ft.*lbf) for use

without SST
65 N*m (660 kgf*cm, 48 ft.*lbf) for use
with SST

NOTICE:
Rotate SST in the direction shown in the
illustration.
HINT:
Use a torque wrench with a fulcrum length of 345
mm (13.58 in.).

(j)

Using SST, recheck the total preload.
Torque: Preload (turning)

0.8 to 1.6 N*m (8.2 to 1.6 kgf*cm, 1.1 to
14.2 in.*lbf)

SST

09616-00011

(k) Remove the RH and LH rack ends.

8.

INSPECT POWER STEERING RACK
(a) Insert a wire 20 mm (0.79 in.) into the vent hole of

the steering rack, and ensure that the vent hole is
not clogged with grease.
NOTICE:
If the hole is clogged, the pressure inside the
boot will change after it is assembled and the
steering wheel is turned.

9.

INSTALL STEERING RACK END SUB-ASSEMBLY
(a) Install 2 new claw washers onto the power steering

rack while aligning the notch on the steering rack
end with the claw.

(b) Temporarily install the 2 steering rack ends onto the

power steering rack.

(c) Fill up the ball joint of the steering rack ends with

MP grease.

Fulcrum Length

SST

24 mm Hexagon Wrench

F043644E02

SST

G100525E01

G038615E01

C058310E01

PS–28

POWER STEERING  –  POWER STEERING LINK (for 2WD)

PS

(d) Using SST, install the power steering rack end (LH

side) onto the power steering rack.
SST

09922-10010

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf) for use

without SST
98 N*m (1,000 kgf*cm, 72 ft.*lbf) for use
with SST

NOTICE:
•

Rotate SST in the direction shown in the
illustration.

•

Use a torque wrench with a fulcrum length of
345 mm (13.58 in.).

(e) Using SST and a wrench, install the power steering

rack (LH side).
SST

09922-10010

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf) for use

without SST
98 N*m (1,000 kgf*cm, 72 ft.*lbf) for use
with SST

NOTICE:
•

Rotate SST in the direction shown in the
illustration.

•

Use a torque wrench with a fulcrum length of
345 mm (13.58 in.).

(f)

Using a brass bar and hammer, stake the 2 claw
washers (LH and RH sides).
NOTICE:
Do not strike the steering rack.

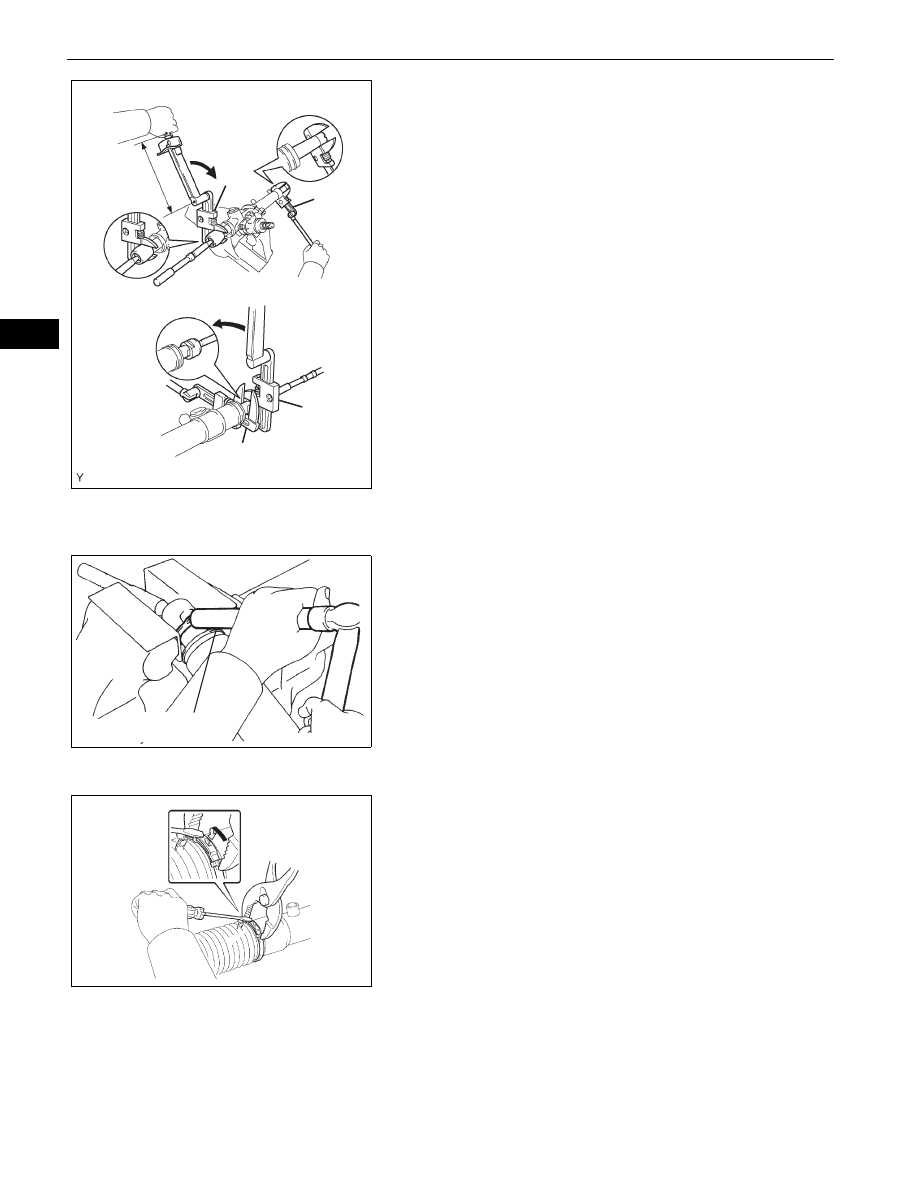

10. INSTALL STEERING RACK BOOT LH

(a) Install the boot.

NOTICE:
Be careful not to damage or twist the boot.

11. INSTALL STEERING RACK BOOT RH

HINT:
Use the same procedures described for the LH side.

12. INSTALL STEERING RACK BOOT CLAMP LH

(a) Using the pliers and screwdriver, install the rack

boot clamp, as shown in the illustration.

13. INSTALL STEERING RACK BOOT CLAMP RH

HINT:
Use the same procedures described for the LH side.

14. INSTALL STEERING RACK BOOT CLIP LH

(a) Using pliers, install the clip.

15. INSTALL STEERING RACK BOOT CLIP RH

HINT:
Use the same procedures described for the LH side.

SST

SST

SST

SST

Fulcrum
Length

F051729E01

Brass Bar

C035928E01

C089469

POWER STEERING  –  POWER STEERING LINK (for 2WD)

PS–29

PS

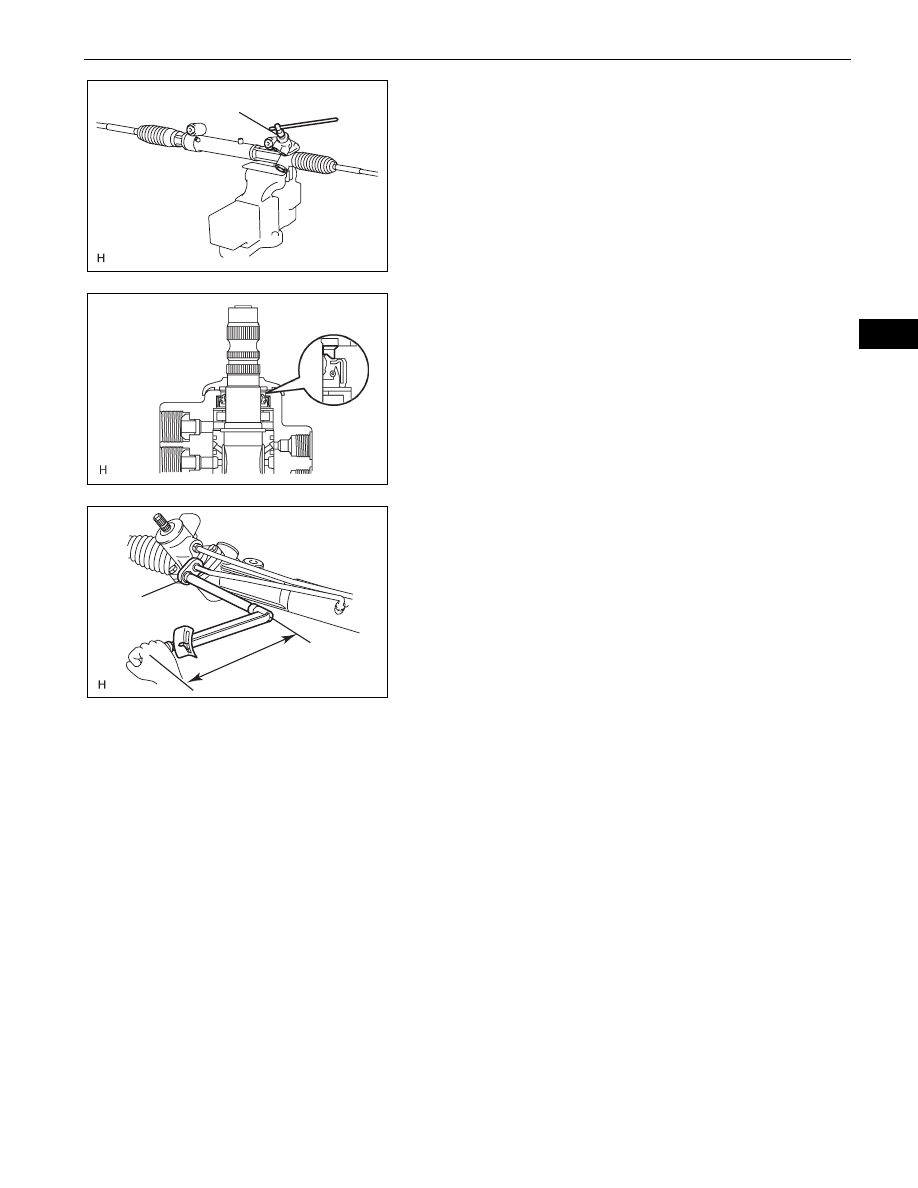

16. INSTALL POWER STEERING LINK

(a) Using SST, check that the rack boot stretches

smoothly when the control valve shaft is being
rotated.
SST

09616-00011

(b) Apply MP grease as shown in the illustration.
(c) Install the dust cover.

17. INSTALL STEERING TURN PRESSURE TUBE

(a) Apply power steering fluid to 2 new O-rings. Using

SST, install the 2 O-rings and the LH steering turn
pressure tube.
SST

09023-38201

Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf) for use

without SST
23 N*m (230 kgf*cm, 17 ft.*lbf) for use
with SST

HINT:
•

Use a torque wrench with a fulcrum length of 345
mm (13.58 in.).

•

This torque value is effective when SST is
parallel to the torque wrench.

(b) Apply power steering fluid to 2 new O-rings. Using

SST, install the 2 O-rings and the RH steering turn
pressure tube.
SST

09023-38201

Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf) for use

without SST
23 N*m (235 kgf*cm, 17 ft.*lbf) for use
with SST

HINT:
•

Use a torque wrench with a fulcrum length of 345
mm (13.58 in.).

•

This torque value is effective when SST is
parallel to the torque wrench.

SST

G100354E01

G035024E02

Fulcrum Length

SST

G100365E01
