PS–22

POWER STEERING  –  POWER STEERING LINK (for 2WD)

PS

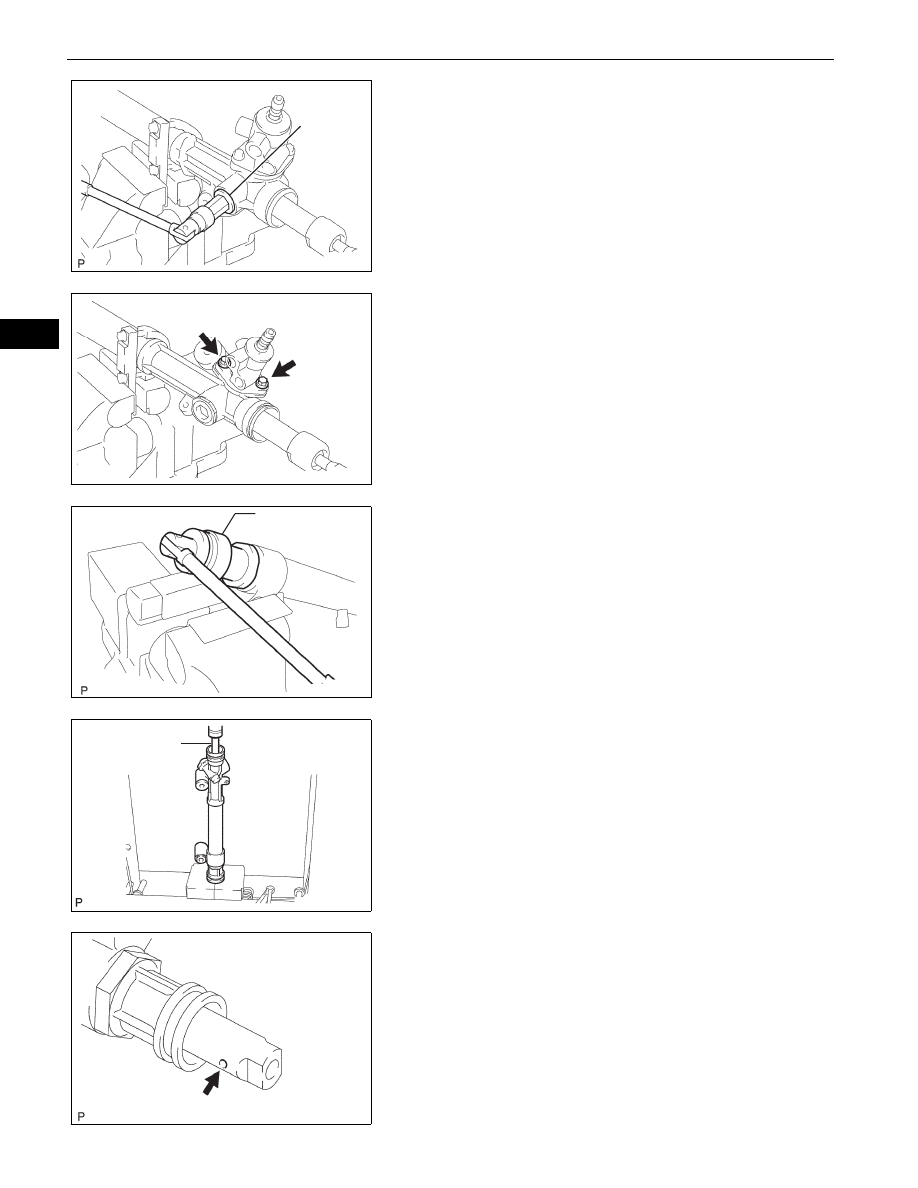

(c) Using a 24 mm hexagon wrench, remove the rack

guide spring cap.

(d) Remove the spring and rack guide.

12. REMOVE POWER STEERING CONTROL VALVE

(a) Remove the 2 bolts.
(b) Pull out the control valve off the rack housing.

13. REMOVE CYLINDER END STOPPER

(a) Using SST, remove the stopper.

SST

09631-20120

14. REMOVE STEERING RACK AND OIL SEAL

(a) Using SST, press out the steering rack and oil seal.

SST

09950-70010 (09951-07200)

NOTICE:
Take care not to drop the steering rack.

(b) Remove the oil seal from the steering rack.

15. INSPECT POWER STEERING RACK

(a) Insert a wire 20 mm (0.79 in.) into the vent hole of

the steering rack and ensure that the vent hole is
not clogged with grease.
NOTICE:
If the hole is clogged, the pressure inside the
boot will change after it is assembled and the
steering wheel is turned.

24 mm
Hexagon
Wrench

F042802E02

G100343E01

SST

F043535E01

SST

G038614E01

G038615E01

POWER STEERING  –  POWER STEERING LINK (for 2WD)

PS–23

PS

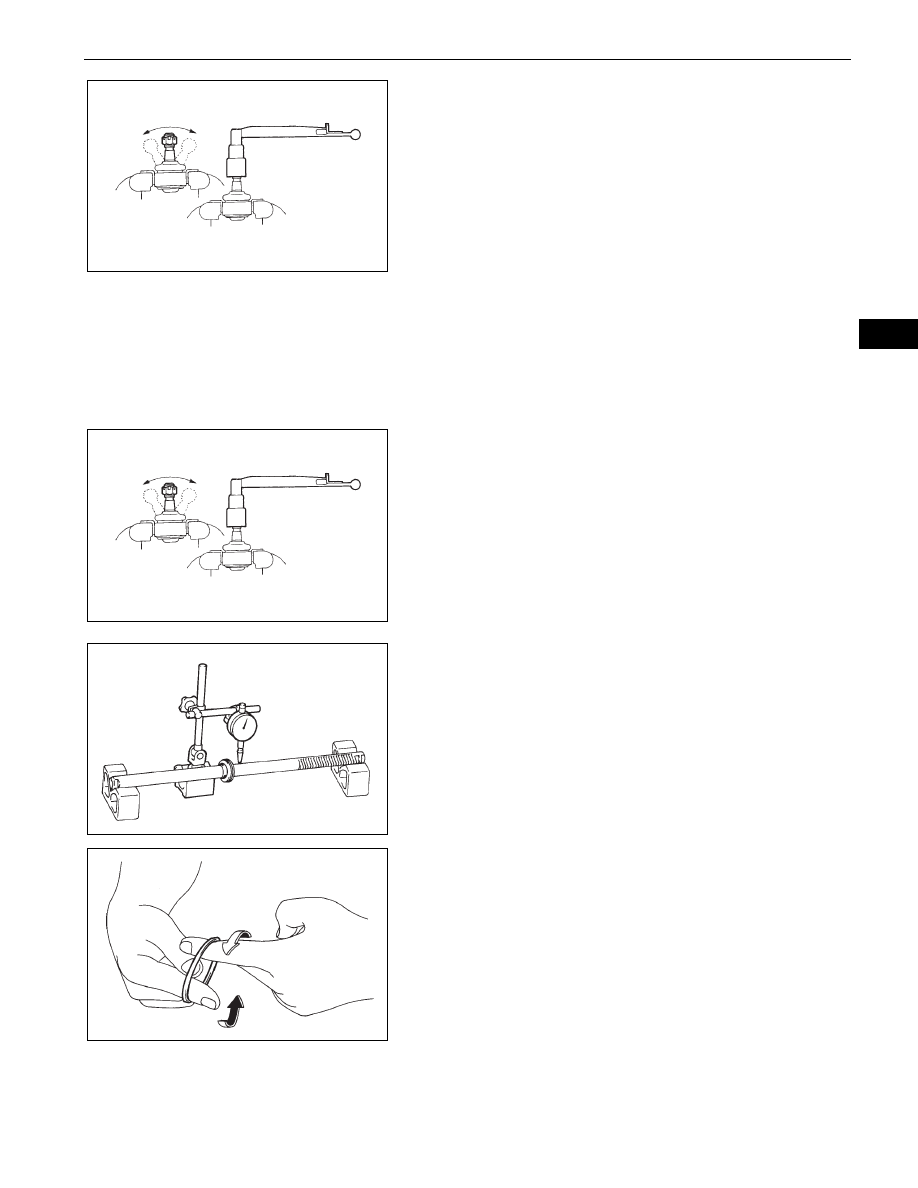

16. INSPECT TIE ROD END SUB-ASSEMBLY LH

(a) Flip the ball joint stud back and forth 5 times as

shown in the illustration, before installing the nut.

(b) Using a torque wrench, turn the nut continuously at

a rate of 2 to 4 seconds per turn and take the torque
reading on the 5th turn.
Torque: (turning)

0.29 to 1.96 N*m (2.96 to 20 kgf*cm, 2.56
to 17.35 in.*lbf)

17. INSPECT TIE ROD END SUB-ASSEMBLY RH

HINT:
Use the same procedures described for the LH side.

18. REMOVE STEERING RACK PISTON RING

(a) Using a screwdriver, remove the "Teflon" ring and

O-ring from the steering rack.
NOTICE:
Be careful not to damage the groove of the ring.

INSPECTION

1.

INSPECT TIE ROD END SUB-ASSEMBLY
(a) Flip the ball joint stud back and forth 5 times as

shown in the illustration before installing the nut.

(b) Using a torque wrench, turn the nut continuously at

a rate of 2 to 4 seconds per turn and check the
torque reading on the 5th turn.
Torque: 0.29 to 1.96 N*m (2.96 to 20 kgf*cm, 2.56

to 17.35 in.*lbf)

2.

INSPECT POWER STEERING RACK
(a) Using a dial indicator, check the power steering rack

for runout, teeth wear and damage.
Maximum runout:

0.3 mm (0.012 in.)

If necessary, replace the power steering link
assembly.

(b) Check the back surface for wear and damage.

If necessary, replace the power steering link
assembly.

REASSEMBLY

1.

INSTALL STEERING RACK PISTON RING
(a) Coat a new O-ring with power steering fluid and

install it on the steering rack.

(b) Stretch a new "Teflon" ring with your fingers.

NOTICE:
Be careful not to overstretch the teflon ring.

(c) Coat the "Teflon" ring with power steering fluid.

ZK08184E02

ZK08184E01

ZX09355E03

C003629E01

PS–24

POWER STEERING  –  POWER STEERING LINK (for 2WD)

PS

(d) Install the "Teflon" ring into the steering rack's

groove. Grip the ring to press it into the groove.

2.

INSTALL POWER STEERING RACK
(a) Apply grease onto the rack teeth ends.
(b) Install SST onto the steering rack.

SST

09631-00350

HINT:
If necessary, scrape the burrs off the rack teeth end
and burnish.

(c) Coat SST and the power piston oil seal with power

steering fluid.

(d) Install the steering rack onto the rack housing.
(e) Remove SST.

(f)

Coat SST with power steering fluid.
SST

09631-00350

(g) Install SST onto the steering rack opposite end.
(h) Coat the lip of a new oil seal with power steering

fluid. Using SST, install the oil seal onto the steering
rack.
NOTICE:
•

Slide SST and the oil seal straight without
tilting them.

•

Install the oil seal facing in the correct
direction.

•

Be careful not to damage the lip of the oil
seal.

(i)

Remove SST.

N000401E01

Rack Teeth End

SST

W002101E02

SST

F005044E01

POWER STEERING  –  POWER STEERING LINK (for 2WD)

PS–25

PS

3.

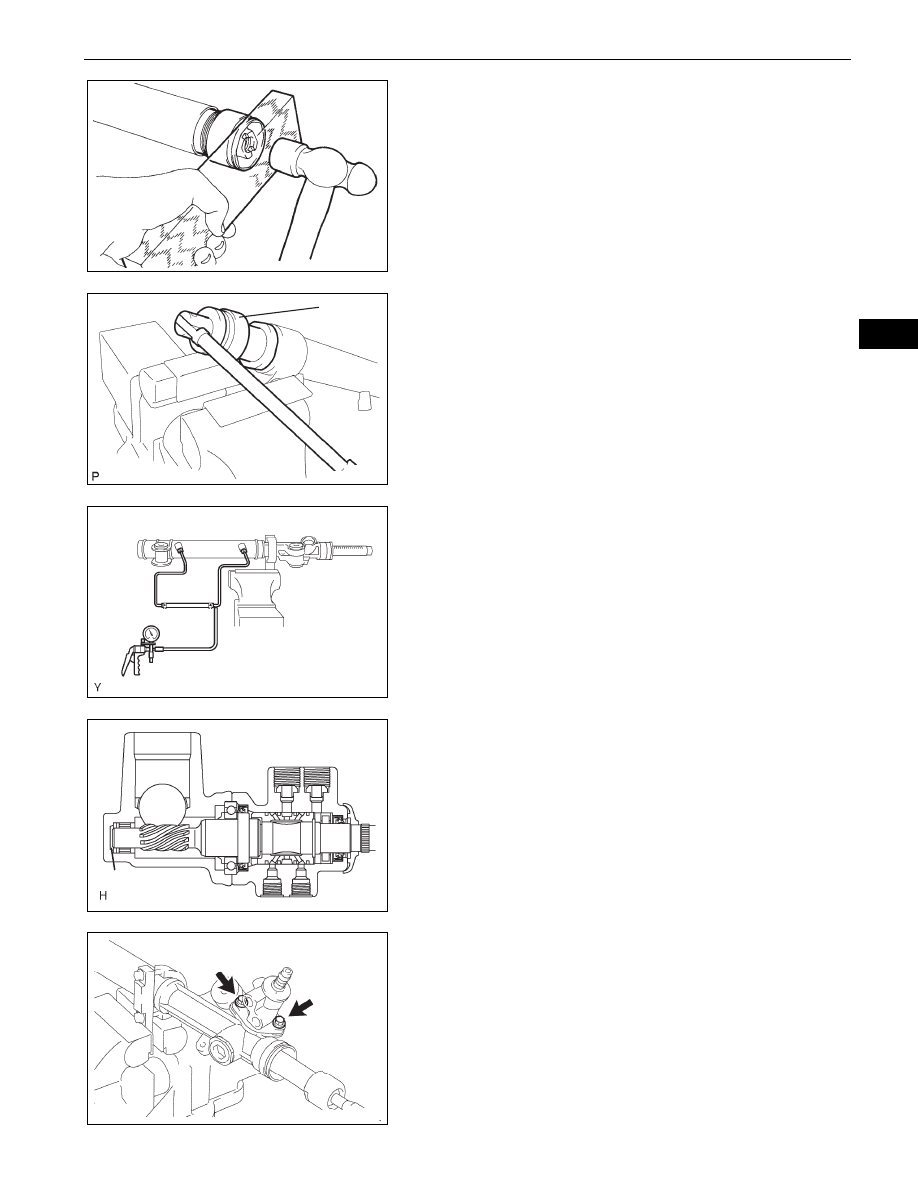

INSTALL CYLINDER END STOPPER
(a) Apply sealant to the stopper.
(b) Using a wooden block and hammer, tap in the

stopper until it is tightly installed.
Sealant:

Part No. 08833-00080, THREE BOND 1344,
LOCTITE 242 or the equivalent

(c) Using SST, tighten the stopper.

SST

09631-20120

Torque: 145 N*m (1,479 kgf*cm, 107 ft.*lbf)

4.

TEST AIR TIGHTNESS
(a) Install SST onto the unions of the rack housing.

SST

09631-12071 (09633-00010)

(b) Apply 53.33 kPa (400 mmHg, 15.75 in.Hg) of

vacuum for about 30 seconds.

(c) Check that there is no change in the vacuum.

If there is a change in the vacuum, check the
installation of the oil seals.

5.

INSTALL POWER STEERING CONTROL VALVE
(a) Apply molybdenum disulfide base grease to the

needle roller bearing inside the rack housing shown
in the illustration.
Volume of grease applied:

Approximately 2 g (0.07 oz)

(b) Install the control valve with the 2 bolts.

Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

ZX00351E01

SST

F043535E02

F051732

Grease Filling

G035022E01

G100343E01
