Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 359

PARKING BRAKE  –  PARKING BRAKE CABLE

PB–13

PB

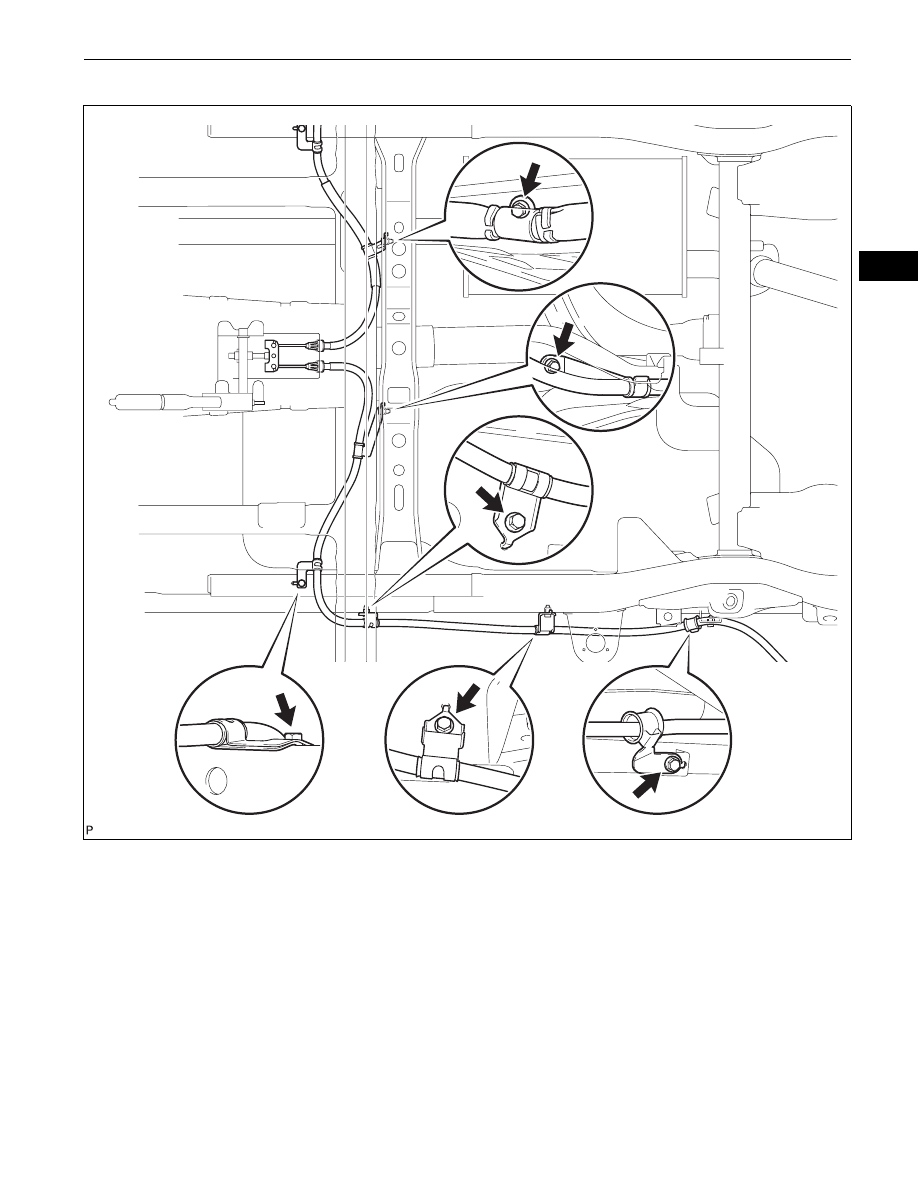

(e) Remove the 5 bolts and the parking brake cable.

15. REMOVE PARKING BRAKE CABLE CLAMP

(a) Remove the parking brake cable clamp from the

parking brake cable.

C133096

PB–14

PARKING BRAKE  –  PARKING BRAKE CABLE

PB

INSTALLATION

1.

INSTALL PARKING BRAKE CABLE CLAMP
(a) Install the parking brake cable clamp onto the

parking brake cable.

2.

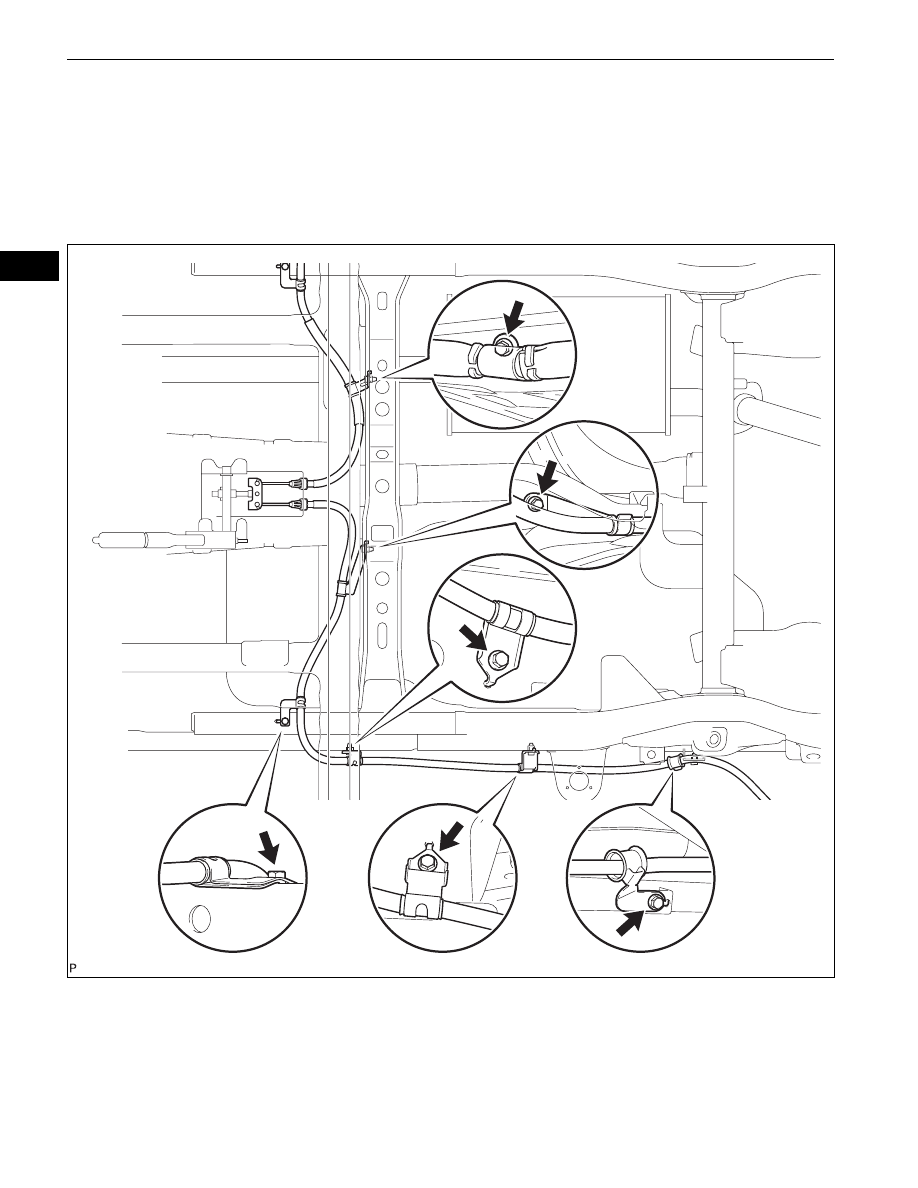

INSTALL PARKING BRAKE CABLE
(a) Install the parking brake cable with the 5 bolts.

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

C133096

PARKING BRAKE  –  PARKING BRAKE CABLE

PB–15

PB

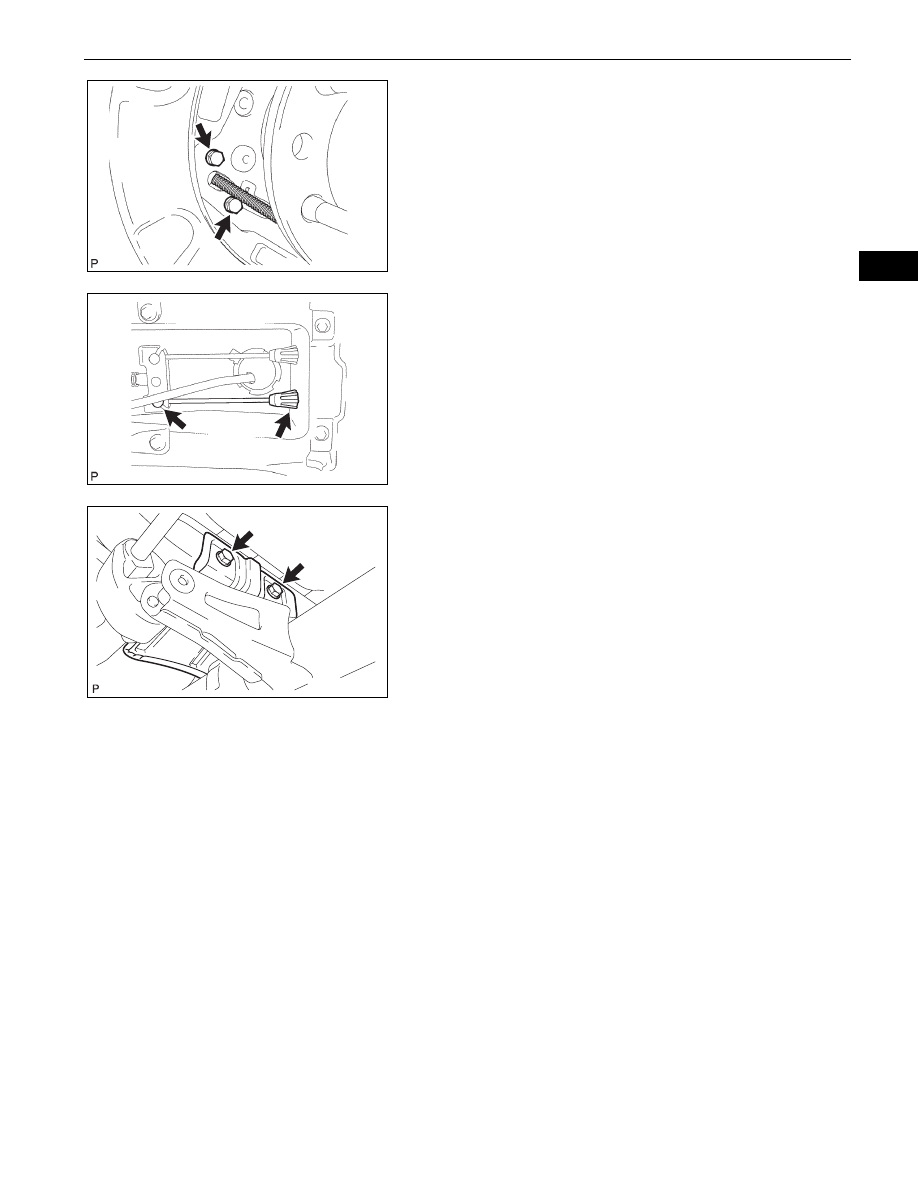

(b) Install the parking brake cable to the parking brake

plate with the 2 bolts.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

(c) Install the spring cap into the body.
(d) Connect the cable end to the parking brake pull rod.

3.

INSTALL PARKING BRAKE CABLE HEAT
INSULATOR (for RH Side)
(a) Install the heat insulator with the 2 bolts.

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

4.

APPLY HIGH TEMPERATURE GREASE (See page

PB-19

)

5.

INSTALL PARKING BRAKE SHOE (See page

PB-19

)

6.

INSTALL PARKING BRAKE SHOE STRUT (See page

PB-19

)

7.

INSTALL PARKING BRAKE SHOE RETURN TENSION
SPRING (See page

PB-19

)

8.

CHECK PARKING BRAKE INSTALLATION (See page

PB-20

)

9.

INSTALL REAR DISC (See page

PB-20

)

10. ADJUST PARKING BRAKE SHOE CLEARANCE (See

page

PB-20

)

11. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

(See page

PB-20

)

12. INSTALL REAR WHEEL

Torque: 112 N*m (1,137 kgf*cm, 82 ft.*lbf)

13. INSPECT PARKING BRAKE LEVER TRAVEL (See

page

PB-4

)

14. ADJUST PARKING BRAKE LEVER TRAVEL (See

page

PB-4

)

15. INSTALL FRONT CONSOLE BOX (See page

IP-30

)

16. INSTALL BOX BOTTOM MAT (See page

IP-31

)

D028121E01

D028481E01

C133095

PB–16

PARKING BRAKE  –  PARKING BRAKE CABLE

PB

17. INSTALL CONSOLE UPPER REAR PANEL SUB-

ASSEMBLY (See page

IP-31

)

18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for

4WD) (See page

IP-32

)

19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for

Manual Transmission) (See page

IP-32

)

20. INSTALL PARKING BRAKE HOLE COVER SUB-

ASSEMBLY (See page

IP-32

)
