Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 357

PB–6

PARKING BRAKE  –  PARKING BRAKE LEVER

PB

(i)

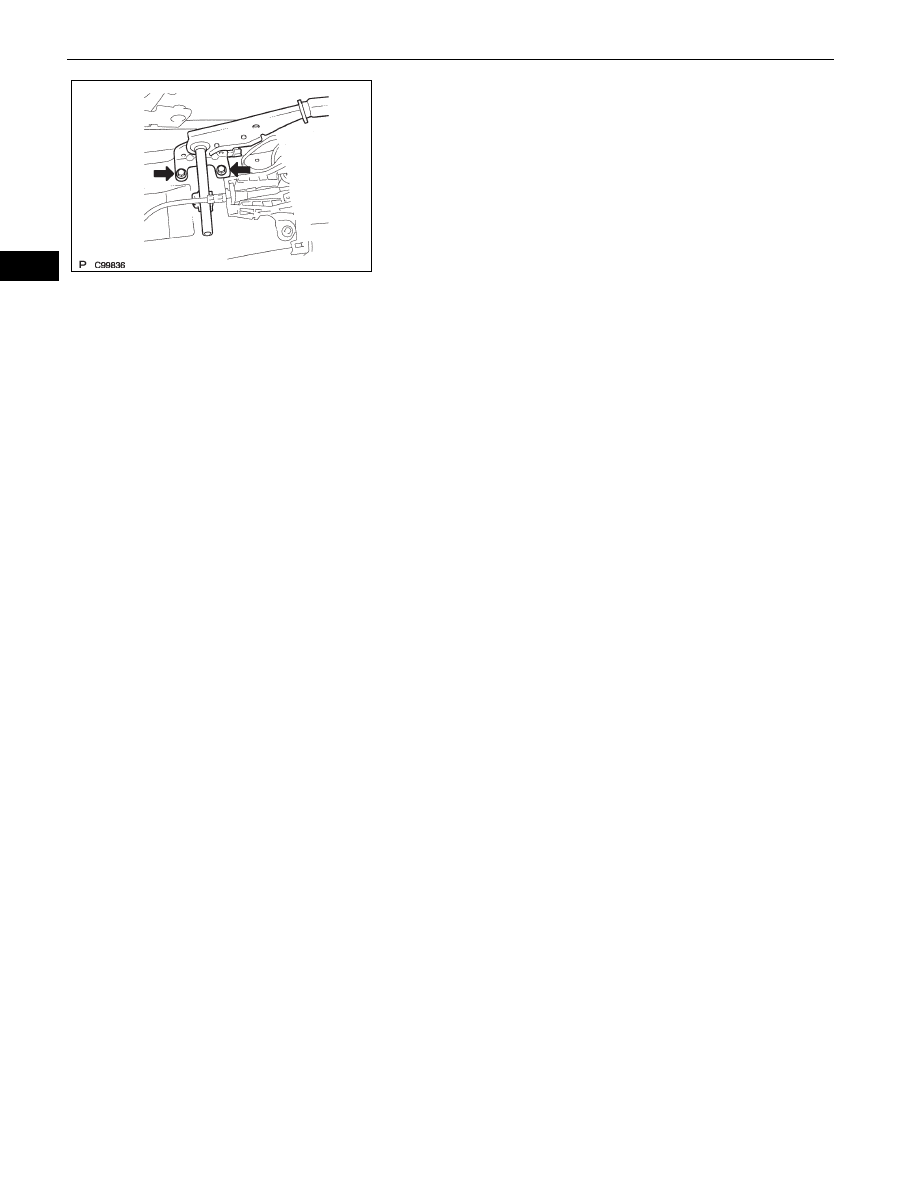

Remove the 2 bolts and parking brake lever.

9.

REMOVE PARKING BRAKE SWITCH
(a) Remove the screw and parking brake switch from

the parking brake lever.

D030033

PARKING BRAKE  –  PARKING BRAKE LEVER

PB–7

PB

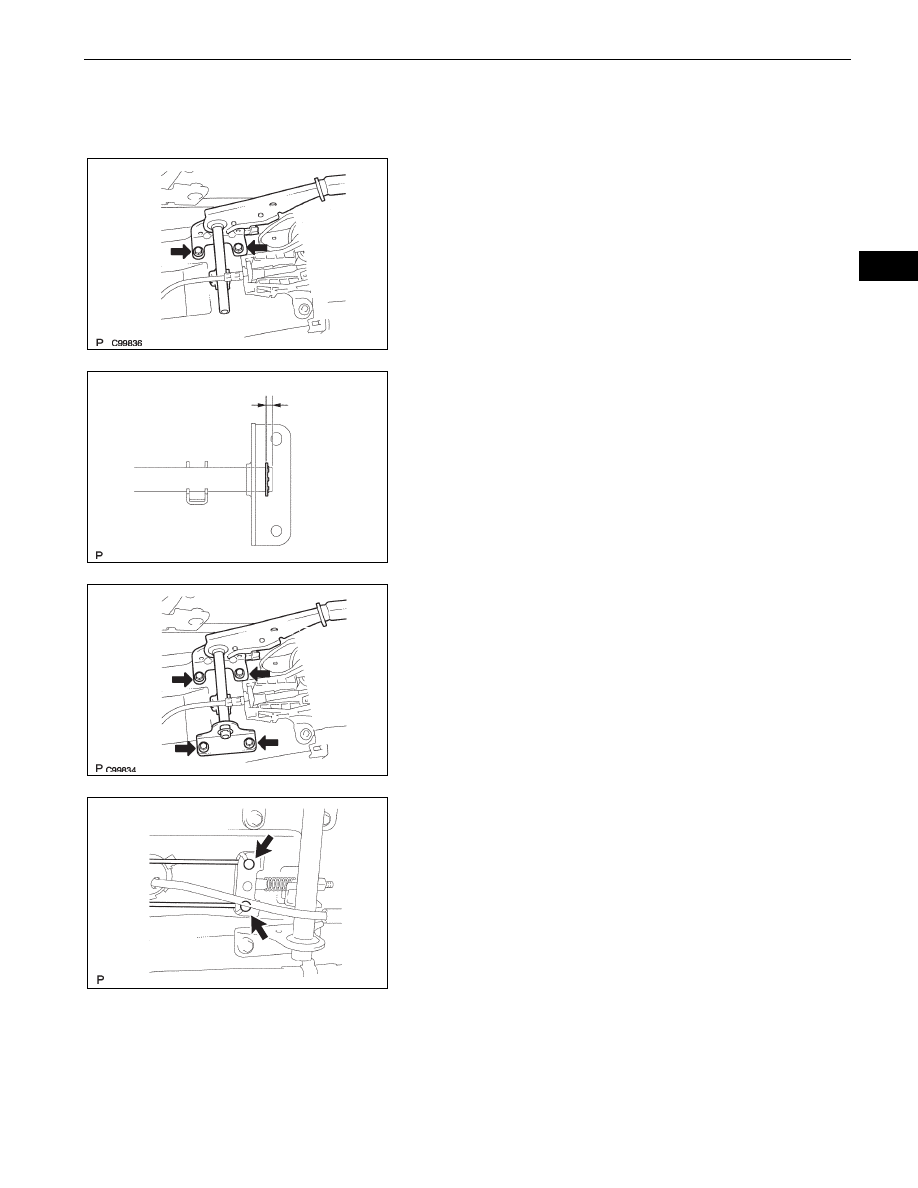

INSTALLATION

1.

INSTALL PARKING BRAKE SWITCH
(a) Install the parking brake switch with the screw.

2.

INSTALL PARKING BRAKE LEVER
(a) Install the parking brake lever and provisionally

tighten the 2 bolts.

(b) Install the center support and washer onto the

parking brake lever.

(c) Install the parking brake lever with the 4 bolts.

Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

(d) Install the straight pin into the parking brake lever.

(e) Connect parking brake cables No. 2 and No. 3 to

the parking brake pull rod.

D030033

4.0 to 9.0 mm
(0.16 to 0.35 in.)

G022567E01

D030034

G022564E01

PB–8

PARKING BRAKE  –  PARKING BRAKE LEVER

PB

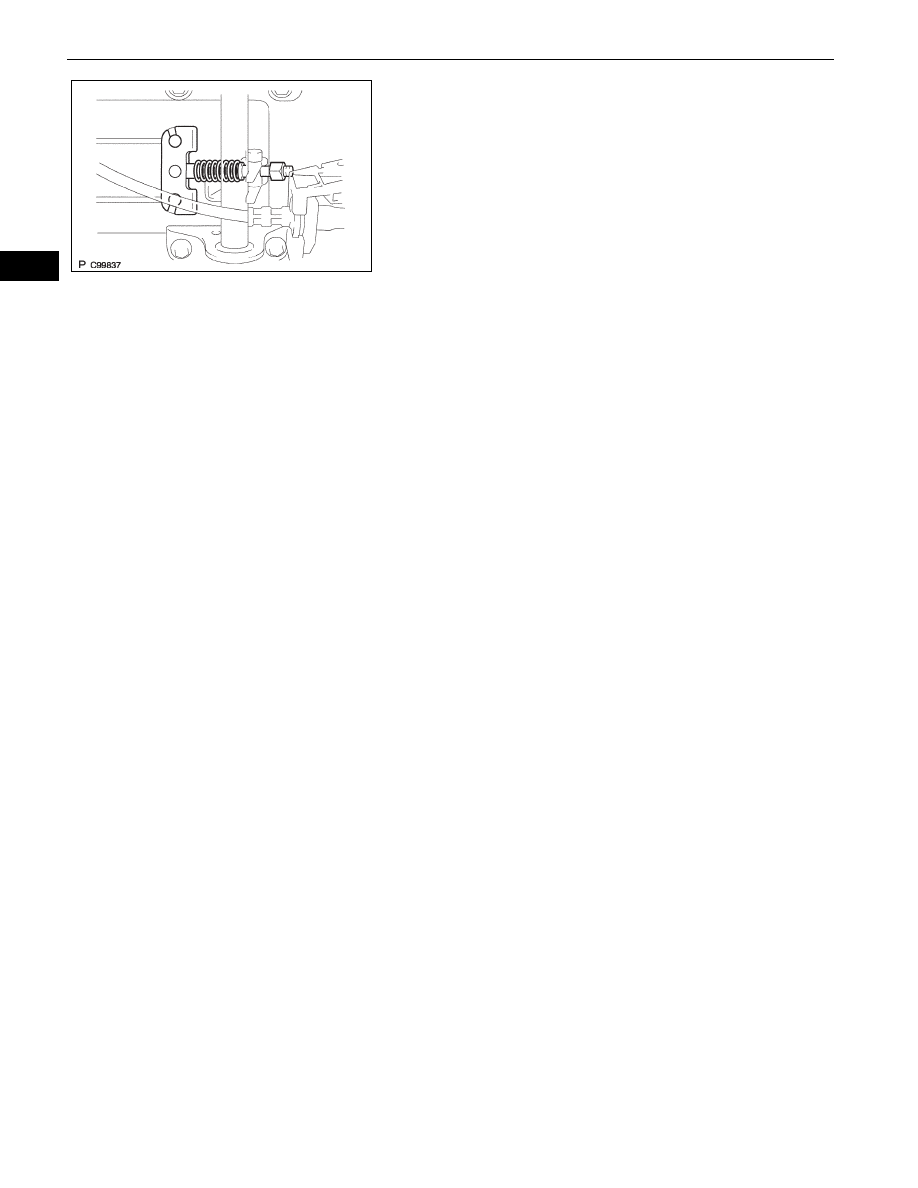

(f)

Install the set spring, bush and parking brake pull
rod with the adjusting nut.

(g) Connect the parking brake switch connector.

3.

INSPECT PARKING BRAKE LEVER TRAVEL (See
page

PB-4

)

4.

ADJUST PARKING BRAKE LEVER TRAVEL (See
page

PB-4

)

5.

INSTALL FRONT CONSOLE BOX (See page

IP-30

)

6.

INSTALL BOX BOTTOM MAT (See page

IP-31

)

7.

INSTALL CONSOLE UPPER REAR PANEL SUB-
ASSEMBLY (See page

IP-31

)

8.

INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for
4WD) (See page

IP-32

)

9.

INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for
Manual Transmission) (See page

IP-32

)

10. INSTALL PARKING BRAKE HOLE COVER SUB-

ASSEMBLY (See page

IP-32

)

11. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

G022569

PB–8

PARKING BRAKE  –  PARKING BRAKE CABLE

PB

BRAKE

PARKING BRAKE

PARKING BRAKE CABLE

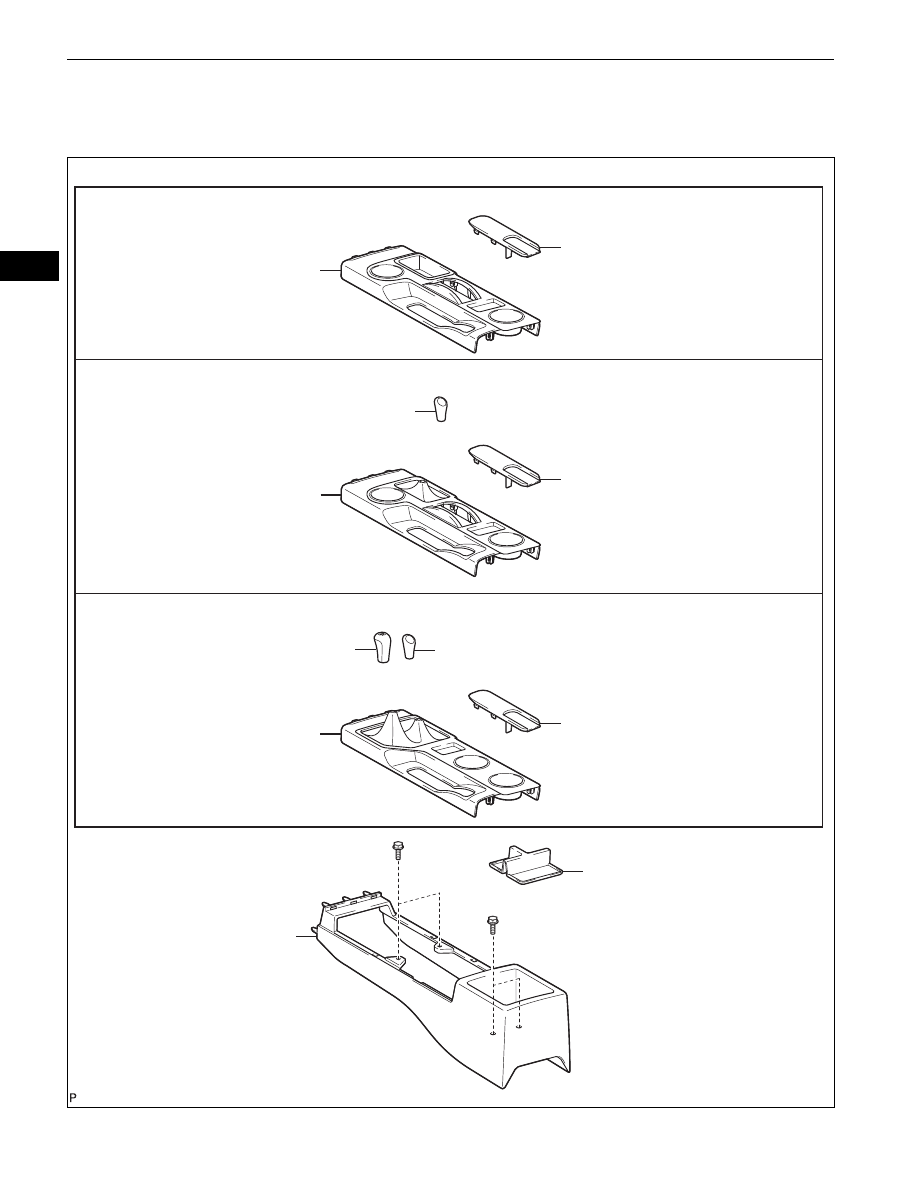

COMPONENTS

BOX BOTTOM MAT

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

SHIFT LEVER KNOB SUB-ASSEMBLY

SHIFT LEVER KNOB SUB-ASSEMBLY

SHIFT LEVER KNOB SUB-ASSEMBLY

for Automatic Transmission 2WD:

for Automatic Transmission 4WD:

for Manual Transmission 4WD:

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

FRONT CONSOLE BOX

C133109E01
