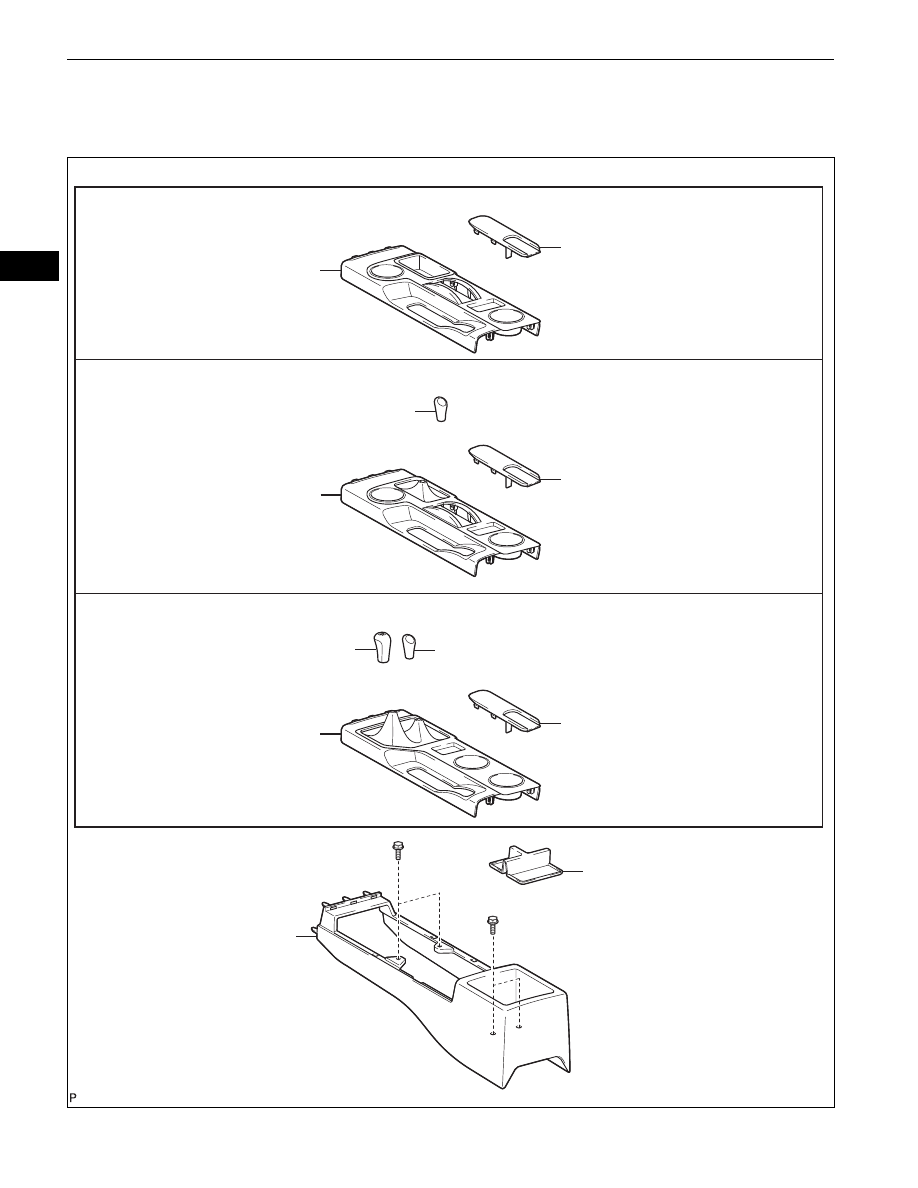

PB–2

PARKING BRAKE  –  PARKING BRAKE LEVER

PB

BRAKE

PARKING BRAKE

PARKING BRAKE LEVER

COMPONENTS

BOX BOTTOM MAT

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

SHIFT LEVER KNOB SUB-ASSEMBLY

SHIFT LEVER KNOB SUB-ASSEMBLY

SHIFT LEVER KNOB SUB-ASSEMBLY

for Automatic Transmission 2WD:

for Automatic Transmission 4WD:

for Manual Transmission 4WD:

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

CONSOLE UPPER REAR
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

FRONT CONSOLE BOX

C133109E01

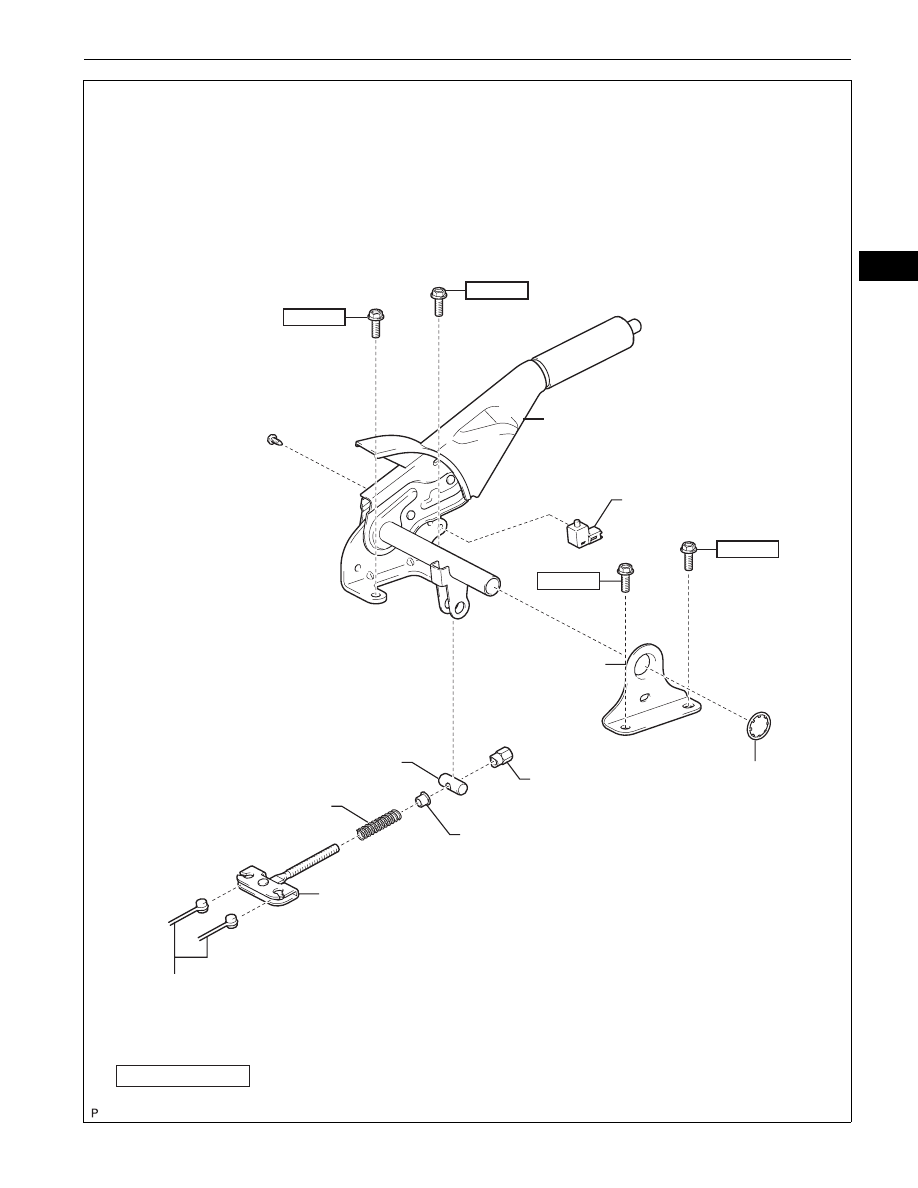

PARKING BRAKE  –  PARKING BRAKE LEVER

PB–3

PB

PARKING BRAKE LEVER

PARKING BRAKE SWITCH

N*m (kgf*cm, ft*lbf)  : Specified torque

13 (127, 9)

13 (127, 9)

13 (127, 9)

13 (127, 9)

PARKING LEVER
CENTER SUPPORT

WASHER

NO. 1 WIRE
ADJUSTING NUT

STRAIGHT PIN

BUSH

PARKING CABLE INNER
WIRE SET SPRING

PARKING BRAKE
CABLE ASSEMBLY

PARKING BRAKE NO. 1
PULL ROD SUB-ASSEMBLY

C133092E01

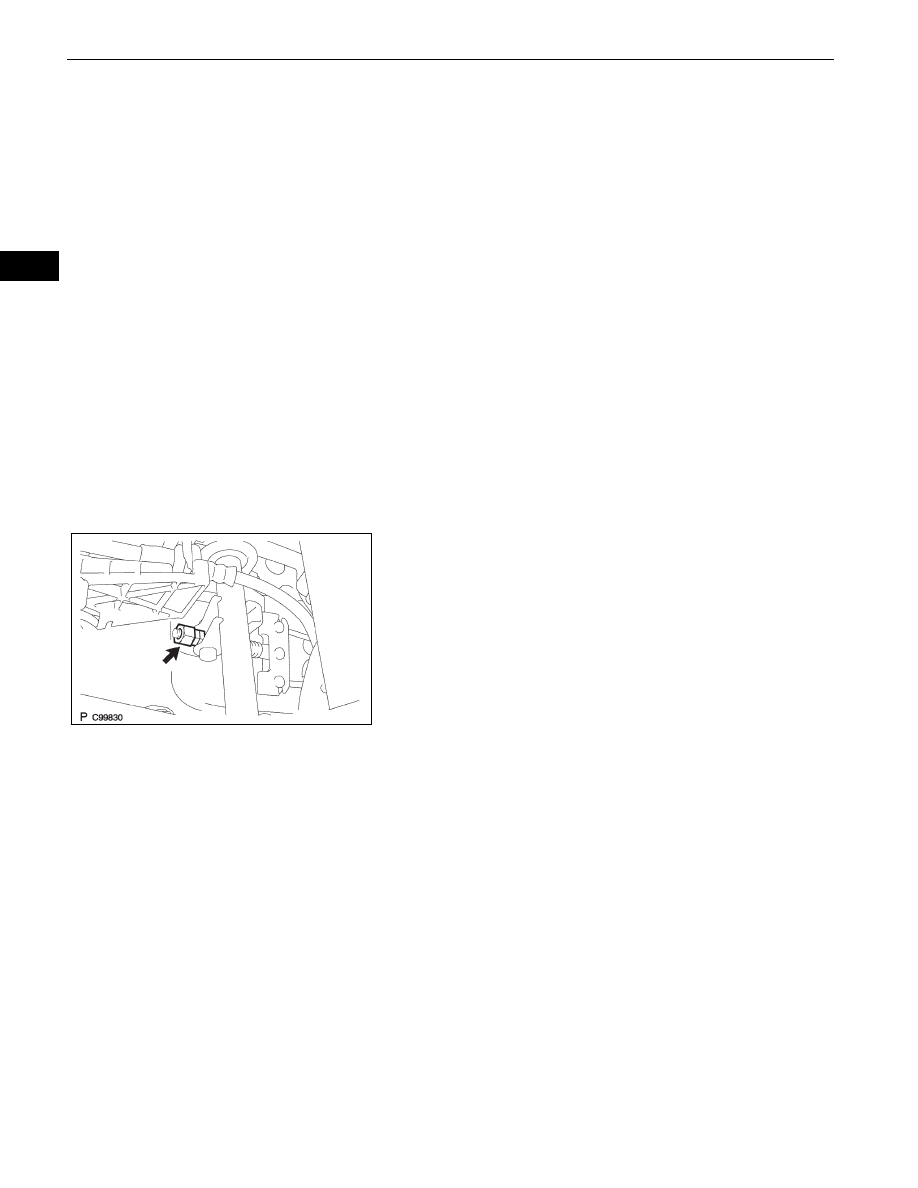

PB–4

PARKING BRAKE  –  PARKING BRAKE LEVER

PB

ON-VEHICLE INSPECTION

1.

REMOVE REAR WHEEL

2.

ADJUST PARKING BRAKE SHOE CLEARANCE (See
page

PB-20

)

3.

INSTALL REAR WHEEL
Torque: 112 N*m (1,137 kgf*cm, 82 ft.*lbf)

4.

INSPECT PARKING BRAKE LEVER TRAVEL
(a) Slowly pull the parking brake lever to the fully

applied position, counting the number of clicks.
Parking brake lever travel:

5 to 7 clicks at 200 N (20 kgf, 45 lbf)

5.

REMOVE PARKING BRAKE HOLE COVER SUB-
ASSEMBLY (See page

IP-11

)

6.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for
Manual Transmission) (See page

IP-11

)

7.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for
4WD) (See page

IP-11

)

8.

REMOVE CONSOLE UPPER REAR PANEL SUB-
ASSEMBLY (See page

IP-12

)

9.

ADJUST PARKING BRAKE LEVER TRAVEL
(a) Turn the adjusting nut until the parking brake lever

travel is corrected to within the specified range.
Parking brake lever travel:

5 to 7 clicks at 200 N (20 kgf, 45 lbf)

(b) Operate the parking brake lever 3 to 4 times, and

check the parking brake lever travel.

(c) Check whether the parking brake drags or not.
(d) When operating the parking brake lever, check that

the brake warning light illuminates.
Standard:

Brake warning light always illuminates at the
first click.

10. INSTALL CONSOLE UPPER REAR PANEL SUB-

ASSEMBLY (See page

IP-31

)

11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for

4WD) (See page

IP-32

)

12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for

Manual Transmission) (See page

IP-32

)

13. INSTALL PARKING BRAKE HOLE COVER SUB-

ASSEMBLY (See page

IP-32

)

G022563

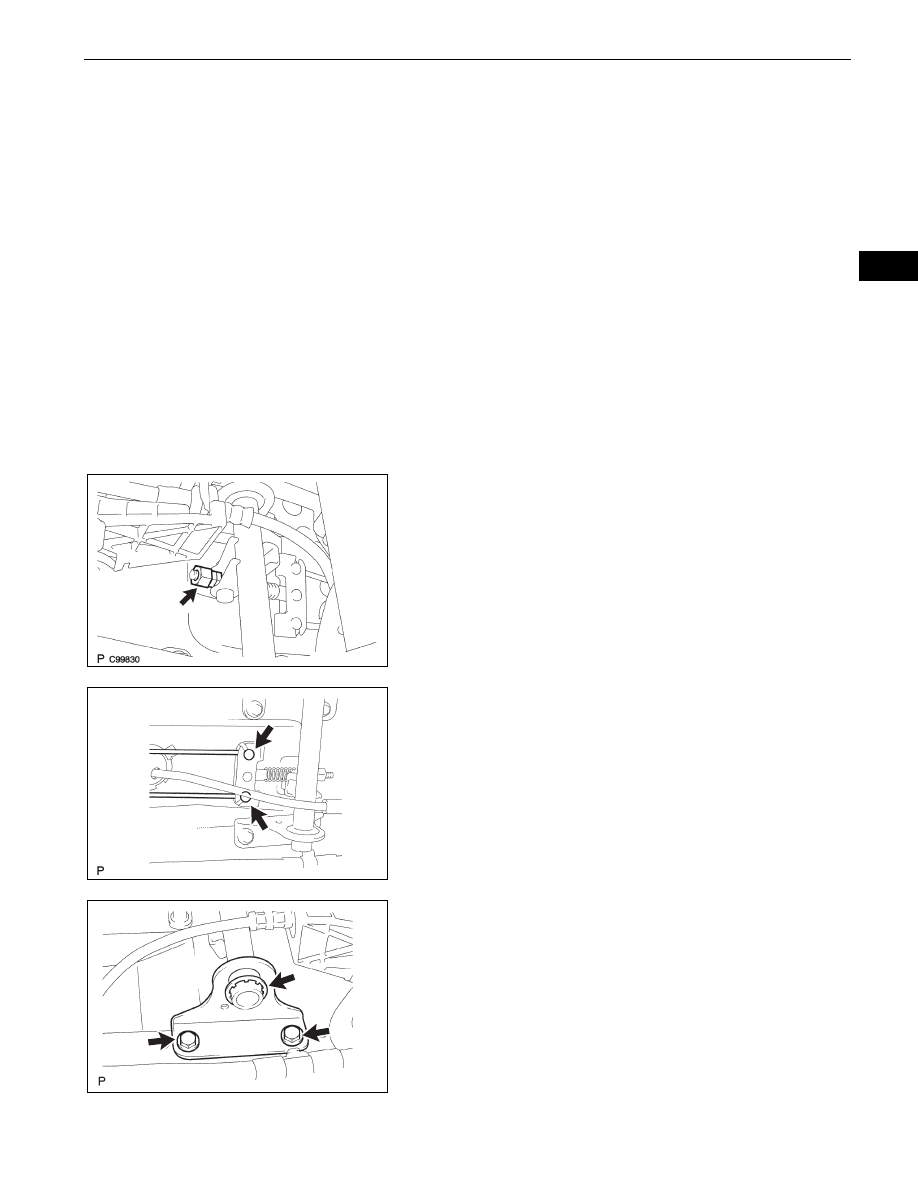

PARKING BRAKE  –  PARKING BRAKE LEVER

PB–5

PB

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE PARKING BRAKE HOLE COVER SUB-
ASSEMBLY (See page

IP-11

)

3.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for
Manual Transmission) (See page

IP-11

)

4.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for
4WD) (See page

IP-11

)

5.

REMOVE CONSOLE UPPER REAR PANEL SUB-
ASSEMBLY (See page

IP-12

)

6.

REMOVE BOX BOTTOM MAT (See page

IP-12

)

7.

REMOVE FRONT CONSOLE BOX (See page

IP-13

)

8.

REMOVE PARKING BRAKE LEVER
(a) Release the parking brake lever.
(b) Disconnect the parking brake switch connector.

(c) Remove the adjusting nut.

(d) Disconnect parking brake cables No. 2 and No. 3

from the parking brake pull rod.

(e) Remove the parking brake pull rod, bush and set

spring.

(f)

Remove the straight pin from the parking brake
lever.

(g) Remove the washer.
(h) Remove the 2 bolts and center support from the

parking brake lever.
