PM–34

PARK ASSIST / MONITORING  –  CLEARANCE WARNING BUZZER

PM

BODY ELECTRICAL

PARK ASSIST / MONITORING

CLEARANCE WARNING BUZZER

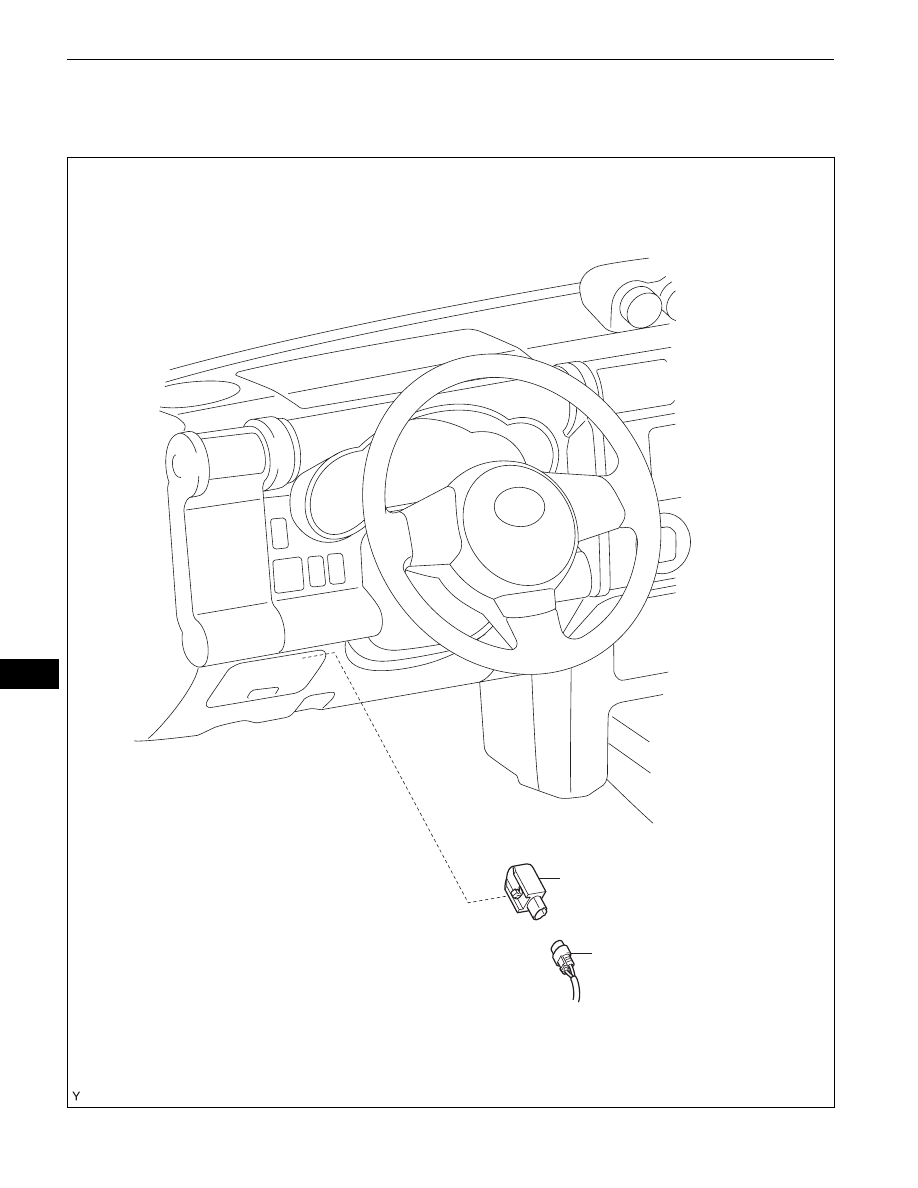

COMPONENTS

CLEARANCE WARNING
BUZZER

CLEARANCE WARNING
BUZZER CONNECTOR

B135079E01

PARK ASSIST / MONITORING  –  CLEARANCE WARNING BUZZER

PM–35

PM

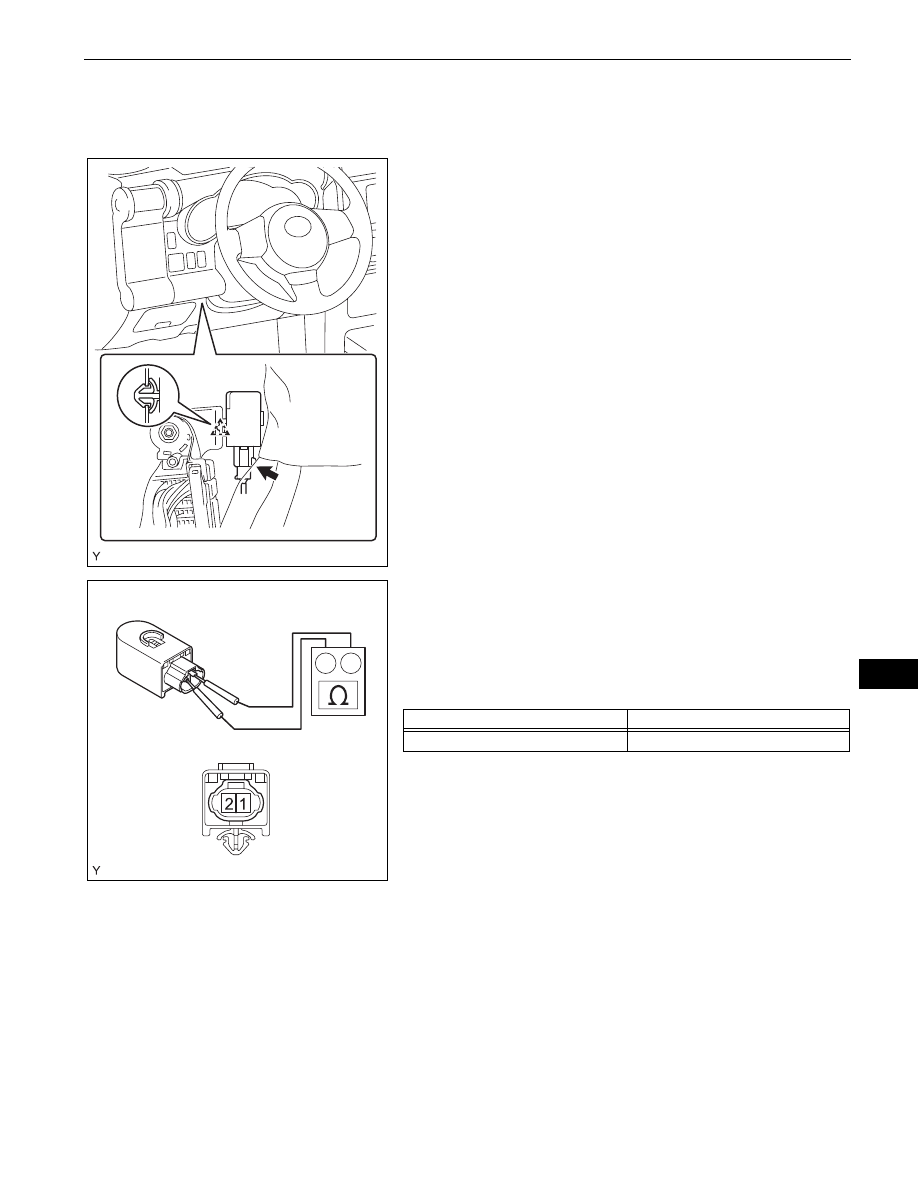

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE CLEARANCE WARNING BUZZER
(a) Disconnect the clearance warning buzzer

connector.

(b) Disengage the clamp and remove the clearance

warning buzzer.

INSPECTION

1.

INSPECT CLEARANCE WARNING BUZZER
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance

If the result is not as specified, replace the
clearance warning buzzer.

B135080

Ohmmeter

B138426E01

Tester Connection

Specified Condition

1 - 2

Approximately 1 k

Ω

PM–36

PARK ASSIST / MONITORING  –  CLEARANCE WARNING BUZZER

PM

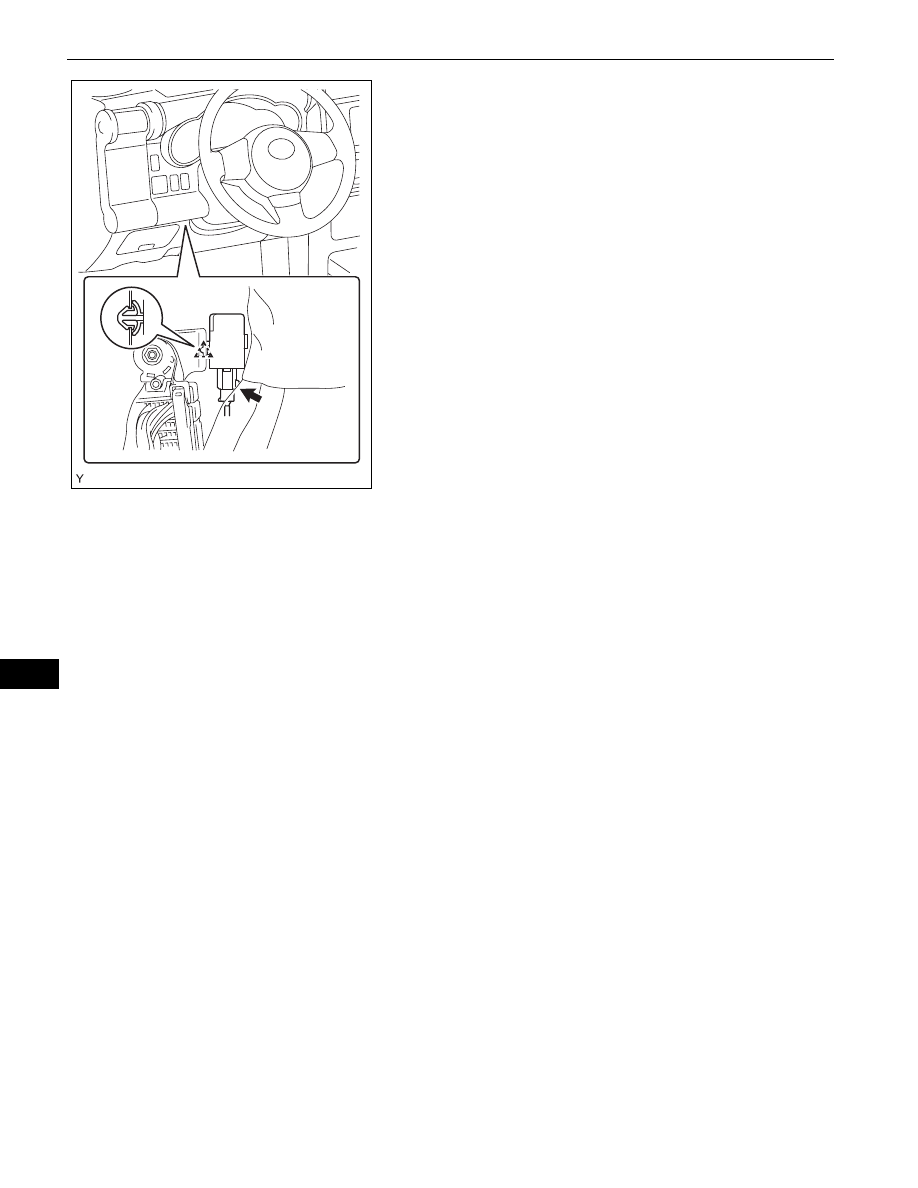

INSTALLATION

1.

INSTALL CLEARANCE WARNING BUZZER
(a) Engage the clamp and install the clearance warning

buzzer.

(b) Connect the clearance warning buzzer connector.

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B135080

PARK ASSIST / MONITORING  –  ULTRASONIC SENSOR

PM–37

PM

BODY ELECTRICAL

PARK ASSIST / MONITORING

ULTRASONIC SENSOR

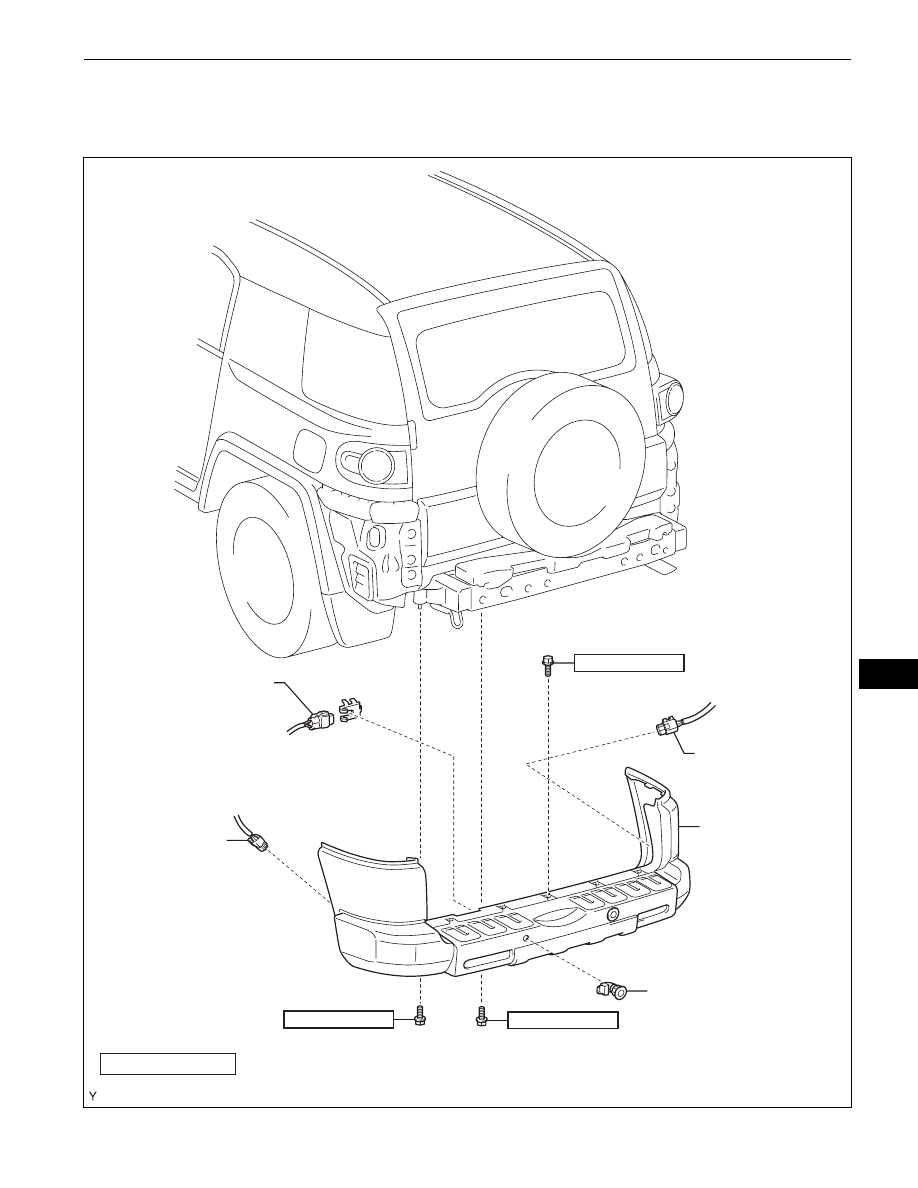

COMPONENTS

REAR BUMPER
COVER

ULTRASONIC SENSOR

N*m (kgf*cm, ft*lbf)  : Specified torque

3.0 (30, 27 in.*lbf)

x2

3.0 (30, 27 in.*lbf)

x2

8.0 (80, 71 in.*lbf)

x5

WIRE to WIRE
CONNECTOR

ULTRASONIC SENSOR
CONNECTOR

WIRE to WIRE
CONNECTOR

B138491E01
