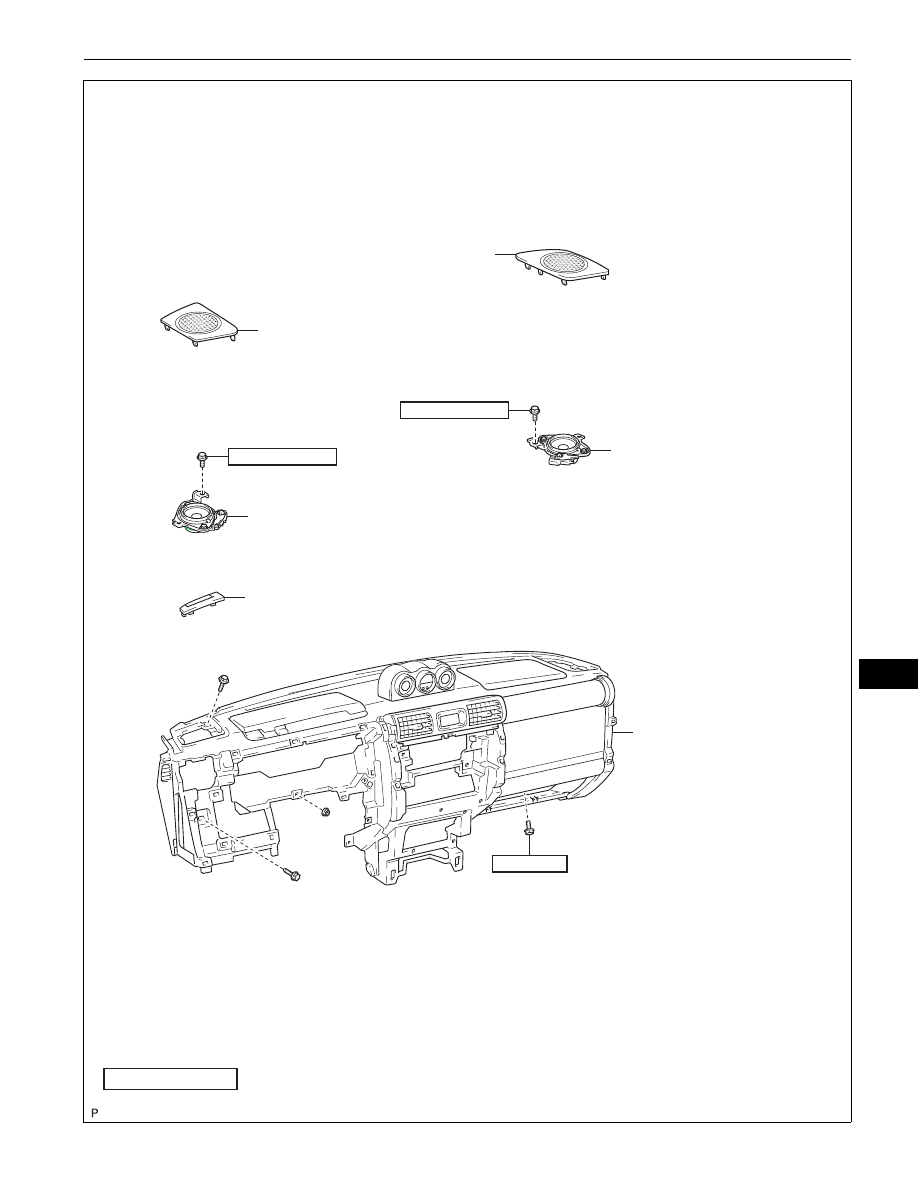

PARK ASSIST / MONITORING  –  CLEARANCE WARNING ECU

PM–27

PM

FRONT NO. 2 SPEAKER
ASSEMBLY

INSTRUMENT PANEL SPEAKER
PANEL SUB-ASSEMBLY LH

INSTRUMENT PANEL SPEAKER
PANEL SUB-ASSEMBLY RH

INSTRUMENT PANEL
SUB-ASSEMBLY

x2

x2

FRONT NO. 2 SPEAKER
ASSEMBLY

x2

x7

x2

N*m (kgf*cm, ft*lbf)  : Specified torque

20 (204, 15)

2.5 (25, 22 in.*lbf)

2.5 (25, 22 in.*lbf)

INSTRUMENT PANEL
FINISH PANEL END

B138486E01

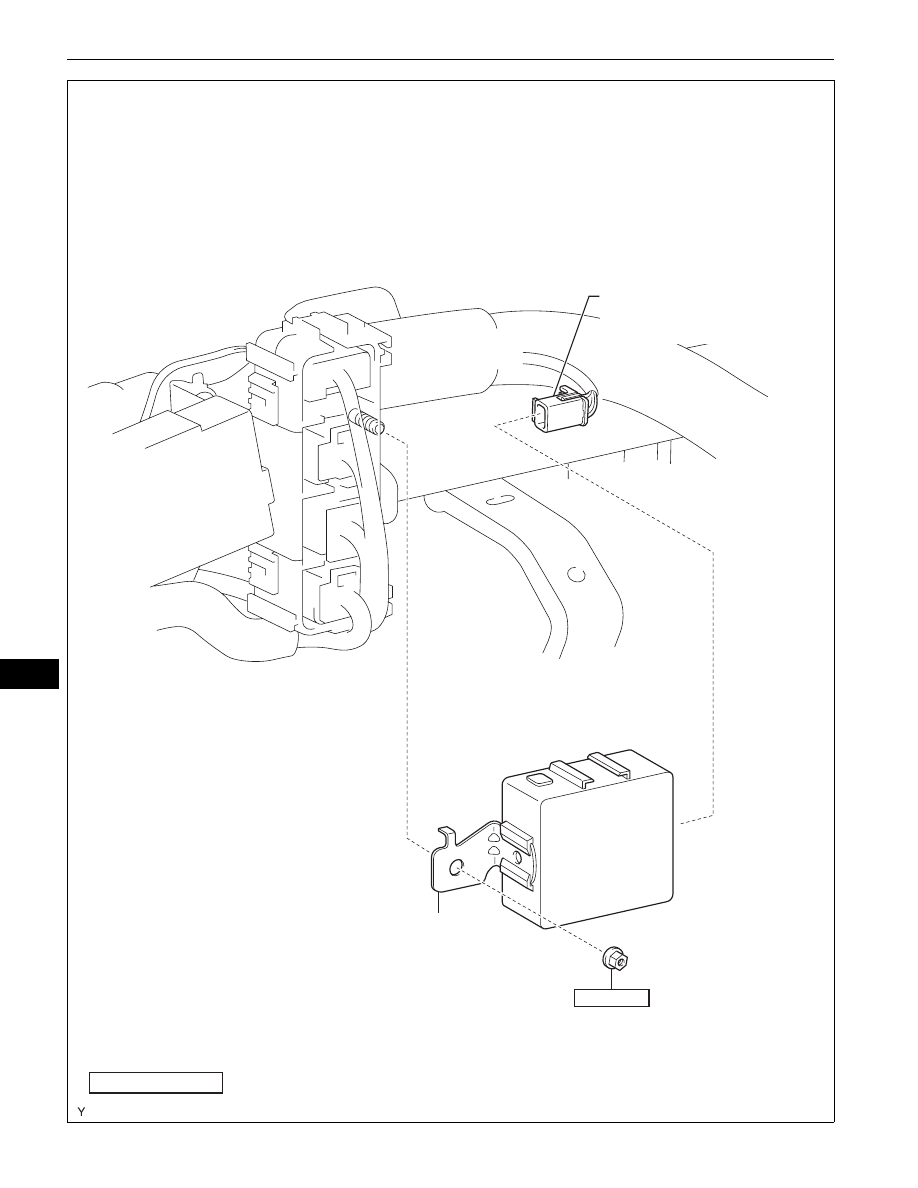

PM–28

PARK ASSIST / MONITORING  –  CLEARANCE WARNING ECU

PM

CLEARANCE WARNING
ECU

CLEARANCE WARNING
ECU CONNECTOR

N*m (kgf*cm, ft*lbf)  : Specified torque

12.5 (125, 9)

B135077E01

PARK ASSIST / MONITORING  –  CLEARANCE WARNING ECU

PM–29

PM

REMOVAL

CAUTION:
Some of these service operations affect the SRS airbag
system. Read the precautionary notices concerning the
SRS airbag system before servicing (See page

RS-1

).

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait for at least 90 seconds after disconnecting the
cable to prevent the airbag from working.

2.

REMOVE FRONT DOOR SCUFF PLATE RH (See page

IR-15

)

3.

REMOVE FRONT DOOR SCUFF PLATE LH (See page

IR-15

)

4.

REMOVE FRONT FLOOR FOOTREST (See page

IR-2

)

5.

REMOVE FOOTREST CLIP (See page

IR-2

)

6.

REMOVE COWL SIDE TRIM BOARD RH (See page

IR-15

)

7.

REMOVE COWL SIDE TRIM BOARD LH (See page

IR-

15

)

8.

SEPARATE FRONT DOOR OPENING TRIM
WEATHERSTRIP RH (See page

AV-98

)

9.

SEPARATE FRONT DOOR OPENING TRIM
WEATHERSTRIP LH (See page

AV-98

)

10. REMOVE ASSIST GRIP PLUG (See page

AV-99

)

11. REMOVE ASSIST GRIP ASSEMBLY (See page

AV-99

)

12. REMOVE FRONT PILLAR GARNISH RH (See page

IR-

18

)

13. REMOVE FRONT PILLAR GARNISH LH (See page

IR-

18

)

14. REMOVE ASSIST GRIP RETAINER RH (See page

IP-

16

)

15. REMOVE ASSIST GRIP RETAINER LH (See page

IP-

16

)

16. REMOVE INSTRUMENT PANEL GARNISH LH (See

page

IP-10

)

17. REMOVE INSTRUMENT PANEL GARNISH RH (See

page

IP-10

)

18. REMOVE INTEGRATION CONTROL PANEL

ASSEMBLY (See page

IP-11

)

19. REMOVE RADIO RECEIVER ASSEMBLY (See page

AV-55

)

20. REMOVE PARKING BRAKE HOLE COVER SUB-

ASSEMBLY (See page

IP-11

)

PM–30

PARK ASSIST / MONITORING  –  CLEARANCE WARNING ECU

PM

21. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for

Manual Transmission) (See page

IP-11

)

22. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for

4WD) (See page

IP-11

)

23. REMOVE FRONT CONSOLE BOX UPPER PANEL

SUB-ASSEMBLY (See page

IP-12

)

24. REMOVE FRONT CONSOLE BOX BOTTOM MAT (See

page

IP-12

)

25. REMOVE FRONT CONSOLE BOX (See page

IP-12

)

26. REMOVE FRONT CONSOLE BOX PANEL GARNISH

(See page

IP-12

)

27. REMOVE INSTRUMENT LOWER COVER SUB-

ASSEMBLY (See page

IP-13

)

28. REMOVE INSTRUMENT PANEL REGISTER

ASSEMBLY LH (See page

IP-13

)

29. REMOVE HOOD LOCK CONTROL LEVER SUB-

ASSEMBLY (See page

IP-13

)

30. REMOVE INSTRUMENT PANEL LOWER FINISH

PANEL SUB-ASSEMBLY LH (See page

IP-14

)

31. REMOVE INSTRUMENT LOWER PANEL (See page

IP-14

)

32. REMOVE INSTRUMENT CLUSTER LOWER FINISH

PANEL (See page

IP-14

)

33. REMOVE COMBINATION METER ASSEMBLY (See

page

IP-14

)

34. REMOVE GLOVE COMPARTMENT DOOR

ASSEMBLY (See page

IP-15

)

35. REMOVE INSTRUMENT PANEL LOWER FINISH

PANEL SUB-ASSEMBLY RH (See page

IP-15

)

36. REMOVE INSTRUMENT PANEL REGISTER

ASSEMBLY RH (See page

IP-16

)

37. REMOVE INSTRUMENT PANEL SPEAKER PANEL

SUB-ASSEMBLY RH (See page

IP-16

)

38. REMOVE INSTRUMENT PANEL SPEAKER PANEL

SUB-ASSEMBLY LH (See page

IP-16

)

39. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (See

page

AV-101

)

40. DISCONNECT PASSENGER AIRBAG CONNECTOR

(See page

IP-16

)

41. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

(See page

IP-16

)

42. REMOVE INSTRUMENT PANEL FINISH PANEL END

(See page

IP-21

)
