PARK ASSIST / MONITORING  –  CLEARANCE WARNING ECU

PM–23

PM

BODY ELECTRICAL

PARK ASSIST / MONITORING

CLEARANCE WARNING ECU

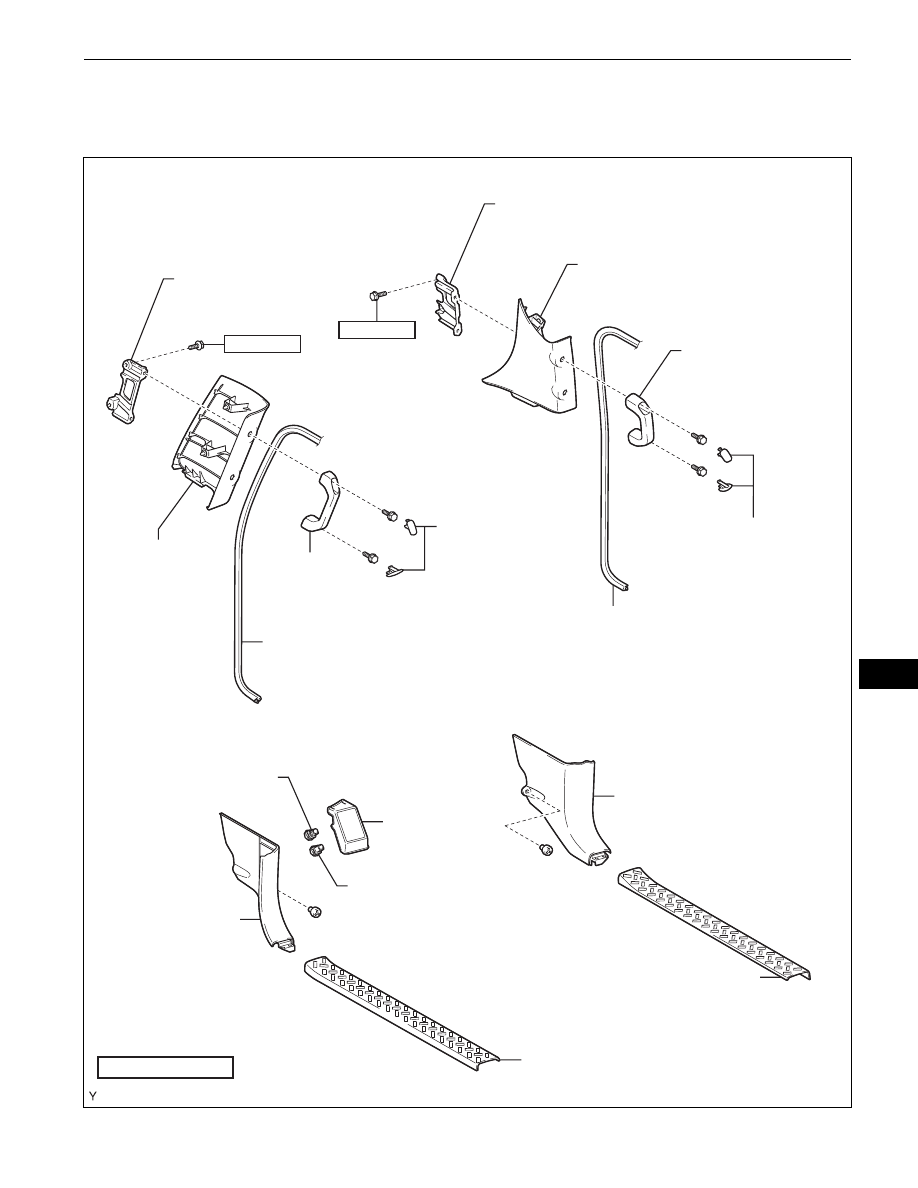

COMPONENTS

ASSIST GRIP
ASSEMBLY

ASSIST GRIP
PLUG

ASSIST GRIP
RETAINER LH

ASSIST GRIP
RETAINER RH

COWL SIDE
TRIM BOARD LH

COWL SIDE
TRIM BOARD RH

FOOTREST CLIP

FRONT DOOR OPENING
TRIM WEATHERSTRIP LH

FRONT DOOR OPENING
TRIM WEATHERSTRIP RH

FRONT DOOR SCUFF PLATE LH

FRONT DOOR SCUFF PLATE RH

FRONT FLOOR
FOOTREST

FRONT PILLAR
GARNISH LH

FRONT PILLAR
GARNISH RH

N*m (kgf*cm, ft*lbf)  : Specified torque

29 (296, 21)

x2

x2

29 (296, 21)

FOOTREST CLIP

ASSIST GRIP
PLUG

ASSIST GRIP
ASSEMBLY

B138483E01

PM–24

PARK ASSIST / MONITORING  –  CLEARANCE WARNING ECU

PM

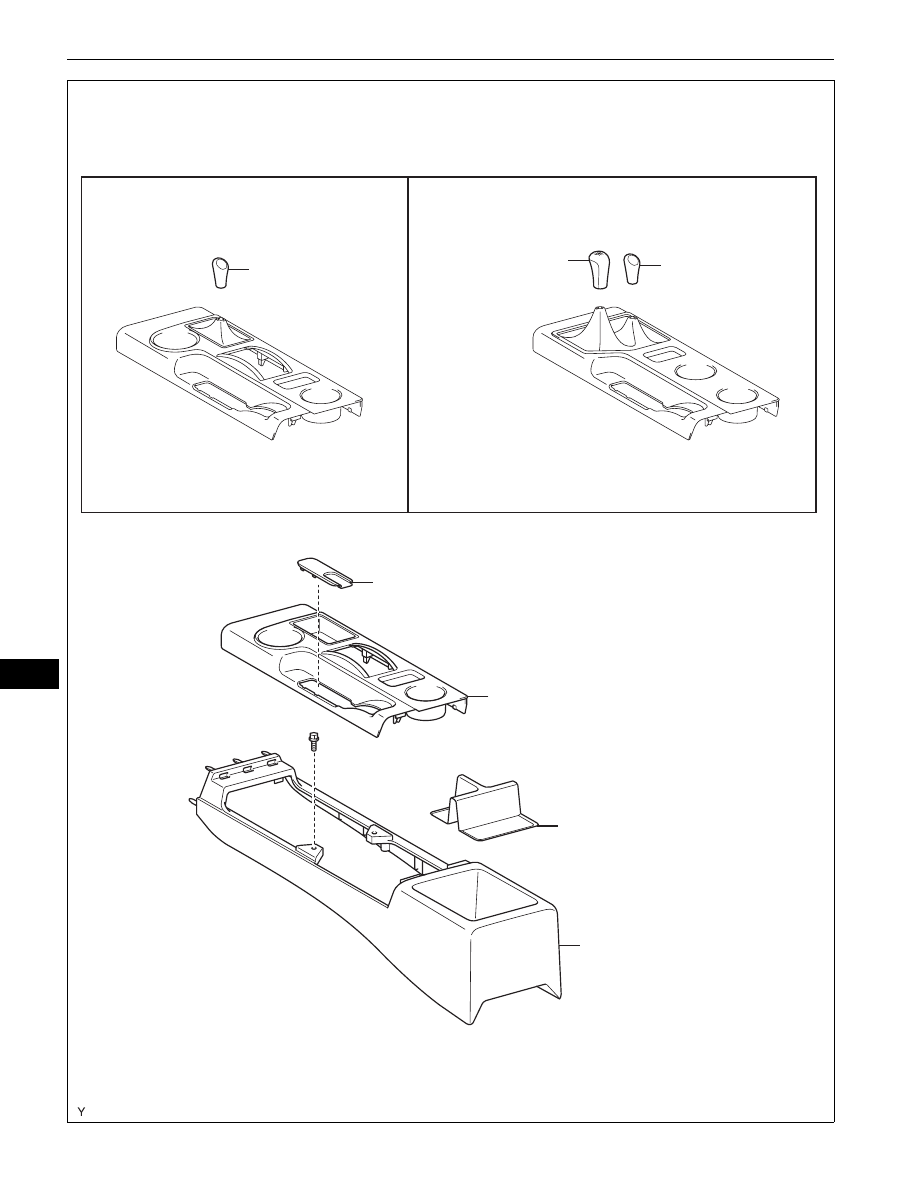

FRONT CONSOLE BOX

FRONT CONSOLE BOX
BOTTOM MAT

FRONT CONSOLE BOX UPPER
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

SHIFT LEVER KNOB
SUB-ASSEMBLY

SHIFT LEVER KNOB
SUB-ASSEMBLY

x4

SHIFT LEVER KNOB
SUB-ASSEMBLY

for Manual Transmission:

for Automatic Transmission 4WD:

B138638E01

PARK ASSIST / MONITORING  –  CLEARANCE WARNING ECU

PM–25

PM

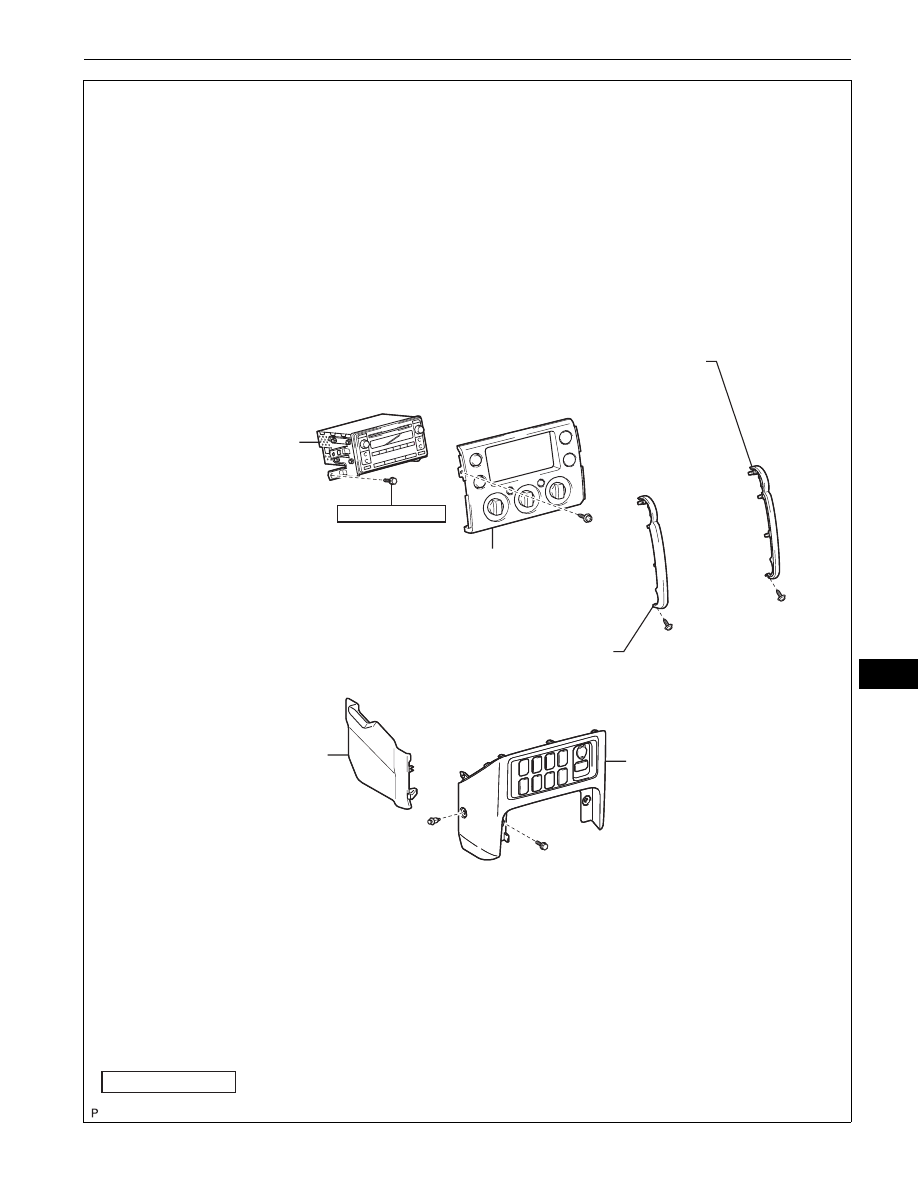

FRONT CONSOLE BOX
UPPER PANEL GARNISH

INSTRUMENT LOWER
COVER SUB-ASSEMBLY

INSTRUMENT PANEL
GARNISH LH

INSTRUMENT PANEL
GARNISH RH

INTEGRATION CONTROL
PANEL ASSEMBLY

RADIO RECEIVER
ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

2.5 (25, 22 in.*lbf)

x2

x2

x2

x4

B138484E01

PM–26

PARK ASSIST / MONITORING  –  CLEARANCE WARNING ECU

PM

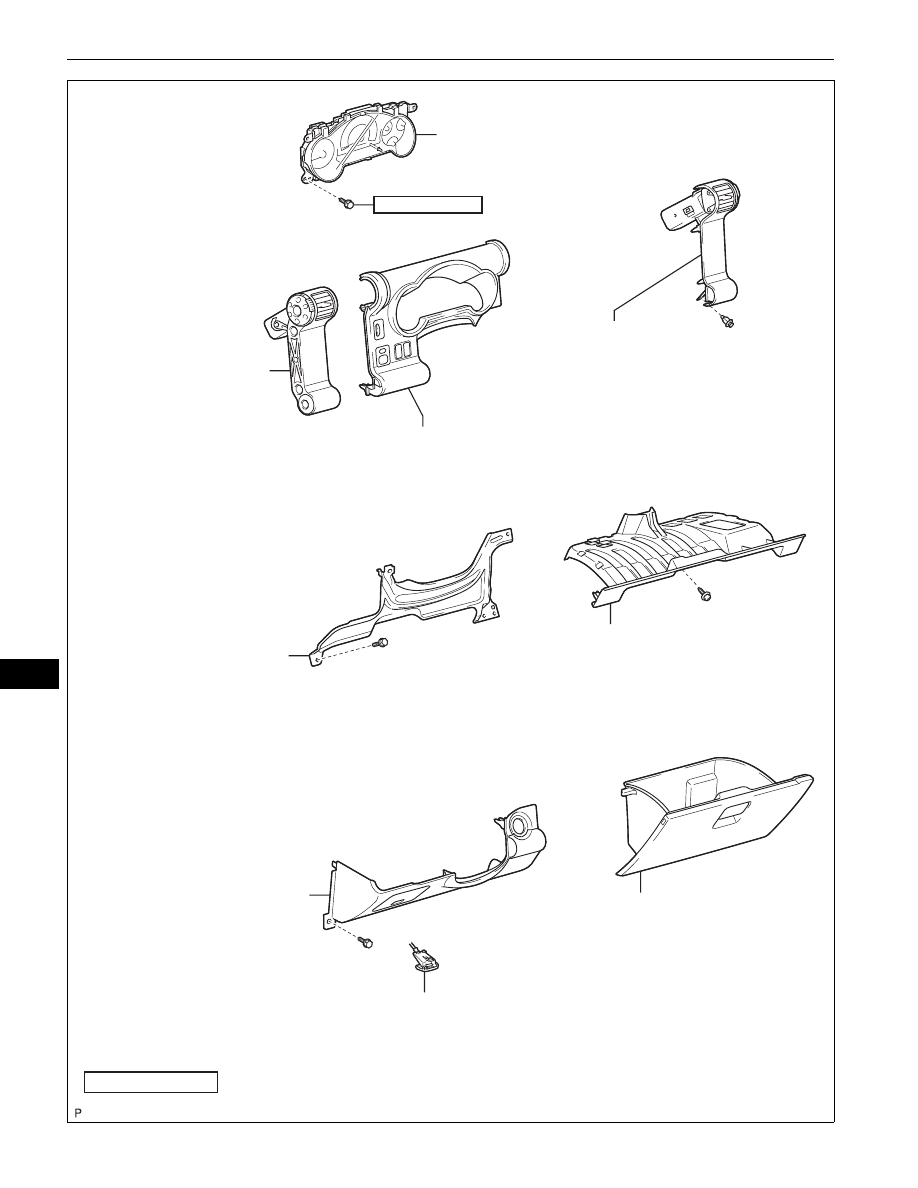

COMBINATION METER
ASSEMBLY

GLOVE COMPARTMENT
DOOR ASSEMBLY

HOOD LOCK CONTROL
LEVER SUB-ASSEMBLY

INSTRUMENT CLUSTER
LOWER FINISH PANEL

INSTRUMENT LOWER
PANEL

INSTRUMENT PANEL
LOWER FINISH PANEL
SUB-ASSEMBLY LH

INSTRUMENT PANEL LOWER
FINISH PANEL SUB-ASSEMBLY RH

INSTRUMENT PANEL
REGISTER ASSEMBLY LH

INSTRUMENT PANEL
REGISTER ASSEMBLY RH

N*m (kgf*cm, ft*lbf)  : Specified torque

7.0 (71, 62 in.*lbf)

x4

x4

x2

B138485E01
