ME–44

METER  –  METER / GAUGE SYSTEM

ME

OK

(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch ON and the tester ON.
(c) Select the item below from the Data List, and read the

value displayed on the intelligent tester.

METER

OK:

Vehicle speed displayed on the tester is
approximately the same as the actual vehicle
speed.

NG

OK

(a) Disconnect the E13 combination meter assembly

connector.

(b) Disconnect the A4 skid control ECU connector.

REPLACE COMBINATION METER ASSEMBLY

5

READ VALUE OF INTELLIGENT TESTER (SPEED METER)

Item

Measurement Item /

Range(Display)

Normal Condition

Diagnostic Note

SPEED METER

Vehicle speed / Min.: 0 mph (0
km/h), Max.: 158mph (255 km/

h)

Approximately same as actual
vehicle speed (When vehicle is
driven)

-

GO TO BRAKE SYSTEM

6

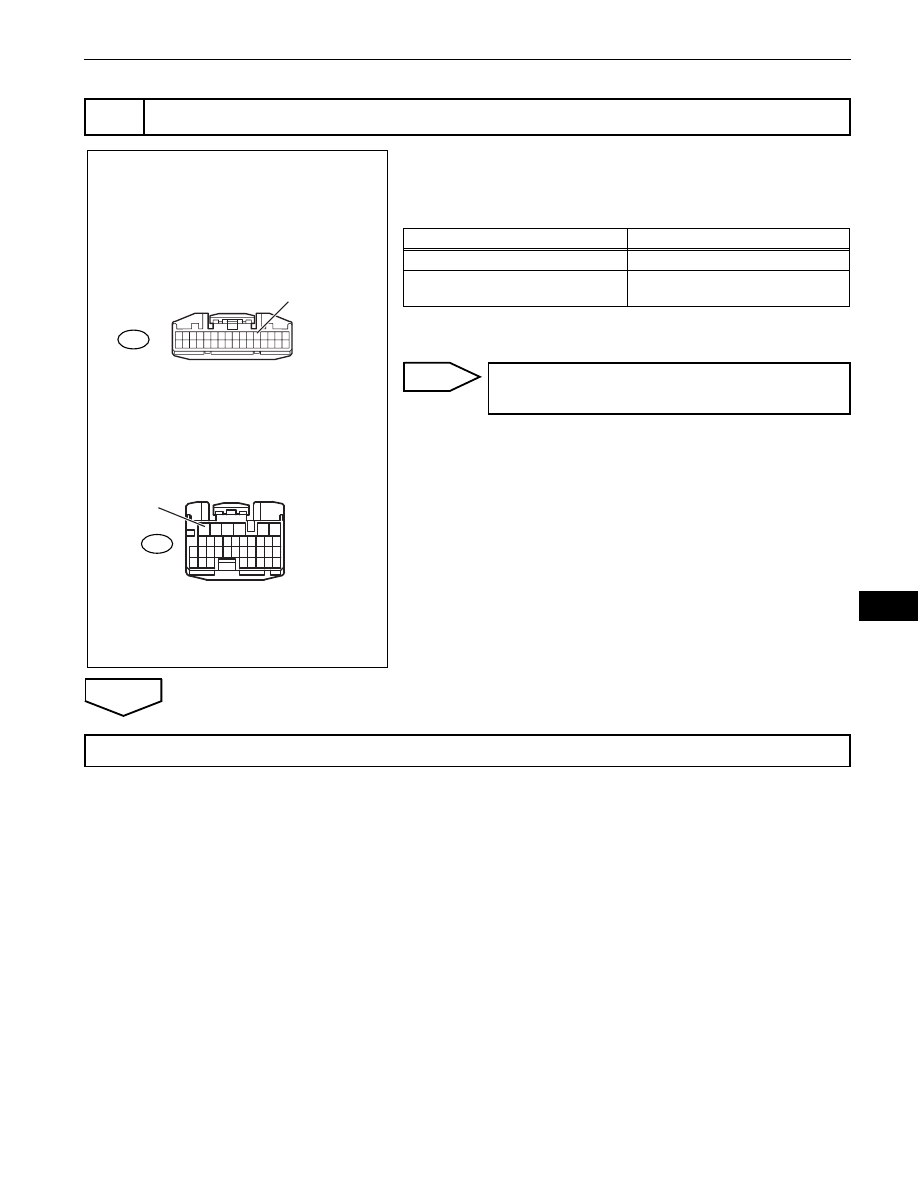

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER
ASSEMBLY)

METER  –  METER / GAUGE SYSTEM

ME–45

ME

(c) Measure the resistance.

Standard resistance

NG

OK





31

32

2

1

3

4

5

6

7

8

9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30

33 34 35 36 37 38 39 40 41 42 43 44 45 46

Wire Harness Side:

SP1

GND2

A4

Skid Control ECU Connector

Front View

Combination Meter Assembly Connector

E13

SI

Front View

E126869E01

Tester Connection

Specified Condition

E13-E13 (SI) - A4-12 (SP1)

Below 1

Ω

A4-32 (GND2) - Body ground

Below 1

Ω

REPAIR OR REPLACE HARNESS OR
CONNECTOR

REPLACE COMBINATION METER ASSEMBLY

ME–46

METER  –  METER / GAUGE SYSTEM

ME

DESCRIPTION

The combination meter assembly controls the tachometer in accordance with engine speed signals from
the ECM.

WIRING DIAGRAM

INSPECTION PROCEDURE

(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) Select the item below from the Data List, and read the

value displayed on the intelligent tester.

METER

OK:

Engine speed displayed on the tester is
approximately the same as the actual engine
speed.

NG

OK

Tachometer Malfunction

1

READ VALUE OF INTELLIGENT TESTER (TACHOMETER)

Combination Meter Assembly (Tachometer)

ECM

S

TACH

E126870E01

Item

Measurement Item/Range

(Display)

Normal Condition

Diagnostic Note

TACHOMETER

Engine speed/Min.: 0 rpm,

Max.: 12,750 rpm

Approximately same as actual
engine speed (When engine is
running)

-

GO TO SFI SYSTEM

METER  –  METER / GAUGE SYSTEM

ME–47

ME

(a) Disconnect the E13 combination meter connector.
(b) Disconnect the E46 ECM connector.
(c) Measure the resistance.

Standard resistance

(d) Reconnect the ECM connector.
(e) Reconnect the combination meter connector.

NG

OK

2

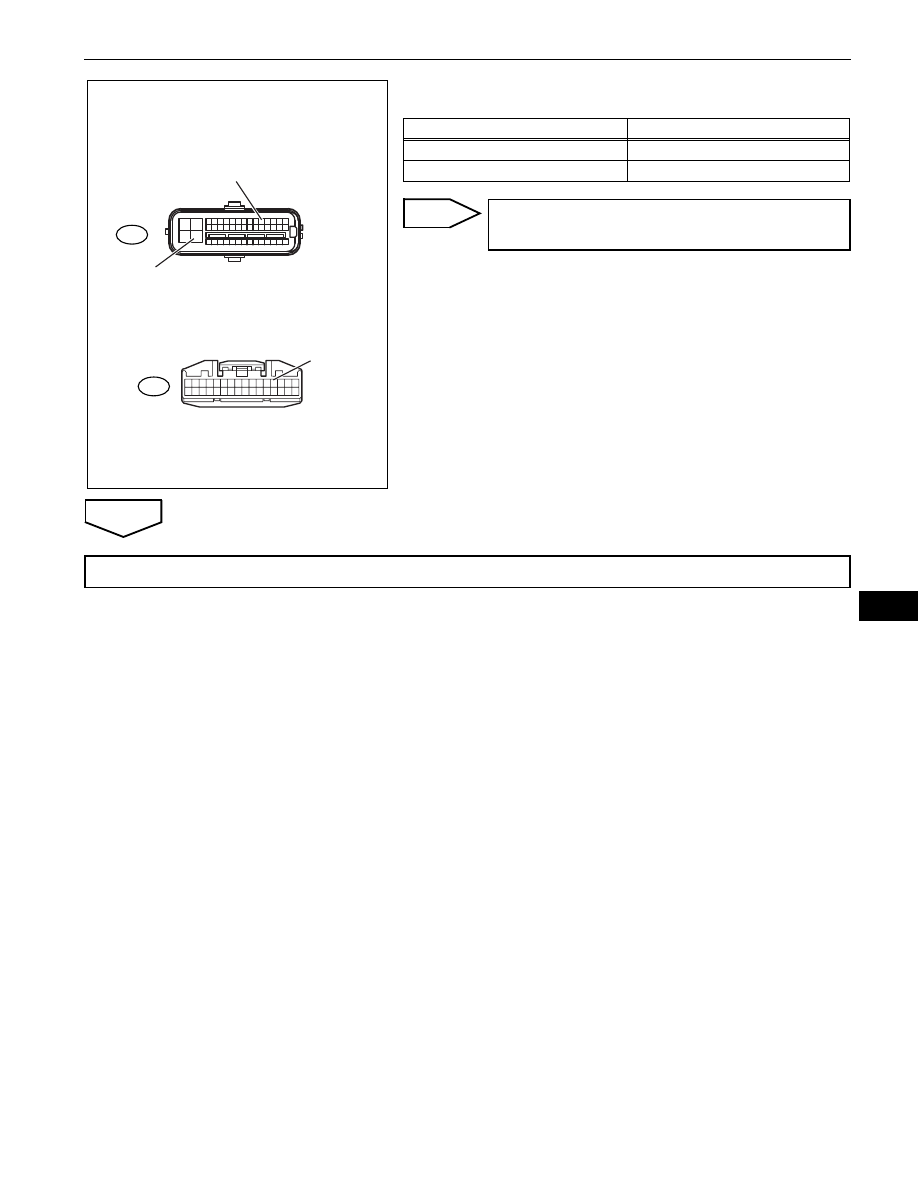

CHECK WIRE HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - ECM)





16

32

31

35

28

20

17

9 10

34

11

6

5

13 14 15

23 24

26

12

3

2

1

4

27

29

18

7

30

19

8

21 22

25

33

Wire Harness Side:

Front View:

E13

S

Front View:

Combination Meter Assembly Connector

ECM Connector

TACH

E46

E126864E01

Tester Connection

Specified Condition

E13-12 (S) - E46-1 (TACH)

Below 1

Ω

E13-12 (S) or E46-1 (TACH) - Body

ground

10 k

Ω or higher

REPAIR OR REPLACE HARNESS OR
CONNECTOR

REPLACE COMBINATION METER ASSEMBLY
