ME–32

METER  –  METER / GAUGE SYSTEM

ME

*1: for M/T
*2: for A/T
*3: w/ Daytime Running Light
*4: w/o Daytime Running Light
*5: for 2WD
*6: w/ Cruise Control
*7: w/ Active Traction Control (4WD only)
*8: w/ Rear Differential Lock

METER  –  METER / GAUGE SYSTEM

ME–33

ME

DATA LIST / ACTIVE TEST

1.

DATA LIST
By reading the DATA LIST displayed on the intelligent
tester, you can check values, including those of the
switches, sensors, actuators without removing any parts.
Reading the DATA LIST as the first step of
troubleshooting is one method of shortening diagnostic
time.
(a) Warm up the engine.
(b) Turn the ignition switch OFF.
(c) Connect the intelligent tester to the DLC3.
(d) Turn the ignition switch to the ON position.
(e) Operate the intelligent tester according to the

display on the tester screen and select DATA LIST.

ECM:

Item

Measurement Item: Range

(Display)

Normal Condition

Diagnostic Note

Vehicle SPD

Vehicle speed: Minimum: 0 mph

(0km/h), Maximum: 153 mph (255

km/h)

Approximately equal to actual

vehicle speed (When driving)

-

Engine SPD

Engine speed: Minimum: 0 rpm,

Maximum: 16,383 rpm

Approximately equal to actual

engine speed (With engine

running)

-

Coolant Temp.

Coolant temperature: Minimum: -

40

°C (-40°F), Maximum: 140°C

(284

°F)

After warming up: 80

° to 95 °C

(176

°F to 203°F)

If value -40

°C (-40°F) or 140°C

(284

°F), sensor circuit open or

shorted.

ME–34

METER  –  METER / GAUGE SYSTEM

ME

ON-VEHICLE INSPECTION

1.

INSPECT SPEEDOMETER
(a) Check the operation.

(1) Using a speedometer tester, inspect the

speedometer and confirm that the
speedometer readings are within the
acceptable range. Also check the odometer
operation.
Reference:
km/h (Canada)

mph (U.S.A.)

NOTICE:
Tire wear and excessively high or low tire
pressure affect speedometer indications.

(2) Check the deflection of the speedometer

indicator.
Reference:

Below 0.3 mph (0.5 km/h)

Standard Indication

Acceptable Range

20 km/h

17.5 to 21.5 km/h

40 km/h

38 to 42 km/h

60 km/h

58 to 63 km/h

80 km/h

78 to 84 km/h

100 km/h

98.5 to 104.5 km/h

120 km/h

119 to 125 km/h

140 km/h

139 to 146 km/h

160 km/h

159 to 167 km/h

180 km/h

179 to 188 km/h

200 km/h

199 to 209 km/h

Standard Indication

Acceptable Range

20 mph

19 to 22 mph

40 mph

39 to 42.5 mph

60 mph

59.5 to 63.5 mph

80 mph

79.5 to 84 mph

100 mph

100 to 105 mph

120 mph

121 to 126.5 mph

METER  –  METER / GAUGE SYSTEM

ME–35

ME

2.

INSPECT SPEED SENSOR

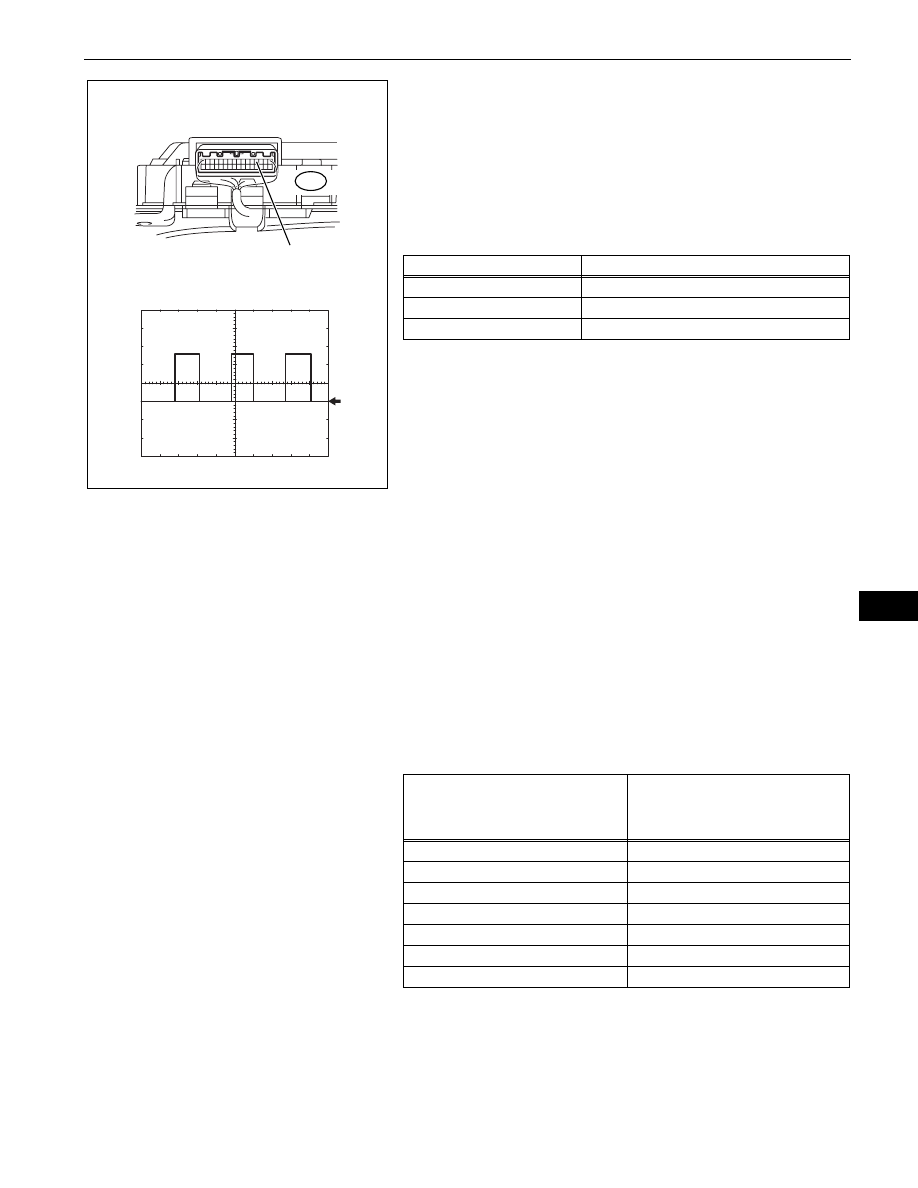

(a) Check the output signal waveform.

(1) Remove the combination meter assembly, but

do not disconnect the connector.

(2) Connect an oscilloscope to terminal E13-4 and

to the body ground.

(3) Start the engine.
(4) Check the signal waveform according to the

conditions in the table below.

OK:

As shown in the illustration.

NOTICE:
As the vehicle speed increases, the cycle of
the signal waveform narrows.

(5) Reinstall the combination meter assembly.

3.

INSPECT TACHOMETER
(a) Check the operation.

(1) Connect the tune-up test tachometer and start

the engine.
NOTICE:
•

Reversing the connection of the
tachometer will damage the transistors
and the insides of the diodes.

•

When removing or installing the
tachometer, be careful not to drop or
strike it.

(2) Compare the result of the test with the standard

indication.
DC 13.5 V, at 25

°C (77°F)

Reference

GND

Waveform:

Combination Meter Assembly Connector:

E13

SE

E125403E01

Item

Contents

Terminal Connection

SE (E13-4) and Body Ground

Tool Setting

5V / DIV, 20ms / DIV

Condition

Driving at approximately 12mph (20km / h)

Standard Indication (USA) (RPM)

Standard Indication (CANADA) (r/

min)

Data in ( ) are for reference

Acceptable Range (USA) (RPM)

Acceptable Range (CANADA) (r/min)

Data in ( ) are for reference

700

630 to 770

1,000

(900 to 1,100)

2,000

(1,850 to 2,150)

3,000

2,800 to 3,200

4,000

(3,800 to 4,200)

5,000

4,800 to 5,100

(6,000)

(5,750 to 6,250)
