LIGHTING  –  HEADLIGHT DIMMER SWITCH

LI–105

LI

(c) Check the resistance of the turn signal switch.

(1) Using an ohmmeter, measure the resistance

and check the results in accordance with the
value(s) in the table below.
Standard Resistance

If the result is not as specified, replace the
headlight dimmer switch.

INSTALLATION

1.

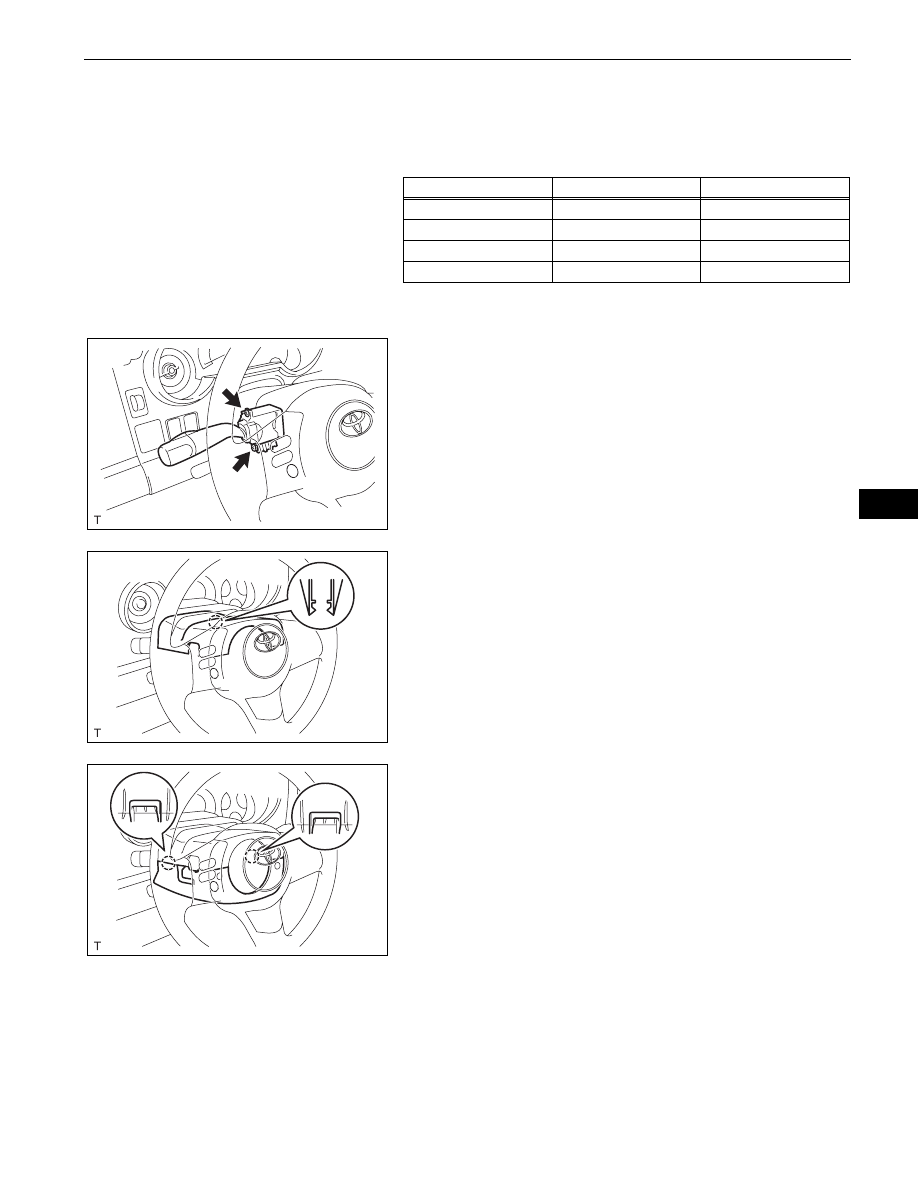

INSTALL HEADLIGHT DIMMER SWITCH
(a) Install the headlight dimmer switch with the 2

screws.

(b) Connect the connector.

2.

INSTALL STEERING COLUMN COVER
(a) Engage the claw and install the upper steering

column cover.

(b) Engage the 2 claws and install the lower steering

column cover.

Tester Connection

Condition

Specified Condition

2 - 3

Right turn

Below 1

Ω

2 - 3

Neutral

10 k

Ω or higher

1 - 2

Neutral

10 k

Ω or higher

1 - 2

Left turn

Below 1

Ω

E127237

E127253

E127235

LI–106

LIGHTING  –  HEADLIGHT DIMMER SWITCH

LI

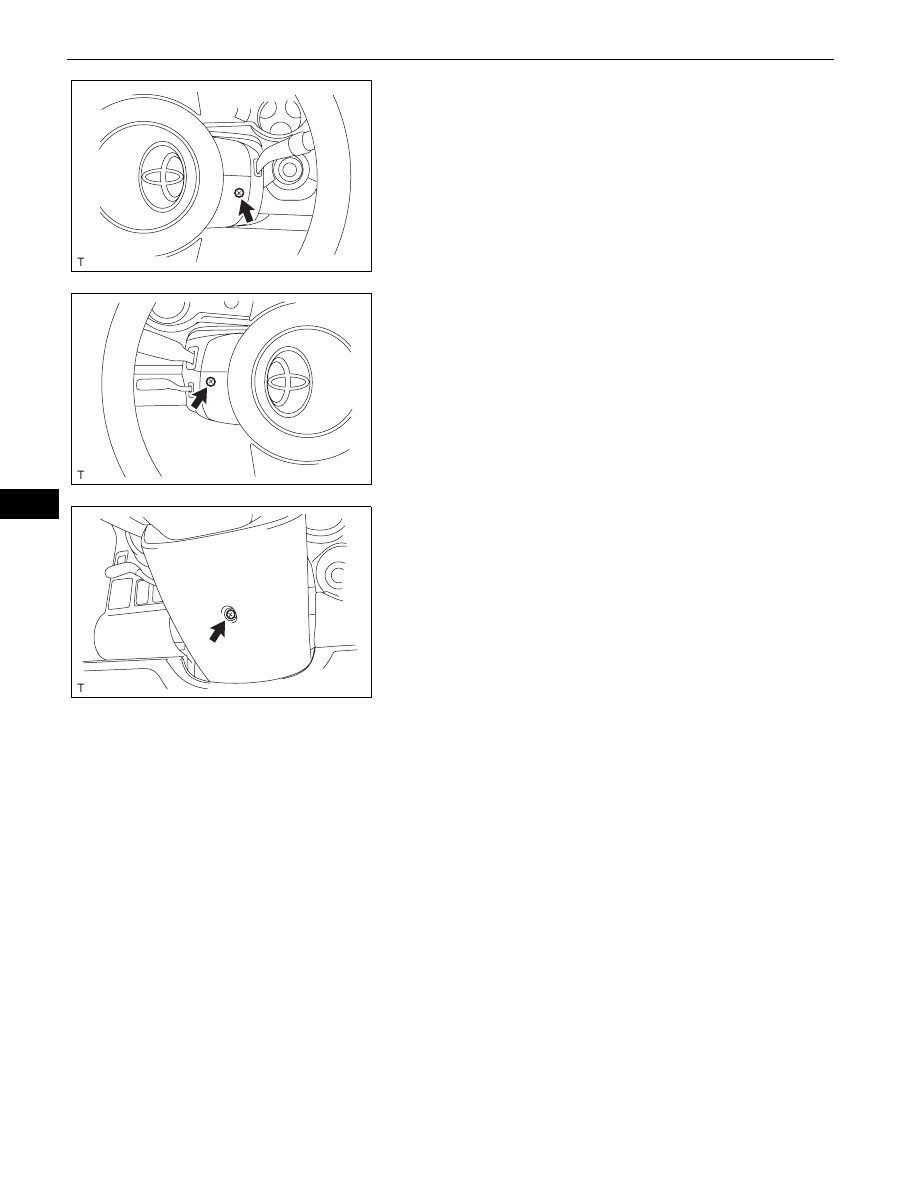

(c) Turn the steering wheel to the right and tighten the

screw indicated in the illustration.

(d) Turn the steering wheel to the left and tighten the

screw indicated in the illustration.

(e) Tighten the screw indicated in the illustration.

3.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

E127232

E127231

E127233

LIGHTING  –  HAZARD WARNING SWITCH

LI–107

LI

BODY ELECTRICAL

LIGHTING

HAZARD WARNING SWITCH

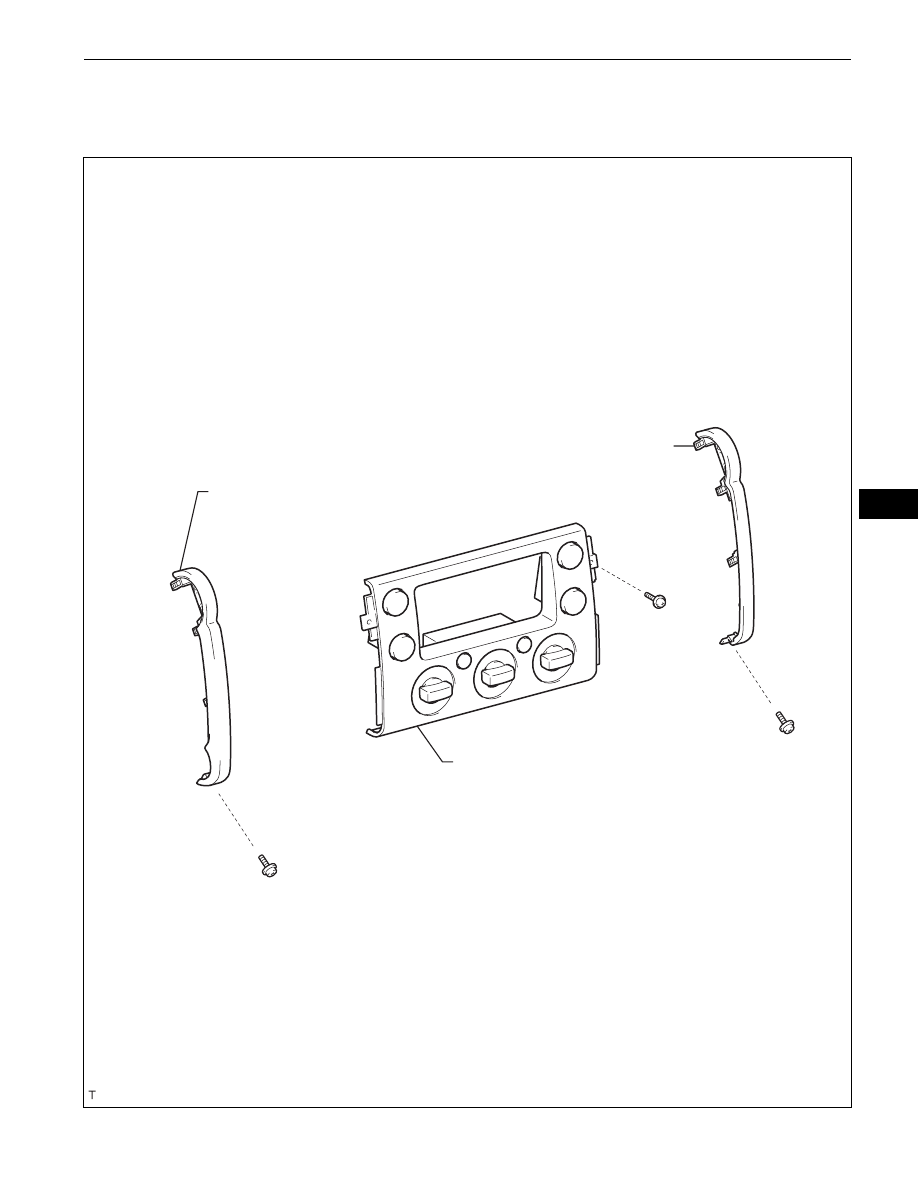

COMPONENTS

INSTRUMENT PANEL
GARNISH LH

INSTRUMENT PANEL
GARNISH RH

INTEGRATION CONTROL
AND PANEL ASSEMBLY

x2

E127251E01

LI–108

LIGHTING  –  HAZARD WARNING SWITCH

LI

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE INSTRUMENT PANEL GARNISH LH (See
page

IP-10

)

3.

REMOVE INSTRUMENT PANEL GARNISH RH (See
page

IP-10

)

4.

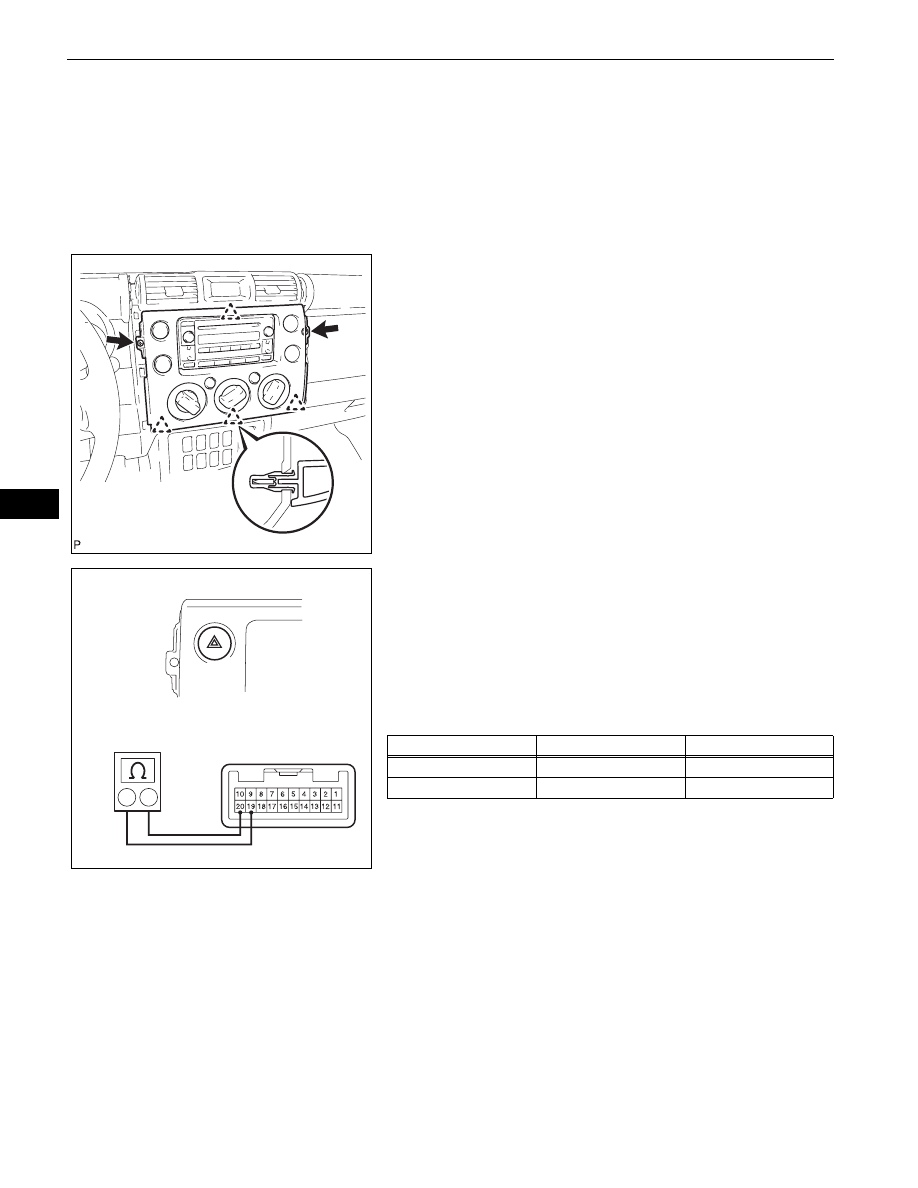

REMOVE INTEGRATION CONTROL AND PANEL
ASSEMBLY
(a) Remove the 2 screws.
(b) Disengage the 4 clips and remove the integration

control and panel.

INSPECTION

1.

INSPECT INTEGRATION CONTROL AND PANEL
ASSEMBLY
(a) Check the resistance of the hazard warning switch.

(1) Using an ohmmeter, measure the resistance

and check the results in accordance with the
value(s) in the table below.
Standard Resistance

If the result is not as specified, replace the
integration control and panel.

B133888

Ohmmeter

E127252E01

Tester Connection

Condition

Specified Condition

19 - 20

ON

Below 3

Ω

19 - 20

OFF

10 M

Ω or higher
