LI–102

LIGHTING  –  REAR ROOM LIGHT ASSEMBLY

LI

(f)

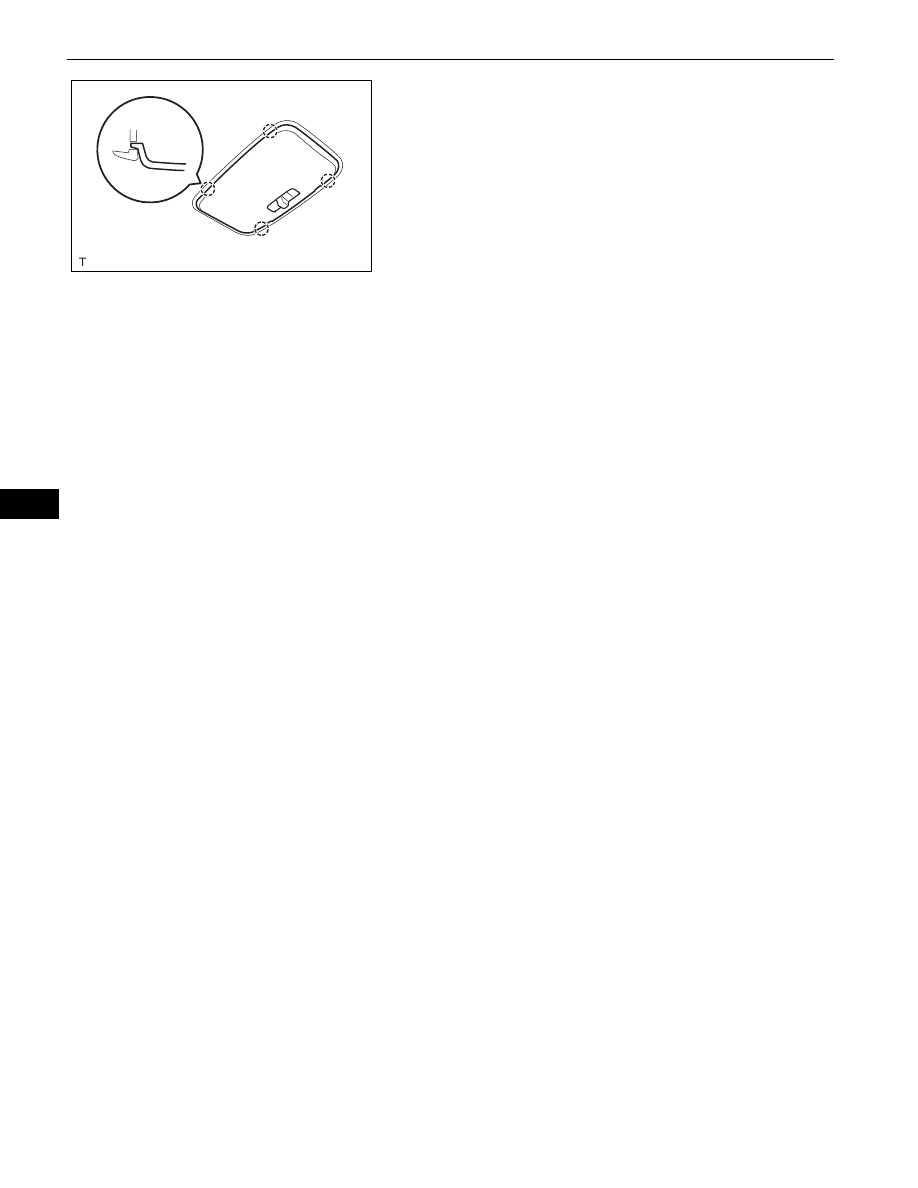

Engage the 4 claws and install the room light lens.

2.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

E114446

LI–102

LIGHTING  –  HEADLIGHT DIMMER SWITCH

LI

BODY ELECTRICAL

LIGHTING

HEADLIGHT DIMMER SWITCH

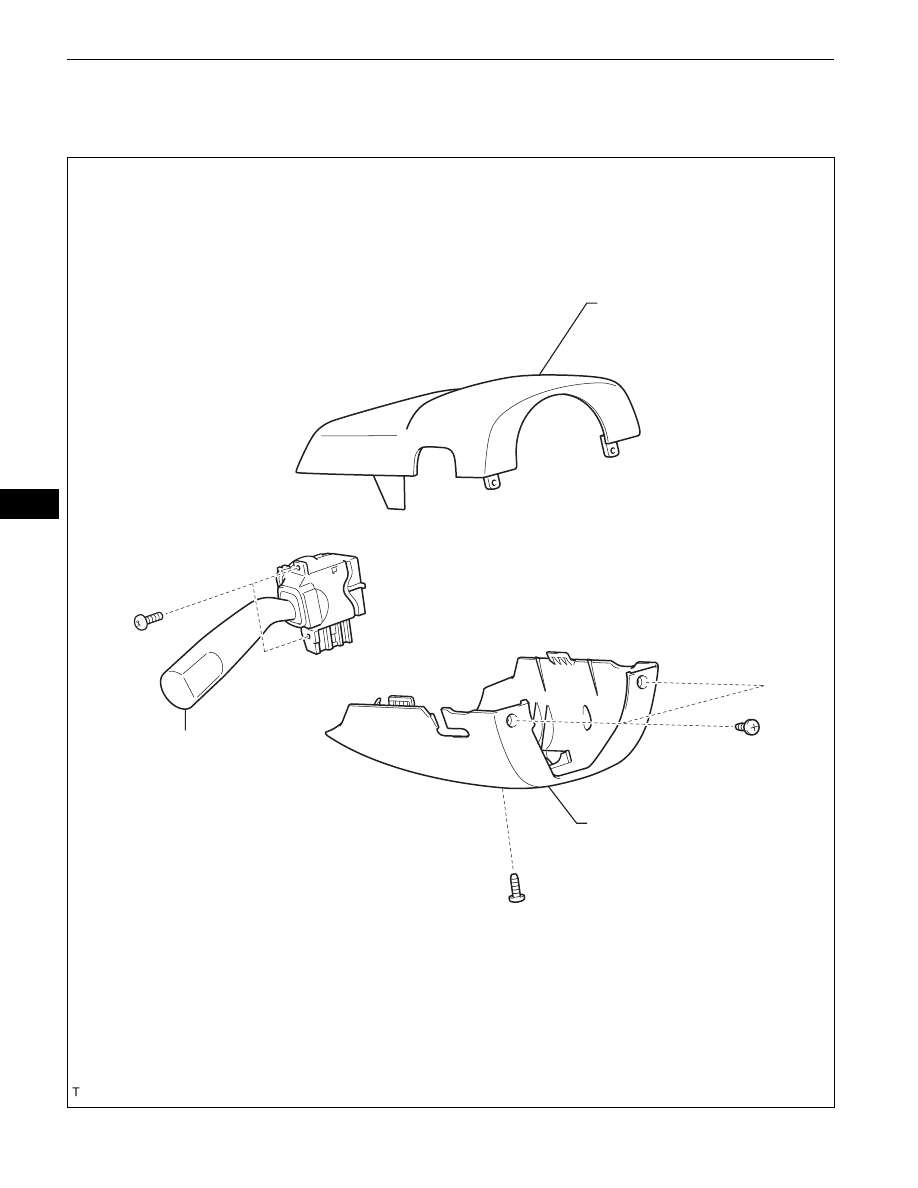

COMPONENTS

HEADLIGHT
DIMMER SWITCH

STEERING COLUMN COVER
(UPPER SIDE)

STEERING COLUMN COVER
(LOWER SIDE)

E127236E01

LIGHTING  –  HEADLIGHT DIMMER SWITCH

LI–103

LI

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE STEERING COLUMN COVER

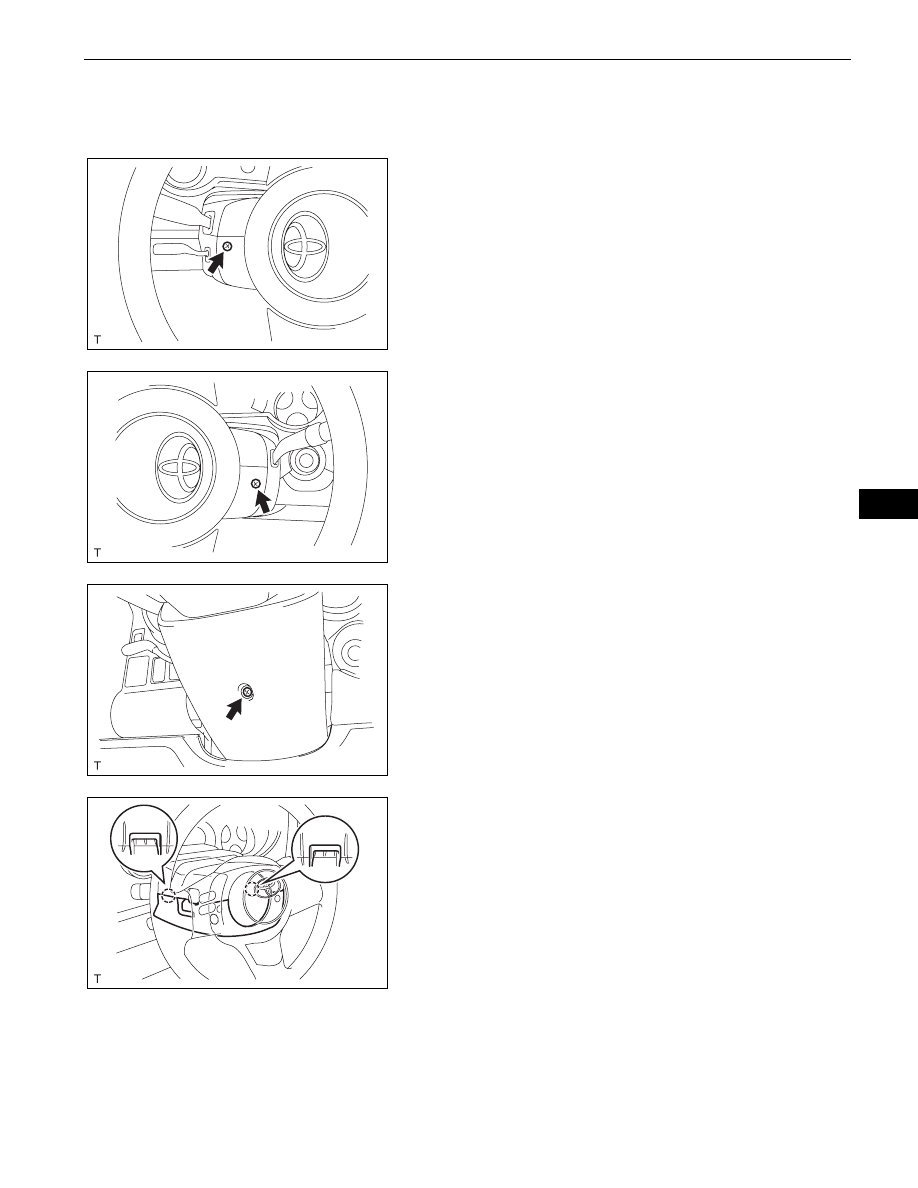

(a) Turn the steering wheel to the left and remove the

screw indicated in the illustration.

(b) Turn the steering wheel to the right and remove the

screw indicated in the illustration.

(c) Remove the screw indicated in the illustration.

(d) Disengage the 2 claws and remove the lower

steering column cover.

E127231

E127232

E127233

E127235

LI–104

LIGHTING  –  HEADLIGHT DIMMER SWITCH

LI

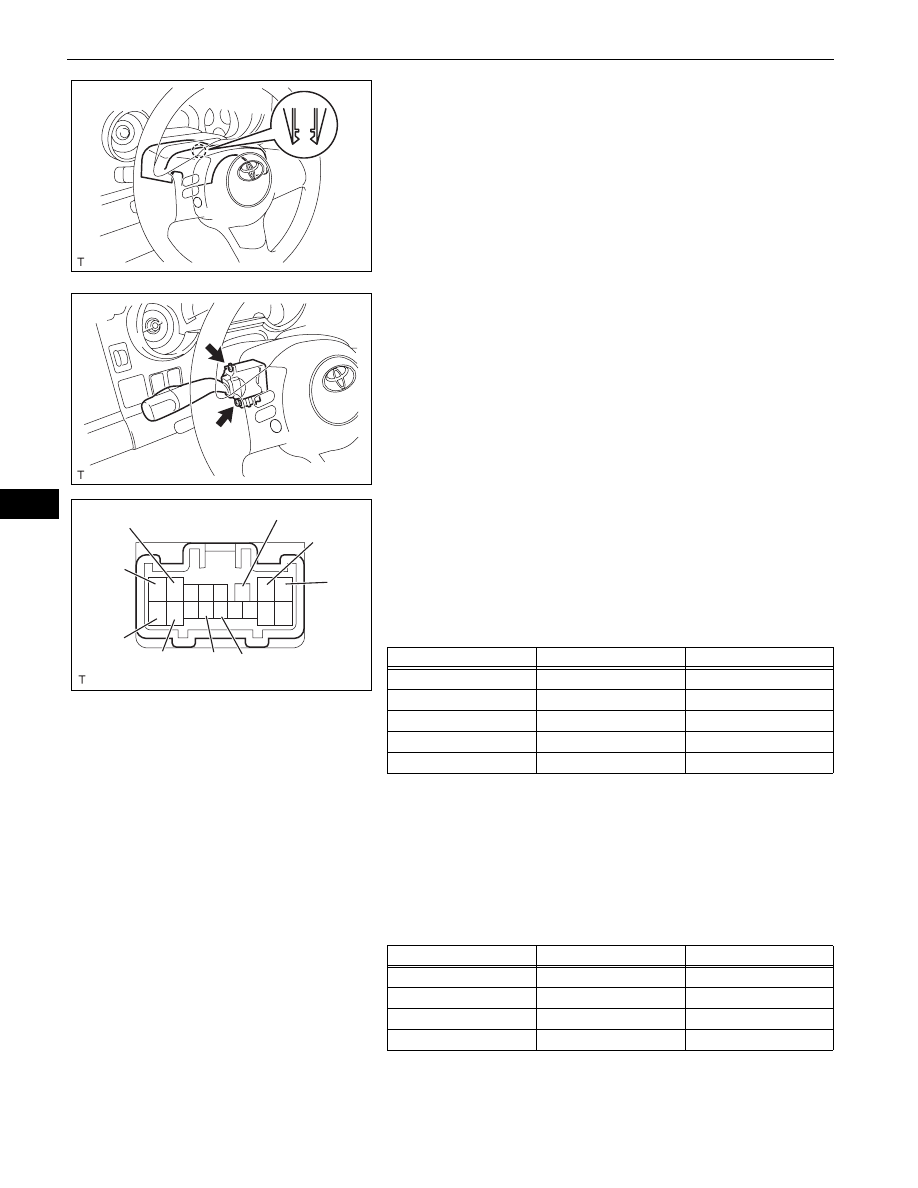

(e) Disengage the claw and remove the upper steering

column cover.

3.

REMOVE HEADLIGHT DIMMER SWITCH
(a) Disconnect the connector.
(b) Remove the 2 screws and headlight dimmer switch.

INSPECTION

1.

INSPECT HEADLIGHT DIMMER SWITCH
(a) Check the resistance of the light control switch.

(1) Using an ohmmeter, measure the resistance

and check the results in accordance with the
value(s) in the table below.
Standard Resistance

If the result is not as specified, replace the
headlight dimmer switch.

(b) Check the resistance of the headlight dimmer

switch.
(1) Using an ohmmeter, measure the resistance

and check the results in accordance with the
value(s) in the table below.
Standard Resistance

If the result is not as specified, replace the
headlight dimmer switch.

E127253

E127237

8

8

6

3

7

17 16

2

1

10 9

15 14 13

5 4

12 11

HU

TR

TB

TL

H

T

EL

HL

HF

E127238E01

Tester Connection

Condition

Specified Condition

14 - 16

OFF

10 k

Ω or higher

13 - 16

OFF

10 k

Ω or higher

14 - 16

TAIL

Below 1

Ω

14 - 16

HEAD

Below 1

Ω

13 - 16

HEAD

Below 1

Ω

Tester Connection

Condition

Specified Condition

8 - 16

FLASH

Below 1

Ω

7 - 16

FLASH

Below 1

Ω

16 - 17

LOW BEAM

Below 1

Ω

7 - 16

HI BEAM

Below 1

Ω
