LI–98

LIGHTING  –  REAR ROOM LIGHT ASSEMBLY

LI

BODY ELECTRICAL

LIGHTING

REAR ROOM LIGHT ASSEMBLY

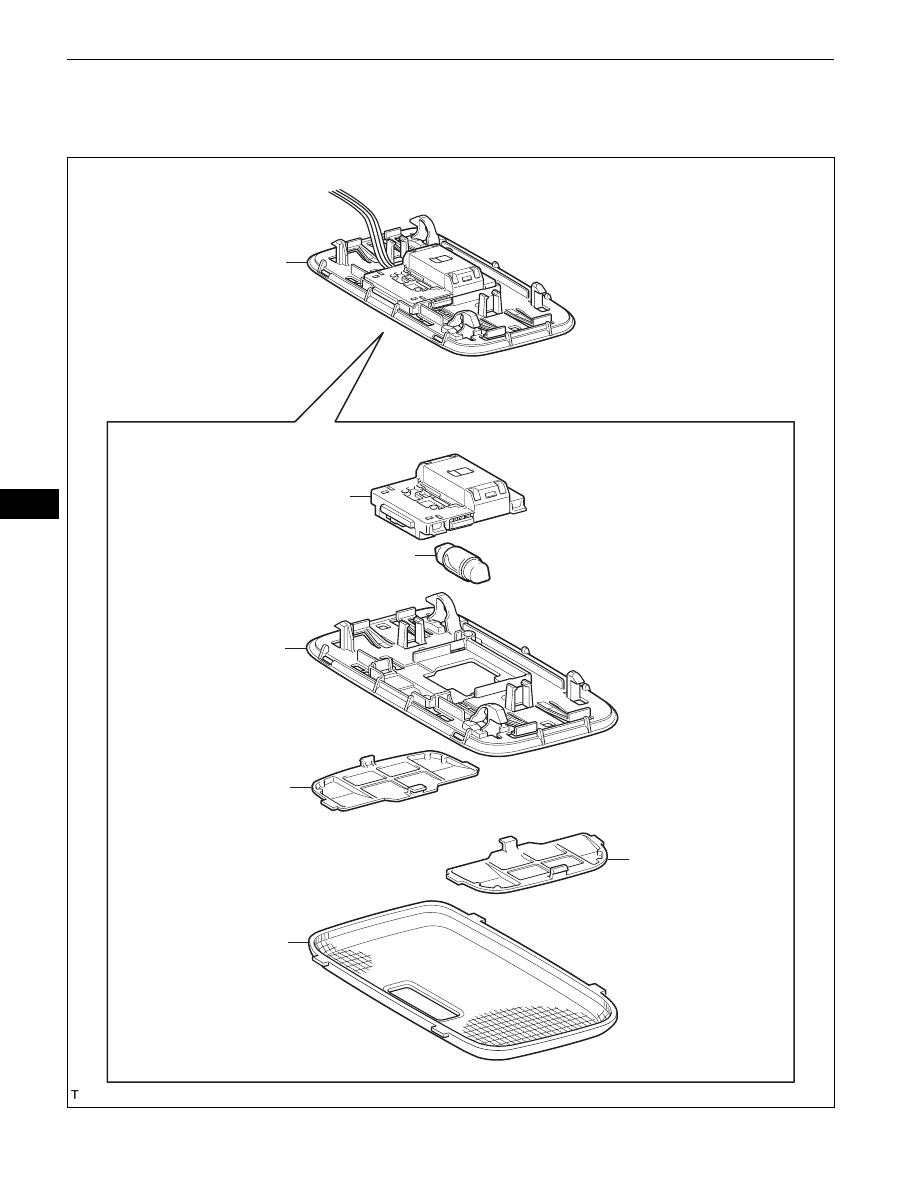

COMPONENTS

REAR ROOM LIGHT
ASSEMBLY

ROOM LIGHT SWITCH BASE

ROOM LIGHT BULB NO. 1

ROOM LIGHT HOUSING
ASSEMBLY

ROOM LIGHT COVER

ROOM LIGHT LENS

ROOM LIGHT
COVER

E127222E01

LIGHTING  –  REAR ROOM LIGHT ASSEMBLY

LI–99

LI

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE REAR ROOM LIGHT ASSEMBLY

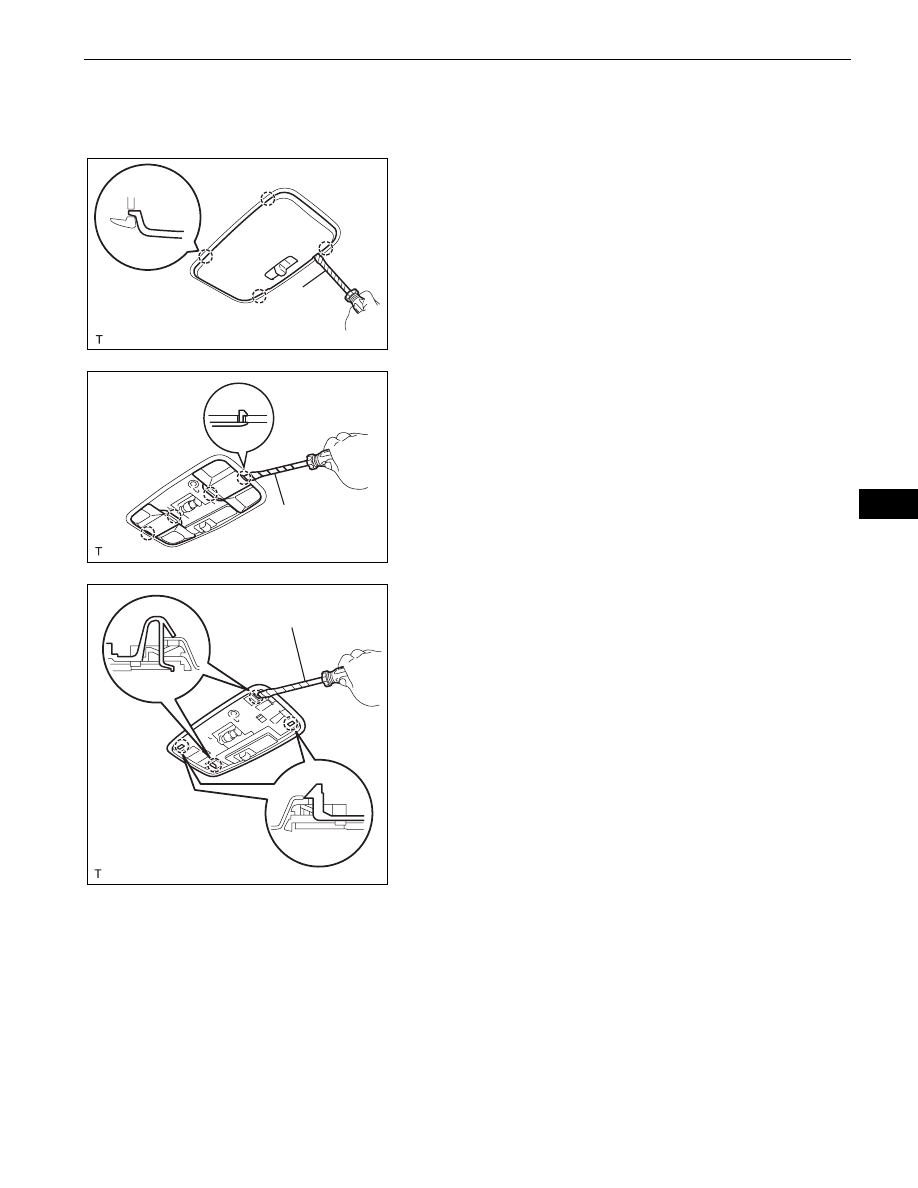

(a) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws and remove
the room light lens.

(b) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws and remove
the 2 covers.

(c) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws.

Protective
Tape

E114441E01

Protective Tape

B124365E01

Protective
Tape

E114442E01

LI–100

LIGHTING  –  REAR ROOM LIGHT ASSEMBLY

LI

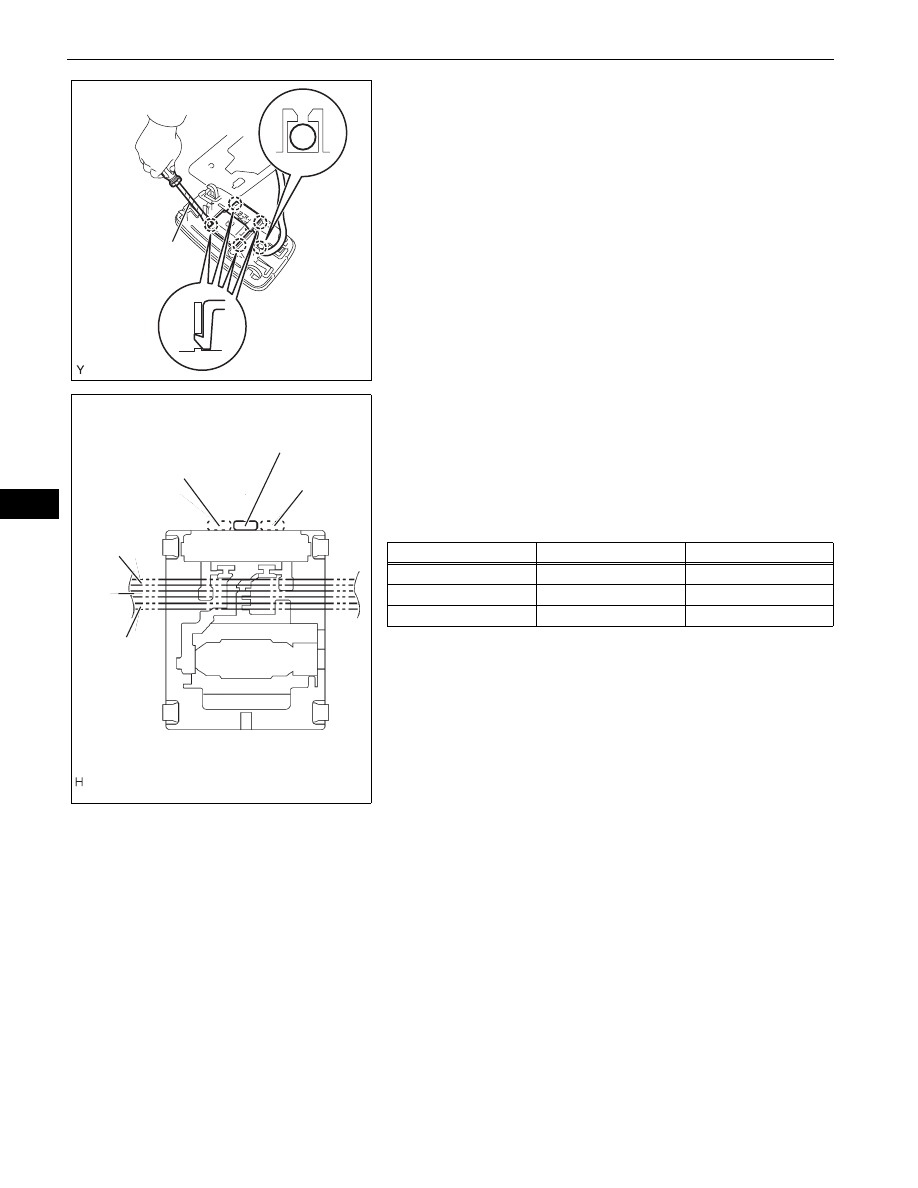

(d) Disengage the roof wire from the claw of the room

light.

(e) Using a screwdriver with its tip wrapped in

protective tape, disengage the 4 claws and remove
the room light switch base.

(f)

Remove room light bulb No. 1.

INSPECTION

1.

INSPECT REAR ROOM LIGHT ASSEMBLY
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

and check the results in accordance with the
value(s) in the table below.
Standard Resistance

If the result is not as specified, replace the
room light.

(b) Check the light operation.

(1) Connect the positive (+) battery lead to terminal

B and the negative (-) battery lead to terminal
CTY, then check that the light illuminates when
the switch is in the DOOR position.
Standard:

Light illuminates.

If the light does not illuminate, replace the bulb.

(2) Connect the positive (+) battery lead to terminal

B and the negative (-) battery lead to terminal
E, then check that the light illuminates when
the switch is in the ON position.
Standard:

Light illuminates.

If the light does not illuminate, replace the bulb.

Protective Tape

B138412E01

DOOR

OFF

ON

E

CTY

B

E114448E01

Tester Connection

Condition

Specified Condition

-

OFF

10 k

Ω or higher

CTY - B

DOOR

Below 1

Ω

B - E

ON

Below 1

Ω

LIGHTING  –  REAR ROOM LIGHT ASSEMBLY

LI–101

LI

INSTALLATION

1.

INSTALL REAR ROOM LIGHT ASSEMBLY

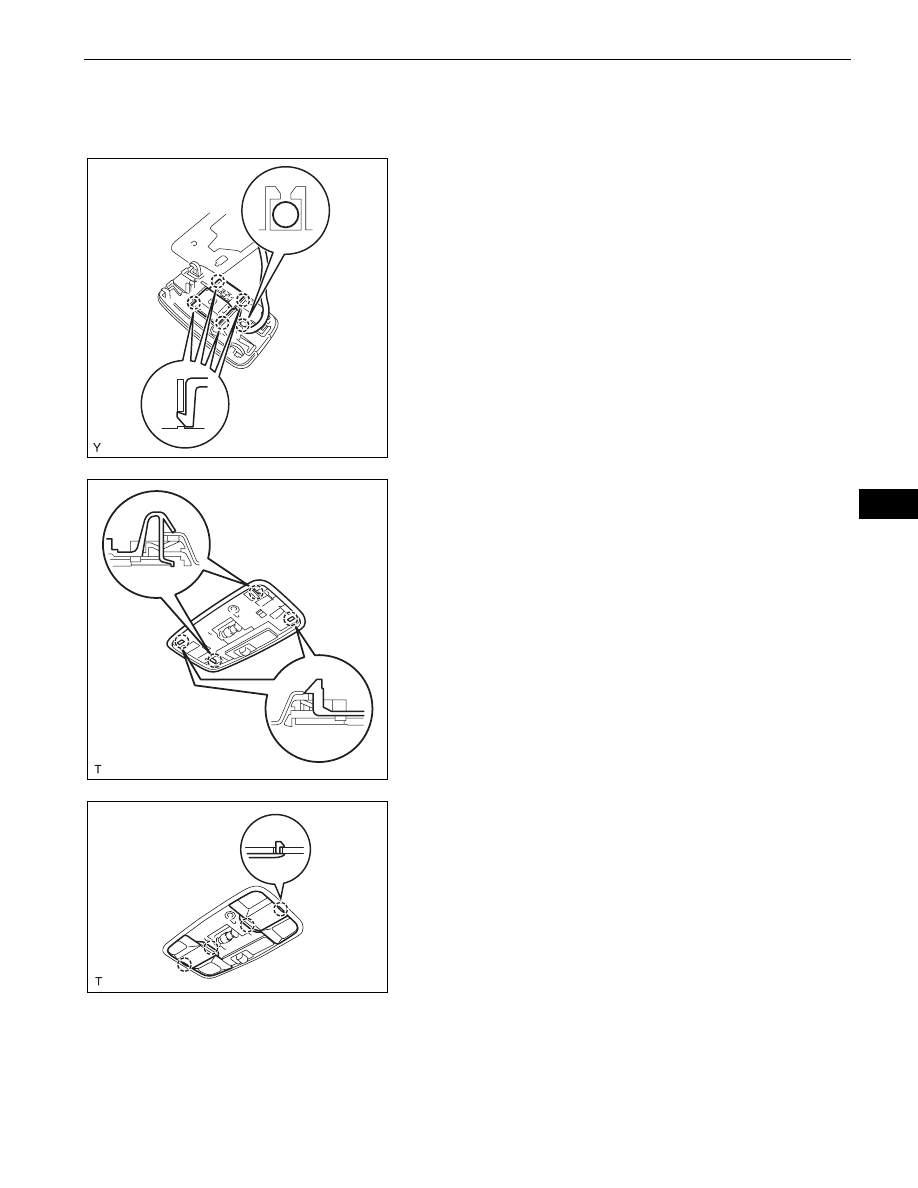

(a) Install room light bulb No. 1.

(b) Engage the 4 claws and install the room light switch

base.

(c) Install the roof wire into the claw of the room light.

(d) Engage the 4 claws and install the room light.

(e) Engage the 4 claws and install the 2 covers.

B138415

E114445

B124366
