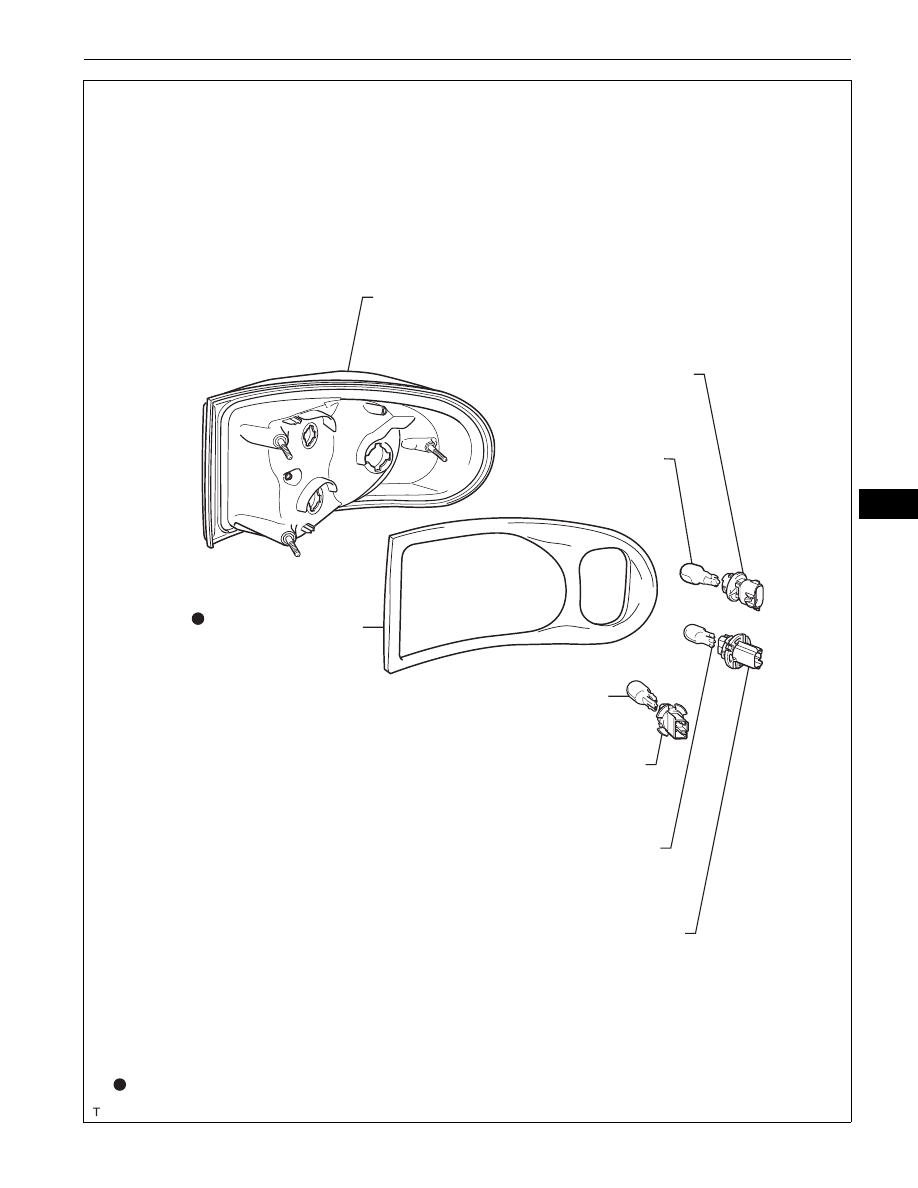

LIGHTING  –  REAR COMBINATION LIGHT ASSEMBLY

LI–83

LI

BACK UP
LIGHT BULB

REAR TURN SIGNAL
LIGHT BULB

TAIL AND STOP
LIGHT BULB

REAR TURN SIGNAL
LIGHT BULB SOCKET

TAIL AND STOP LIGHT
BULB SOCKET

BACK UP LIGHT
BULB SOCKET

REAR COMBINATION
LIGHT BODY

Non-reusable part

REAR COMBINATION
LIGHT GASKET

E127210E01

LI–84

LIGHTING  –  REAR COMBINATION LIGHT ASSEMBLY

LI

REMOVAL

HINT:
•

Use the same procedure for both the RH and LH sides,
unless otherwise specified.

•

The procedure described below is for the LH side.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE REAR SEATBACK BOARD CARPET
ASSEMBLY RH (See page

SE-43

)

3.

REMOVE REAR SEATBACK ASSEMBLY RH (See
page

SE-43

)

4.

REMOVE REAR SEATBACK BOARD CARPET
ASSEMBLY LH (See page

SE-29

)

5.

REMOVE REAR SEATBACK ASSEMBLY LH (See
page

SE-29

)

6.

REMOVE REAR FLOOR BOARD (See page

IR-13

)

7.

REMOVE REAR FLOOR MAT SUPPORT PLATE (See
page

IR-14

)

8.

REMOVE REAR FLOOR MAT ASSEMBLY (See page

IR-15

)

9.

REMOVE LUGGAGE HOLD BELT STRIKER
ASSEMBLY (See page

IR-14

)

10. REMOVE FRONT DOOR SCUFF PLATE RH (See page

IR-15

)

11. REMOVE FRONT DOOR SCUFF PLATE LH (See page

IR-15

)

12. REMOVE REAR DOOR SCUFF PLATE RH (See page

IR-15

)

13. REMOVE REAR DOOR SCUFF PLATE LH (See page

IR-15

)

14. REMOVE FRONT DOOR OPENING TRIM

WEATHERSTRIP RH (See page

IR-16

)

15. REMOVE FRONT DOOR OPENING TRIM

WEATHERSTRIP LH (See page

IR-16

)

16. REMOVE DECK SIDE GARNISH (w/ Woofer) (See

page

IR-18

)

17. REMOVE SPEAKER MOUNTING COVER (w/ Woofer)

(See page

AV-90

)

18. REMOVE BOX SPEAKER ASSEMBLY (w/ Woofer)

(See page

AV-90

)

19. REMOVE PACKAGE HOLDER NET HOOK (See page

IR-18

)

20. REMOVE QUARTER TRIM POCKET TRAY (w/o

Woofer) (See page

IR-19

)

LIGHTING  –  REAR COMBINATION LIGHT ASSEMBLY

LI–85

LI

21. REMOVE SIDE TRIM COVER (w/o Woofer) (See page

IR-19

)

22. REMOVE QUARTER TRIM POCKET (w/o Woofer)

(See page

IR-19

)

23. REMOVE LAP BELT OUTER ANCHOR COVER (See

page

IR-20

)

24. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH

(See page

IR-20

)

25. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

(See page

IR-20

)

26. REMOVE REAR DECK TRIM COVER (w/ Power

Outlet Socket) (See page

IR-20

)

27. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

(See page

IR-21

)

28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

(See page

IR-21

)

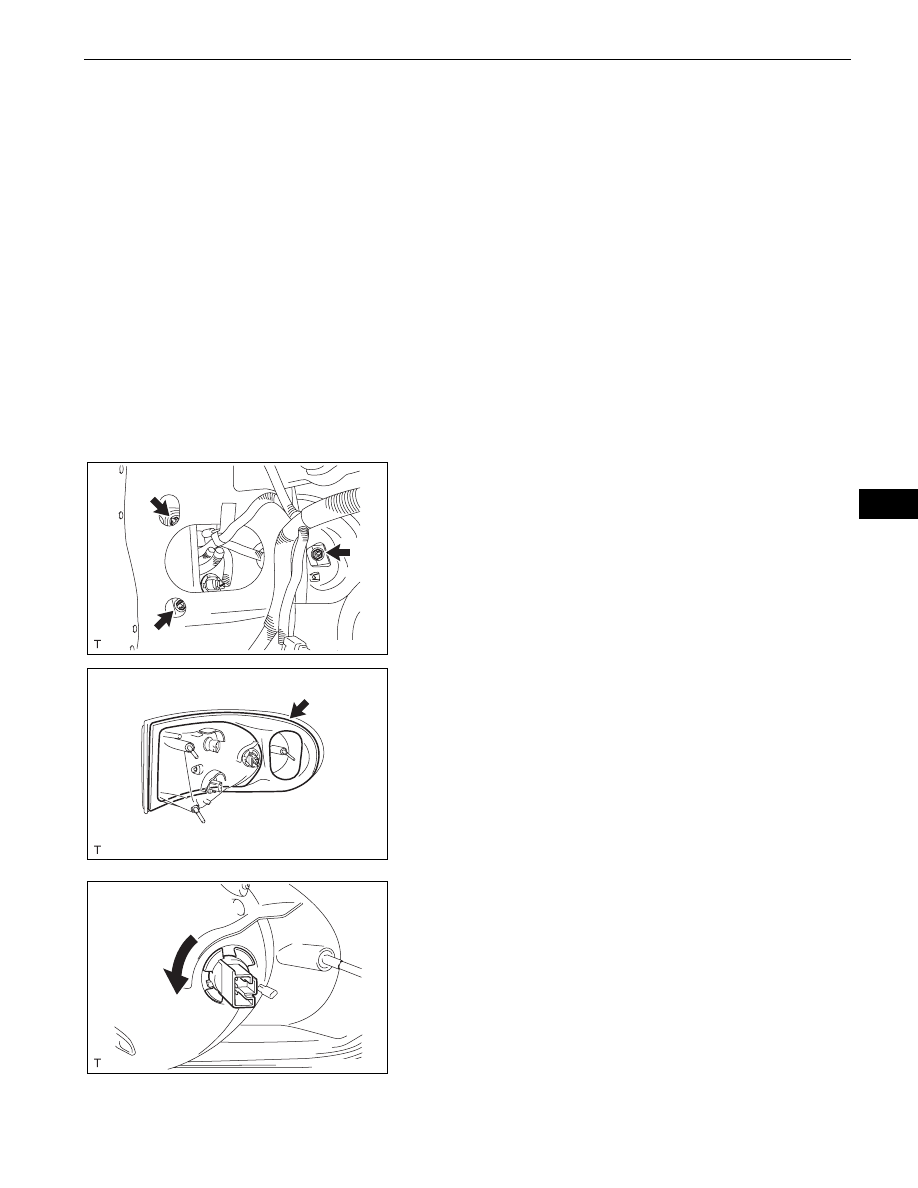

29. REMOVE REAR COMBINATION LIGHT ASSEMBLY

(a) Remove the 3 nuts.
(b) Disconnect the 3 connectors and remove the rear

combination light.

DISASSEMBLY

1.

REMOVE REAR COMBINATION LIGHT GASKET
(a) Remove the rear combination light gasket.

NOTICE:
•

Detach the gasket if it adheres to the body.

•

Do not reuse a removed gasket. Replace it
with a new one to prevent water from
entering.

2.

REMOVE TAIL AND STOP LIGHT BULB
(a) Turn the rear combination light socket and bulb, in

the direction indicated by the arrow in the
illustration, to remove them.

(b) Remove the rear combination light bulb from the

light socket.

E127201

E127202

E127203

LI–86

LIGHTING  –  REAR COMBINATION LIGHT ASSEMBLY

LI

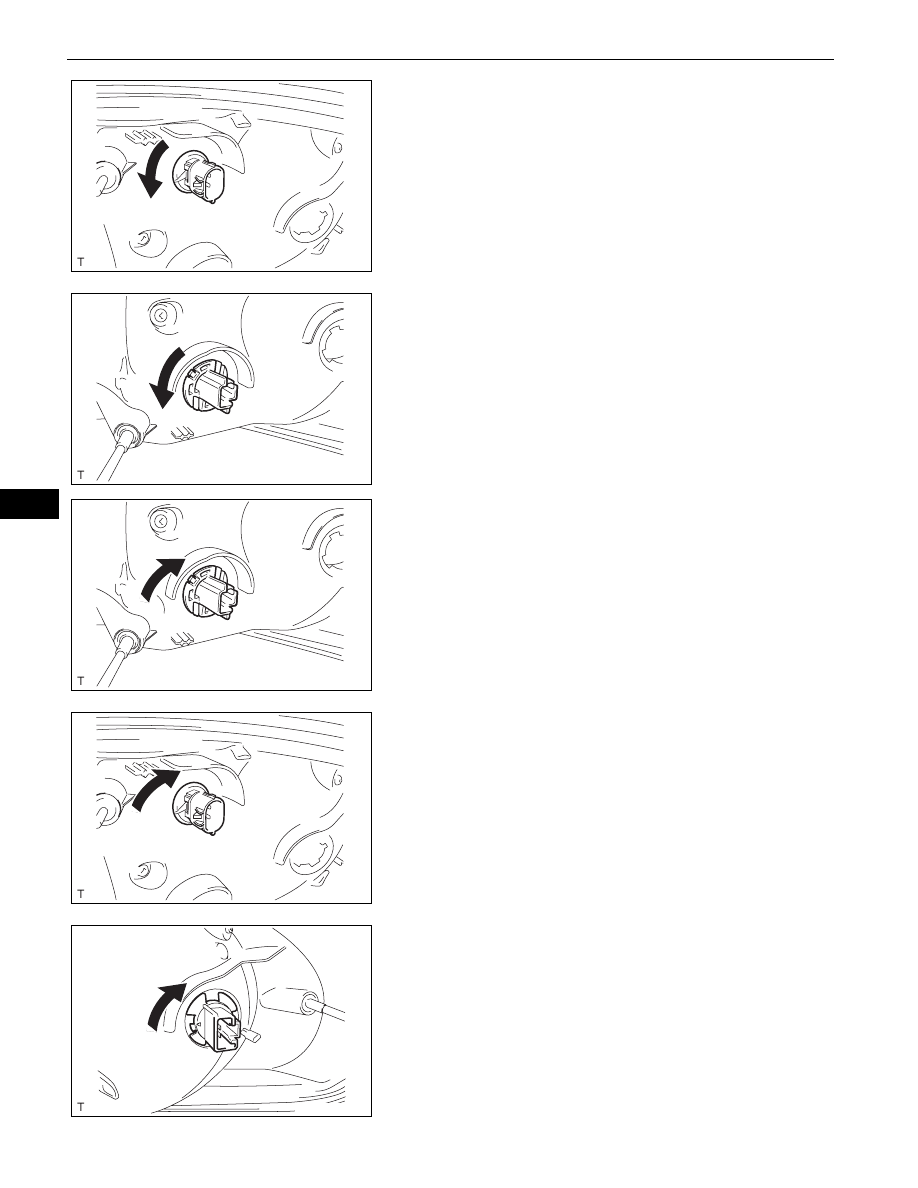

3.

REMOVE BACK UP LIGHT BULB
(a) Turn the rear combination light socket and bulb, in

the direction indicated by the arrow in the
illustration, to remove them.

(b) Remove the rear combination light bulb from the

light socket.

4.

REMOVE REAR TURN SIGNAL LIGHT BULB
(a) Turn the rear combination light socket and bulb, in

the direction indicated by the arrow in the
illustration, to remove them.

(b) Remove the rear combination light bulb from the

light socket.

REASSEMBLY

1.

INSTALL REAR TURN SIGNAL LIGHT BULB
(a) Install the rear combination light bulb into the light

socket.

(b) Turn the rear combination light socket and bulb, in

the direction indicated by the arrow in the
illustration, to install them.

2.

INSTALL BACK UP LIGHT BULB
(a) Install the rear combination light bulb into the light

socket.

(b) Turn the rear combination light socket and bulb, in

the direction indicated by the arrow in the
illustration, to install them.

3.

INSTALL TAIL AND STOP LIGHT BULB
(a) Install the rear combination light bulb into the light

socket.

(b) Turn the rear combination light socket and bulb, in

the direction indicated by the arrow in the
illustration, to install them.

E127205

E127207

E127208

E127206

E127204
