LIGHTING  –  REAR COMBINATION LIGHT ASSEMBLY

LI–87

LI

4.

INSTALL REAR COMBINATION LIGHT GASKET
(a) Install a new rear combination light gasket.

INSTALLATION

1.

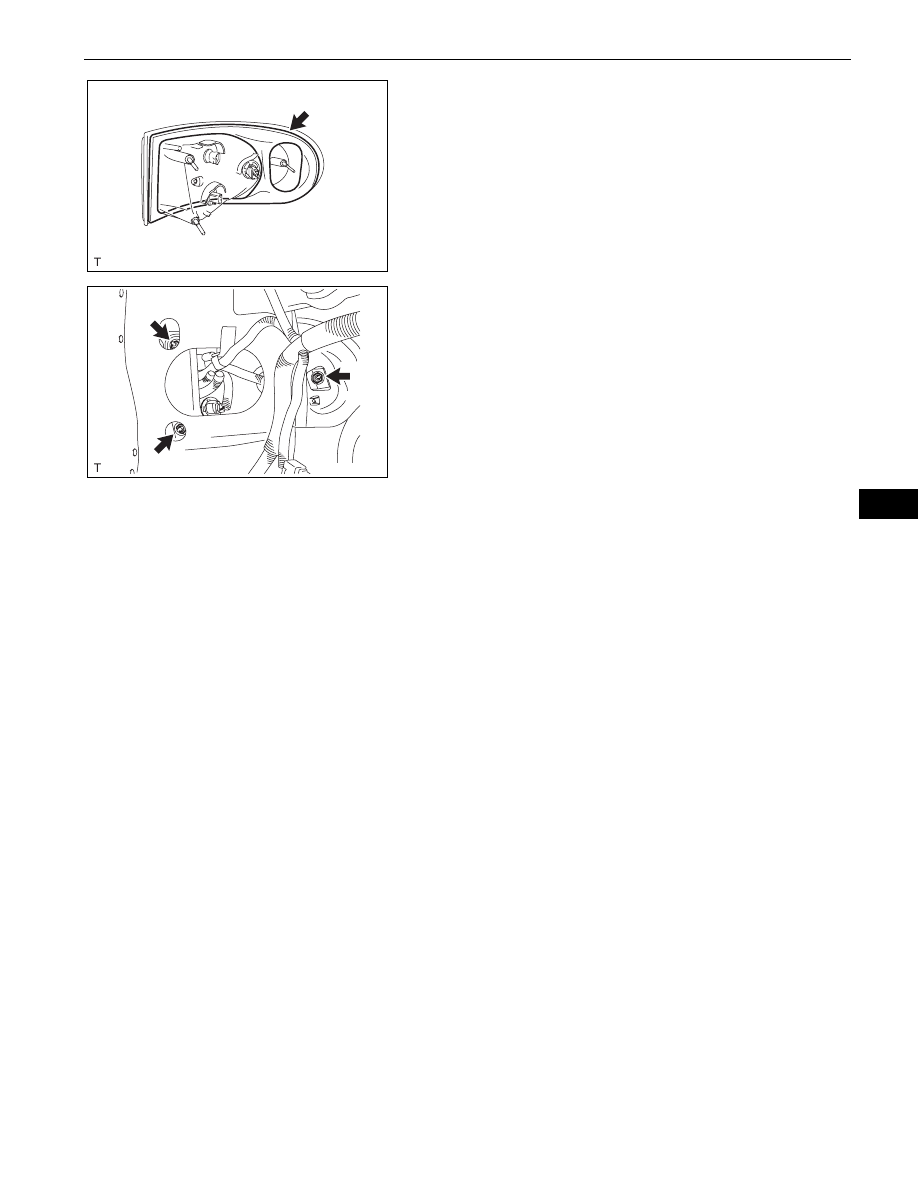

INSTALL REAR COMBINATION LIGHT ASSEMBLY
(a) Connect the 3 connectors and install the rear

combination light.

(b) Install the 3 nuts.

Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

2.

INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
(See page

IR-39

)

3.

INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
(See page

IR-39

)

4.

INSTALL REAR DECK TRIM COVER (w/ Power Outlet
Socket) (See page

IR-40

)

5.

INSTALL REAR SEAT OUTER BELT ASSEMBLY RH
(See page

IR-40

)

6.

INSTALL REAR SEAT OUTER BELT ASSEMBLY LH
(See page

IR-40

)

7.

INSTALL LAP BELT OUTER ANCHOR COVER (See
page

IR-41

)

8.

INSTALL BOX SPEAKER ASSEMBLY (w/ Woofer)
(See page

AV-90

)

9.

INSTALL SPEAKER MOUNTING COVER (w/ Woofer)
(See page

AV-91

)

10. INSTALL DECK SIDE GARNISH (w/ Woofer) (See

page

IR-41

)

11. INSTALL QUARTER TRIM POCKET (w/o Woofer)

(See page

IR-41

)

12. INSTALL SIDE TRIM COVER (w/o Woofer) (See page

IR-42

)

13. INSTALL QUARTER TRIM POCKET TRAY (w/o

Woofer) (See page

IR-42

)

14. INSTALL PACKAGE HOLDER NET HOOK (See page

IR-42

)

15. INSTALL FRONT DOOR OPENING TRIM

WEATHERSTRIP RH (See page

IR-44

)

16. INSTALL FRONT DOOR OPENING TRIM

WEATHERSTRIP LH (See page

IR-44

)

E127202

E127201

LI–88

LIGHTING  –  REAR COMBINATION LIGHT ASSEMBLY

LI

17. INSTALL REAR DOOR SCUFF PLATE RH (See page

IR-45

)

18. INSTALL REAR DOOR SCUFF PLATE LH (See page

IR-45

)

19. INSTALL FRONT DOOR SCUFF PLATE RH (See page

IR-45

)

20. INSTALL FRONT DOOR SCUFF PLATE LH (See page

IR-45

)

21. INSTALL LUGGAGE HOLD BELT STRIKER

ASSEMBLY (See page

IR-46

)

22. INSTALL REAR FLOOR MAT ASSEMBLY (See page

IR-46

)

23. INSTALL REAR FLOOR MAT SUPPORT PLATE (See

page

IR-46

)

24. INSTALL REAR FLOOR BOARD (See page

IR-47

)

25. INSTALL REAR SEATBACK ASSEMBLY RH (See

page

SE-54

)

26. INSTALL REAR SEATBACK BOARD CARPET

ASSEMBLY RH (See page

SE-54

)

27. INSTALL REAR SEATBACK ASSEMBLY LH (See

page

SE-38

)

28. INSTALL REAR SEATBACK BOARD CARPET

ASSEMBLY LH (See page

SE-38

)

29. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

LIGHTING  –  LICENSE PLATE LIGHT ASSEMBLY

LI–89

LI

BODY ELECTRICAL

LIGHTING

LICENSE PLATE LIGHT ASSEMBLY

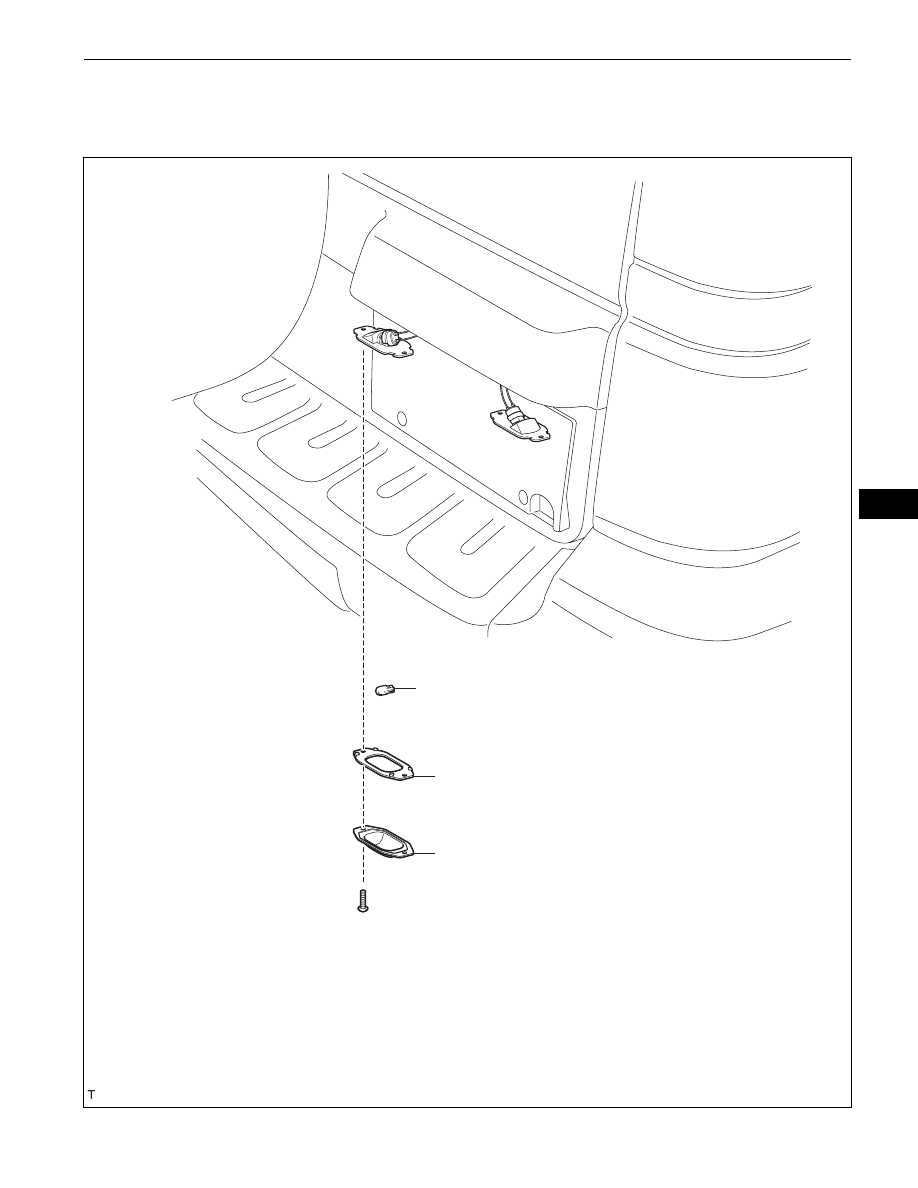

COMPONENTS

LICENSE PLATE
LIGHT BULB

LICENSE PLATE
LIGHT LENS

LICENSE PLATE LIGHT
LENS GASKET

x2

x2

x2

x4

E127214E01

LI–90

LIGHTING  –  LICENSE PLATE LIGHT ASSEMBLY

LI

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

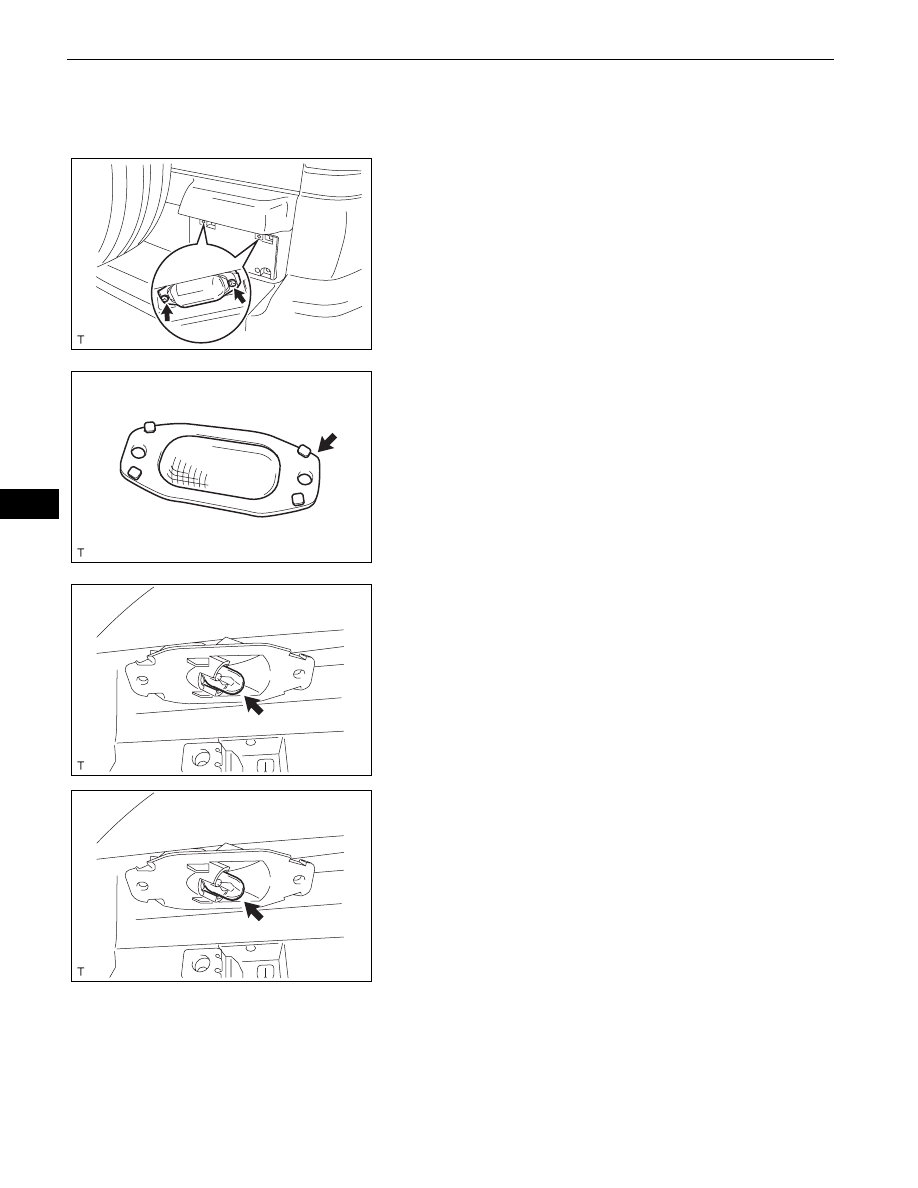

REMOVE LICENSE PLATE LIGHT LENS
(a) Remove the 2 screws and license plate light lens.

3.

REMOVE LICENSE PLATE LIGHT LENS GASKET
(a) Remove the license plate light lens gasket.

4.

REMOVE LICENSE PLATE LIGHT BULB
(a) Remove the license plate light bulb from the socket.

INSTALLATION

1.

INSTALL LICENSE PLATE LIGHT BULB
(a) Install the license plate light bulb into the socket.

E127211

E127212

E127213

E127213
