Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 295

LIGHTING  –  HEADLIGHT ASSEMBLY

LI–75

LI

2.

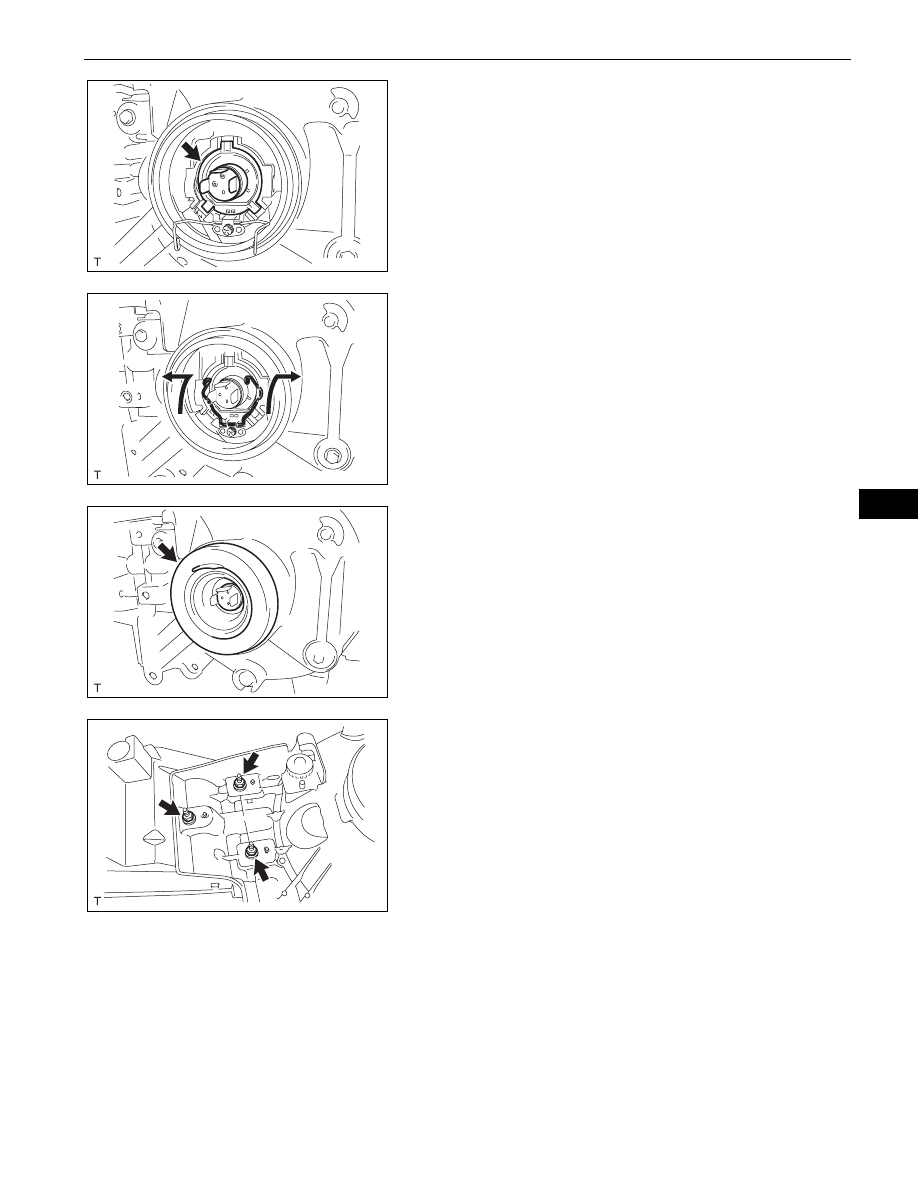

INSTALL HEADLIGHT, NO. 1 BULB
(a) Install the headlight, No. 1 bulb.

(b) Lock the set spring by moving it in the directions

indicated by the arrows in the illustration.

(c) Install the socket cover.

3.

INSTALL HEADLIGHT ASSEMBLY
(a) Install the headlight with the 3 nuts.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

E127234

E127196

E127194

E127239

LI–76

LIGHTING  –  HEADLIGHT ASSEMBLY

LI

INSTALLATION

1.

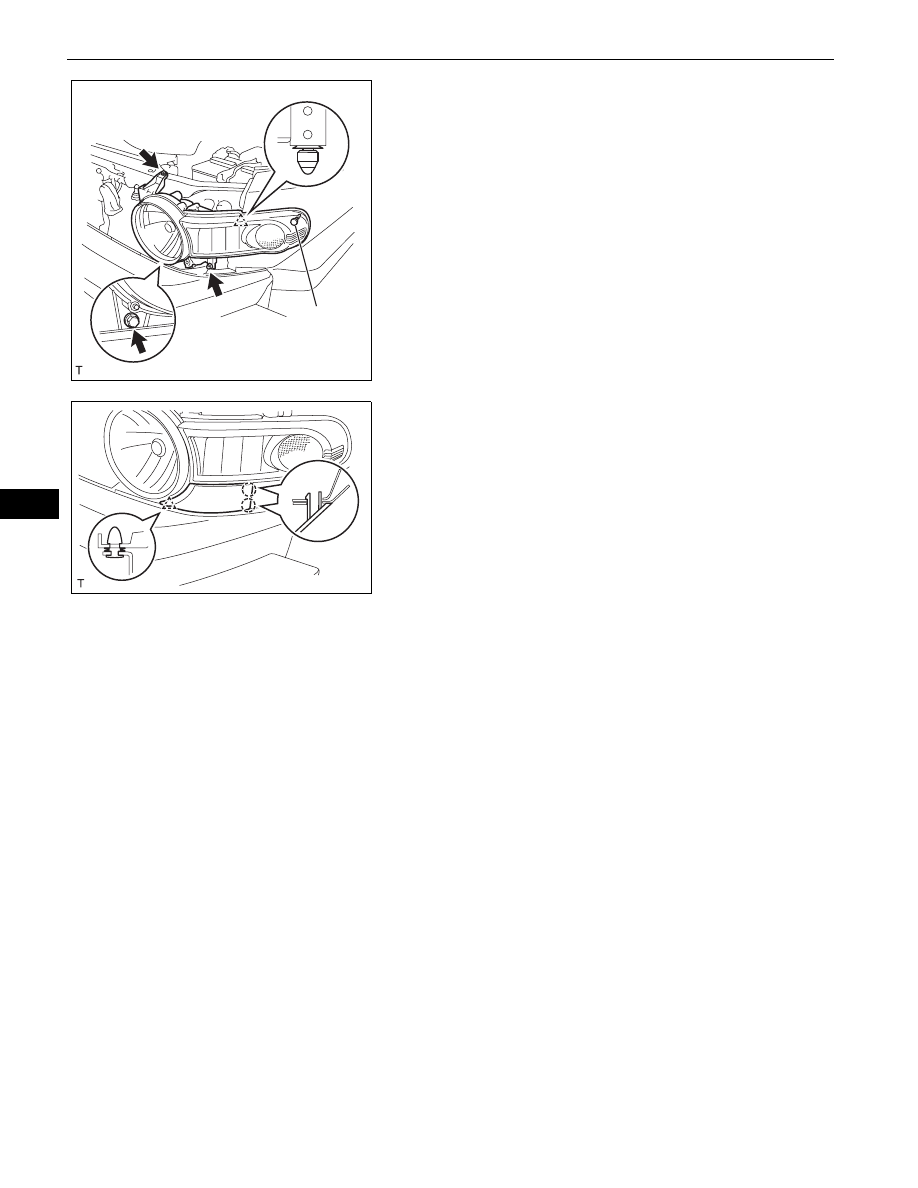

INSTALL HEADLIGHT ASSEMBLY
(a) Install the headlight onto the vehicle.
(b) Tighten the 3 screws.
(c) Connect the 2 connectors.

2.

INSTALL FRONT BUMPER FILLER
(a) Engage the 2 claws and clip and install the front

bumper filler.

3.

INSTALL RADIATOR GRILLE (See page

ET-11

)

4.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

Pin

E127193E01

E127192

LIGHTING  –  REAR COMBINATION LIGHT ASSEMBLY

LI–77

LI

BODY ELECTRICAL

LIGHTING

REAR COMBINATION LIGHT ASSEMBLY

COMPONENTS

REAR SEATBACK
ASSEMBLY LH

REAR SEATBACK
ASSEMBLY RH

REAR SEATBACK BOARD
CARPET ASSEMBLY LH

REAR SEATBACK BOARD
CARPET ASSEMBLY RH

37 (375, 27)

N*m (kgf*cm, ft*lbf)  : Specified torque

37 (375, 27)

37 (375, 27)

42 (430, 31)

37 (375, 27)

REAR SEAT INNER
BELT ASSEMBLY RH

REAR CENTER SEAT
INNER BELT ASSEMBLY

REAR SEAT INNER
BELT ASSEMBLY LH

B130654E01

LI–78

LIGHTING  –  REAR COMBINATION LIGHT ASSEMBLY

LI

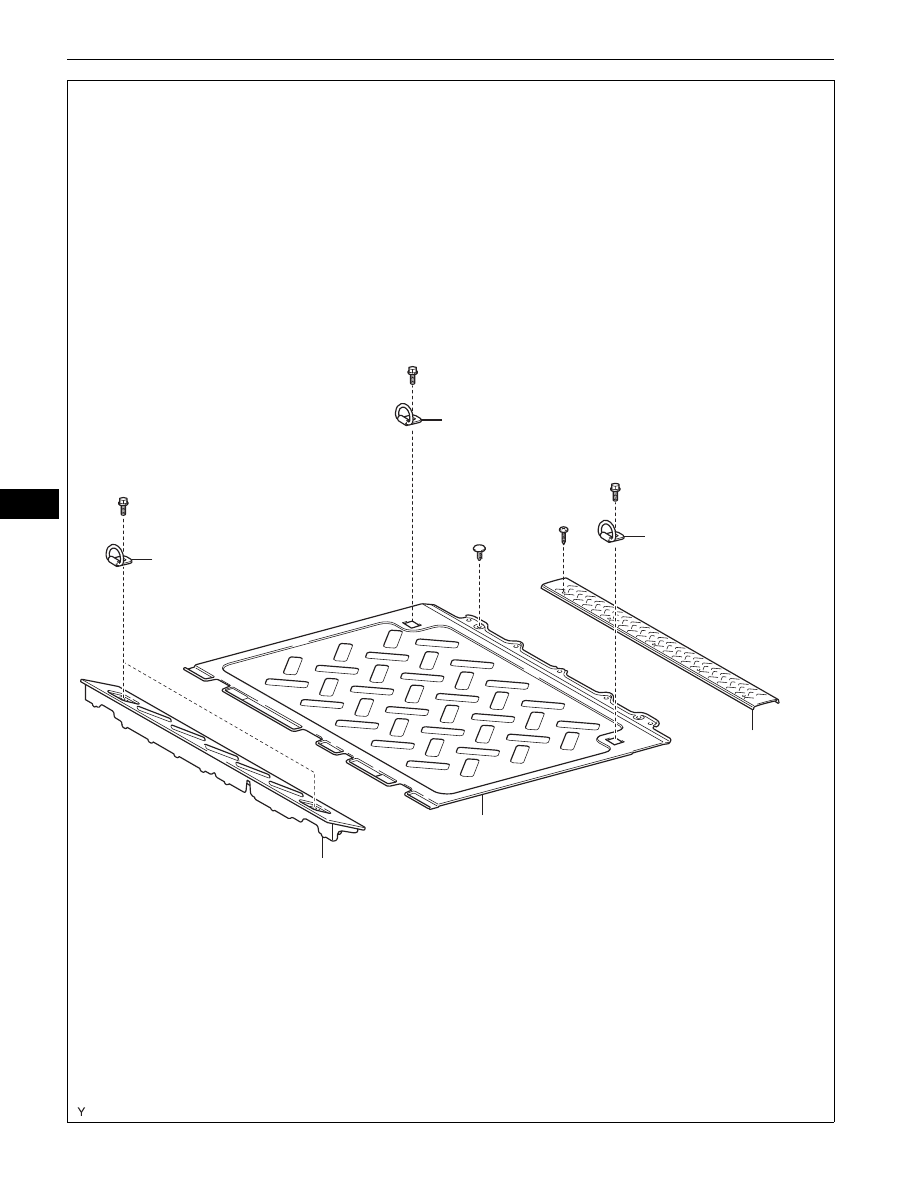

REAR FLOOR BOARD

REAR FLOOR MAT
ASSEMBLY

REAR FLOOR MAT
SUPPORT PLATE

LUGGAGE HOLD BELT
STRIKER ASSEMBLY

LUGGAGE HOLD BELT
STRIKER ASSEMBLY

x2

x5

LUGGAGE HOLD BELT
STRIKER ASSEMBLY

B130655E01
