LIGHTING  –  HEADLIGHT ASSEMBLY

LI–67

LI

BODY ELECTRICAL

LIGHTING

HEADLIGHT ASSEMBLY

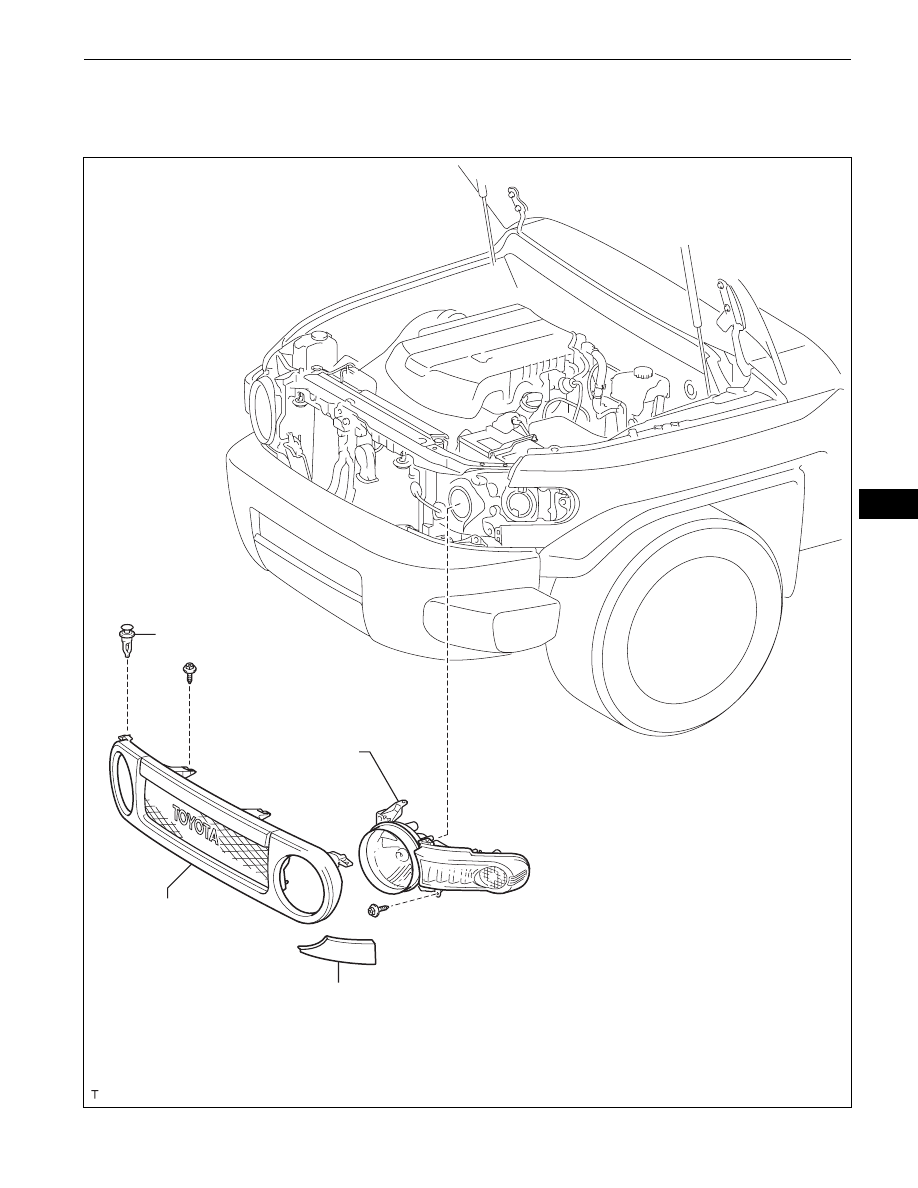

COMPONENTS

FRONT BUMPER FILLER

HEADLIGHT
ASSEMBLY

RADIATOR GRILLE

CLIP

x2

x2

x3

E127200E01

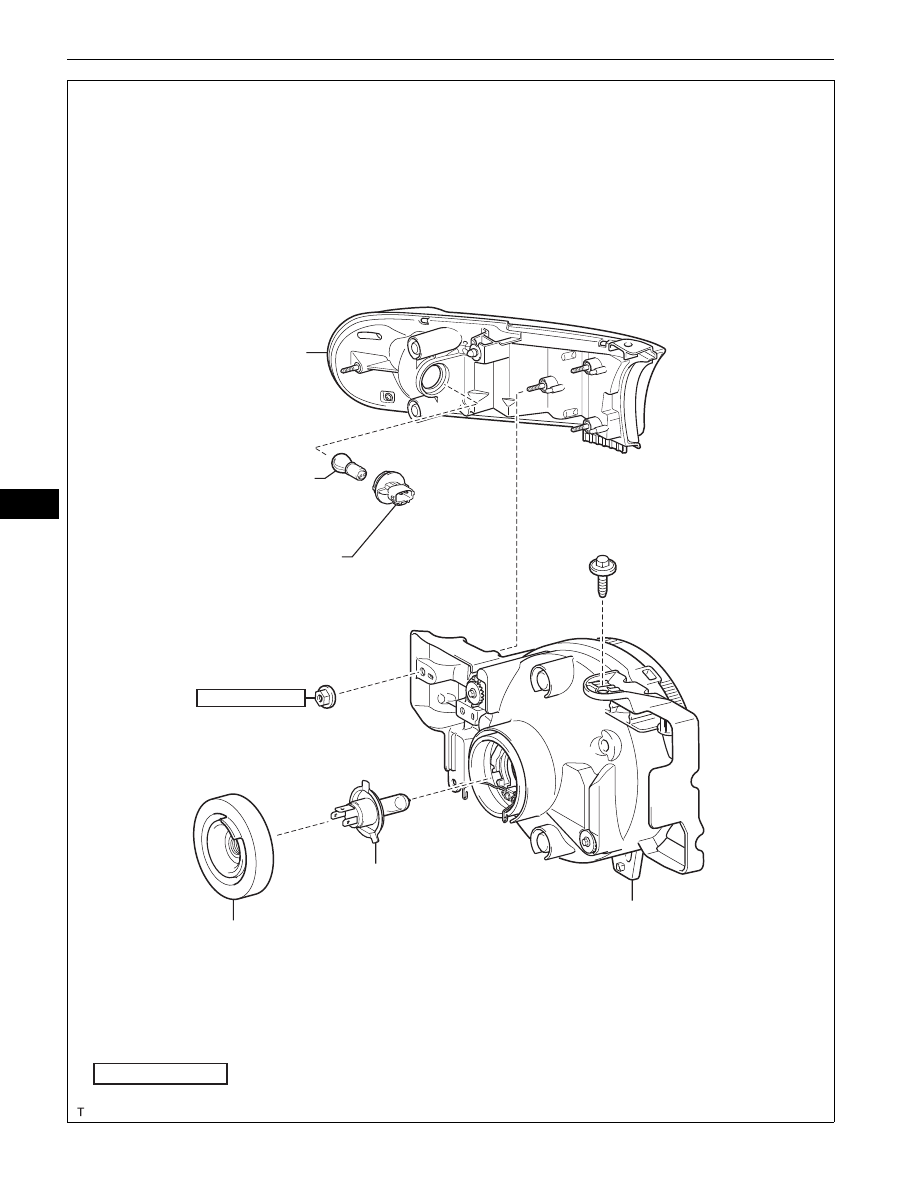

LI–68

LIGHTING  –  HEADLIGHT ASSEMBLY

LI

FRONT TURN
SIGNAL LIGHT BULB

HEADLIGHT
ASSEMBLY

HEADLIGHT,
NO. 1 BULB

FRONT TURN SIGNAL
LIGHT SOCKET

x3

SOCKET COVER

x3

FRONT COMBINATION
LIGHT ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

5.4 (55, 48 in.*lbf)

E127247E01

LIGHTING  –  HEADLIGHT ASSEMBLY

LI–69

LI

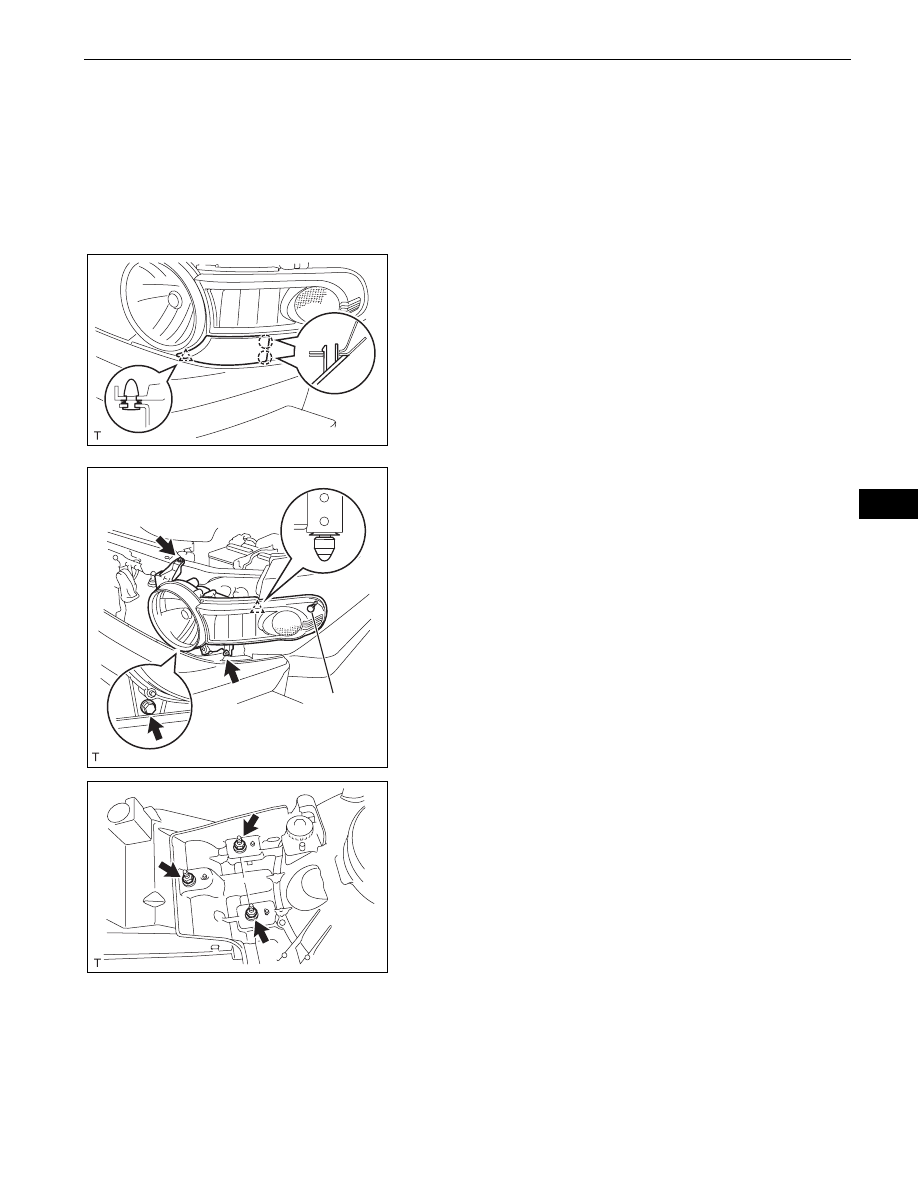

REMOVAL

HINT:
•

Use the same procedure for both the RH and LH sides.

•

The procedure described below is for the LH side.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE RADIATOR GRILLE (See page

ET-4

)

3.

REMOVE FRONT BUMPER FILLER
(a) Disengage the 2 claws and clip and remove the

front bumper filler.

4.

REMOVE HEADLIGHT ASSEMBLY
(a) Disconnect the 2 connectors.
(b) Remove the 3 screws.
(c) Disengage the clip and pin and slide the headlight

toward the front of the vehicle.

DISASSEMBLY

1.

REMOVE HEADLIGHT ASSEMBLY
(a) Remove the 3 nuts and the headlight.

E127192

Pin

E127193E01

E127239

LI–70

LIGHTING  –  HEADLIGHT ASSEMBLY

LI

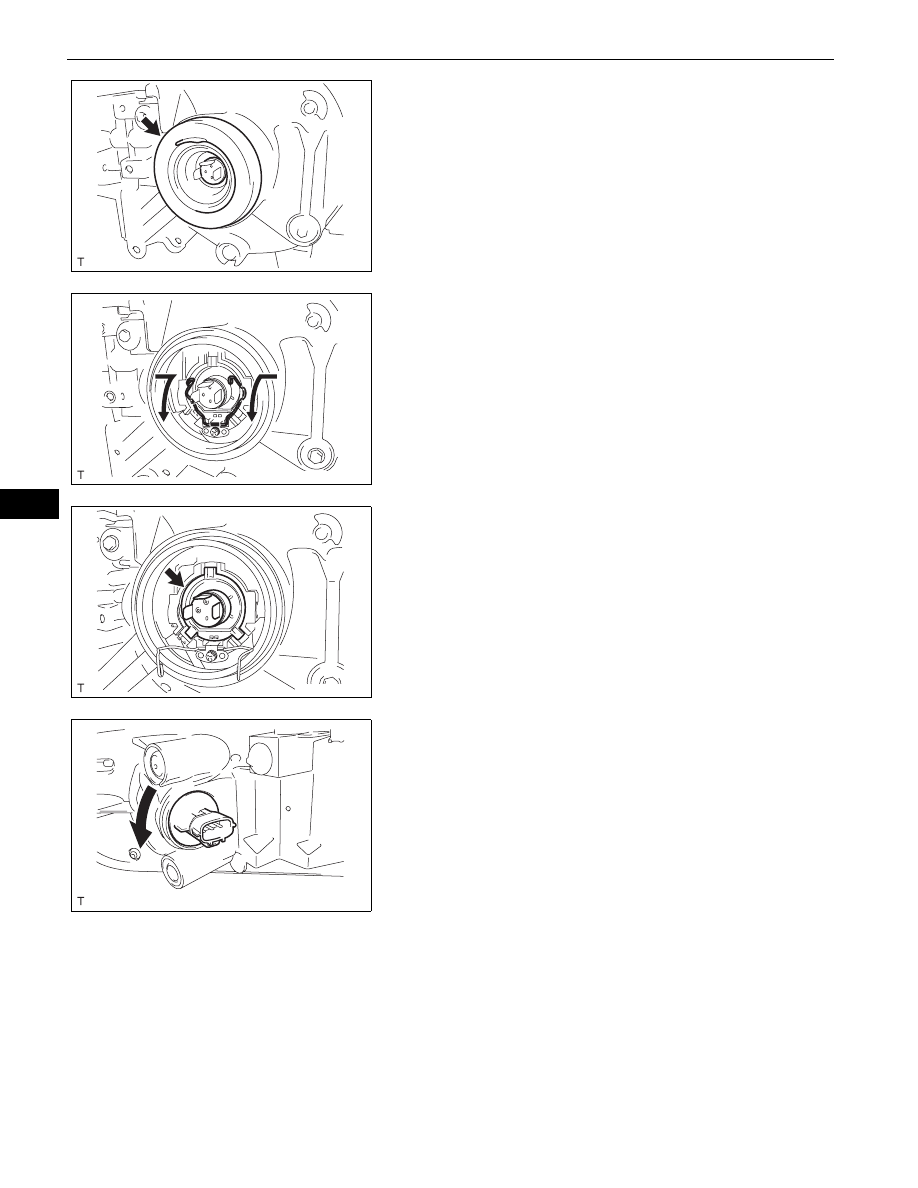

2.

REMOVE HEADLIGHT, NO. 1 BULB
(a) Remove the socket cover.

(b) Push the set spring, and pull it in the direction

indicated by the arrows in the illustration, to
disengage it.

(c) Remove the headlight, No. 1 bulb.

NOTICE:
Do not touch the bulb glass with your fingers.

3.

REMOVE FRONT TURN SIGNAL LIGHT BULB
(a) Turn the front turn signal light socket and bulb, in

the direction indicated by the arrow in the
illustration, to remove them.

(b) Remove the front turn signal light bulb from the light

socket.

E127194

E127195

E127234

E127197
