INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP–23

IP

8.

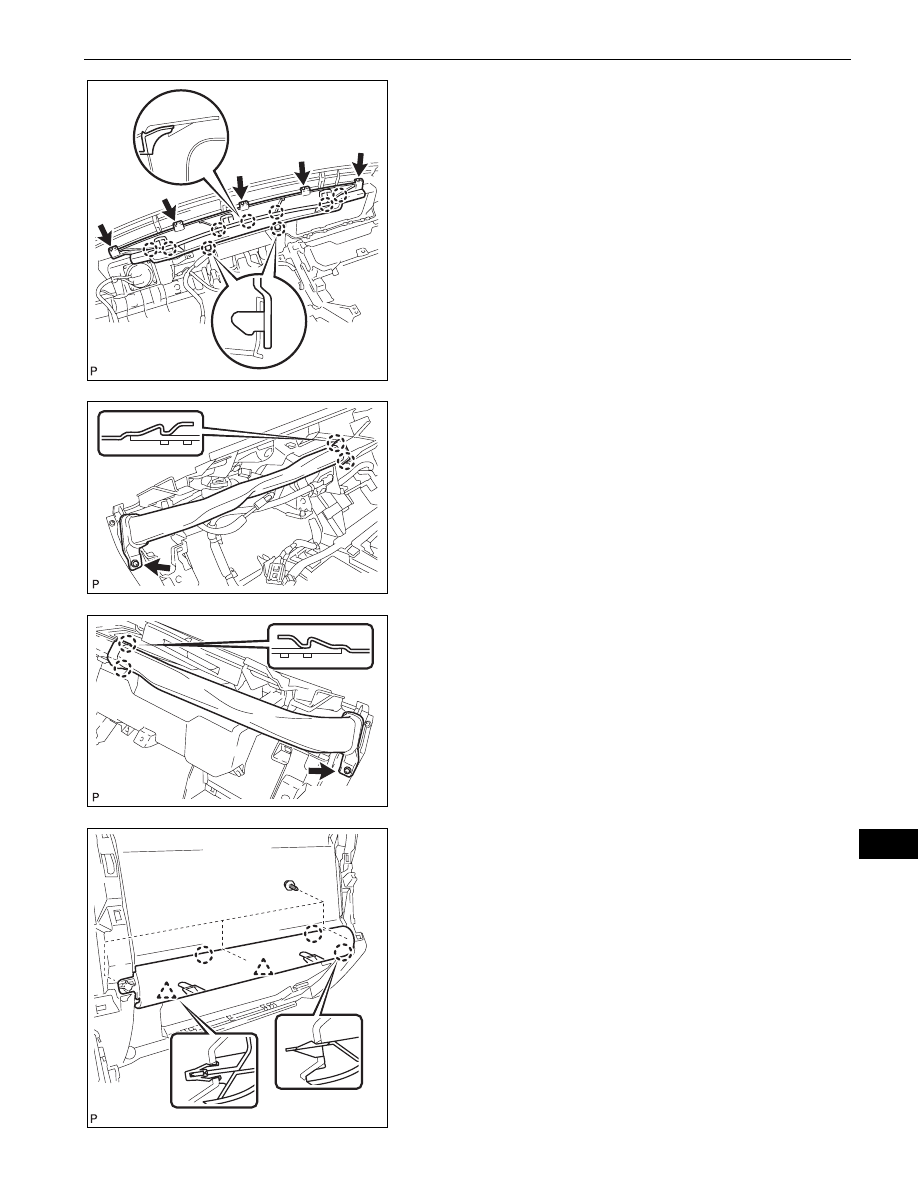

INSTALL DEFROSTER NOZZLE ASSEMBLY
(a) Engage the 9 claws and install the defroster nozzle.
(b) Install the 5 <B> screws.

9.

INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
(a) Engage the 2 claws and install the side defroster

nozzle duct.

(b) Install screw <B>.

10. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT

(a) Engage the 2 claws and install the side defroster

nozzle duct.

(b) Install screw <B>.

11. INSTALL INSTRUMENT CLUSTER LOWER CENTER

FINISH PANEL SUB-ASSEMBLY
(a) Engage the 2 clips and 3 claws and install the

instrument cluster lower center finish panel.

(b) Install the 3 <B> screws.

B133875

B133874

B133873

B133880

IP–24

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP

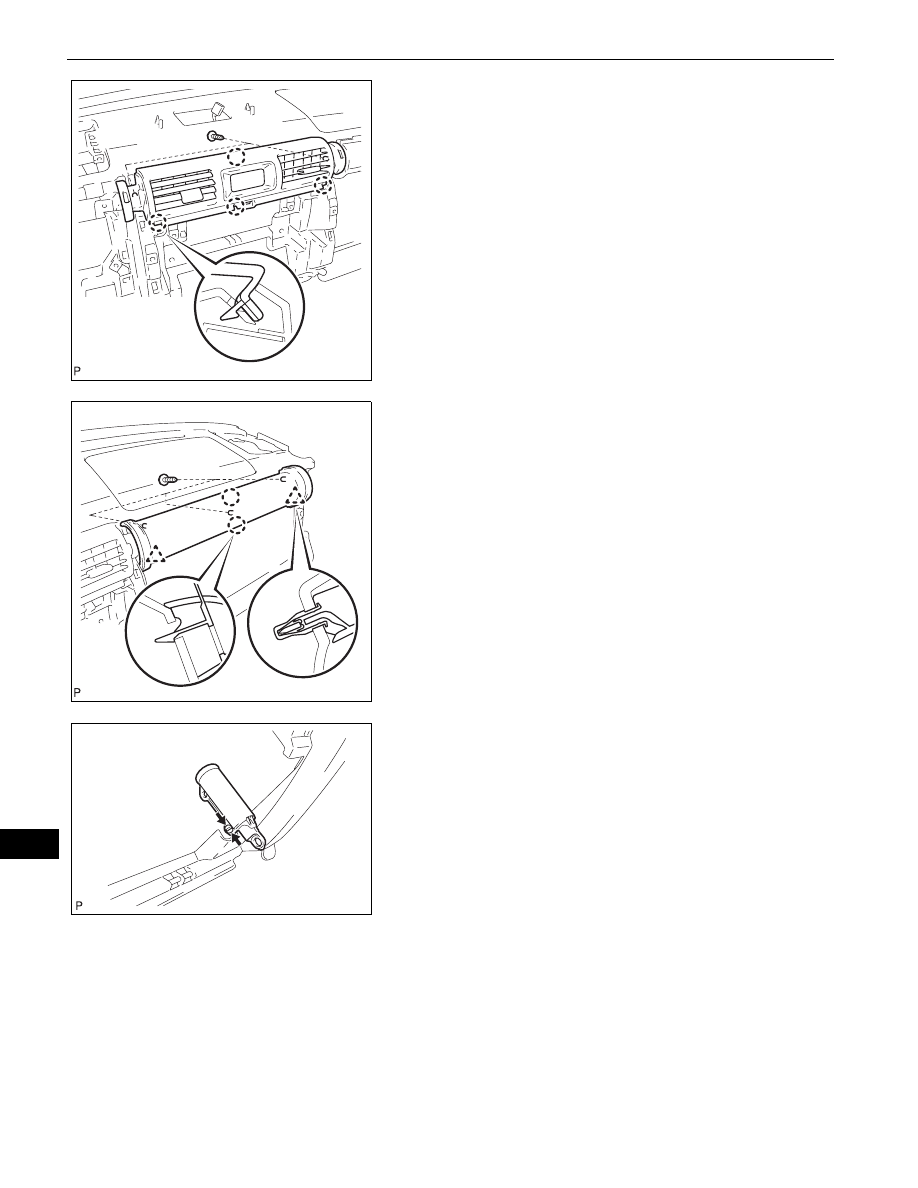

12. INSTALL INSTRUMENT CLUSTER CENTER FINISH

PANEL SUB-ASSEMBLY
(a) Engage the 4 claws and install the instrument

cluster center finish panel.

(b) Install the 2 <B> screws.

13. INSTALL INSTRUMENT CLUSTER FINISH PANEL

SUB-ASSEMBLY
(a) Engage the 2 clips and 2 claws and install the

instrument cluster finish panel.

(b) Install the 3 <B> screws.

14. INSTALL GLOVE COMPARTMENT DOOR STOPPER

SUB-ASSEMBLY
(a) Engage the claw and install the glove compartment

door stopper.

B133872

B133871

B133878

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP–25

IP

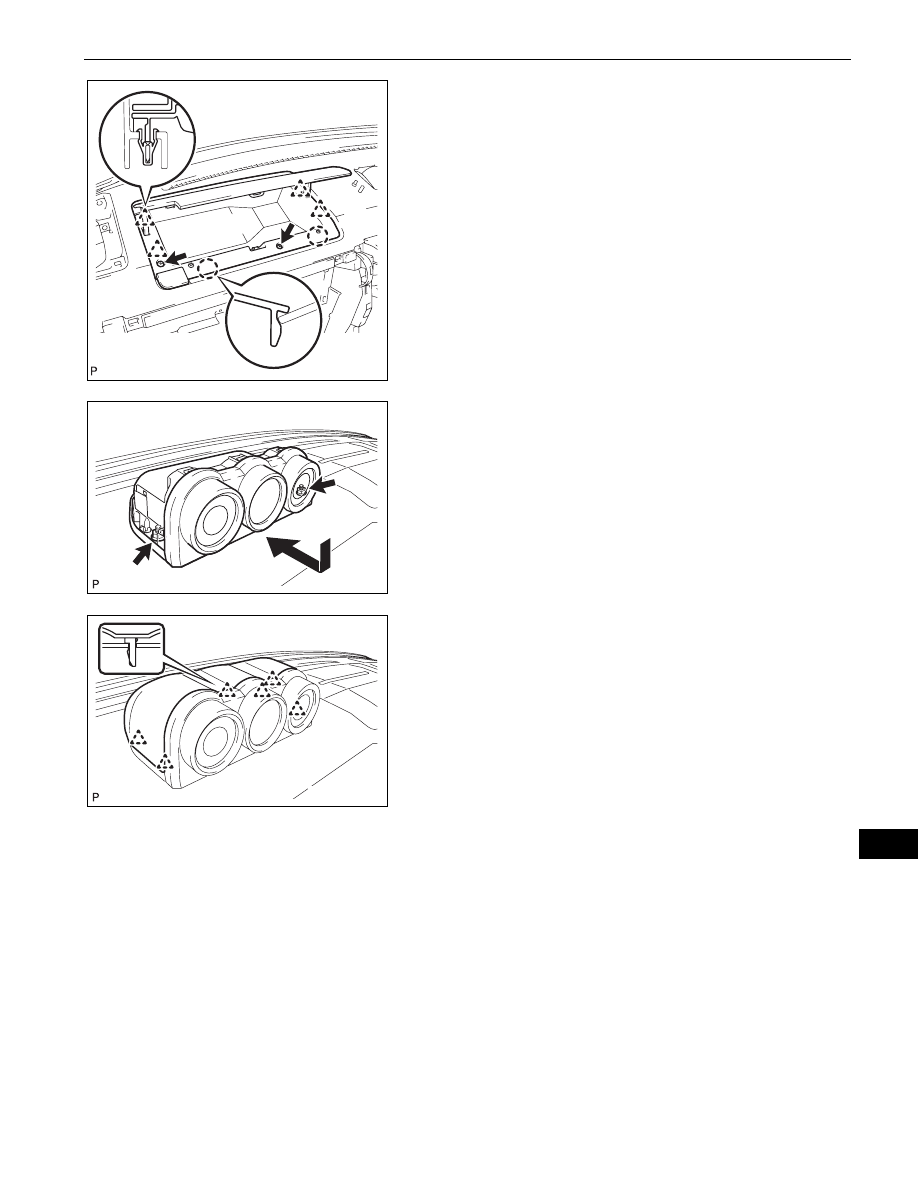

15. INSTALL NO. 2 INSTRUMENT PANEL BOX DOOR

SUB-ASSEMBLY
(a) Engage the 4 clips and 2 claws and install the

instrument panel box door.

(b) Install the 2 <H> screws.

16. INSTALL ACCESSORY METER ASSEMBLY

(a) Install the accessory meter with the 2 nuts.

17. INSTALL METER COVER

(a) Engage the 6 clips and install the meter cover.

B133870

B133869

B133867

IP–26

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP

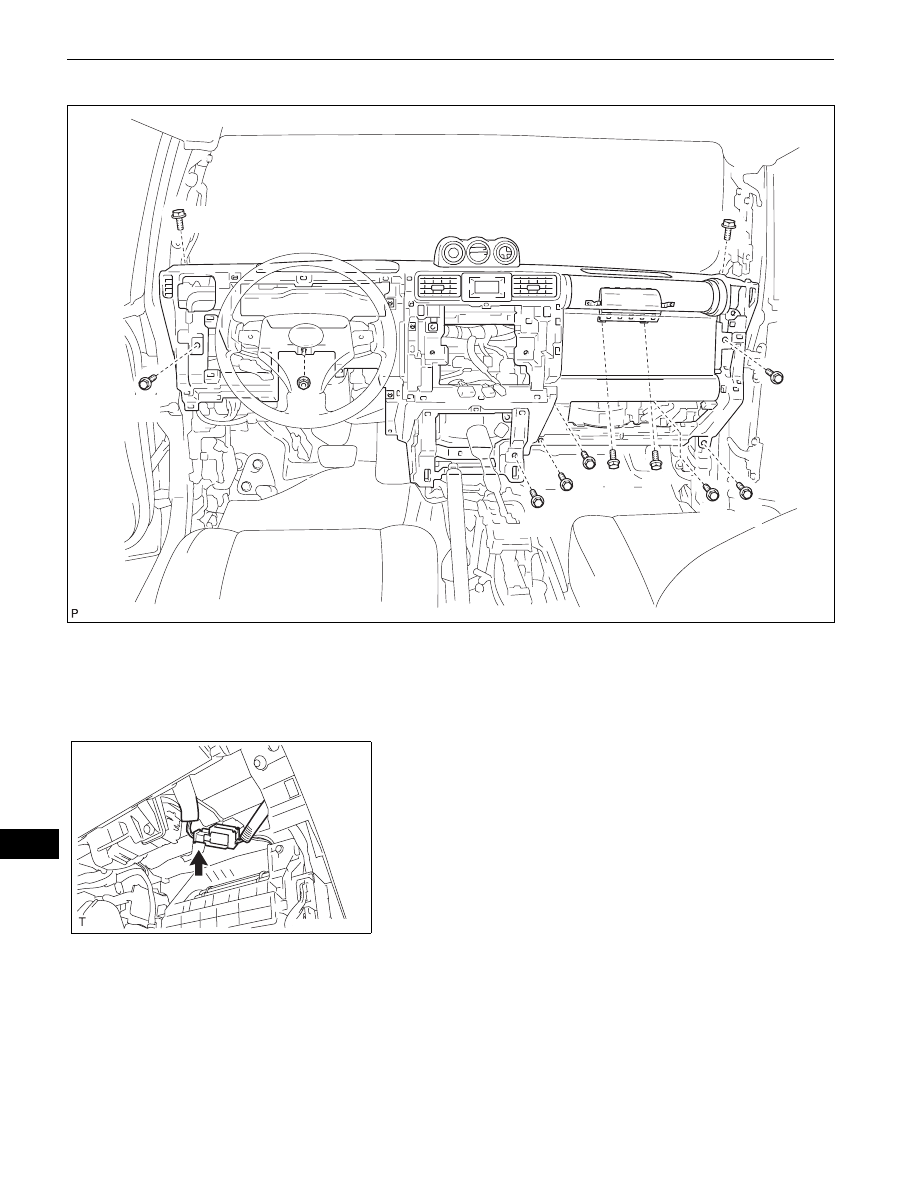

18. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY

(a) Install the lower instrument panel with the 2 <C>

bolts, 2 <E> bolts, 7 <F> bolts and nut <G>.
Torque: 20 N*m (205 kgf*cm, 15 ft.*lbf)  for bolt

<C>

(b) Engage the clamps and connect the connectors.

19. CONNECT PASSENGER AIRBAG CONNECTOR

(a) Connect the passenger airbag connector.

<F>

<F>

<F>

<F>

<F>

<F>

<C> <C>

<E>

<E>

<G>

<F>

B133866E01

B133891
