INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP–15

IP

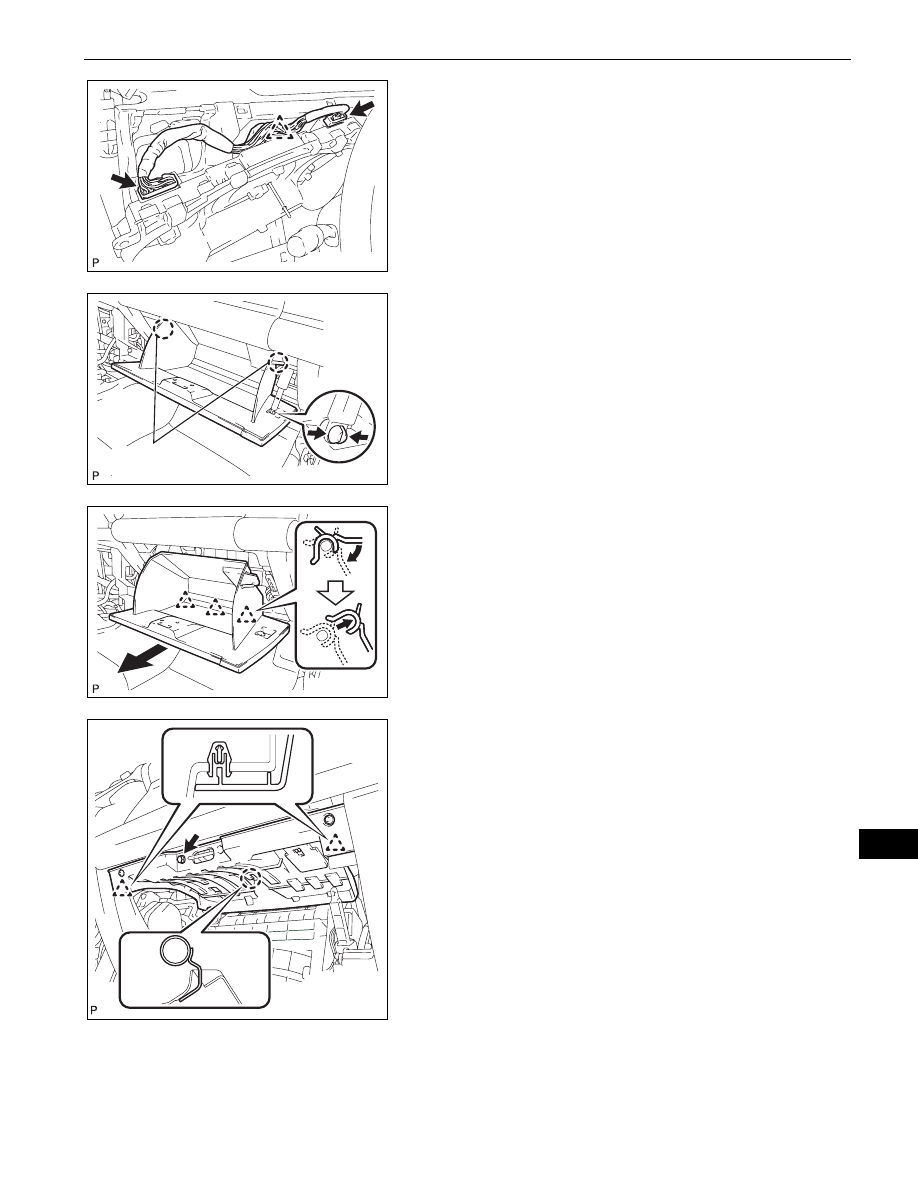

(b) Disconnect the 2 connectors and clamp and remove

the combination meter.

33. REMOVE GLOVE COMPARTMENT DOOR

ASSEMBLY
(a) Disengage the claw and separate the glove

compartment door stoppers from the glove
compartment door.

(b) Slightly flex the upper part of the glove compartment

door assembly to release the 2 stoppers and open
the glove compartment door until it becomes
horizontal.

(c) Pull the glove compartment door assembly toward

the rear of the vehicle to release the 3 hinges and
remove the glove compartment door assembly.

34. REMOVE INSTRUMENT PANEL LOWER FINISH

PANEL SUB-ASSEMBLY RH
(a) Remove screw <A>.
(b) Disengage the 2 clips and claw and remove the

instrument panel lower finish panel.

(c) Separate the connectors from the instrument panel

lower finish panel.

B133863

2 Stoppers

B133854E01

B133855

B133857

IP–16

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP

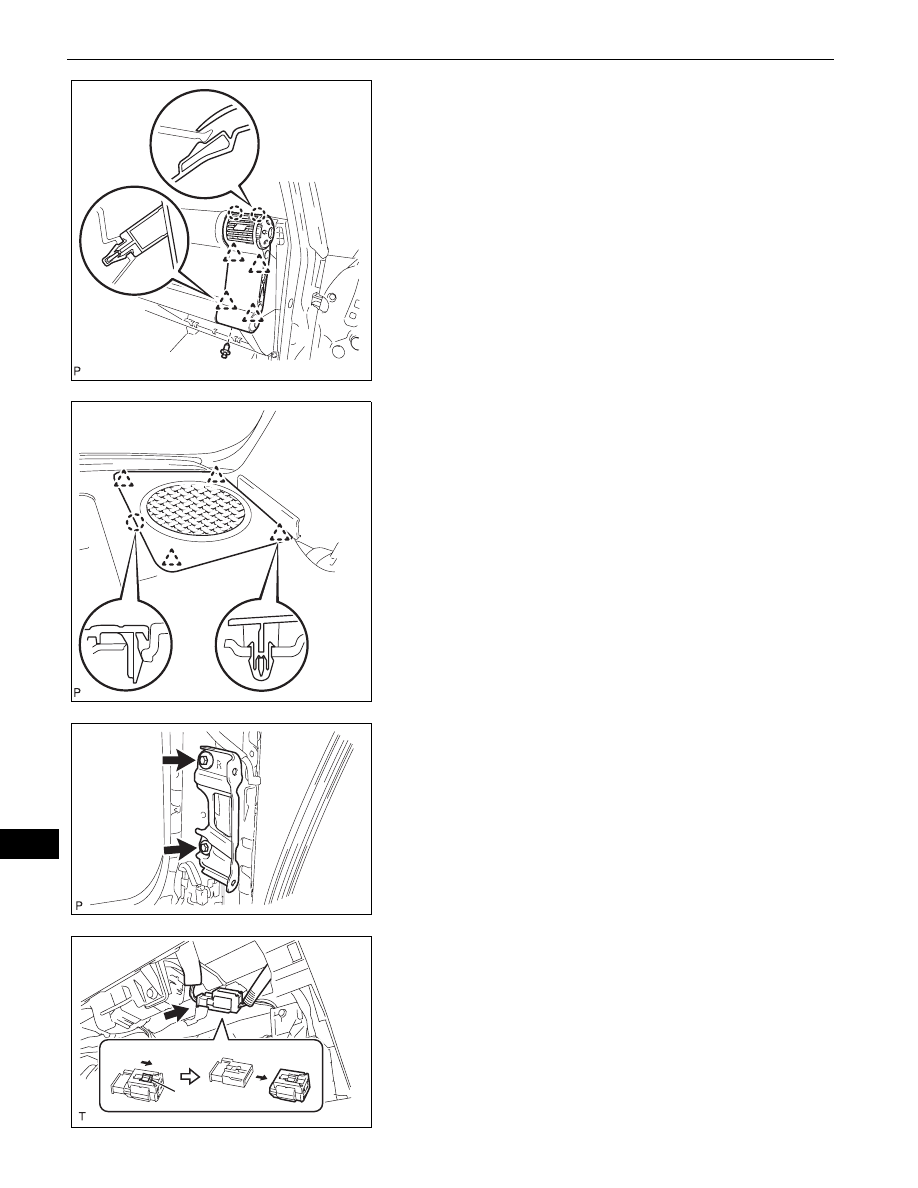

35. REMOVE NO. 2 INSTRUMENT PANEL REGISTER

ASSEMBLY
(a) Remove the clip.
(b) Disengage the 4 clips and 2 claws and remove the

instrument panel register.
NOTICE:
•

To avoid breakage of the register, remove the
instrument panel register with the shut
damper of the register open.

•

Pull the instrument panel register up
diagonally to remove it.

36. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER

PANEL SUB-ASSEMBLY
(a) Disengage the 4 clips and claw and remove the

instrument panel speaker panel.

37. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER

PANEL SUB-ASSEMBLY
HINT:
Use the same procedure as for the RH side.

38. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (See

page

AV-62

)

39. REMOVE ASSIST GRIP RETAINER RH

(a) Remove the 2 bolts and remove the assist grip

retainer.

40. REMOVE ASSIST GRIP RETAINER LH

HINT:
Use the same procedure as for the RH side.

41. DISCONNECT PASSENGER AIRBAG CONNECTOR

(a) Slide the slider and disconnect the passenger

airbag connector.

42. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY

(a) Disengage the clamps and disconnect the

connectors.

B133858

B133865

B133881

Slider

B133890E02

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP–17

IP

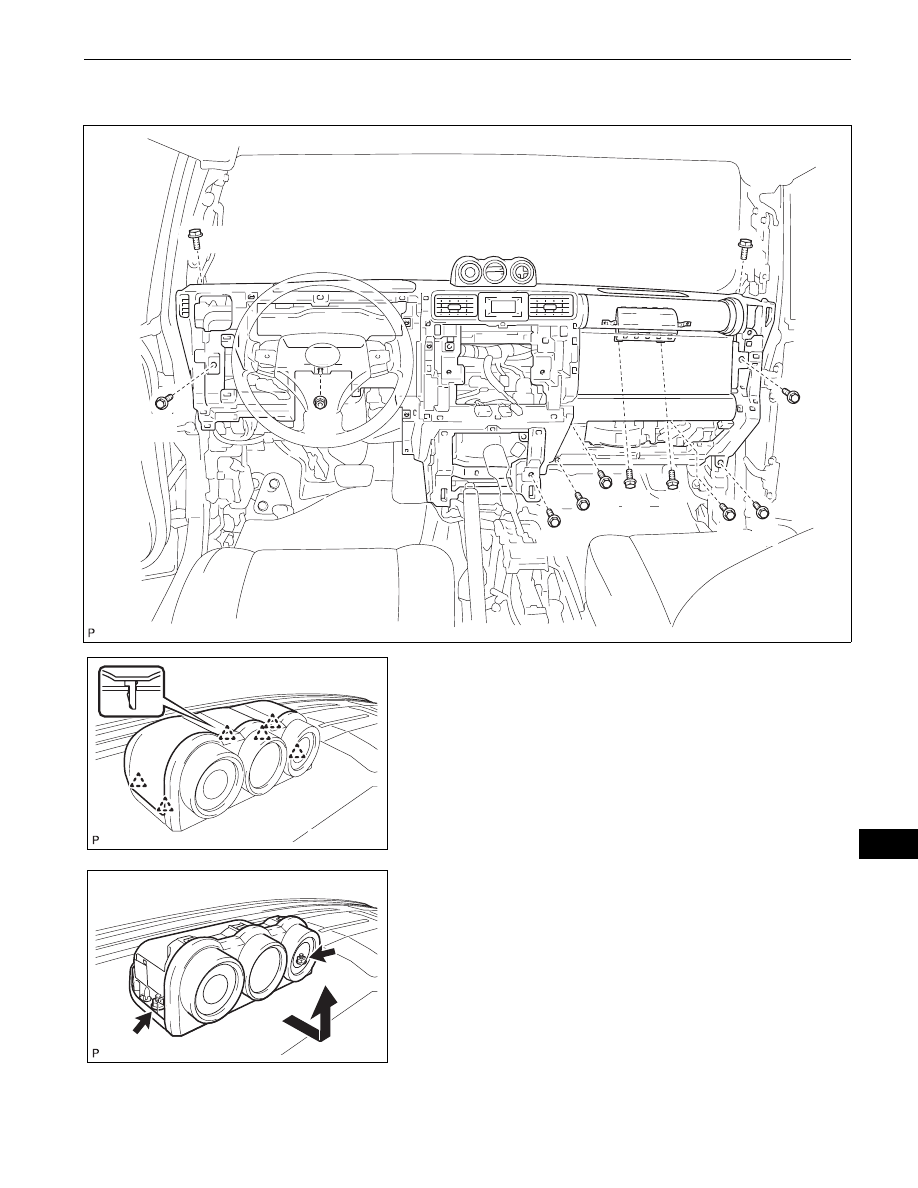

(b) Remove the 2 <C> bolts, 2 <E> bolts, 7 <F> bolts

and nut <G> and remove the instrument panel.

43. REMOVE METER COVER

(a) Disengage the 6 clips and remove the meter cover.

44. REMOVE ACCESSORY METER ASSEMBLY

(a) Remove the 2 nuts and remove the accessory

meter.

<F>

<F>

<F>

<F>

<F>

<F>

<C> <C>

<E>

<E>

<G>

<F>

B133866E01

B133867

B133868

IP–18

INSTRUMENT PANEL  –  INSTRUMENT PANEL ASSEMBLY

IP

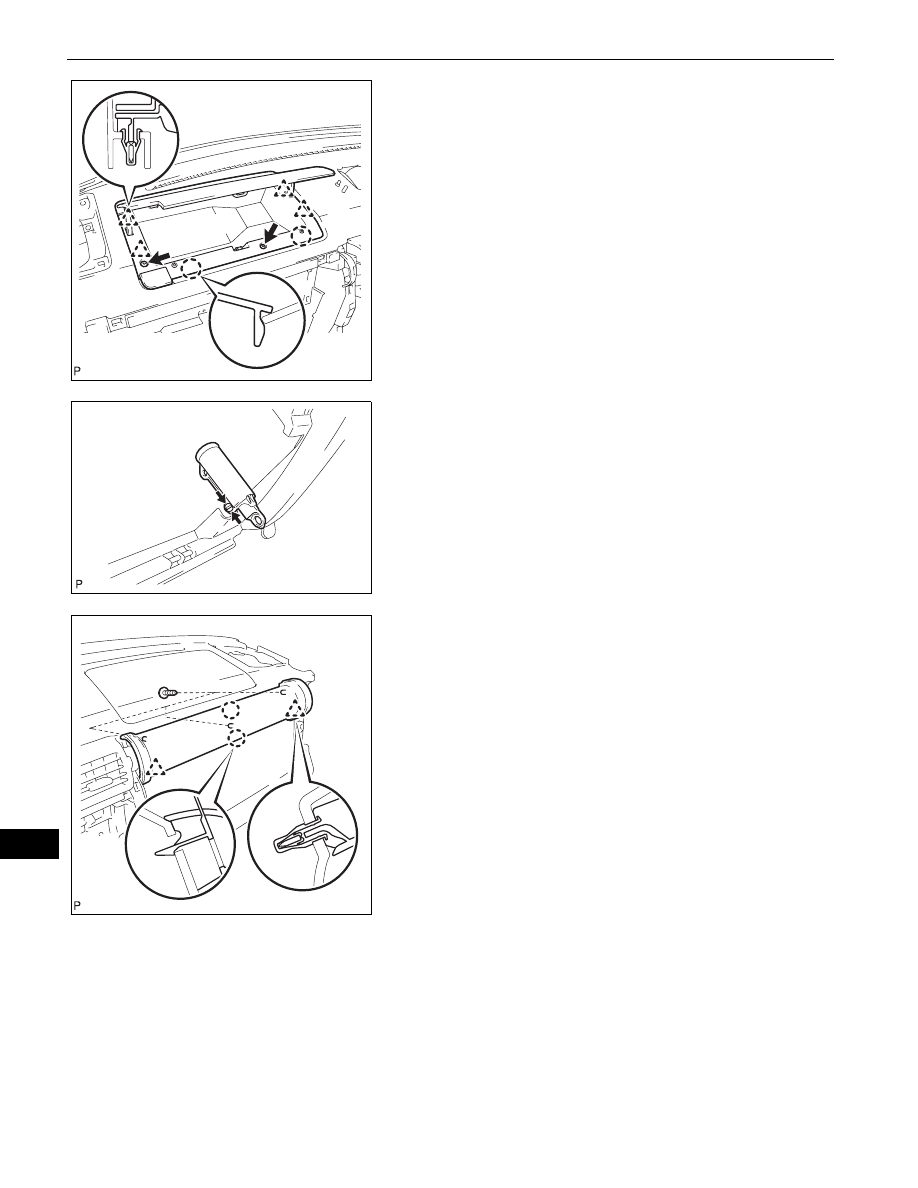

45. REMOVE NO. 2 INSTRUMENT PANEL BOX DOOR

SUB-ASSEMBLY
(a) Remove the 2 <H> screws.
(b) Disengage the 4 clips and 2 claws and remove the

instrument panel box door.

46. REMOVE GLOVE COMPARTMENT DOOR STOPPER

SUB-ASSEMBLY
(a) Disengage the claw and remove the glove

compartment door stopper.

47. REMOVE INSTRUMENT CLUSTER FINISH PANEL

SUB-ASSEMBLY
(a) Remove the 3 <B> screws.
(b) Disengage the 2 clips and 2 claws and remove the

instrument cluster finish panel.

B133870

B133878

B133871
