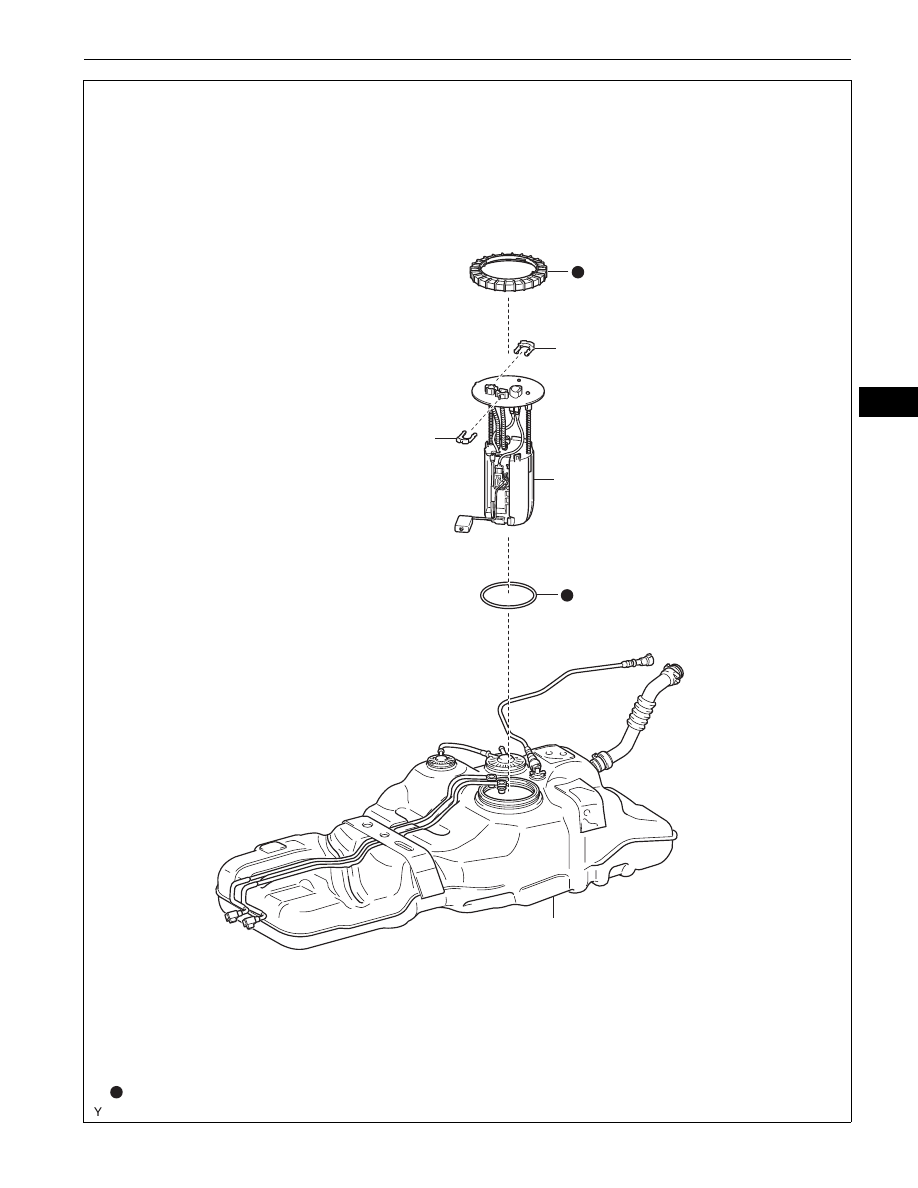

1GR-FE FUEL  –  FUEL PUMP

FU–27

FU

FUEL TANK ASSEMBLY

GASKET

RETAINER

JOINT CLIP

JOINT CLIP

Non-reusable part

FUEL SUCTION WITH PUMP
AND GAUGE TUBE ASSEMBLY

A130150E02

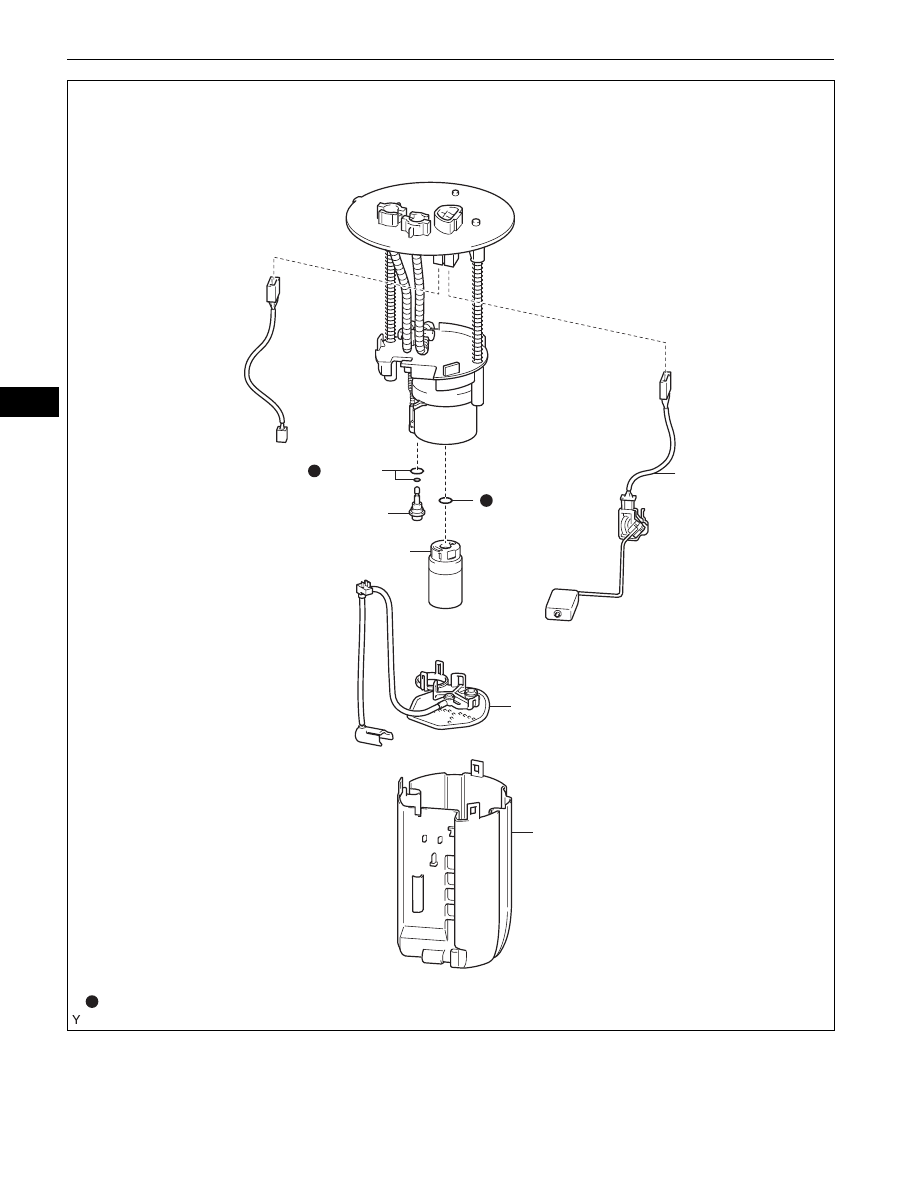

FU–28

1GR-FE FUEL  –  FUEL PUMP

FU

FUEL PUMP ASSEMBLY

FUEL PUMP FILTER

NO. 1 FUEL SUB-TANK

FUEL SENDER
GAUGE ASSEMBLY

Non-reusable part

O-RING

O-RING

FUEL PRESSURE REGULATOR ASSEMBLY

A129895E01

1GR-FE FUEL  –  FUEL PUMP

FU–29

FU

REMOVAL

1.

DISCHARGE FUEL SYSTEM PRESSURE
(See page

FU-1

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

3.

REMOVE FRONT DOOR SCUFF PLATE LH (See page

FU-42

)

4.

REMOVE REAR DOOR SCUFF PLATE LH (See page

FU-42

)

5.

REMOVE REAR SEAT CUSHION ASSEMBLY LH (See
page

FU-42

)

6.

REMOVE REAR FLOOR SERVICE HOLE COVER (See
page

FU-42

)

7.

DISCONNECT FUEL TANK TO FILLER PIPE HOSE
(See page

FU-43

)

8.

DISCONNECT FUEL TANK BREATHER TUBE SUB-
ASSEMBLY (See page

FU-44

)

9.

REMOVE NO.1 FUEL TANK PROTECTOR SUB-
ASSEMBLY (See page

FU-44

)

10. DISCONNECT FUEL TANK MAIN TUBE AND FUEL

TANK RETURN TUBE (See page

FU-45

)

11. REMOVE FUEL TANK VENT HOSE (See page

FU-45

)

12. REMOVE FUEL TANK ASSEMBLY (See page

FU-45

)

13. REMOVE FUEL TANK MAIN TUBE AND FUEL TANK

RETURN TUBE (See page

FU-47

)

14. REMOVE FUEL SUCTION WITH PUMP AND GAUGE

TUBE ASSEMBLY
NOTICE:
Protect the connector and tube joint with masking
tape or the equivalent to prevent any foreign matter
from sticking to them. Clean any dirt and foreign
matter from the fuel suction tube assembly before
removing.

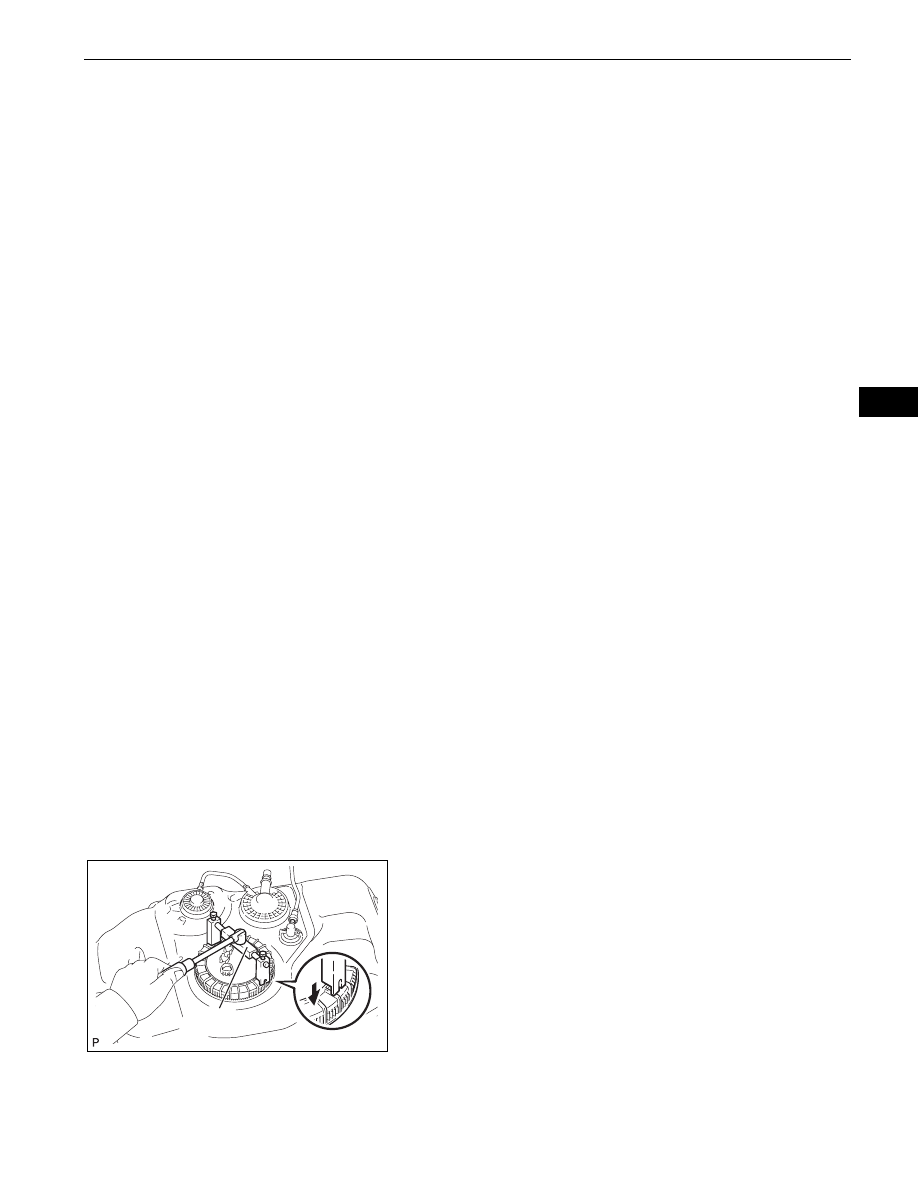

(a) Using a SST, loosen the retainer.

SST

09808-14020 (09808-01410, 09808-01420,
09808-01430)

HINT:
Align the tips of the SST with the ribs on the retainer.

(b) Remove the retainer.
(c) Pull the fuel pump assembly out of the fuel tank.

NOTICE:
Do not bend the arm of the sender gauge.

SST

A129916E01

FU–30

1GR-FE FUEL  –  FUEL PUMP

FU

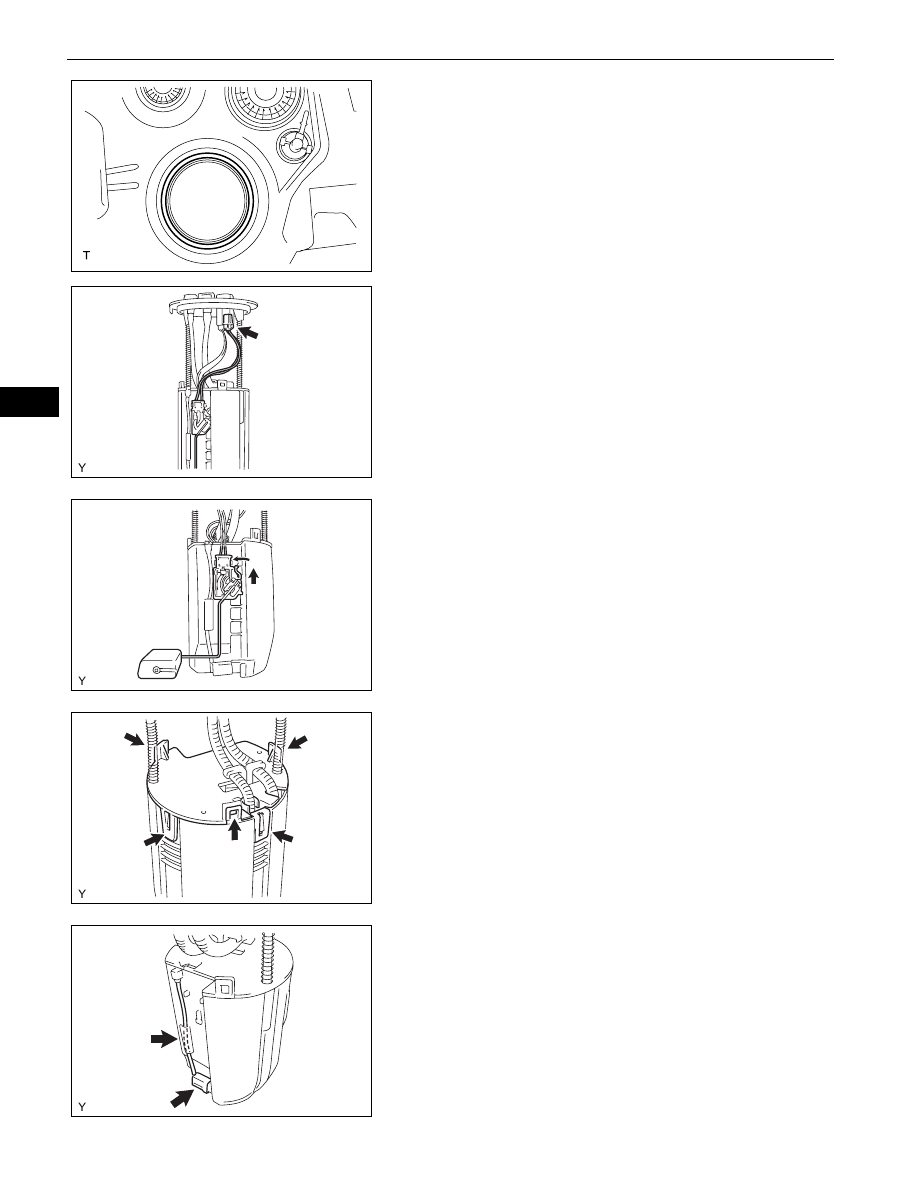

(d) Remove the gasket from the fuel tank.

DISASSEMBLY

1.

REMOVE FUEL SENDER GAUGE ASSEMBLY
(a) Disconnect the connector.

(b) Disengage the claw and remove the sender gauge

by sliding it in the direction shown in the illustration.

2.

REMOVE NO.1 FUEL SUB-TANK
(a) Disengage the 5 claws and remove the fuel pump

tank.

(b) Separate the connector and disengage the clamp.

A129944

A129890

A129891

A129892

A129893
