FU–20

1GR-FE FUEL  –  FUEL INJECTOR

FU

13. CHECK FOR ENGINE COOLANT LEAKAGE (See

page

CO-4

)

14. CHECK FOR FUEL LEAKAGE

15. INSTALL V-BANK COVER (See page

ES-431

)

1GR-FE FUEL  –  FUEL PRESSURE REGULATOR

FU–21

FU

ENGINE

1GR-FE FUEL

FUEL PRESSURE REGULATOR

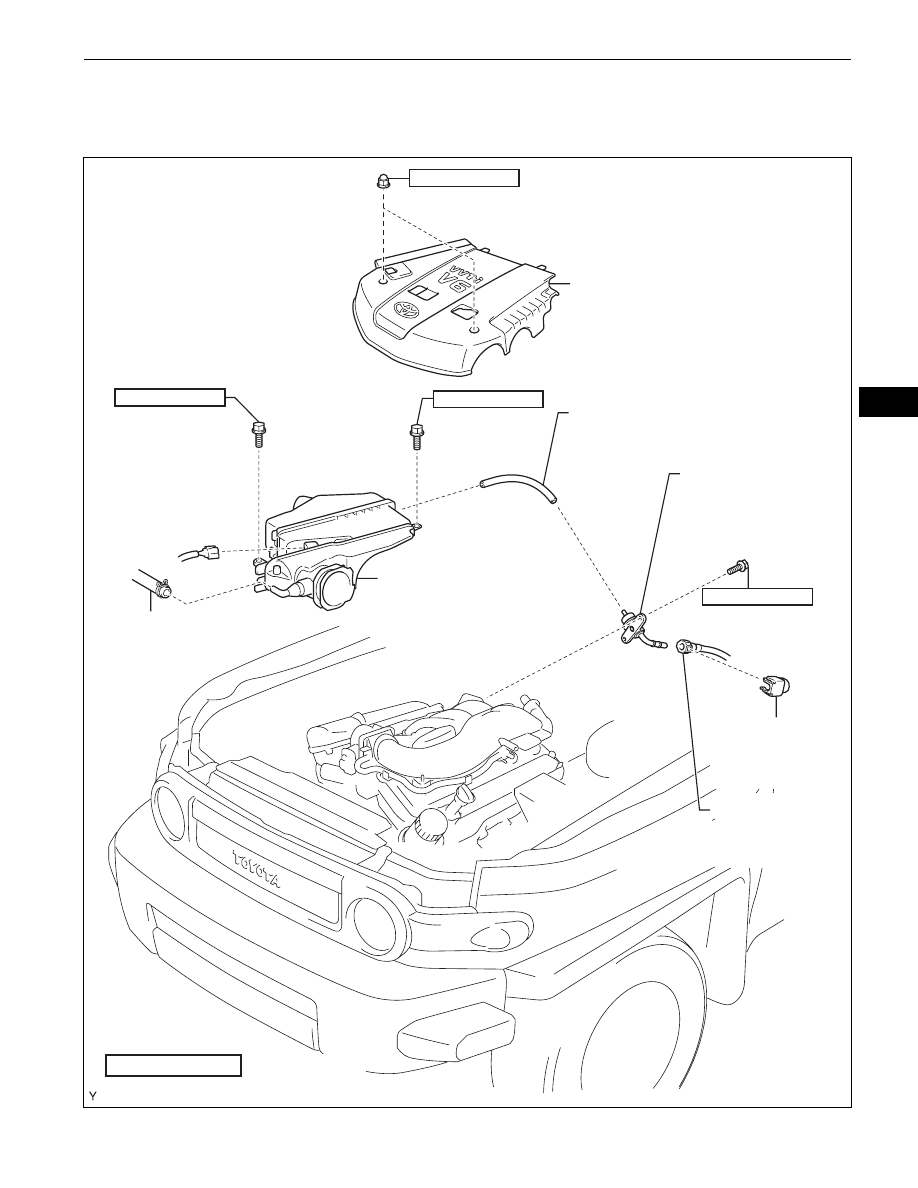

COMPONENTS

AIR CLEANER
ASSEMBLY

FUEL PRESSURE
REGULATOR
ASSEMBLY

NO. 2 FUEL PIPE
SUB-ASSEMBLY

V-BANK COVER

VENTILATION HOSE

VACUUM HOSE

NO. 2 FUEL PIPE
CLAMP

N*m (kgf*cm, ft*lbf)  : Specified torque

9.0 (92, 80 in.*lbf)

x2

7.5 (76, 66 in.*lbf)

8.0 (82, 71 in.*lbf)

8.0 (82, 71 in.*lbf)

A126411E01

FU–22

1GR-FE FUEL  –  FUEL PRESSURE REGULATOR

FU

REMOVAL

1.

DISCHARGE FUEL SYSTEM PRESSURE
(See page

FU-1

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

3.

REMOVE V-BANK COVER (See page

ES-428

)

4.

REMOVE AIR CLEANER ASSEMBLY (See page

ES-

429

)

5.

DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY
(See page

FU-14

)

6.

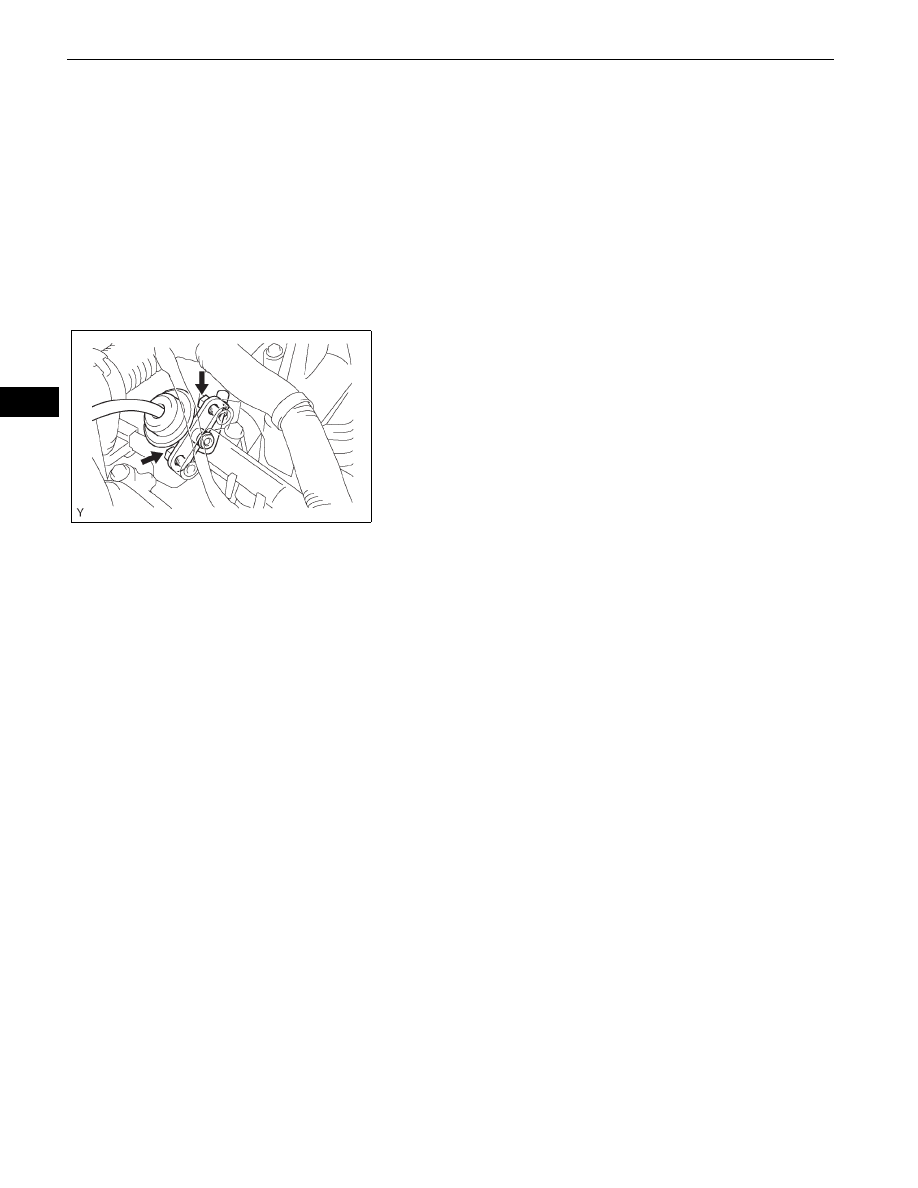

REMOVE FUEL PRESSURE REGULATOR
ASSEMBLY
(a) Remove the vacuum hose.
(b) Remove the 2 bolts, then remove the fuel pressure

regulator.

A075657E01

1GR-FE FUEL  –  FUEL PRESSURE REGULATOR

FU–23

FU

INSTALLATION

1.

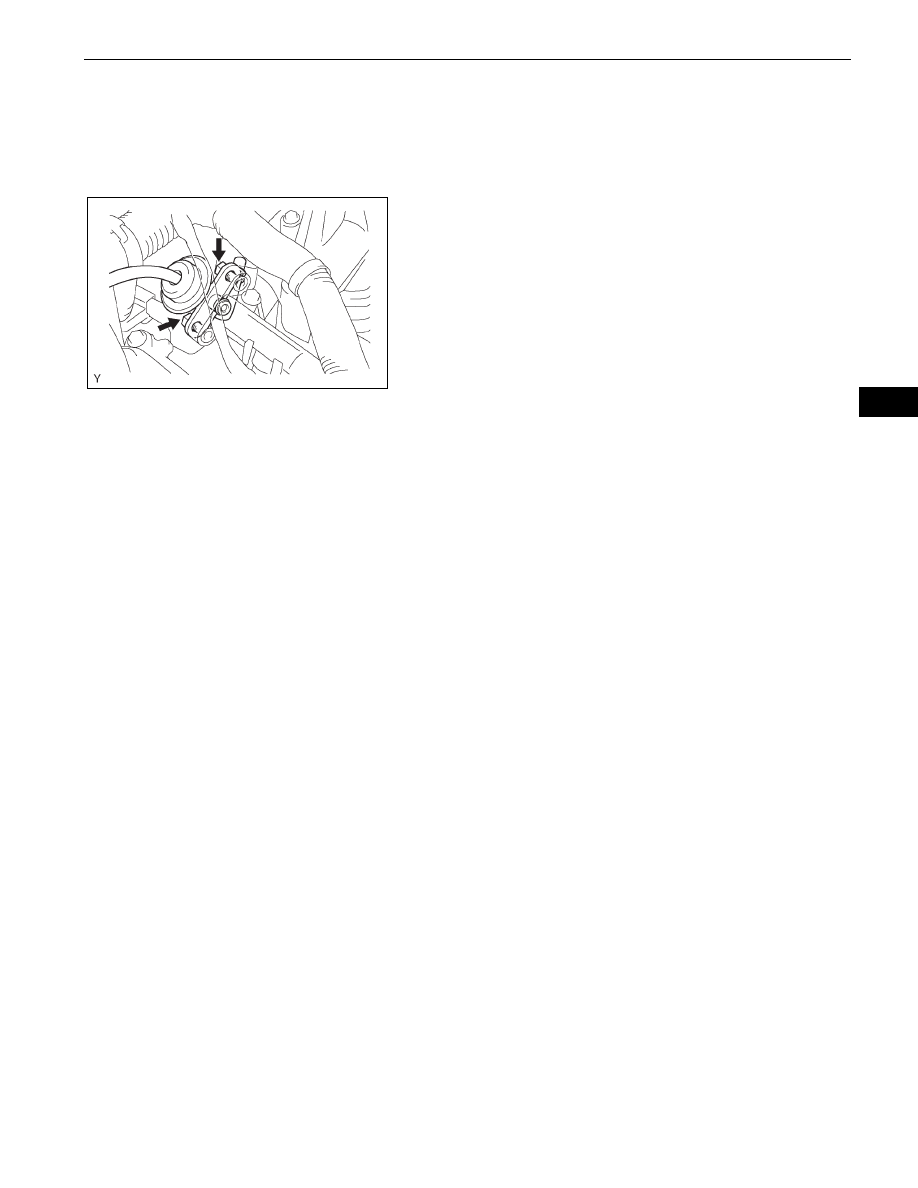

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
(a) Install the vacuum hose.
(b) Apply a light coat of spindle oil or gasoline to a new

O-ring and install it onto the fuel pressure regulator.

(c) Install the fuel pressure regulator with the 2 bolts.

Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

2.

CONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY (See
page

FU-17

)

3.

INSTALL AIR CLEANER ASSEMBLY (See page

ES-

431

)

4.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

5.

CHECK FOR FUEL LEAKAGE

6.

INSTALL V-BANK COVER (See page

ES-431

)

A075657E01
