1GR-FE FUEL  –  FUEL PRESSURE PULSATION DAMPER

FU–23

FU

ENGINE

1GR-FE FUEL

FUEL PRESSURE PULSATION DAMPER

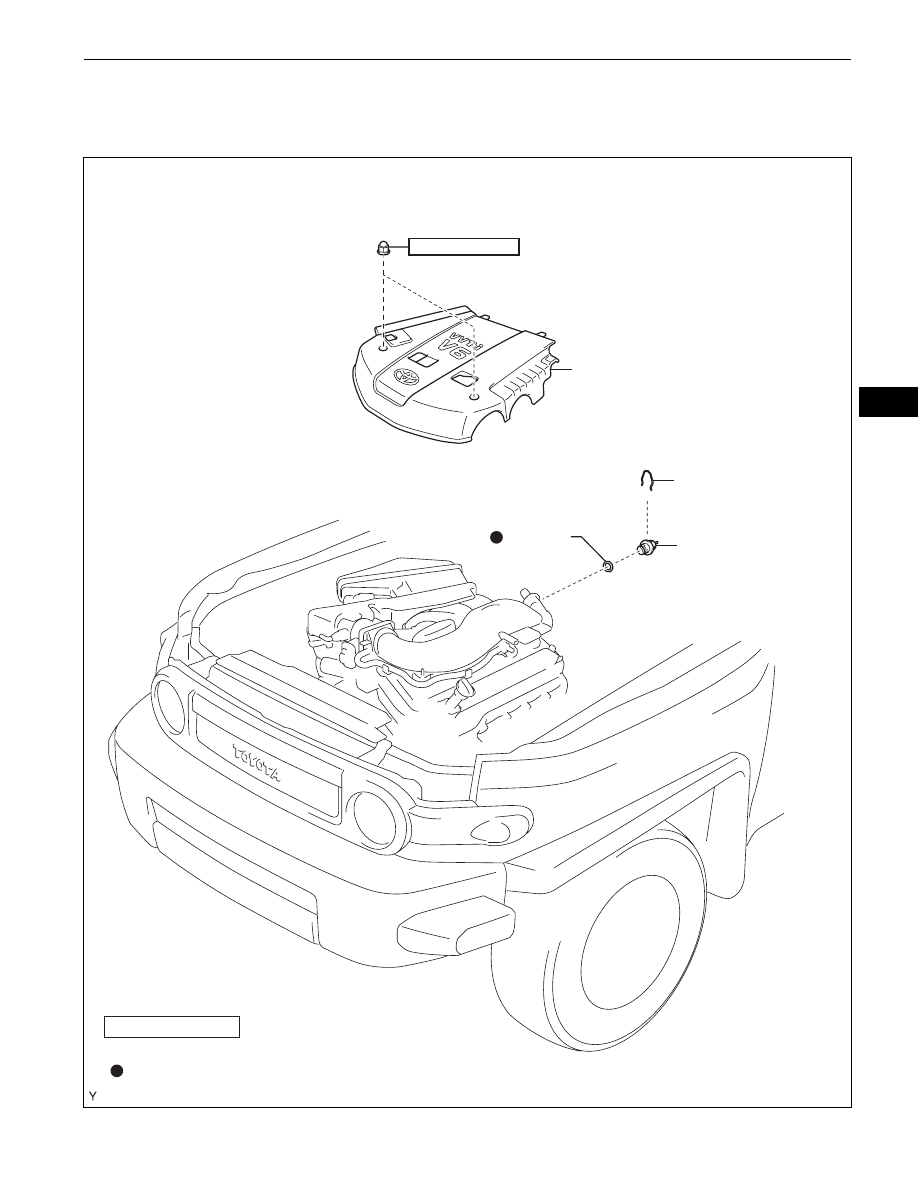

COMPONENTS

FUEL PRESSURE
PULSATION DAMPER
ASSEMBLY

V-BANK COVER

CLIP

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

GASKET

7.5 (76, 66 in.*lbf)

A126412E01

FU–24

1GR-FE FUEL  –  FUEL PRESSURE PULSATION DAMPER

FU

REMOVAL

1.

DISCHARGE FUEL SYSTEM PRESSURE
(See page

FU-1

)

2.

REMOVE V-BANK COVER (See page

ES-428

)

3.

REMOVE FUEL PRESSURE PULSATION DAMPER
ASSEMBLY

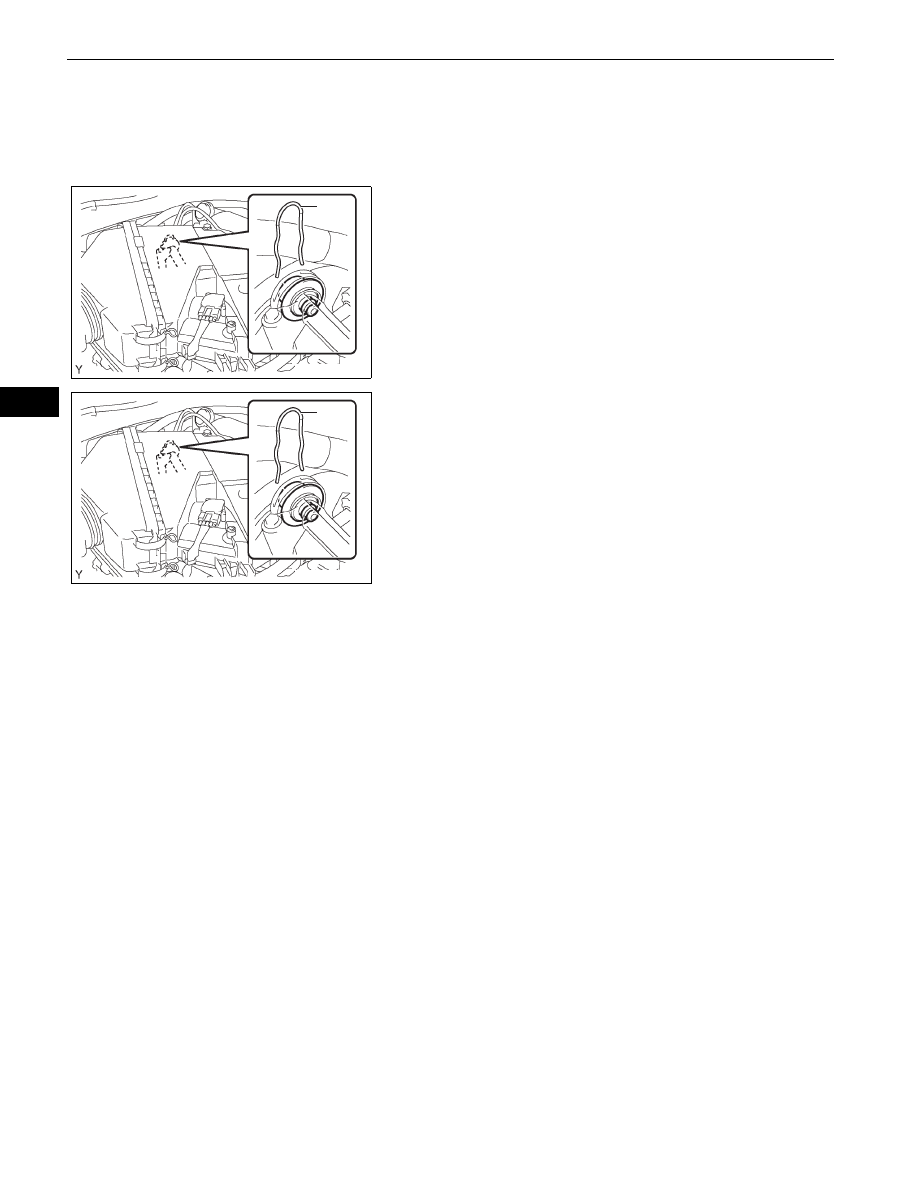

(a) Remove the clip.
(b) Pull the fuel pressure pulsation damper out of the

fuel delivery pipe.

INSTALLATION

1.

INSTALL FUEL PRESSURE PULSATION DAMPER
ASSEMBLY
(a) Apply a light coat of spindle oil or gasoline to a new

O-ring and install it onto the fuel pressure pulsation
damper.

(b) Install the fuel pressure pulsation damper onto the

fuel delivery pipe.

(c) Install the clip.

2.

CHECK FOR FUEL LEAKAGE

3.

INSTALL V-BANK COVER (See page

ES-431

)

Clip

A078644E03

Clip

A078644E03

1GR-FE FUEL  –  FUEL PUMP

FU–25

FU

ENGINE

1GR-FE FUEL

FUEL PUMP

COMPONENTS

37 (377, 27)

N*m (kgf*cm, ft*lbf)  : Specified torque

FRONT DOOR
SCUFF PLATE LH

REAR DOOR SCUFF PLATE LH

REAR SEAT CUSHION ASSEMBLY LH

CENTER FLOOR SILENCER PAD LH

37 (377, 27)

A129922E01

FU–26

1GR-FE FUEL  –  FUEL PUMP

FU

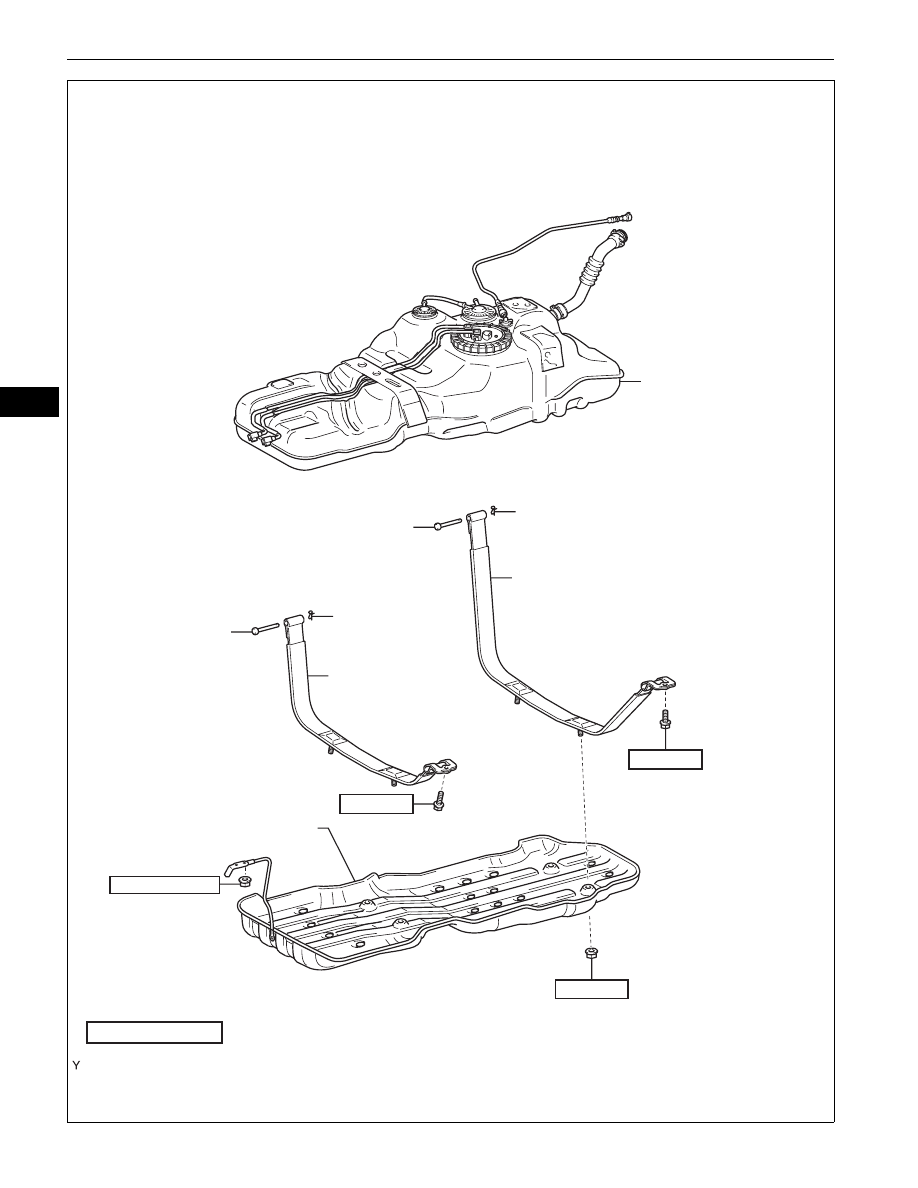

FUEL TANK ASSEMBLY

FUEL TANK BAND

FUEL TANK BAND

PIN

PIN

N*m (kgf*cm, ft*lbf)  : Specified torque

20 (204, 15)

CLIP

CLIP

40 (408, 30)

40 (408, 30)

NO.1 FUEL TANK PROTECTOR
SUB-ASSEMBLY

Z

5.5 (56, 49 in.*lbf)

A129896E01
