FU–8

1GR-FE FUEL  –  FUEL INJECTOR

FU

ENGINE

1GR-FE FUEL

FUEL INJECTOR

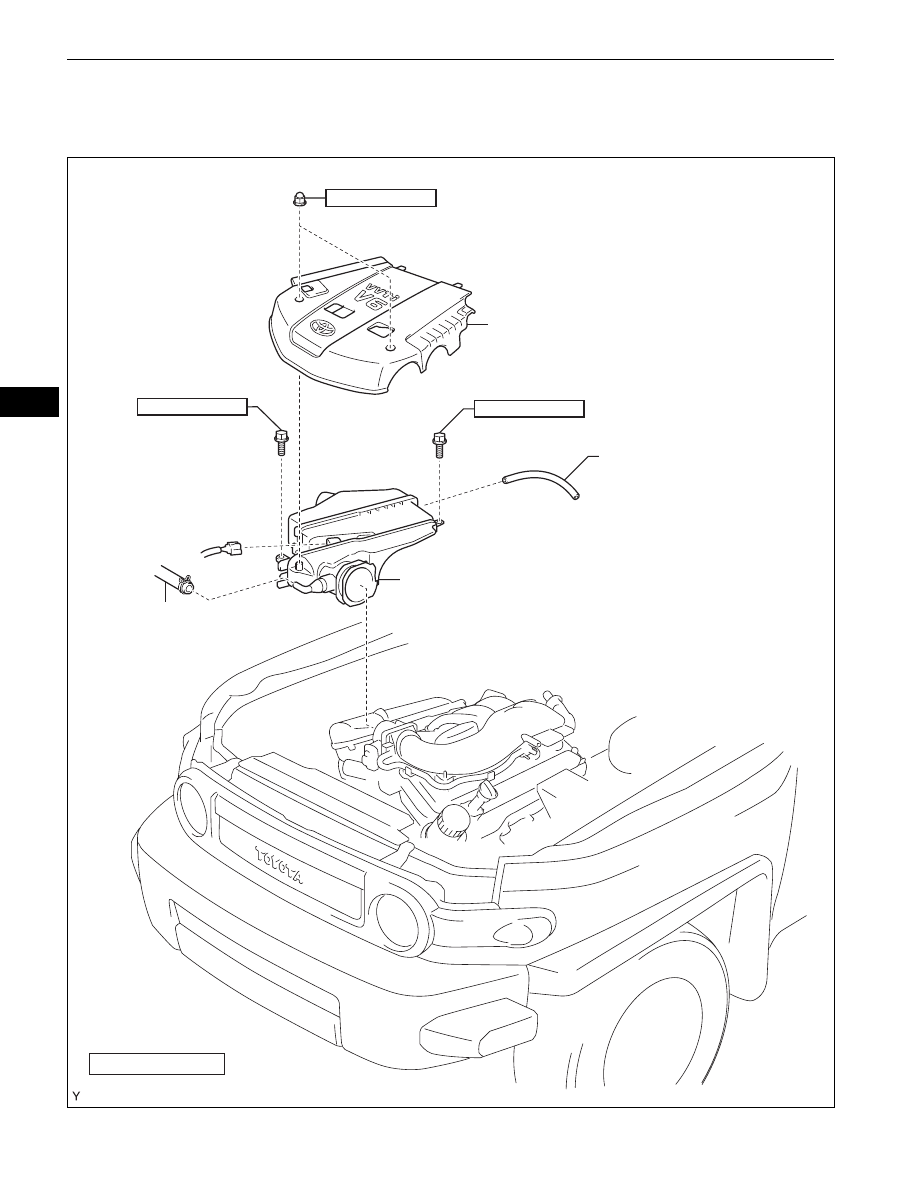

COMPONENTS

AIR CLEANER ASSEMBLY

V-BANK COVER

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (82, 71 in.*lbf)

7.5 (76, 66 in.*lbf)

VACUUM HOSE

8.0 (82, 71 in.*lbf)

VENTILATION HOSE

A126407E01

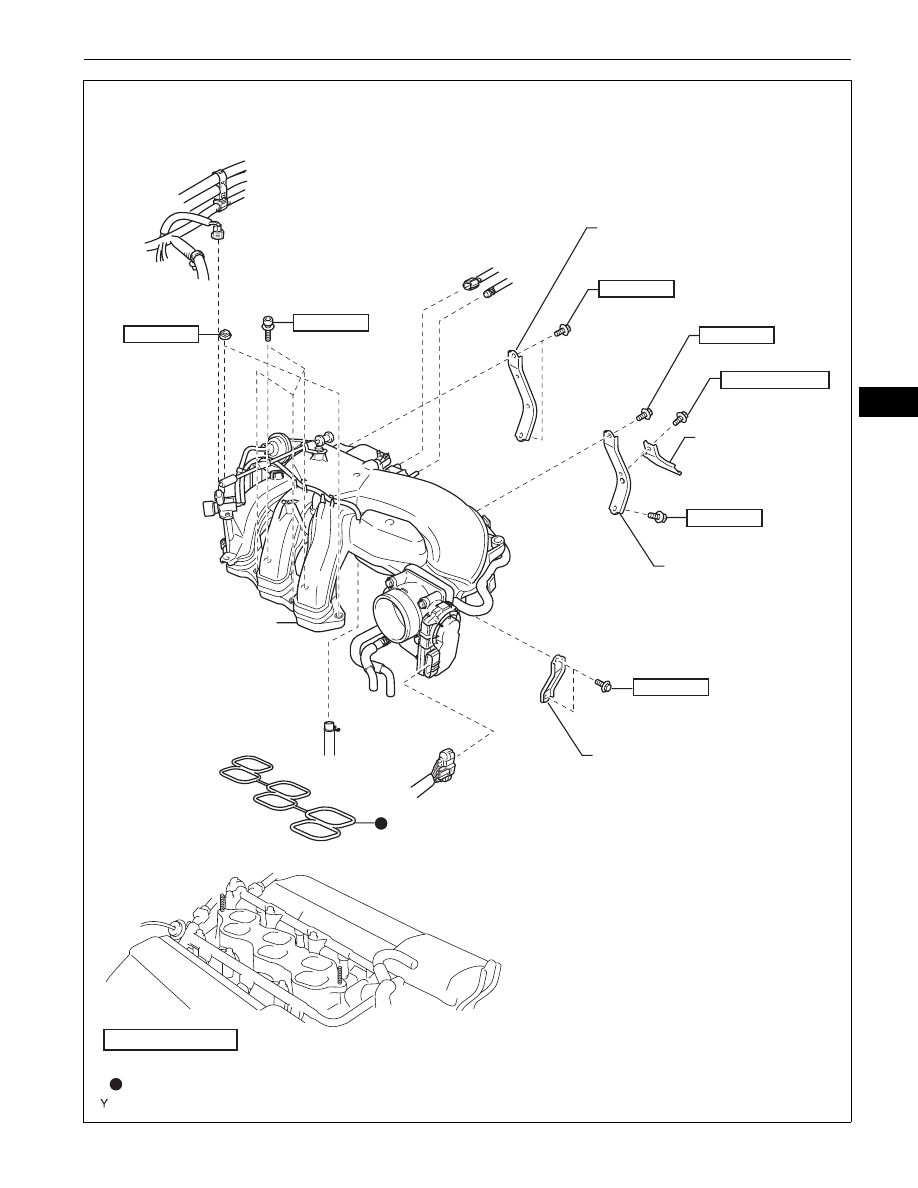

1GR-FE FUEL  –  FUEL INJECTOR

FU–9

FU

INTAKE AIR SURGE TANK

NO. 1 SURGE TANK
STAY

NO. 2 SURGE TANK
STAY

THROTTLE BODY
BRACKET

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

28 (286, 21)

GASKET

9.0 (92, 80 in.*lbf)

28 (286, 21)

21 (214, 15)

OIL BAFFLE PLATE

21 (214, 15)

21 (214, 15)

21 (214, 15)

A126476E01

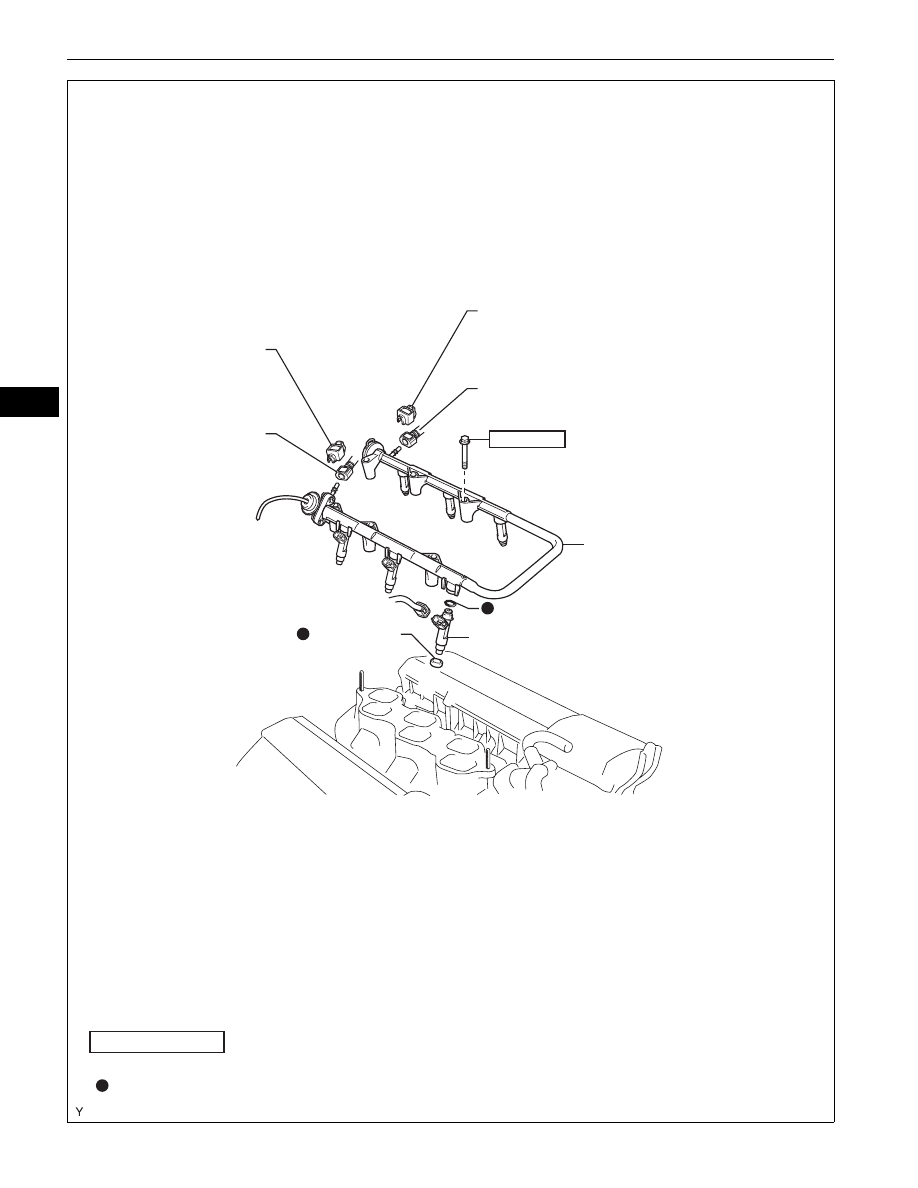

FU–10

1GR-FE FUEL  –  FUEL INJECTOR

FU

NO. 2 FUEL PIPE CLAMP

NO. 1 FUEL PIPE SUB-ASSEMBLY

FUEL DELIVERY PIPE
SUB-ASSEMBLY

FUEL INJECTOR ASSEMBLY

NO. 2 FUEL PIPE
CLAMP

NO. 2 FUEL PIPE
SUB-ASSEMBLY

x6

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

15 (153, 11)

O-RING

INSULATOR

A126477E01

1GR-FE FUEL  –  FUEL INJECTOR

FU–11

FU

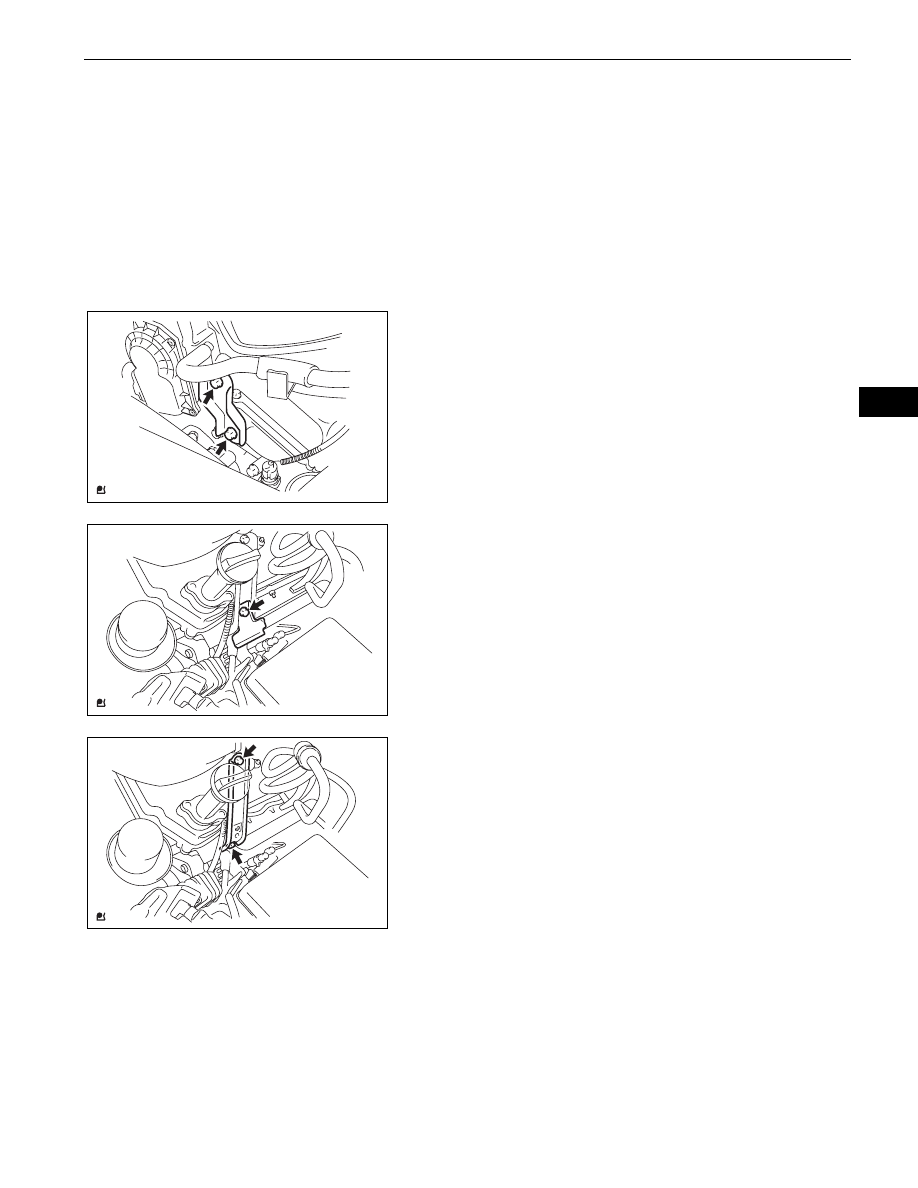

REMOVAL

1.

DISCHARGE FUEL SYSTEM PRESSURE
(See page

FU-1

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

3.

DRAIN ENGINE COOLANT (See page

CO-3

)

4.

REMOVE V-BANK COVER (See page

ES-428

)

5.

REMOVE AIR CLEANER ASSEMBLY (See page

ES-

429

)

6.

REMOVE THROTTLE BODY BRACKET
(a) Remove the 2 bolts and the throttle body bracket.

7.

REMOVE OIL BAFFLE PLATE
(a) Remove the bolt and the oil baffle plate.

8.

REMOVE NO. 1 SURGE TANK STAY
(a) Remove the 2 bolts and the No. 1 surge tank stay.

A126392

A126390

A126389
