Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 220





EXTERIOR  –  ACCESS DOOR BLACK OUT TAPE

ET–109

ET

REMOVAL

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

REMOVE ACCESS PANEL REAR WEATHERSTRIP
HINT:
Use the same procedure as for the RH side (See page

ED-29

).

2.

REMOVE LAP BELT OUTER ANCHOR COVER
HINT:
Use the same procedure as for the RH side (See page

ED-29

).

3.

REMOVE ACCESS DOOR INSIDE HANDLE SUB-
ASSEMBLY
HINT:
Use the same procedure as for the RH side (See page

ED-29

).

4.

REMOVE CUP HOLDER
HINT:
Use the same procedure as for the RH side (See page

ED-29

).

5.

REMOVE ACCESS DOOR TRIM BOARD SUB-
ASSEMBLY
HINT:
Use the same procedure as for the RH side (See page

ED-30

).

6.

REMOVE CENTER PILLAR UPPER GARNISH
HINT:
Use the same procedure as for the RH side (See page

ED-30

).

7.

REMOVE ACCESS DOOR OPENING TRIM
HINT:
Use the same procedure as for the RH side (See page

ED-32

).

8.

REMOVE ACCESS PANEL WEATHERSTRIP
HINT:
Use the same procedure as for the RH side (See page

ED-32

).

9.

REMOVE ACCESS DOOR GLASS OUTER
WEATHERSTRIP (See page

ET-43

)

10. REMOVE ACCESS DOOR GLASS SUB-ASSEMBLY

(See page

WS-58

)

ET–110

EXTERIOR  –  ACCESS DOOR BLACK OUT TAPE

ET

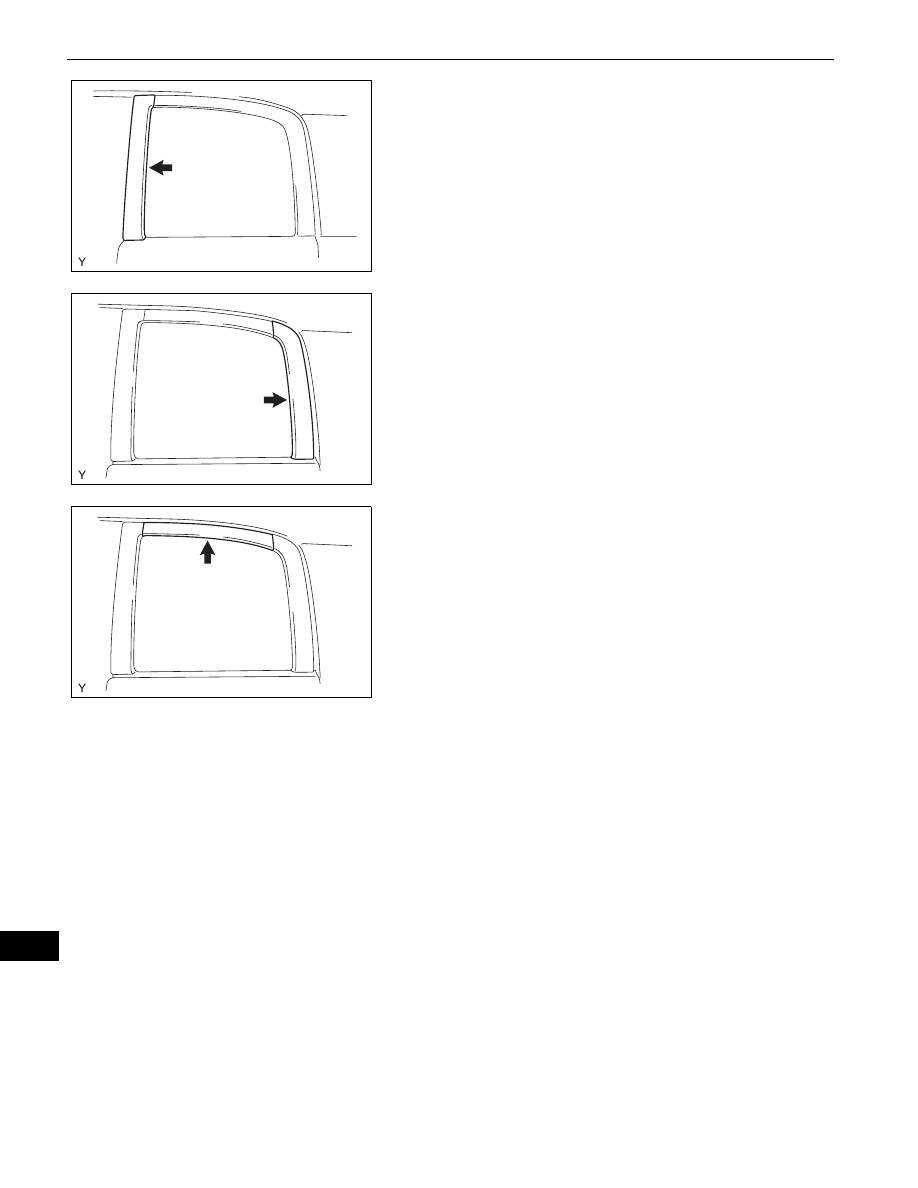

11. REMOVE NO. 4 BLACK OUT TAPE

(a) Using an infrared light, heat the No. 4 black out

tape.
CAUTION:
Do not burn yourself with the heated front door
panel or infrared light.
HINT:
Heat at 40 to 60

°C (104 to 140°F) for 3 to 5 minutes.

(b) Lift the end portion with your nail and peel it parallel

to the attachment surface.

12. REMOVE NO. 6 BLACK OUT TAPE

(a) Using an infrared light, heat the No. 6 black out

tape.
CAUTION:
Do not burn yourself with the heated front door
panel or infrared light.
HINT:
Heat at 40 to 60

°C (104 to 140°F) for 3 to 5 minutes.

(b) Lift the end portion with your nail and peel it parallel

to the attachment surface.

13. REMOVE NO. 5 BLACK OUT TAPE

(a) Using an infrared light, heat the No. 6 black out

tape.
CAUTION:
Do not burn yourself with the heated front door
panel or infrared light.
HINT:
Heat at 40 to 60

°C (104 to 140°F) for 3 to 5 minutes.

(b) Lift the end portion with your nail and peel it parallel

to the attachment surface.

B135194

B135196

B135198

EXTERIOR  –  ACCESS DOOR BLACK OUT TAPE

ET–111

ET

INSTALLATION

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

INSTALL NO. 5 BLACK OUT TAPE
(a) Application precautions (See page

ET-99

).

(b) Clean the attachment surface (Using an infrared

light) (See page

ET-99

).

(c) Clean the attachment surface (Using a tape removal

disc) (See page

ET-99

).

(d) Apply new No. 5 black out tape to the positions

shown in the illustration.

Installation position:

2.

INSTALL NO. 6 BLACK OUT TAPE
(a) Application precautions (See page

ET-99

).

(b) Clean the attachment surface (Using an infrared

light) (See page

ET-99

).

(c) Clean the attachment surface (Using a tape removal

disc) (See page

ET-99

).

A

A

a

Unnecessary Portion

Unnecessary Portion

B135199E01

Mark

Measurement

a

2 to 4 mm (0.079 to 0.157 in.)

ET–112

EXTERIOR  –  ACCESS DOOR BLACK OUT TAPE

ET

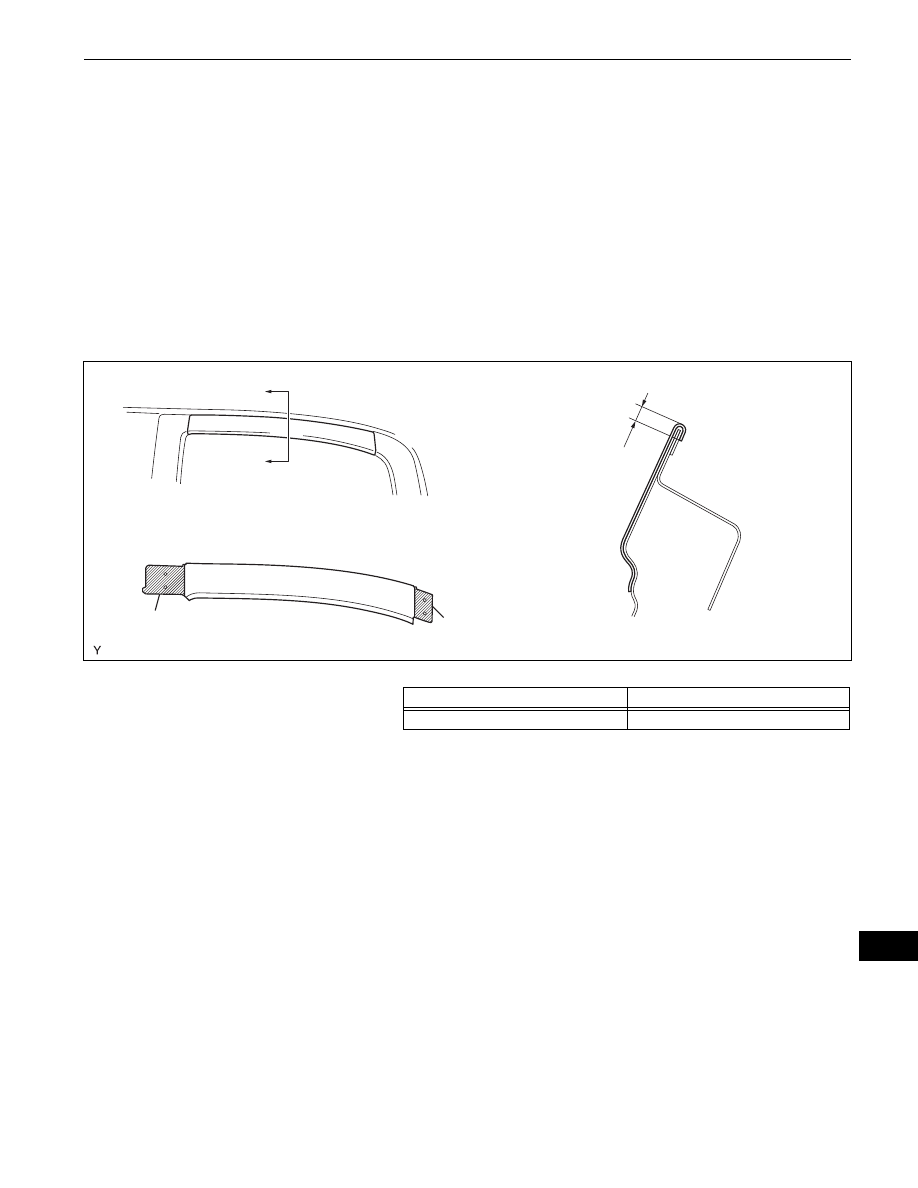

(d) Apply new No. 6 black out tape to the positions

shown in the illustration.

Installation position:

3.

INSTALL NO. 4 BLACK OUT TAPE
(a) Application precautions (See page

ET-99

).

(b) Clean the attachment surface (Using an infrared

light) (See page

ET-99

).

(c) Clean the attachment surface (Using a tape removal

disc) (See page

ET-99

).

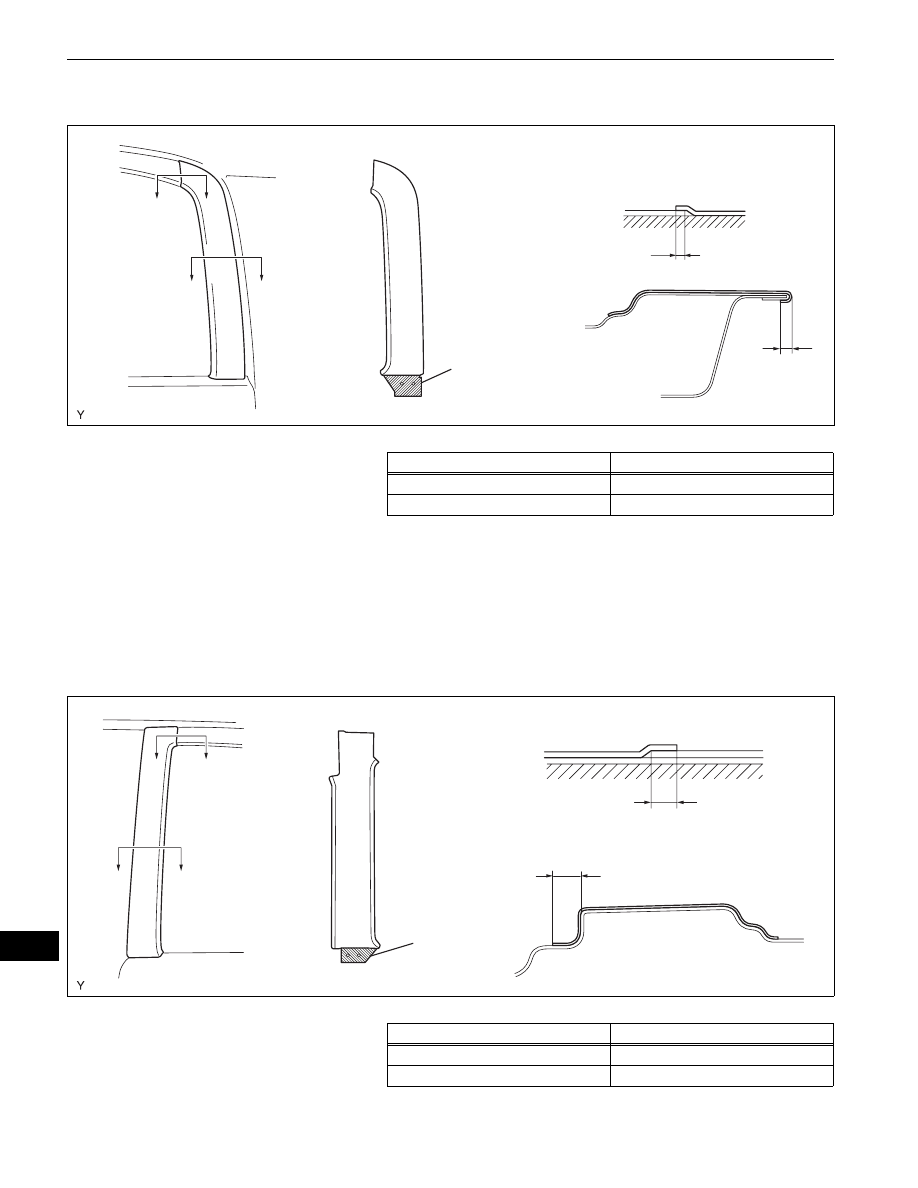

(d) Apply new No. 4 black out tape to the positions

shown in the illustration.

Installation position:

4.

INSTALL ACCESS DOOR GLASS SUB-ASSEMBLY
(See page

WS-59

)

A

A

B

B

a

b

Unnecessary
Portion

B135197E01

Mark

Measurement

a

2 to 4 mm (0.079 to 0.157 in.)

b

2 mm (0.079 in.)

A

A

B

B

a

b

Unnecessary
Portion

B135195E01

Mark

Measurement

a

10 mm (0.394 in.)

b

2 mm (0.079 in.)
