Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 219
EXTERIOR – FRONT DOOR BLACK OUT TAPE
ET–105
ET

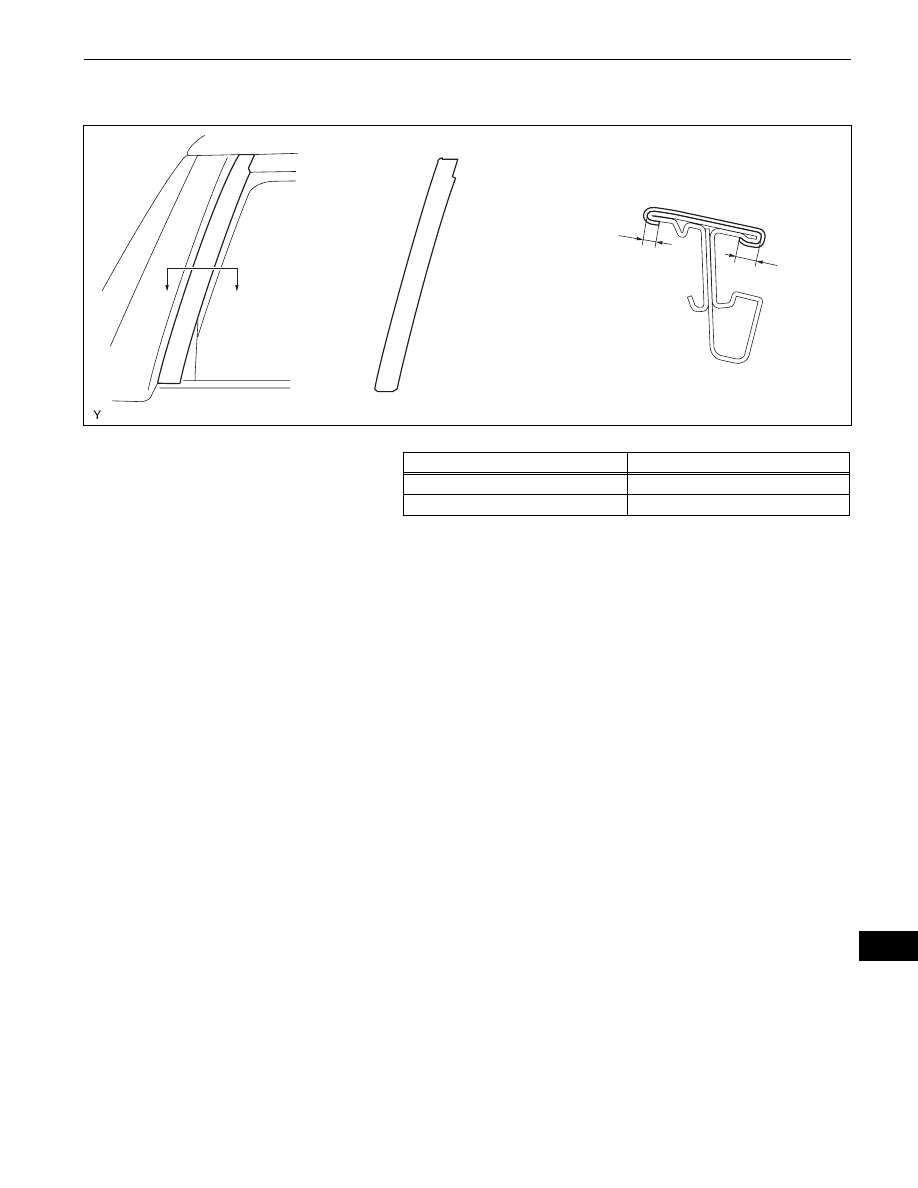

(d) Apply new No. 1 black out tape to the positions
shown in the illustration.
Installation position
4.
INSTALL FRONT DOOR WINDOW LOWER FRAME
HINT:
Use the same procedure as for the RH side (See page
).
5.
INSTALL FRONT DOOR LOWER FRAME BRACKET
GARNISH
HINT:
Use the same procedure as for the RH side (See page
).
6.
INSTALL FRONT DOOR LOWER FRAME SUB-
ASSEMBLY
HINT:
Use the same procedure as for the RH side (See page
).

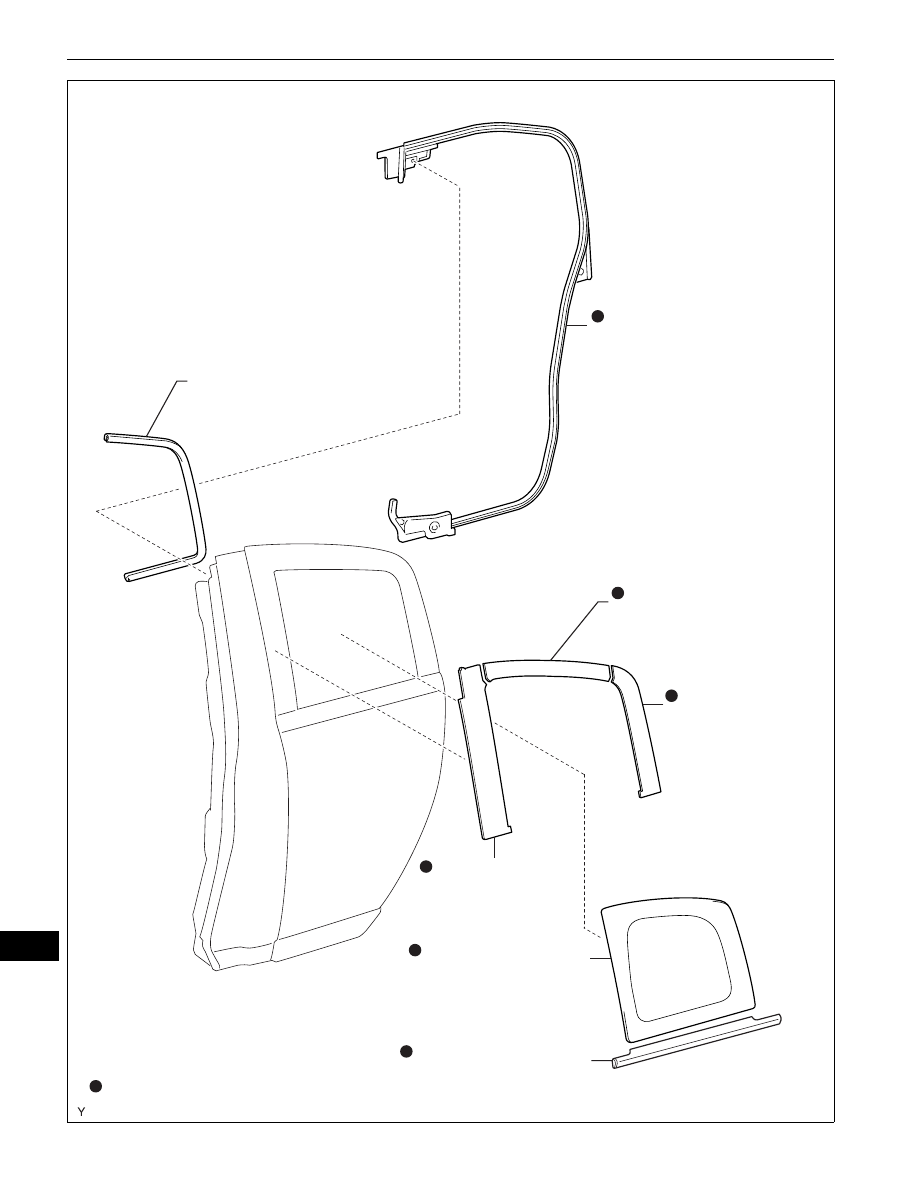

7.
INSTALL FRONT DOOR GLASS RUN
HINT:
Use the same procedure as for the RH side (See page
).
8.
INSTALL FRONT DOOR WEATHERSTRIP
HINT:
Use the same procedure as for the RH side (See page
).
9.
INSTALL FRONT DOOR GLASS OUTER
WEATHERSTRIP ASSEMBLY (See page
)
10. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
)
A
A
a
b
B135202E01
Mark
Measurement
a
2 to 4 mm (0.079 to 0.157 in.)
b
4 to 6 mm (0.157 to 0.236 in.)
