Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 197





EXTERIOR  –  REAR BUMPER

ET–19

ET

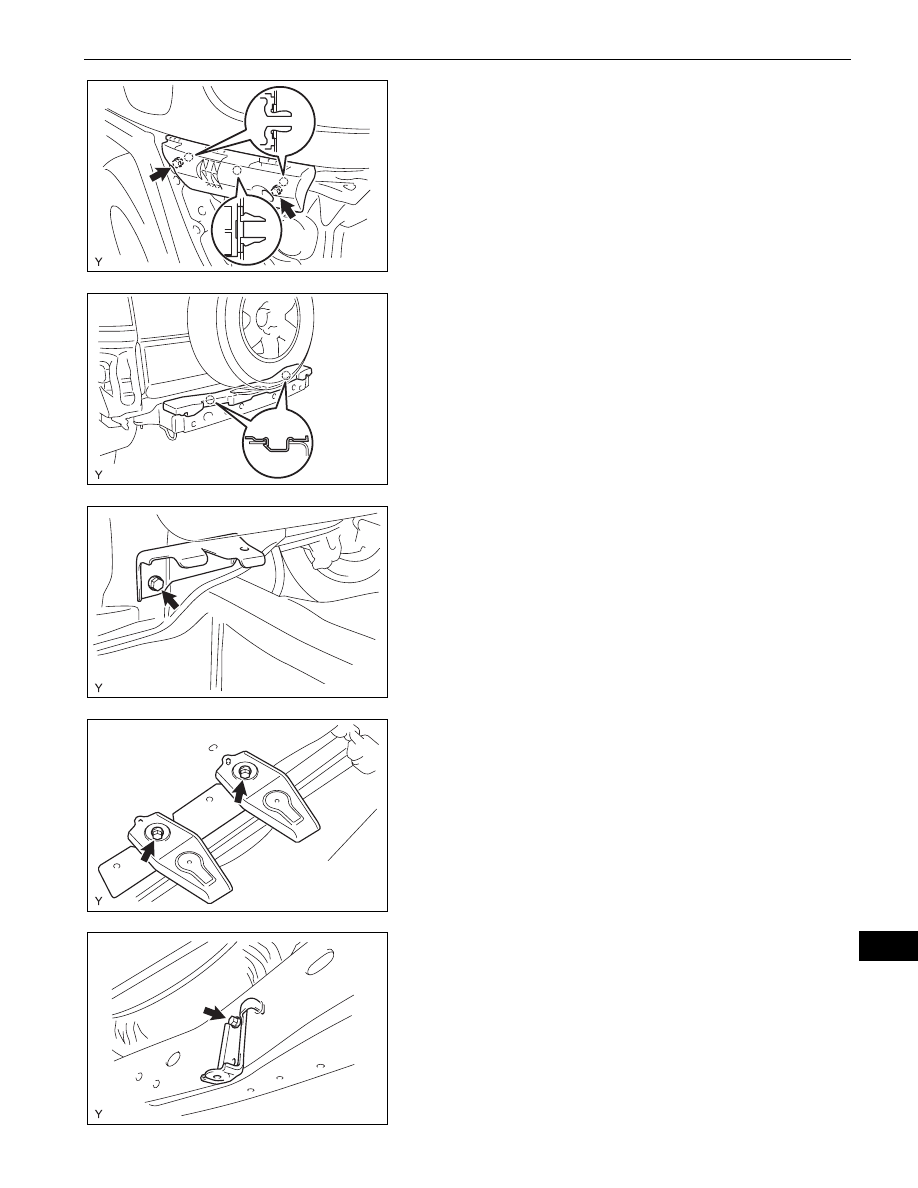

5.

REMOVE REAR BUMPER UPPER RETAINER LH
(a) Remove the 2 screws.
(b) Disengage the 3 claws and remove the rear bumper

upper retainer.

6.

REMOVE REAR BUMPER UPPER RETAINER RH
HINT:
Use the same procedure as for the LH side.

7.

REMOVE REAR BUMPER ENERGY ABSORBER
(a) Disengage the 2 claws and remove the rear bumper

energy absorber.

8.

REMOVE REAR BUMPER SIDE STAY LH
(a) Remove the bolt and the rear bumper side stay.

9.

REMOVE REAR BUMPER SIDE STAY RH
HINT:
Use the same procedure as for the LH side.

10. REMOVE REAR BUMPER SIDE SUPPORT SUB-

ASSEMBLY LH
(a) Remove the 2 bolts and the rear bumper side

support.

11. REMOVE REAR BUMPER SIDE SUPPORT SUB-

ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.

12. REMOVE REAR BUMPER BAR BRACKET LH

(a) Remove the bolt and the rear bumper bar bracket.

13. REMOVE REAR BUMPER BAR BRACKET RH

HINT:
Use the same procedure as for the LH side.

B134751

B134752

B138423

B135071

B138424

ET–20

EXTERIOR  –  REAR BUMPER

ET

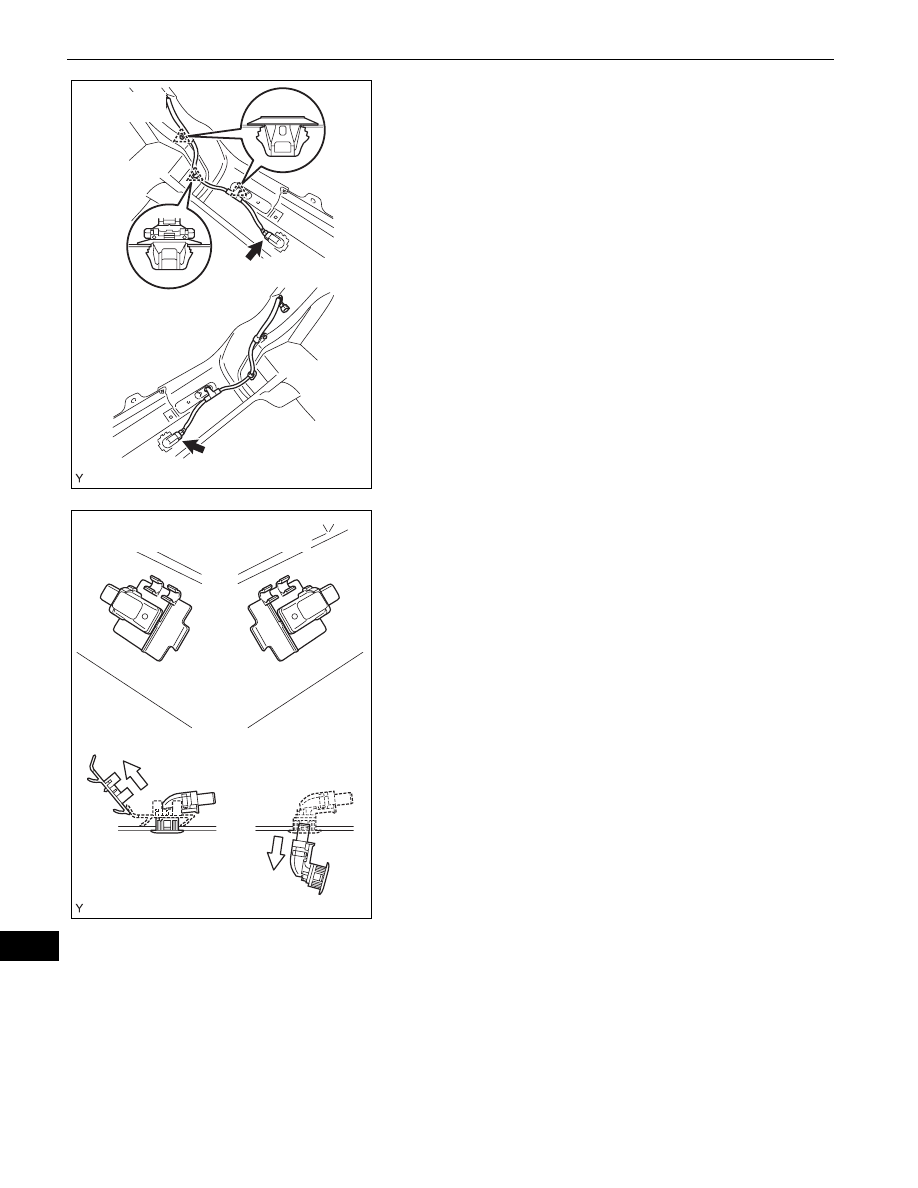

DISASSEMBLY

1.

REMOVE FLOOR WIRE (w/ Back Sonar)
HINT:
Use the same procedure for both sides.
(a) Using a clip remover, remove the 3 clamps.
(b) Disconnect the ultrasonic sensor connector and

remove the floor wire.

2.

REMOVE ULTRASONIC SENSOR (w/ Back Sonar)
HINT:
Use the same procedure for both sides.
(a) Remove the retainer and the ultrasonic sensor as

shown in the illustration.

for LH Side:

for RH Side:

B135145E01

for LH Side:

for RH Side:

B135146E01

EXTERIOR  –  REAR BUMPER

ET–21

ET

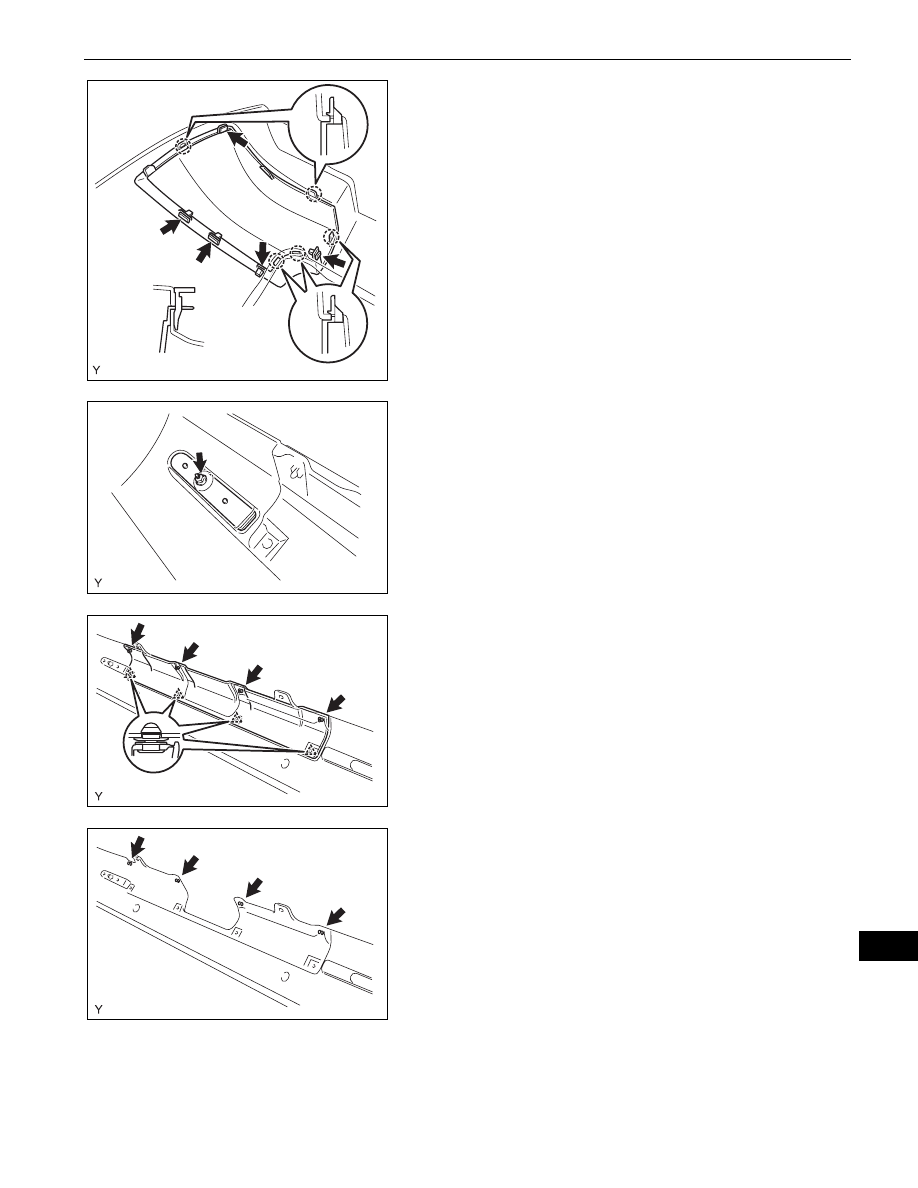

3.

REMOVE REAR BUMPER PAD LH
(a) Remove the 5 retainers.
(b) Disengage the 5 claws and remove the rear bumper

pad.

4.

REMOVE REAR BUMPER PAD RH
HINT:
Use the same procedure as for the LH side.

5.

REMOVE REFLEX REFLECTOR ASSEMBLY LH
(a) Remove the nut and the reflex reflector.

6.

REMOVE REFLEX REFLECTOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.

7.

REMOVE REAR BUMPER LOWER COVER
(a) Remove the 4 screws.
(b) Disengage the 4 clips and remove the rear bumper

lower cover.

(c) Remove the 4 screw grommets.

B135148

B135149

B135150

B135151

ET–22

EXTERIOR  –  REAR BUMPER

ET

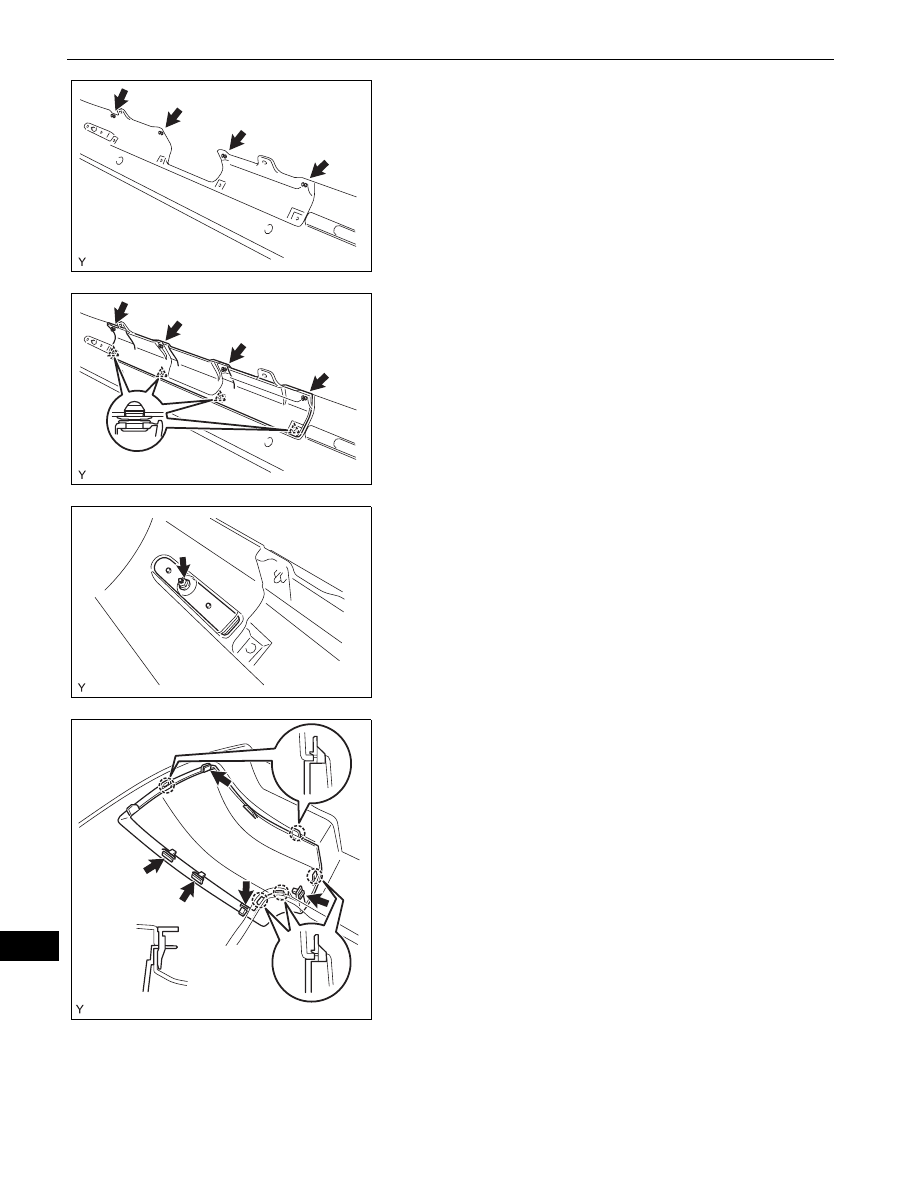

REASSEMBLY

1.

INSTALL REAR BUMPER LOWER COVER
(a) Install the 4 screw grommets.

(b) Engage the 4 clips and install the rear bumper lower

cover.

(c) Tighten the 4 screws.

Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf)

2.

INSTALL REFLEX REFLECTOR ASSEMBLY LH
(a) Install the reflex reflector with the nut.

Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

3.

INSTALL REFLEX REFLECTOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.

4.

INSTALL REAR BUMPER PAD LH
(a) Engage the 5 claws and install the rear bumper pad.
(b) Install the 5 retainers.

5.

INSTALL REAR BUMPER PAD RH
HINT:
Use the same procedure as for the LH side.

B135151

B135150

B135149

B135148
