Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 196

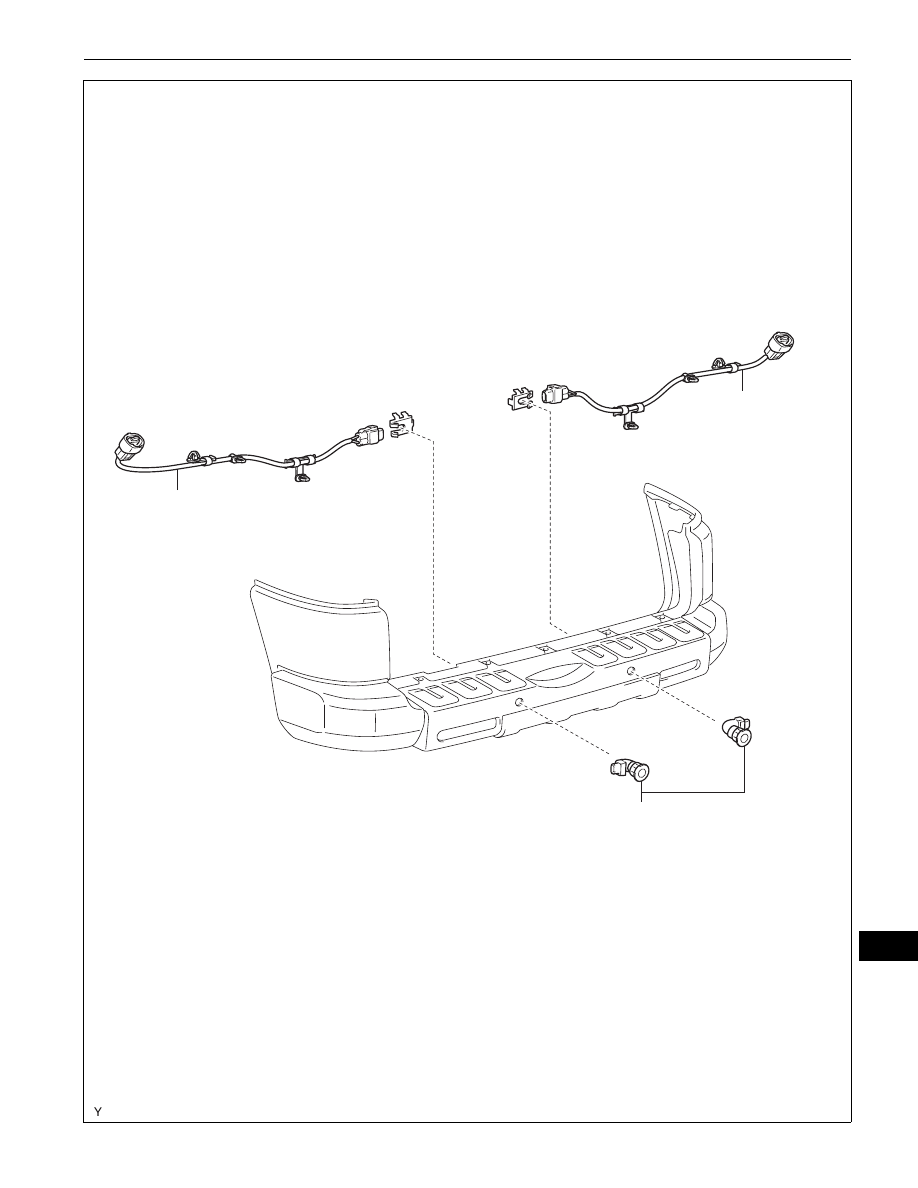

EXTERIOR  –  REAR BUMPER

ET–15

ET

FLOOR WIRE

ULTRASONIC SENSOR

FLOOR WIRE

w/ Back Sonar:

B135144E01

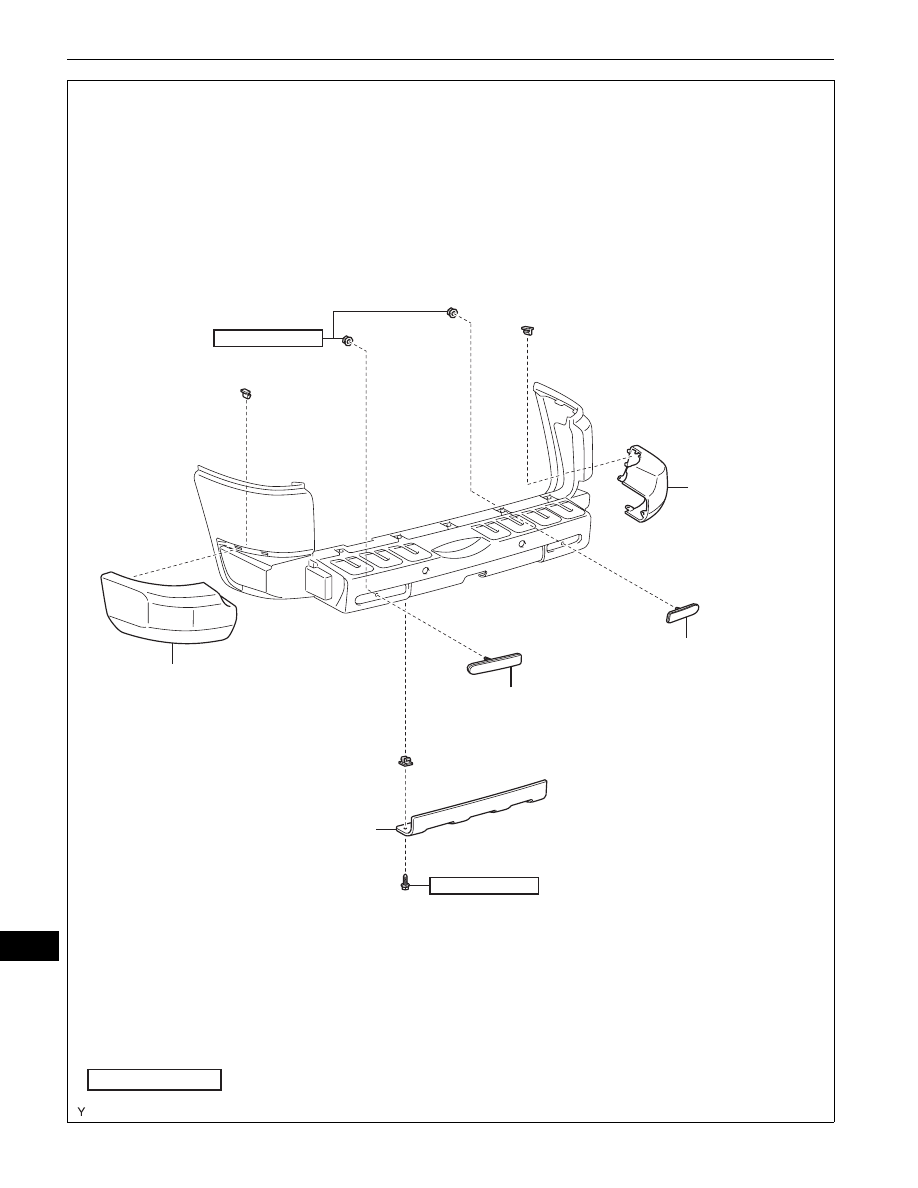

ET–16

EXTERIOR  –  REAR BUMPER

ET

REFLEX REFLECTOR
ASSEMBLY LH

REFLEX REFLECTOR
ASSEMBLY RH

x4

x4

x5

x5

N*m (kgf*cm, ft*lbf)  : Specified torque

3.0 (30, 27 in.*lbf)

8.0 (80, 71 in.*lbf)

REAR BUMPER
LOWER COVER

REAR BUMPER
PAD LH

REAR BUMPER
PAD RH

B135147E01

EXTERIOR  –  REAR BUMPER

ET–17

ET

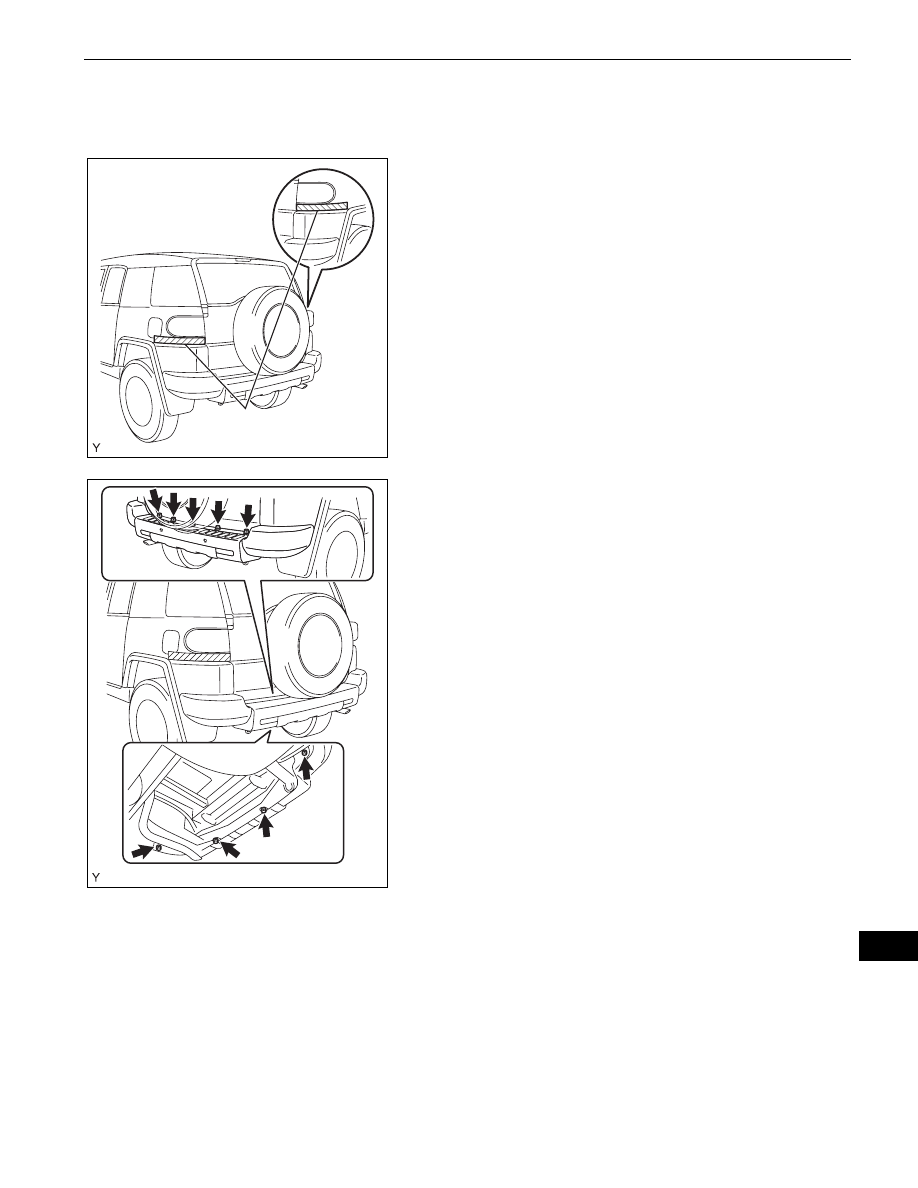

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE REAR BUMPER COVER
(a) Apply protective tape as shown in the illustration.

(b) Remove the 7 bolts and the 2 screws.

Protective Tape

B135140E01

B135141

ET–18

EXTERIOR  –  REAR BUMPER

ET

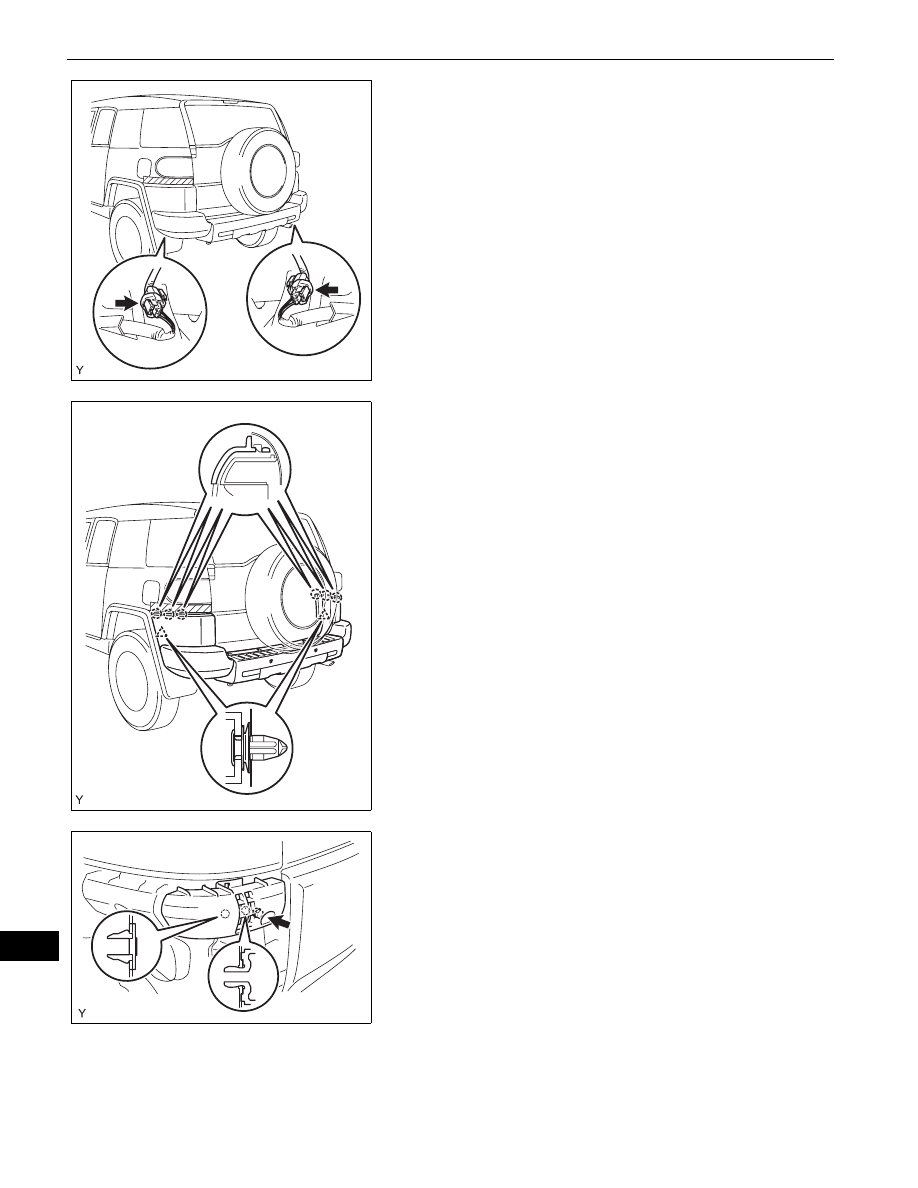

(c) w/ Back Sonar:

(1) Disconnect the 2 wire to wire connectors.

(d) Disengage the 6 claws and the 2 clips and remove

the rear bumper cover.

3.

REMOVE REAR BUMPER END RETAINER LH
(a) Remove the screw.
(b) Disengage the 2 claws and remove the rear bumper

end retainer.

4.

REMOVE REAR BUMPER END RETAINER RH
HINT:
Use the same procedure as for the LH side.

B135142

B135143

B134750
