EXTERIOR  –  FRONT BUMPER

ET–11

ET

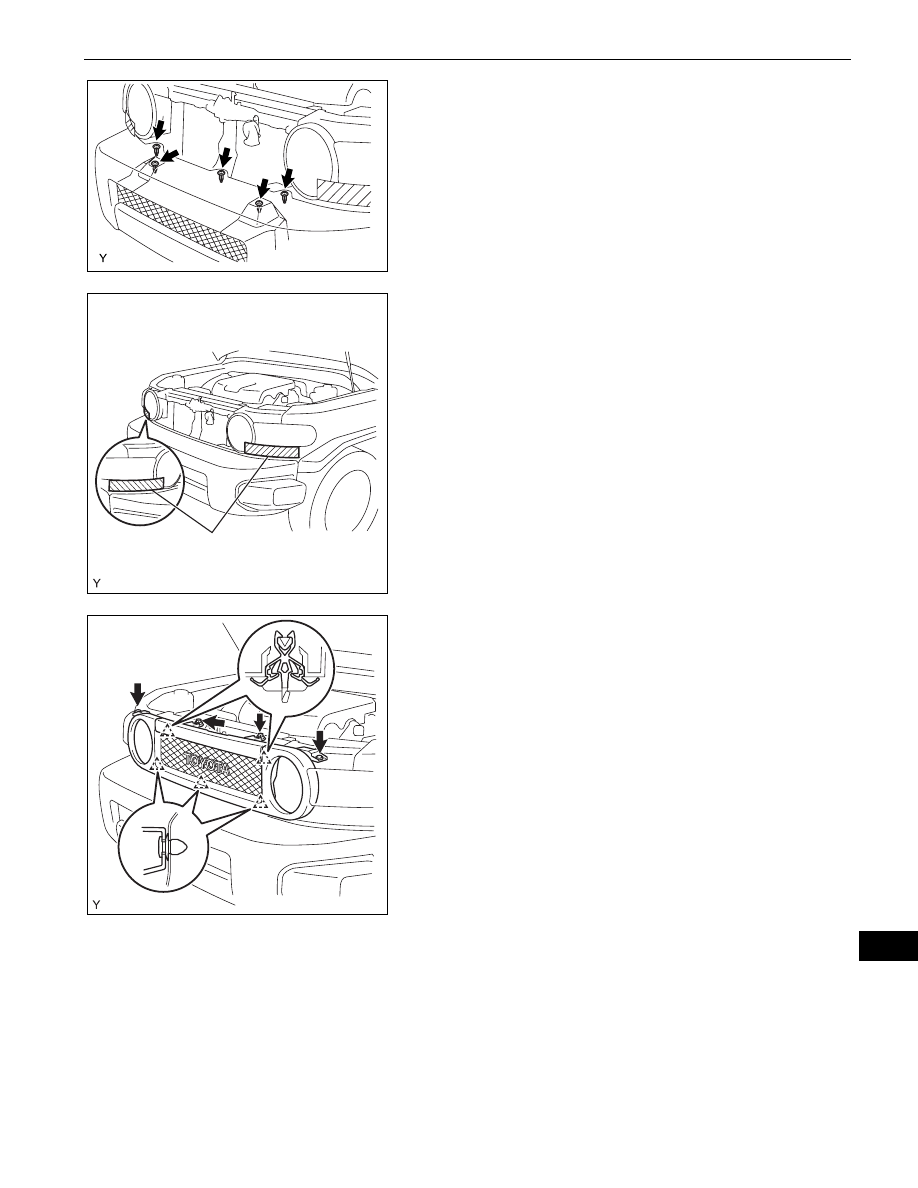

(d) Install the 5 clips.

(e) Remove the protective tape.

10. INSTALL RADIATOR GRILLE

(a) Engage the 5 clips and install the radiator grille.
(b) Tighten the 2 screws.

Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf)

(c) Install the 2 clips.

B138606

Protective Tape

B134730E01

B134729

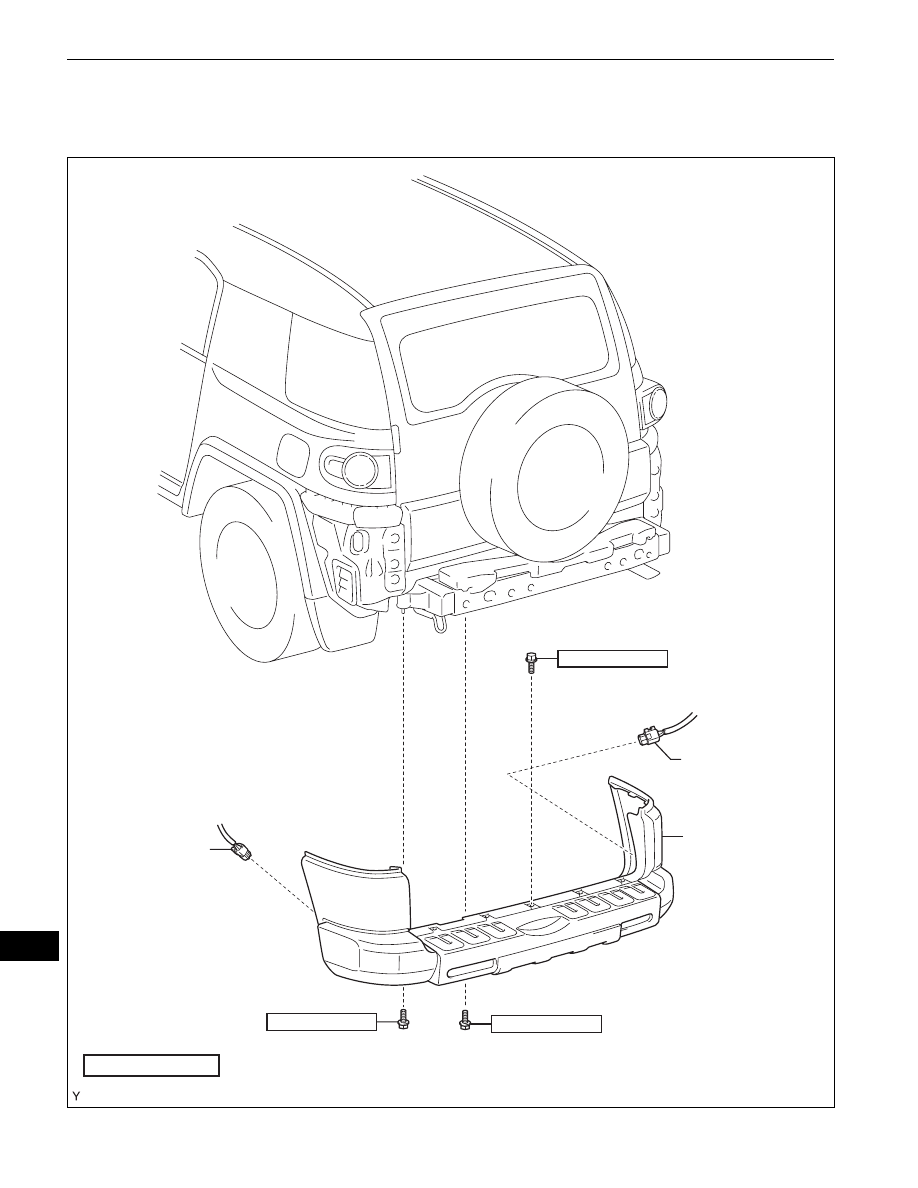

ET–12

EXTERIOR  –  REAR BUMPER

ET

BODY

EXTERIOR

REAR BUMPER

COMPONENTS

REAR BUMPER
COVER

x5

x2

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (80, 71 in.*lbf)

8.0 (80, 71 in.*lbf)

3.0 (30, 27 in.*lbf)

x2

WIRE to WIRE
CONNECTOR

WIRE to WIRE
CONNECTOR

B135139E01

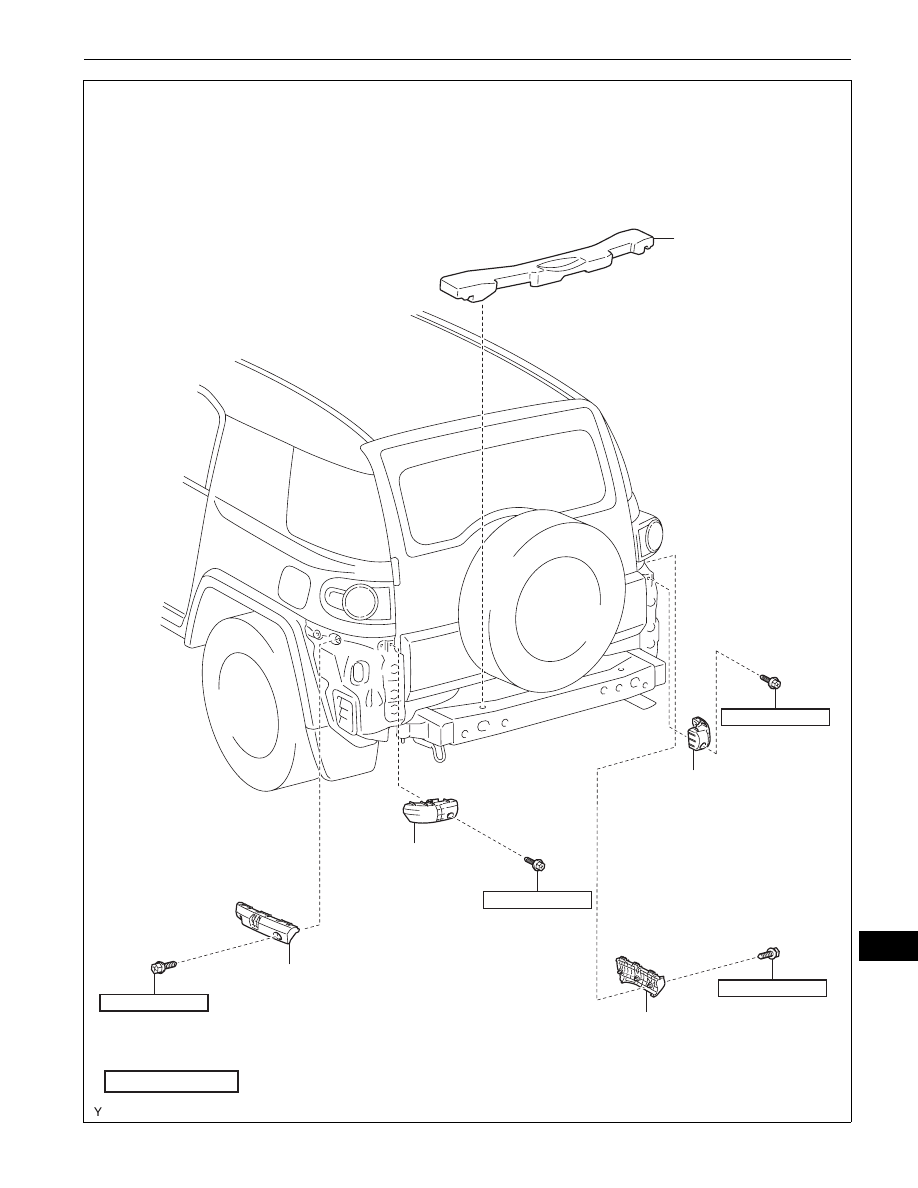

EXTERIOR  –  REAR BUMPER

ET–13

ET

REAR BUMPER
END RETAINER LH

REAR BUMPER
END RETAINER RH

REAR BUMPER
ENERGY ABSORBER

REAR BUMPER
UPPER RETAINER LH

REAR BUMPER
UPPER RETAINER RH

N*m (kgf*cm, ft*lbf)  : Specified torque

3.0 (30, 27 in.*lbf)

3.0 (30, 27 in.*lbf)

x2

3.0 (30, 27 in.*lbf)

3.0 (30, 27 in.*lbf)

x2

B134749E01

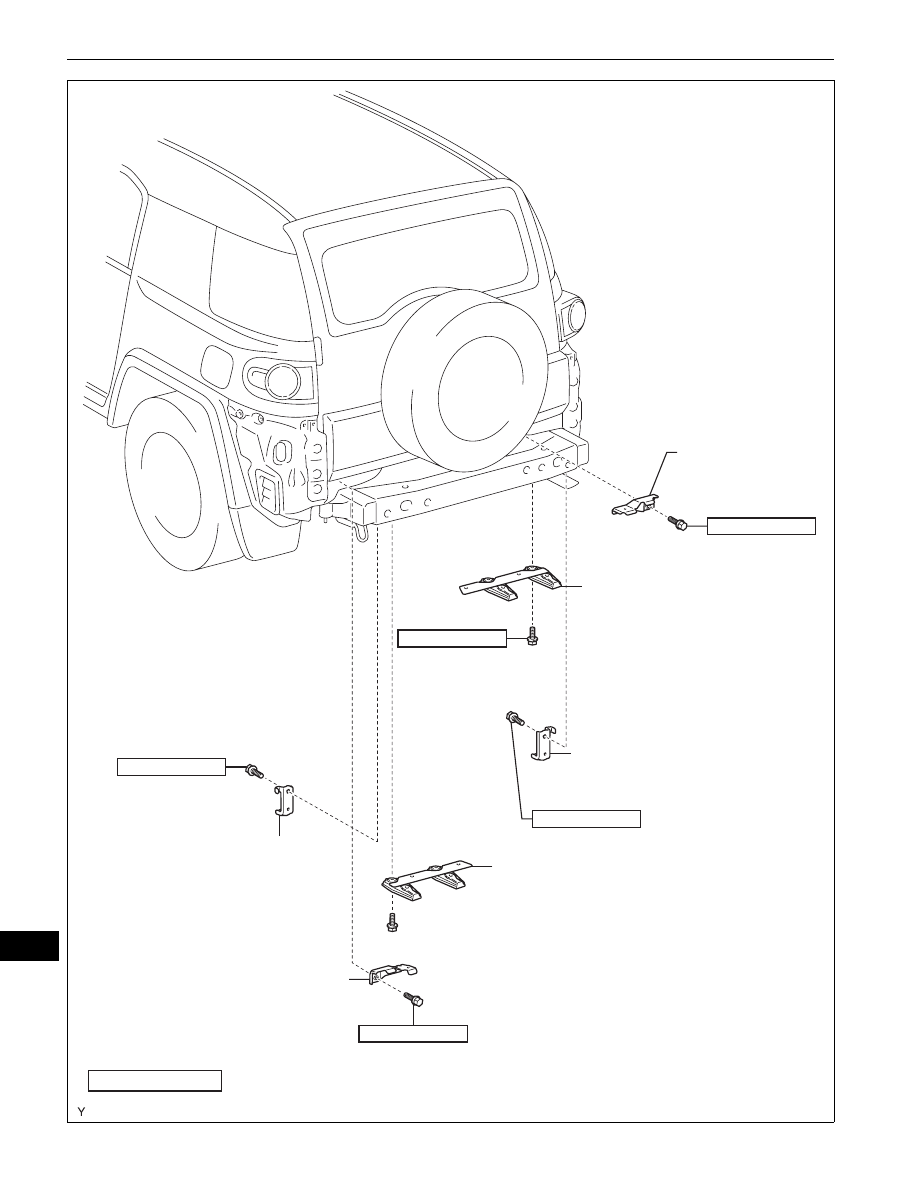

ET–14

EXTERIOR  –  REAR BUMPER

ET

REAR BUMPER
BAR BRACKET LH

REAR BUMPER
BAR BRACKET RH

REAR BUMPER
SIDE STAY LH

REAR BUMPER
SIDE STAY RH

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (80, 71 in.*lbf)

8.0 (80, 71 in.*lbf)

8.0 (80, 71 in.*lbf)

8.0 (80, 71 in.*lbf)

REAR BUMPER SIDE SUPPORT
SUB-ASSEMBLY LH

REAR BUMPER SIDE SUPPORT
SUB-ASSEMBLY RH

8.0 (80, 71 in.*lbf)

x2

x2

B138425E01
