Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 193

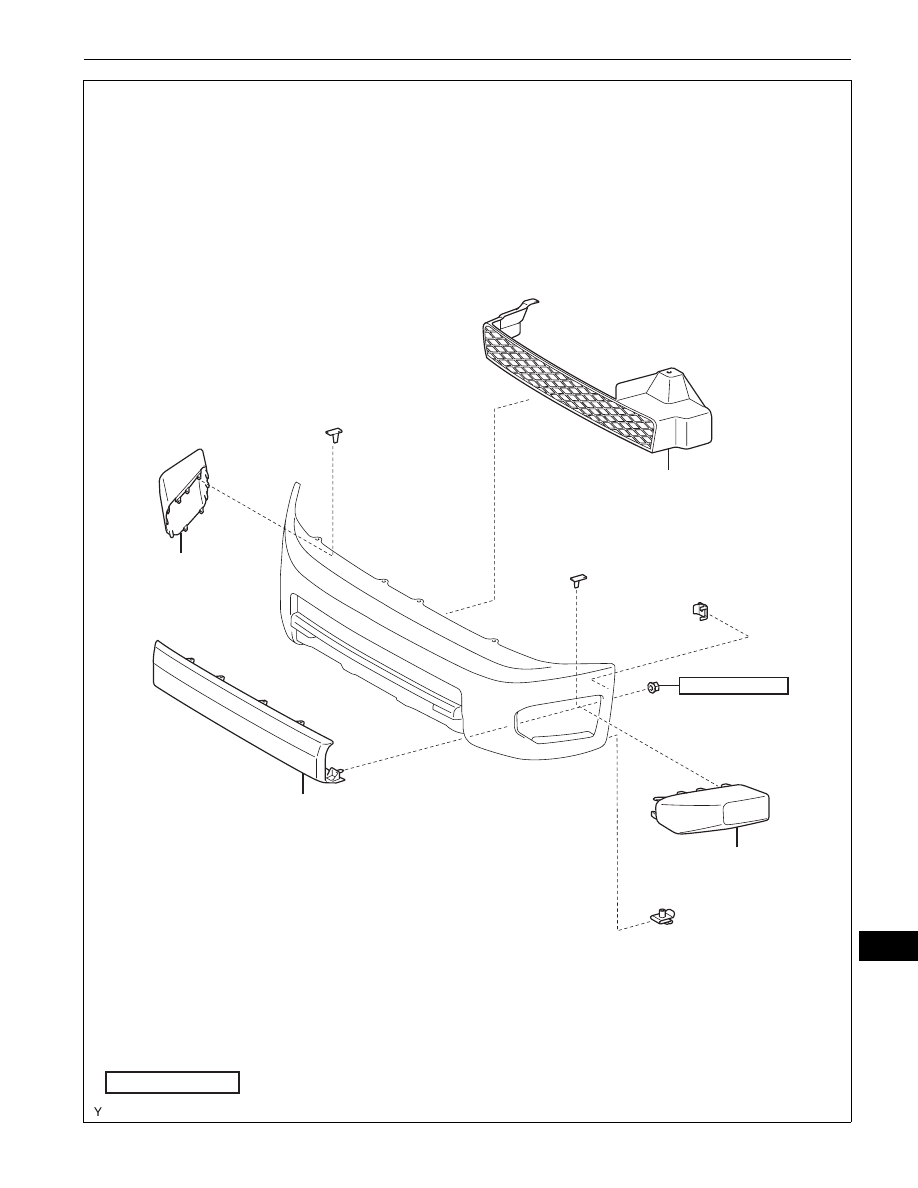

EXTERIOR  –  FRONT BUMPER

ET–3

ET

RADIATOR LOWER GRILLE

x5

FRONT BUMPER PAD RH

FRONT VALANCE
LOWER PANEL

FRONT BUMPER PAD LH

x2

x6

x5

x2

N*m (kgf*cm, ft*lbf)  : Specified torque

8.0 (80, 71 in.*lbf)

B135067E01

ET–4

EXTERIOR  –  FRONT BUMPER

ET

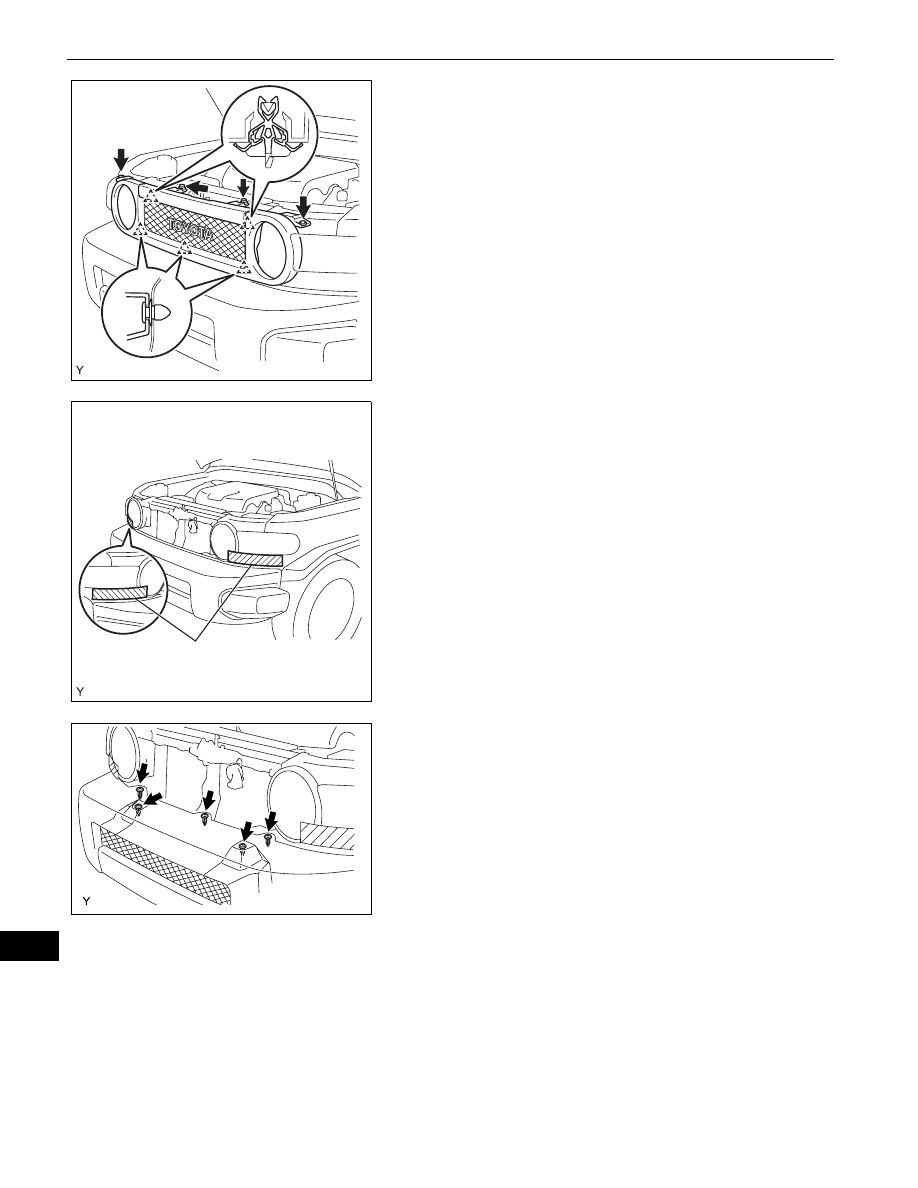

REMOVAL

1.

REMOVE RADIATOR GRILLE
(a) Using a clip remover, remove the 2 clips.
(b) Remove the 2 screws.
(c) Disengage the 5 clips and remove the radiator grille.

2.

REMOVE FRONT BUMPER COVER
(a) Apply protective tape as shown in the illustration.

(b) Using a clip remover, remove the 5 clips.

B134729

Protective Tape

B134730E01

B138606

EXTERIOR  –  FRONT BUMPER

ET–5

ET

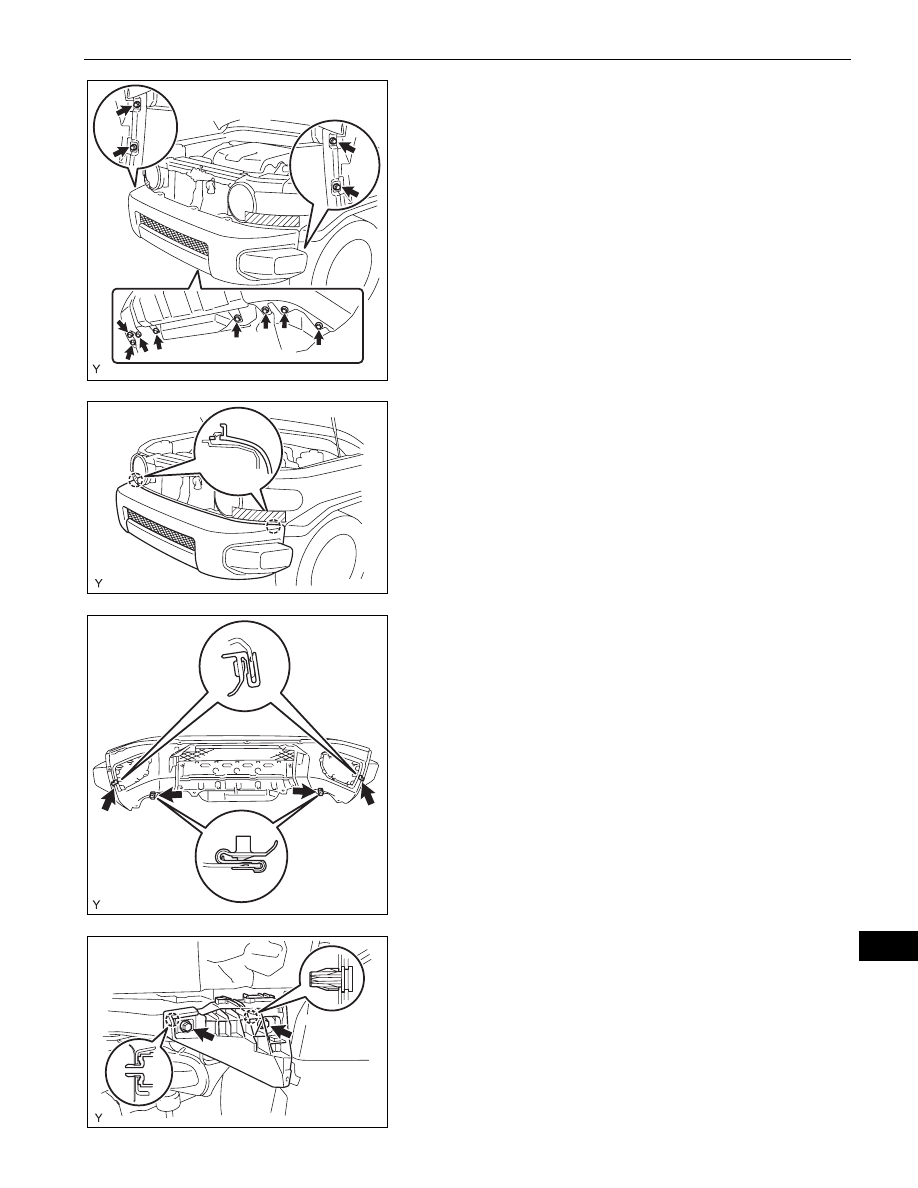

(c) Remove the 8 screws and the 4 bolts.

(d) Disengage the 2 claws and remove the front

bumper cover.

(e) Remove the 4 clips.

3.

REMOVE FRONT BUMPER SIDE SUPPORT LH
(a) Remove the 2 screws.
(b) Disengage the 2 claws and remove the front

bumper side support.

4.

REMOVE FRONT BUMPER SIDE SUPPORT RH
HINT:
Use the same procedure as for the LH side.

B134731

B134733

B138601

B134734

ET–6

EXTERIOR  –  FRONT BUMPER

ET

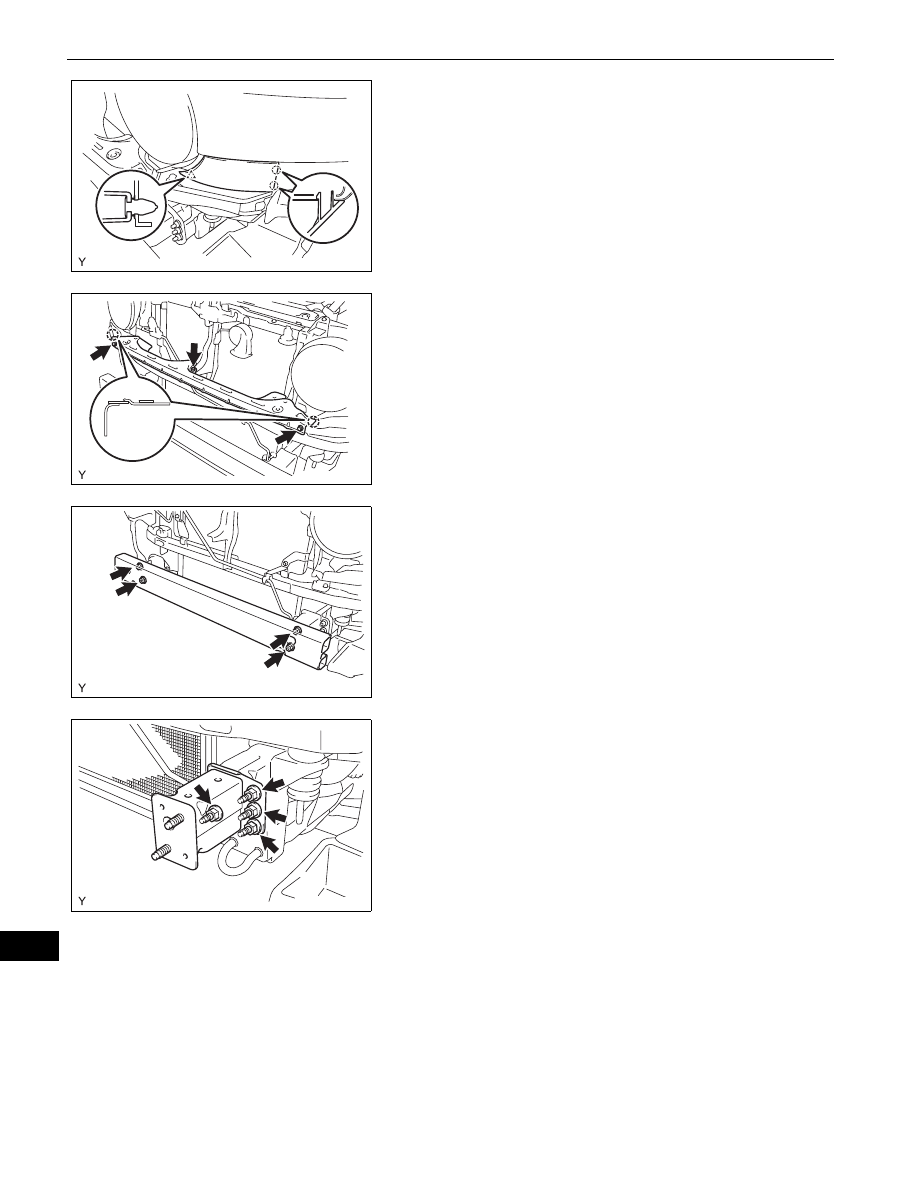

5.

REMOVE FRONT BUMPER FILLER LH
(a) Disengage the clip and the 2 claws and remove the

front bumper filler.

6.

REMOVE FRONT BUMPER FILLER RH
HINT:
Use the same procedure as for the LH side.

7.

REMOVE FRONT BUMPER UPPER RETAINER
(a) Remove the 3 bolts.
(b) Disengage the 2 hooks and remove the front

bumper upper retainer.

8.

REMOVE FRONT BUMPER REINFORCEMENT
(a) Remove the 4 nuts and the front bumper

reinforcement.

9.

REMOVE FRONT BUMPER EXTENSION LH
(a) Remove the 4 nuts and the front bumper extension.

10. REMOVE FRONT BUMPER EXTENSION RH

HINT:
Use the same procedure as for the LH side.

B134735

B134736

B134737

B134738
