Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 192

EX–6

1GR-FE EXHAUST  –  EXHAUST PIPE

EX

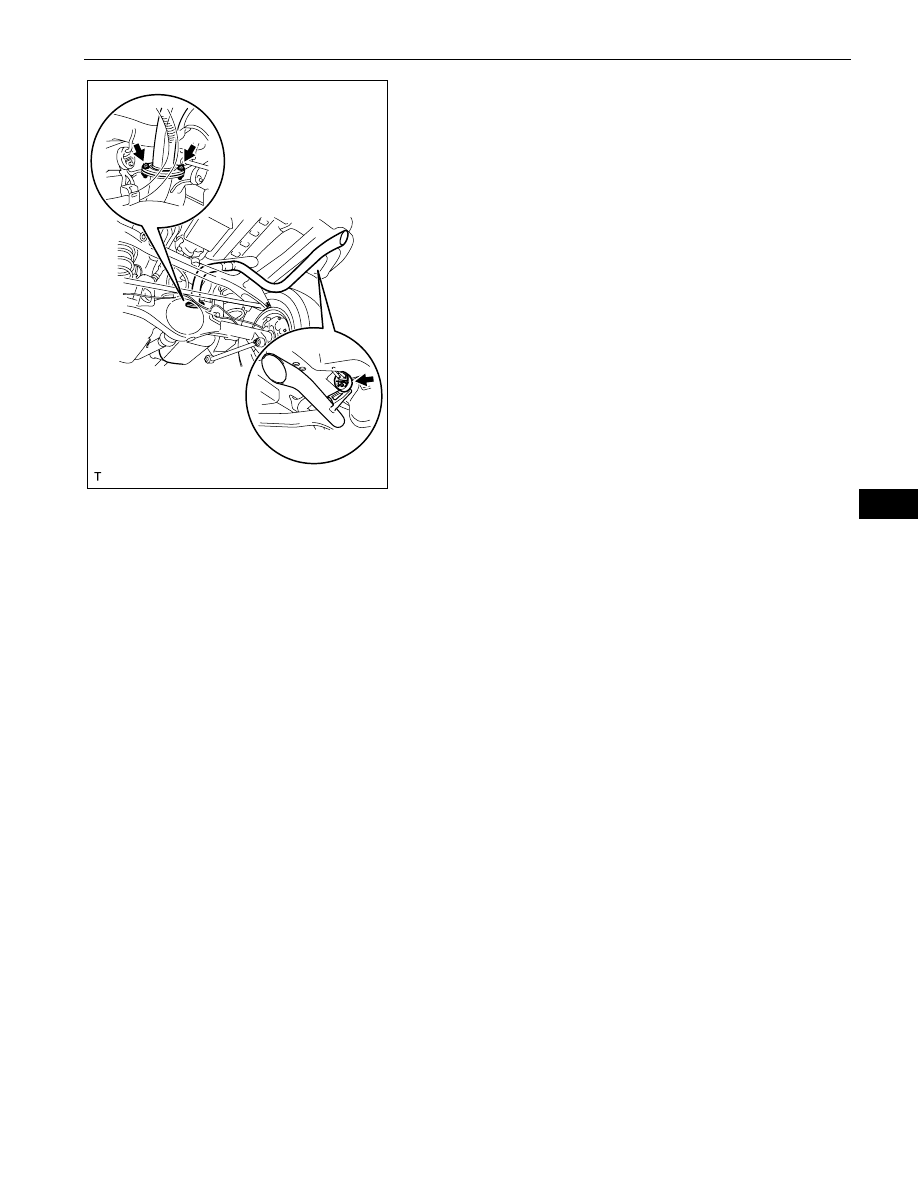

(d) Install the exhaust pipe stopper bracket with the 2

bolts (for 4WD).
Torque: 19 N*m (193 kgf*cm, 14 ft.*lbf)

3.

INSTALL CENTER EXHAUST PIPE ASSEMBLY

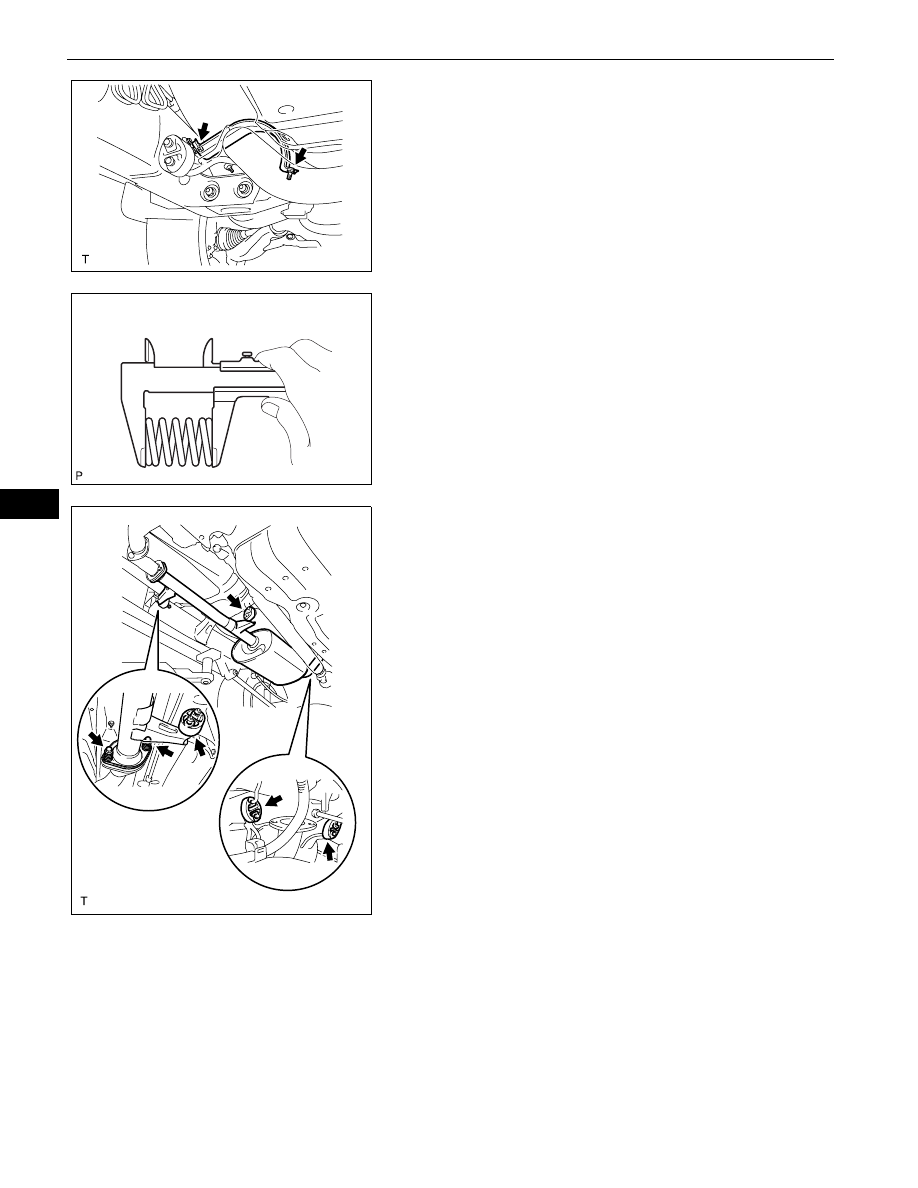

(a) Check the free length.

(1) Using vernier calipers, measure the free length

of the compression spring.
Minimum:

40.5mm (1.594 in.)

If the free length is less that the minimum,
replace the compression spring.

(b) Install the center exhaust pipe onto the 4 exhaust

pipe supports.

(c) Install the center exhaust pipe with the 2 bolts and 2

springs.
Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

A129939

A128853

A129937

1GR-FE EXHAUST  –  EXHAUST PIPE

EX–7

EX

4.

INSTALL TAIL EXHAUST PIPE ASSEMBLY
(a) Install a new gasket onto the center exhaust pipe.
(b) Install the tail exhaust pipe with the 2 bolts and

exhaust pipe support.
Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

5.

INSTALL HEATED OXYGEN SENSOR (See page

EC-

24

)

6.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

7.

CHECK EXHAUST GAS LEAKAGE

A129936

EXTERIOR  –  FRONT BUMPER

ET–1

ET

BODY

EXTERIOR

FRONT BUMPER

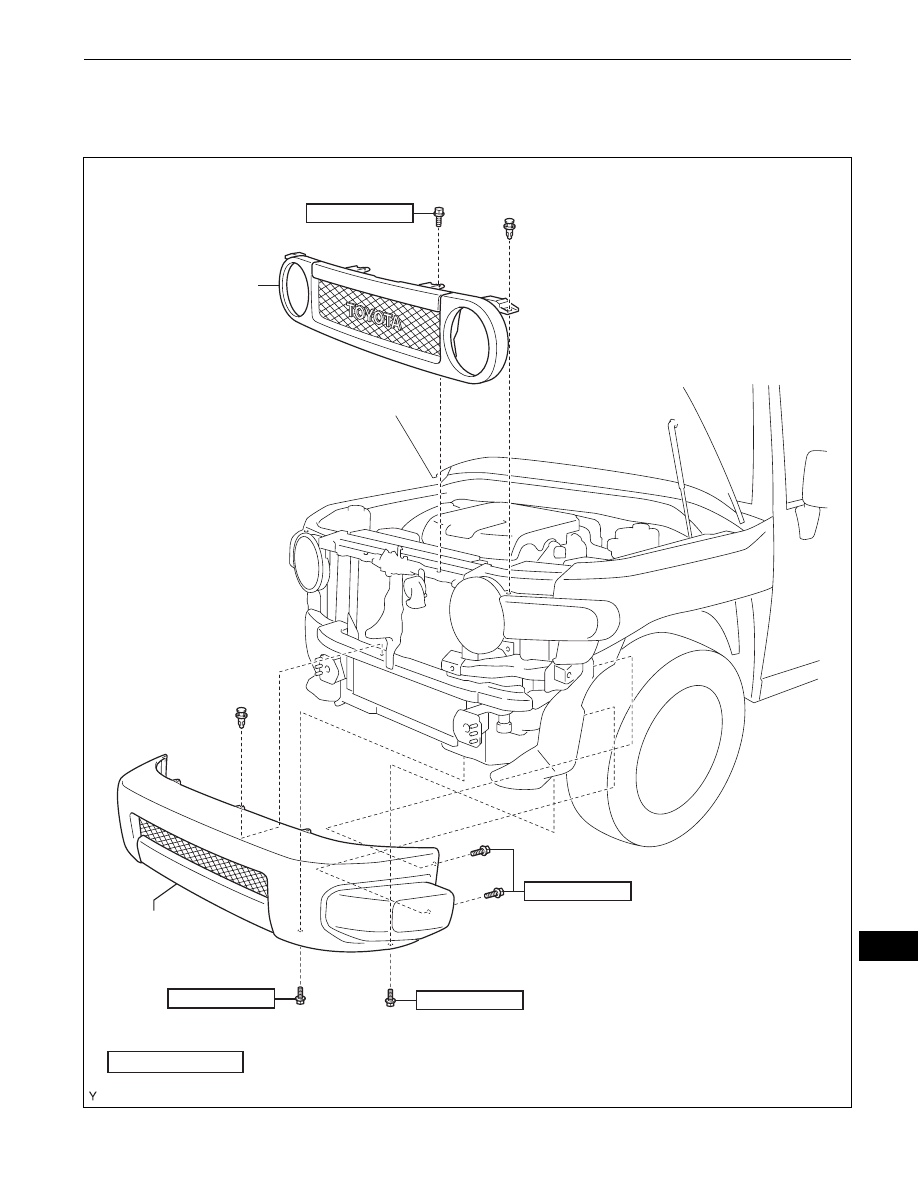

COMPONENTS

FRONT BUMPER
COVER

RADIATOR GRILLE

x4

3.0 (30, 27 in.*lbf)

N*m (kgf*cm, ft*lbf)  : Specified torque

x4

x2

x2

x5

x2

x2

3.0 (30, 27 in.*lbf)

8.0 (80, 71 in.*lbf)

3.0 (30, 27 in.*lbf)

B134727E01

ET–2

EXTERIOR  –  FRONT BUMPER

ET

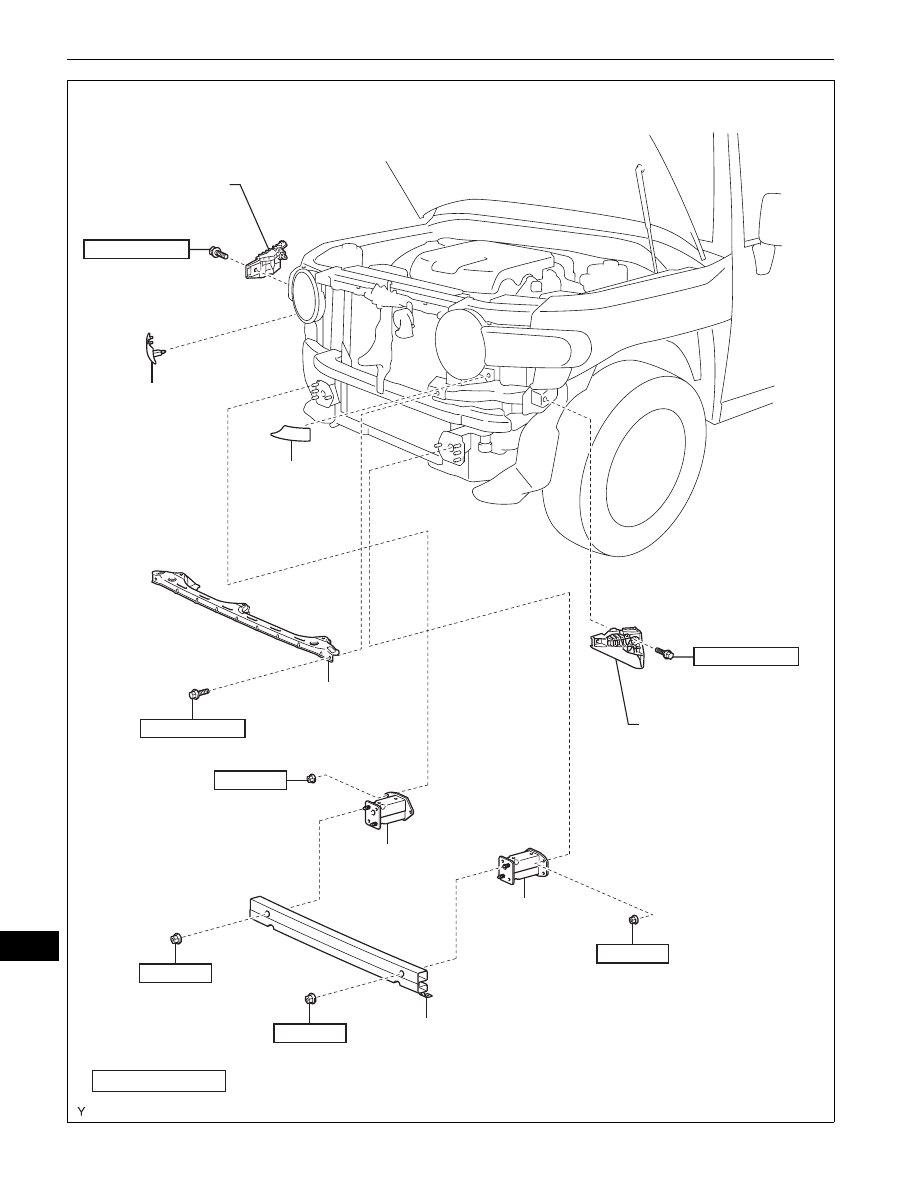

FRONT BUMPER
EXTENSION LH

FRONT BUMPER
EXTENSION RH

FRONT BUMPER
FILLER LH

FRONT BUMPER
FILLER RH

FRONT BUMPER
REINFORCEMENT

FRONT BUMPER
SIDE SUPPORT LH

FRONT BUMPER
SIDE SUPPORT RH

FRONT BUMPER
UPPER RETAINER

N*m (kgf*cm, ft*lbf)  : Specified torque

x2

65 (665, 48)

8.0 (80, 71 in.*lbf)

65 (665, 48)

65 (665, 48)

65 (665, 48)

x2

x2

x2

x3

x4

x4

3.0 (30, 27 in.*lbf)

3.0 (30, 27 in.*lbf)

B134728E01
