ENGINE HOOD / DOOR  –  ACCESS DOOR

ED–41

ED

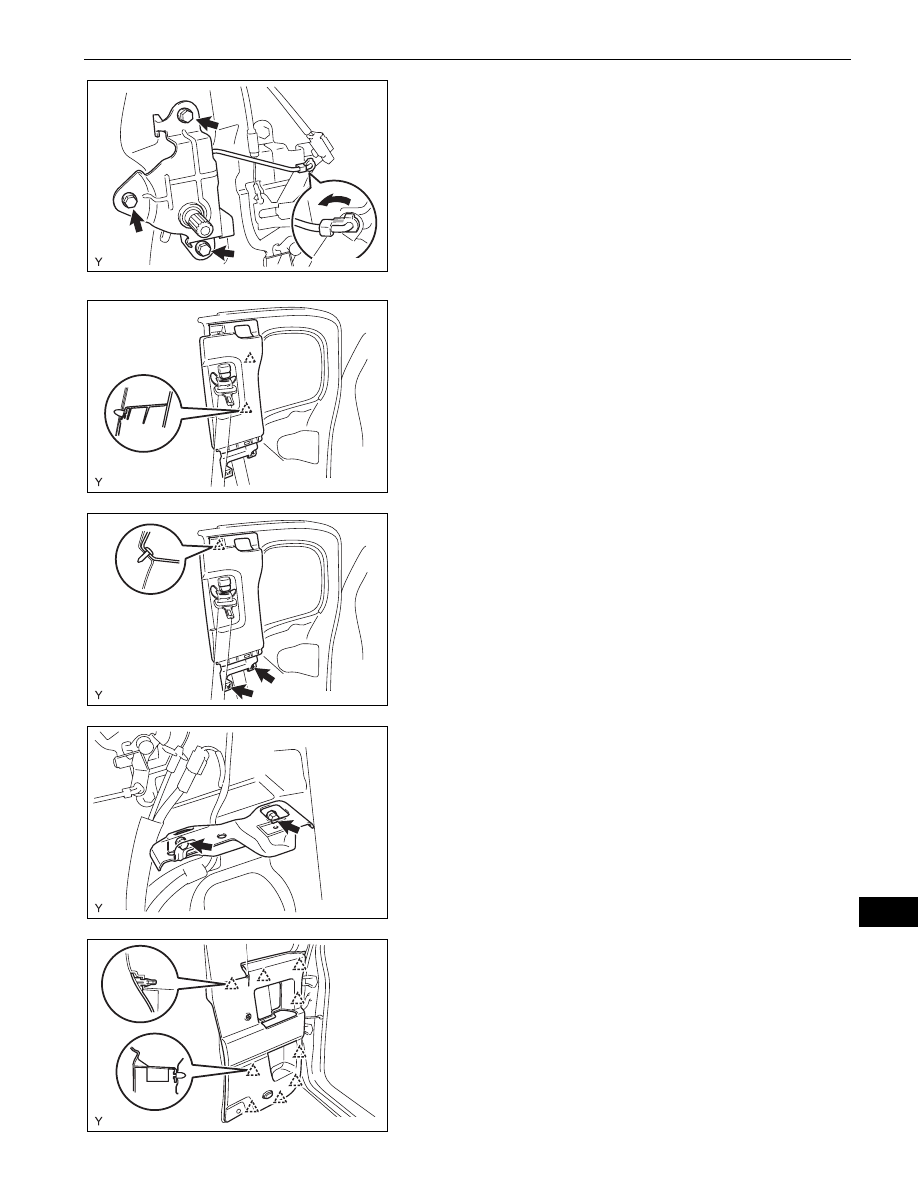

17. INSTALL ACCESS PANEL INSIDE HANDLE SUB-

ASSEMBLY
(a) Install the access panel inside handle with the 3

bolts.
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

(b) Connect the rod.

18. INSTALL FRONT SHOULDER BELT ANCHOR

ADJUSTER ASSEMBLY (See page

SB-39

)

19. INSTALL FRONT SEAT OUTER BELT ASSEMBLY

(See page

SB-39

)

20. INSTALL CENTER PILLAR UPPER GARNISH

(a) Engage the 2 clips and install the center pillar upper

garnish.

(b) Install the 2 screws.
(c) Install the clip.

21. INSTALL REAR DOOR TRIM BRACKET

(a) Install the rear door trim bracket with the 2 screws.

22. INSTALL REAR DOOR TRIM BOARD SUB-

ASSEMBLY
(a) Engage the 9 clips and install the rear door trim

board.

B140032

B135560

B135559

B135529

B135558

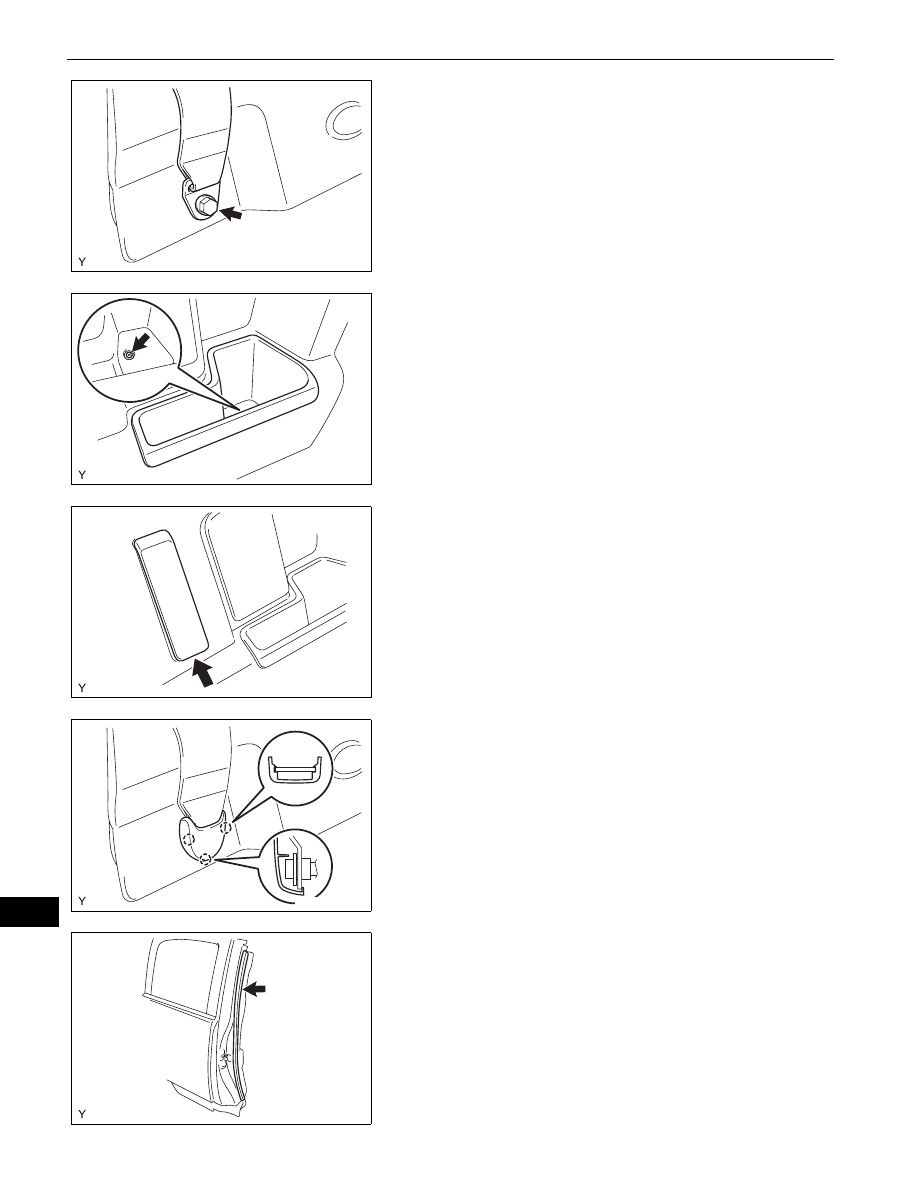

ED–42

ENGINE HOOD / DOOR  –  ACCESS DOOR

ED

(b) Install the front seat belt outer (floor side) with the

bolt.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

23. INSTALL NO. 1 CUP HOLDER

(a) Install the No. 1 cup holder with the screw.

24. INSTALL REAR DOOR INSIDE HANDLE SUB-

ASSEMBLY
(a) Install the rear door inside handle with the snap ring

onto the access panel inside handle.

25. INSTALL LAP BELT OUTER ANCHOR COVER

(a) Engage the 3 claws and install the lap belt outer

anchor cover.

26. INSTALL ACCESS PANEL REAR WEATHERSTRIP

(a) Install the access panel rear weatherstrip.

27. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B135526

B135528

B140033

B135525

B135524

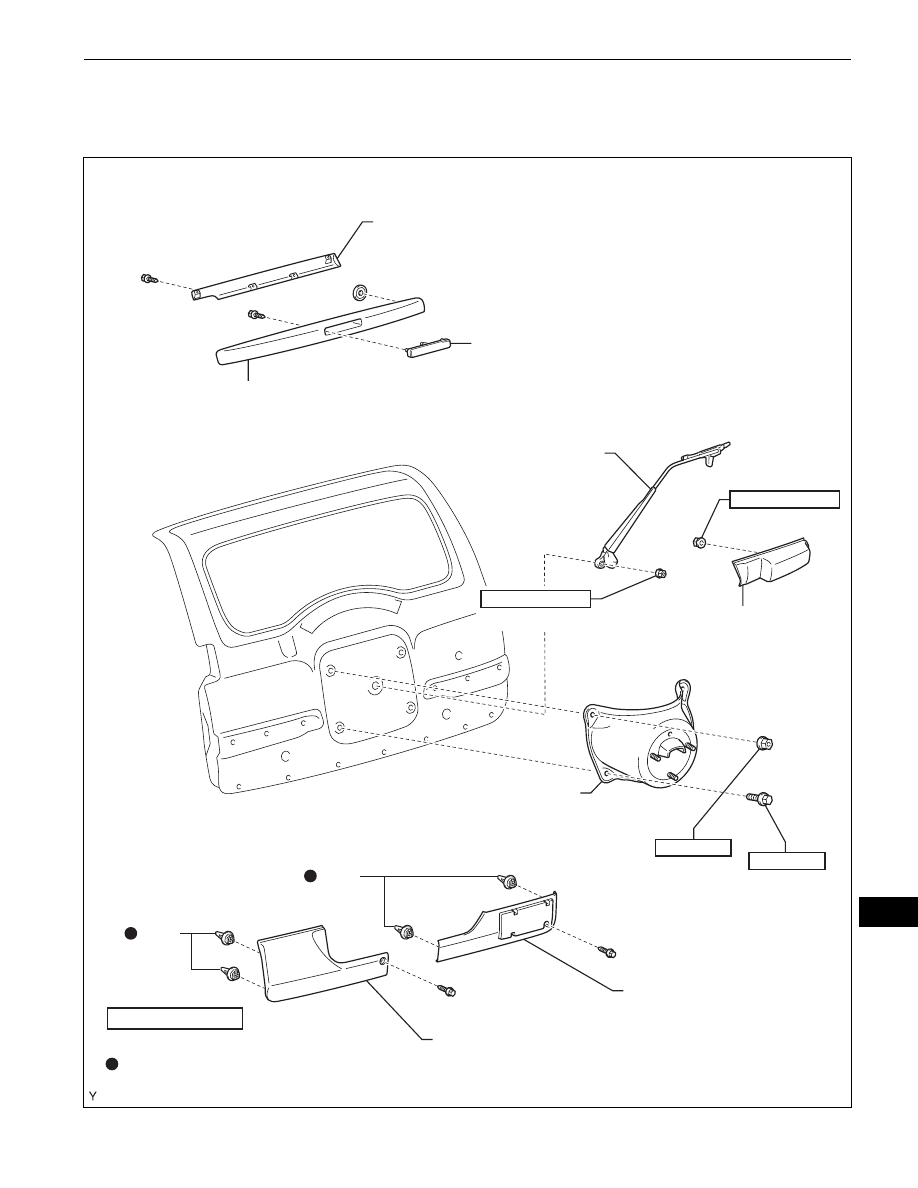

ENGINE HOOD / DOOR  –  BACK DOOR

ED–43

ED

BODY

ENGINE HOOD / DOOR

BACK DOOR

COMPONENTS

BACK DOOR OUTSIDE
GARNISH SUB-ASSEMBLY

BACK DOOR OUTSIDE
MOULDING LH

BACK DOOR OUTSIDE
MOULDING RH

HIGH MOUNTED STOP
LIGHT ASSEMBLY

NO. 1 REAR
SPOILER COVER

REAR SPOILER

REAR WIPER ARM
AND BLADE
ASSEMBLY

SPARE WHEEL CARRIER
BRACKET SUB-ASSEMBLY

48 (489, 35)

48 (489, 35)

x2

x2

x2

x4

6.0 (60, 53 in.*lbf)

x2

5.5 (56, 49 in.*lbf)

x4

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

CLIP

CLIP

x3

x3

x3

x3

B129025E01

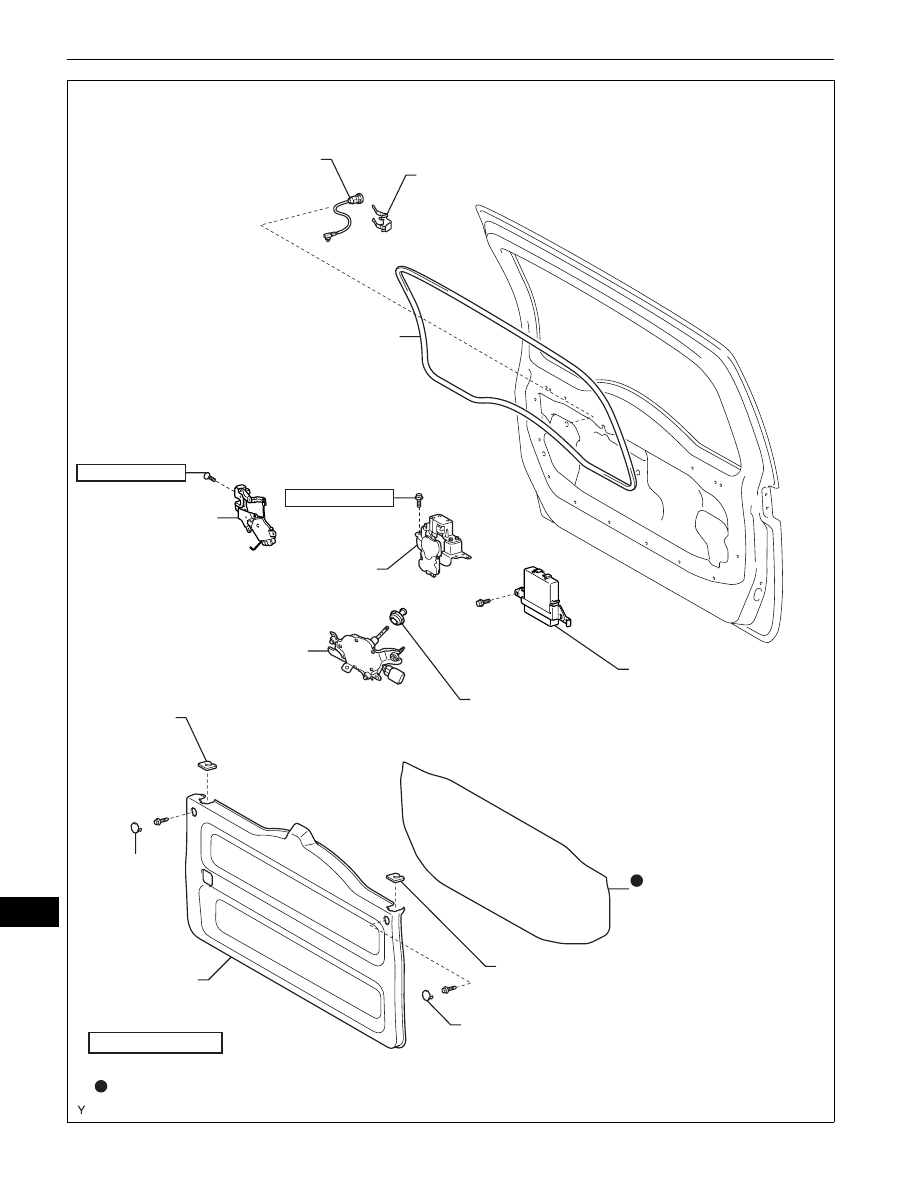

ED–44

ENGINE HOOD / DOOR  –  BACK DOOR

ED

BACK DOOR
LOCK ASSEMBLY

BACK DOOR LOCK
CYLINDER ASSEMBLY

BACK DOOR
TRIM BOARD

BACK DOOR TRIM COVER LH

BACK DOOR
TRIM COVER
RH

BACK WINDOW
LOCK ASSEMBLY

MULTIPLEX NETWORK
DOOR ECU

NO. 2 BACK DOOR
WEATHERSTRIP

REAR WIPER MOTOR

REAR WIPER
MOTOR GROMMET

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

5.0 (51, 44 in.*lbf)

BACK DOOR SERVICE
HOLE COVER

x3

x3

x2

RETAINER

5.0 (51, 44 in.*lbf)

DOOR TRIM
RETAINER
CAP

DOOR TRIM RETAINER CAP

B129026E01
