Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 133





ENGINE HOOD / DOOR  –  ACCESS DOOR

ED–29

ED

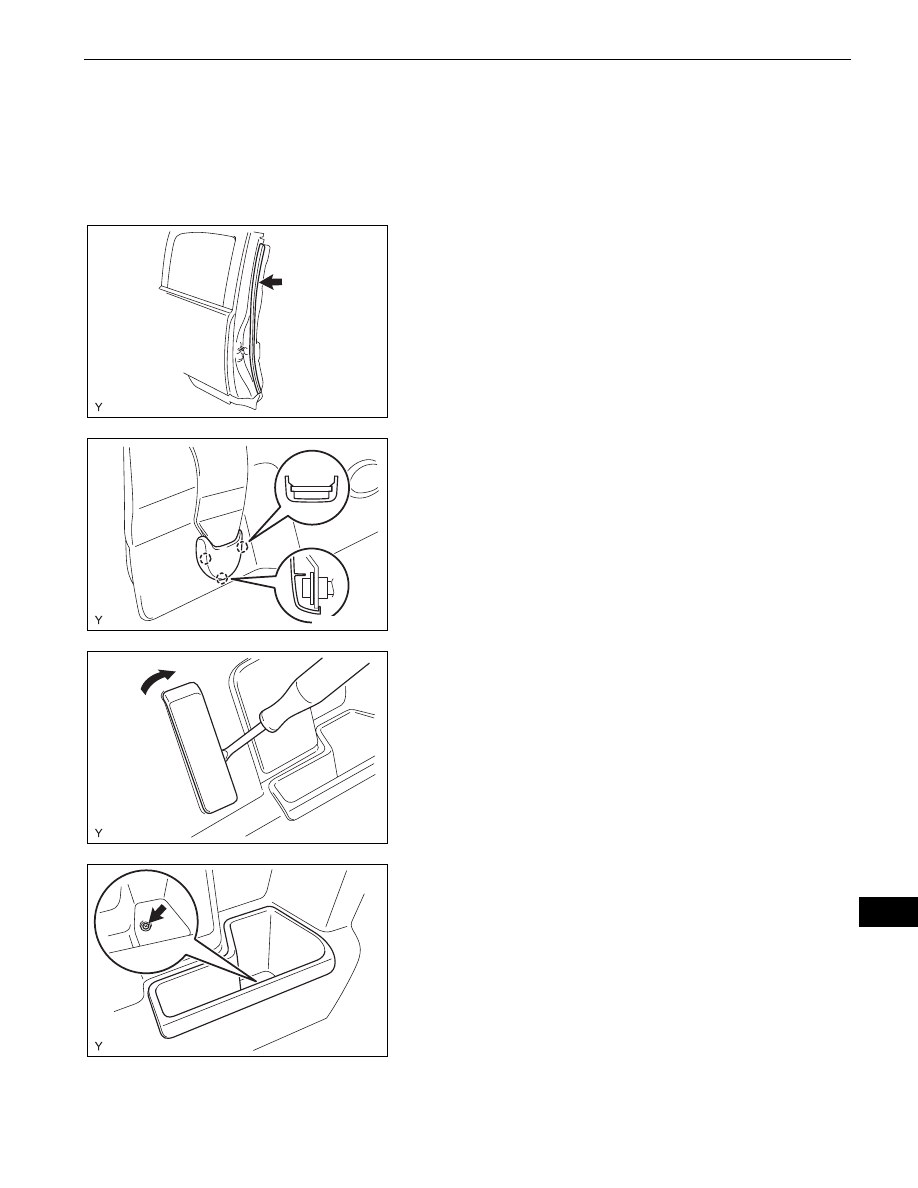

DISASSEMBLY

HINT:

Use the same procedure for both RH and LH sides.

The procedure described below is for the RH side.

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE ACCESS PANEL REAR WEATHERSTRIP
(a) Remove the access panel rear weatherstrip.

3.

REMOVE LAP BELT OUTER ANCHOR COVER
(a) Disengage the 3 claws and remove the lap belt

outer anchor cover.

4.

REMOVE REAR DOOR INSIDE HANDLE SUB-
ASSEMBLY
(a) Insert a clip remover between the handle and door

trim.

(b) Turn the handle with the clip remover inserted, as

shown in the illustration.

(c) Remove the rear door inside handle and snap ring.

5.

REMOVE NO. 1 CUP HOLDER
(a) Remove the screw and the No. 1 cup holder.

B135524

B135525

B135527

B135528

ED–30

ENGINE HOOD / DOOR  –  ACCESS DOOR

ED

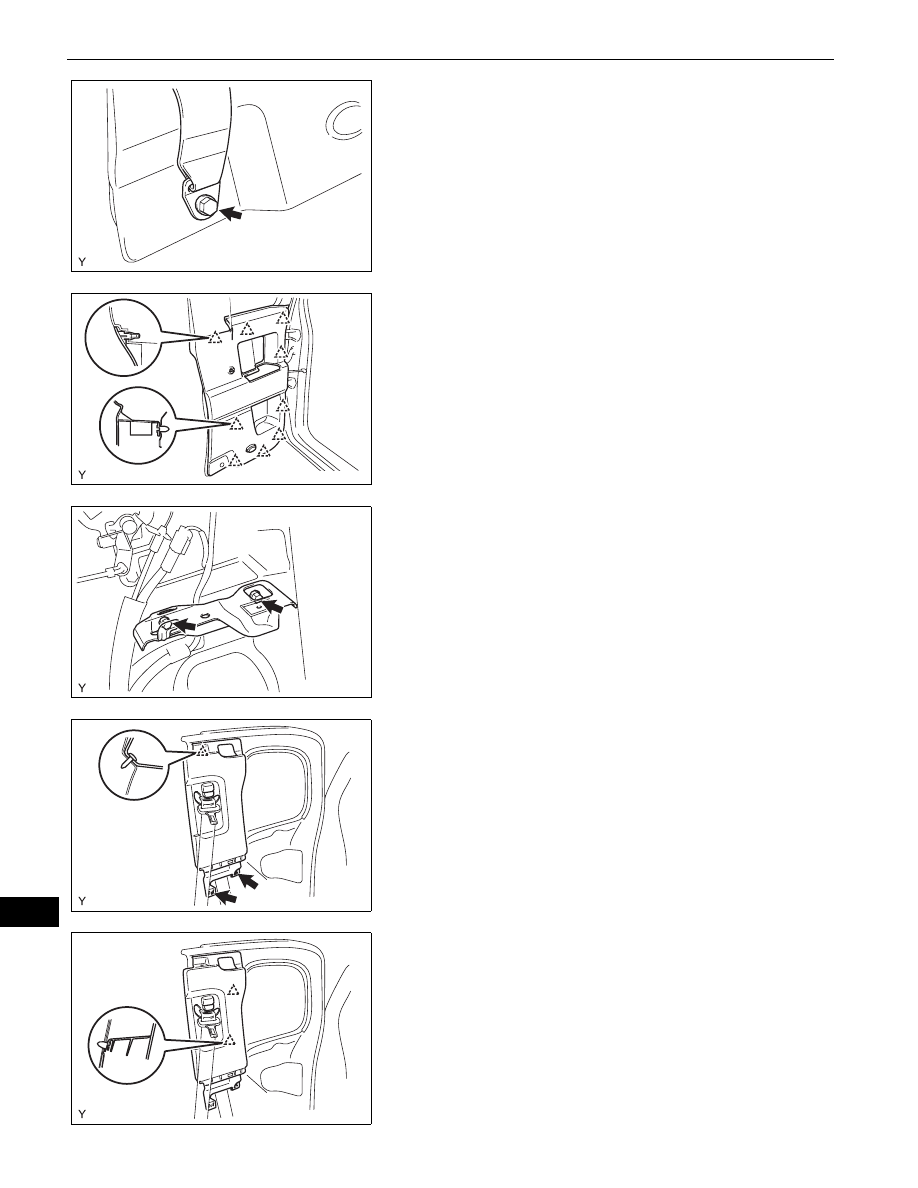

6.

REMOVE REAR DOOR TRIM BOARD SUB-
ASSEMBLY
(a) Remove the bolt and separate the front seat belt

outer (floor side).

(b) Disengage the 9 clips and remove the rear door trim

panel.

7.

REMOVE NO. 1 DOOR TRIM BRACKET
(a) Remove the 2 screws and remove the No. 1 door

trim bracket.

8.

REMOVE CENTER PILLAR UPPER GARNISH
(a) Remove the clip.
(b) Remove the 2 screws.

(c) Disengage the 2 clips and remove the center pillar

upper garnish.

9.

REMOVE FRONT SEAT OUTER BELT ASSEMBLY
(See page

SB-36

)

10. REMOVE FRONT SHOULDER BELT ANCHOR

ADJUSTER ASSEMBLY (See page

SB-38

)

B135526

B135558

B135529

B135559

B135560

ENGINE HOOD / DOOR  –  ACCESS DOOR

ED–31

ED

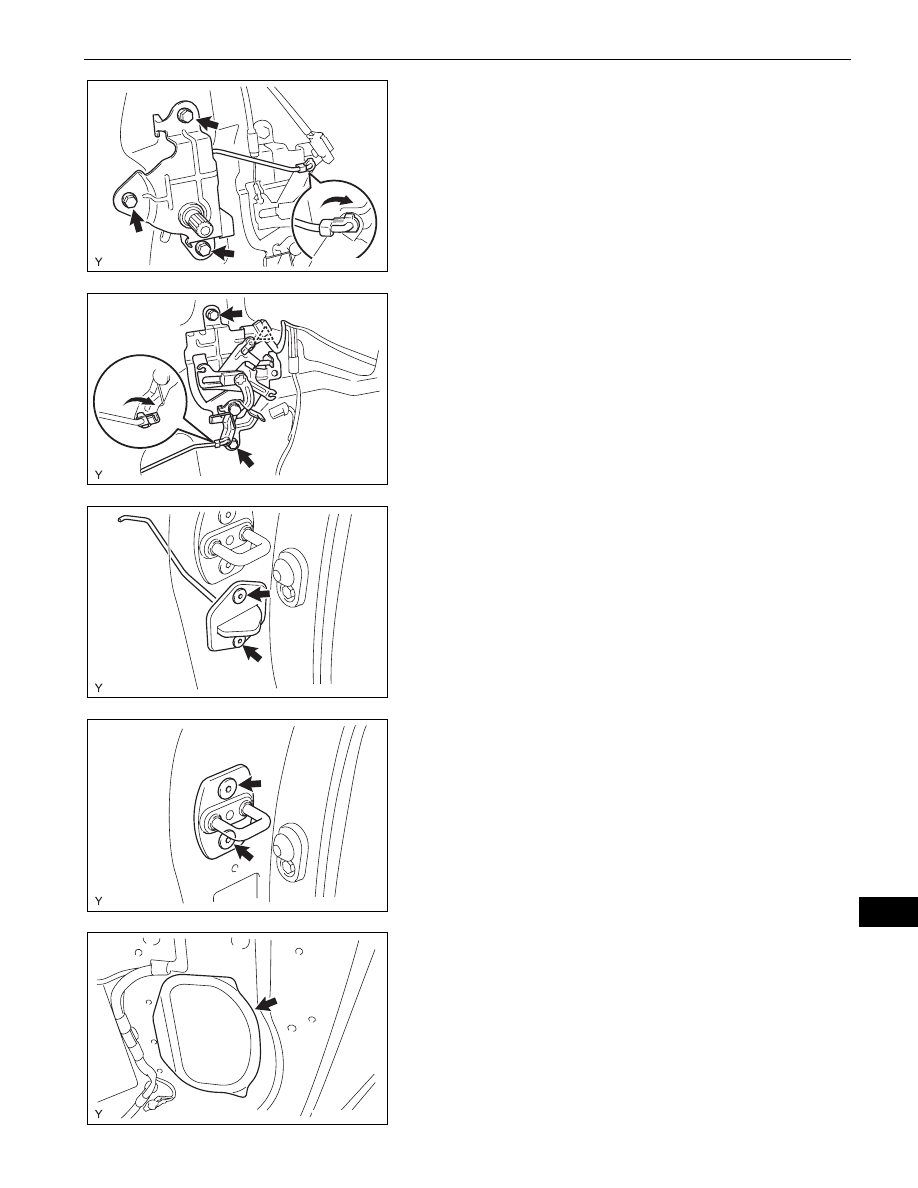

11. REMOVE ACCESS PANEL INSIDE HANDLE SUB-

ASSEMBLY
(a) Disconnect the rod.
(b) Remove the 3 bolts, then remove the access panel

inside handle.

12. REMOVE ACCESS PANEL UPPER LOCK ASSEMBLY

(See page

LI-116

)

13. REMOVE ACCESS PANEL LOWER LOCK

ASSEMBLY (See page

LI-119

)

14. REMOVE ACCESS PANEL LOCK REMOTE

CONTROL ASSEMBLY
(a) Disconnect the rod and connector clamp.
(b) Remove the 2 bolts, then remove the access panel

lock remote control.

15. REMOVE ACCESS PANEL LOCK CANCEL LEVER

ASSEMBLY
(a) Using "Torx" socket wrench T30, remove the 2

screws and remove the access panel lock cancel
lever.

16. REMOVE FRONT DOOR COURTESY SWITCH (See

page

LI-114

)

17. REMOVE ACCESS PANEL LOCK STRIKER PLATE

ASSEMBLY
(a) Using "Torx" socket wrench T40, remove the 2

screws and access panel lock striker plate.

18. REMOVE REAR DOOR SERVICE HOLE COVER

(a) Remove the rear door service hole cover.

NOTICE:
Remove any tape remaining on the door side.

B135530

B135533

B135534

B135535

B135536

ED–32

ENGINE HOOD / DOOR  –  ACCESS DOOR

ED

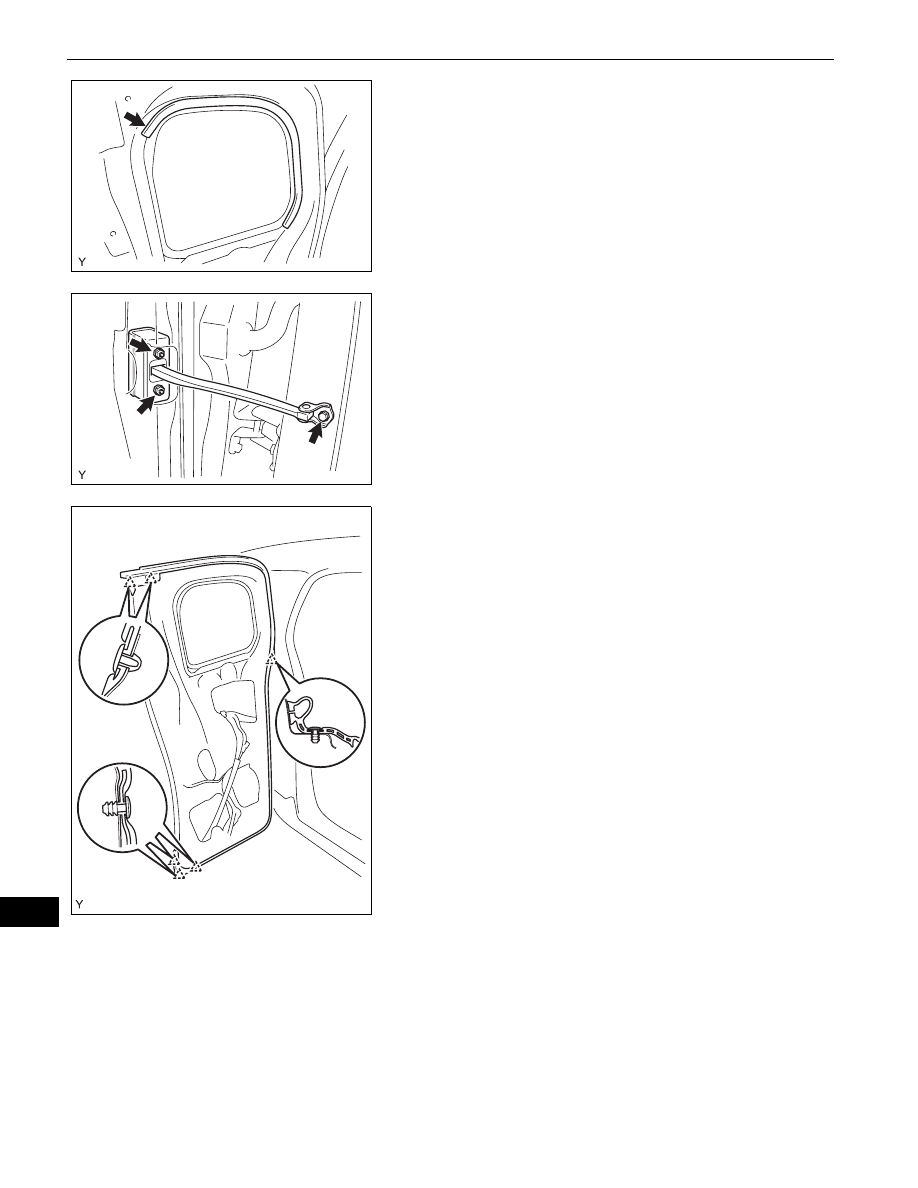

19. REMOVE REAR DOOR OPENING TRIM

(a) Remove the rear door opening trim.

20. REMOVE ACCESS PANEL CHECK ASSEMBLY

(a) Remove the bolt and 2 nuts, then remove the

access panel check.
NOTICE:
Do not drop or damage the access panel check
when removing the bolt and nuts.
HINT:
Remove the access panel check through the
service hole.

21. REMOVE ACCESS PANEL WEATHERSTRIP

(a) Disengage the 6 clips.

B135537

B135538

B135539
