1GR-FE ENGINE CONTROL SYSTEM  –  KNOCK SENSOR

ES

ENGINE

1GR-FE ENGINE CONTROL SYSTEM

KNOCK SENSOR

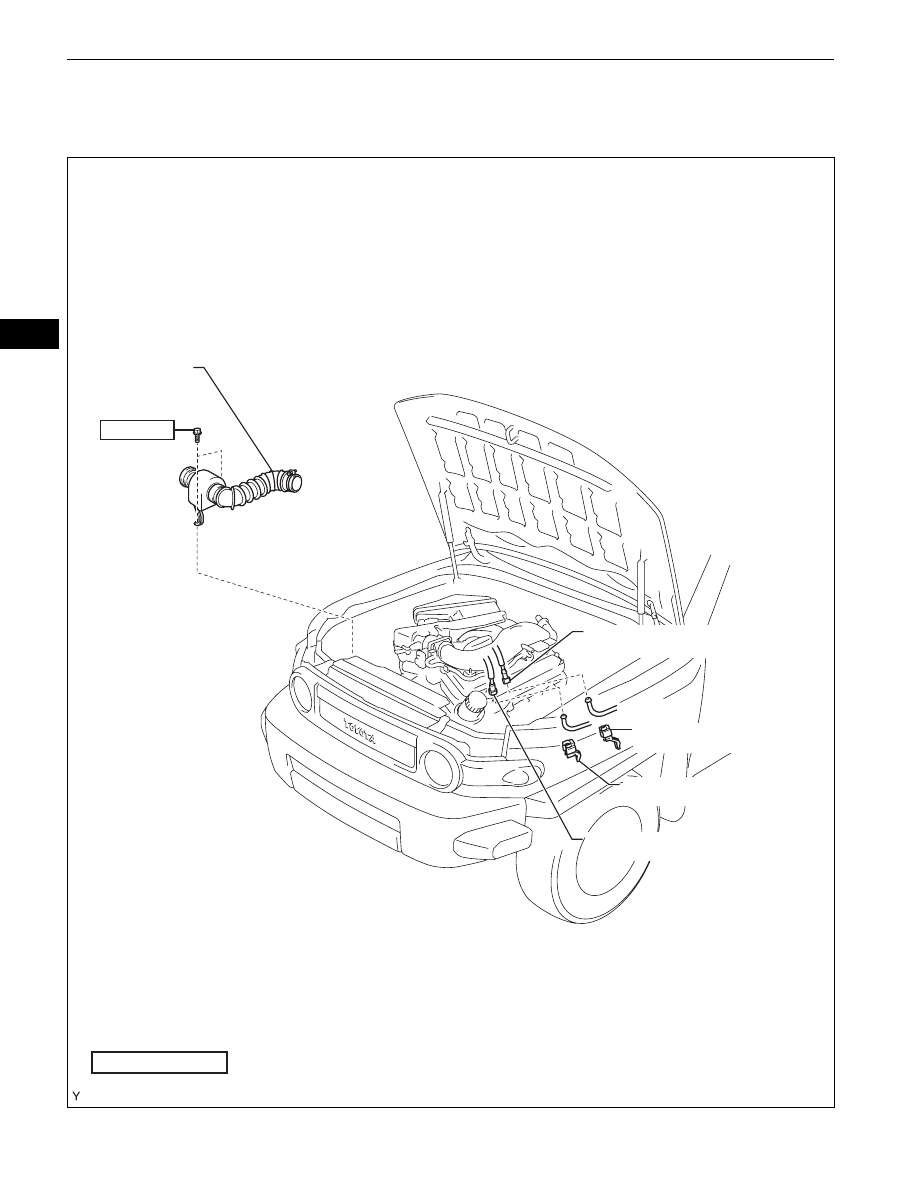

COMPONENTS

12 (122, 9.0)

NO. 2 FUEL PIPE CLAMP

N*m (kgf*cm, ft*lbf)  : Specified torque

NO. 1 COOL AIR
INLET

NO. 1 FUEL PIPE SUB-ASSEMBLY

NO. 2 FUEL PIPE SUB-ASSEMBLY

NO. 2 FUEL PIPE CLAMP

A126431E01

1GR-FE ENGINE CONTROL SYSTEM  –  KNOCK SENSOR

ES–433

ES

EXHAUST PIPE STOPPER BRACKET

FRONT EXHAUST PIPE ASSEMBLY

NO. 2 FRONT EXHAUST PIPE ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

GASKET

x2

48 (489, 35)

x2

GASKET

GASKET

GASKET

19 (193, 14)

19 (193, 14)

for 4WD:

x2

44 (438, 32)

x2

x2

54 (554, 40)

54 (554, 40)

A126505E01

ES–434

1GR-FE ENGINE CONTROL SYSTEM  –  KNOCK SENSOR

ES

26 (265, 19)

x10

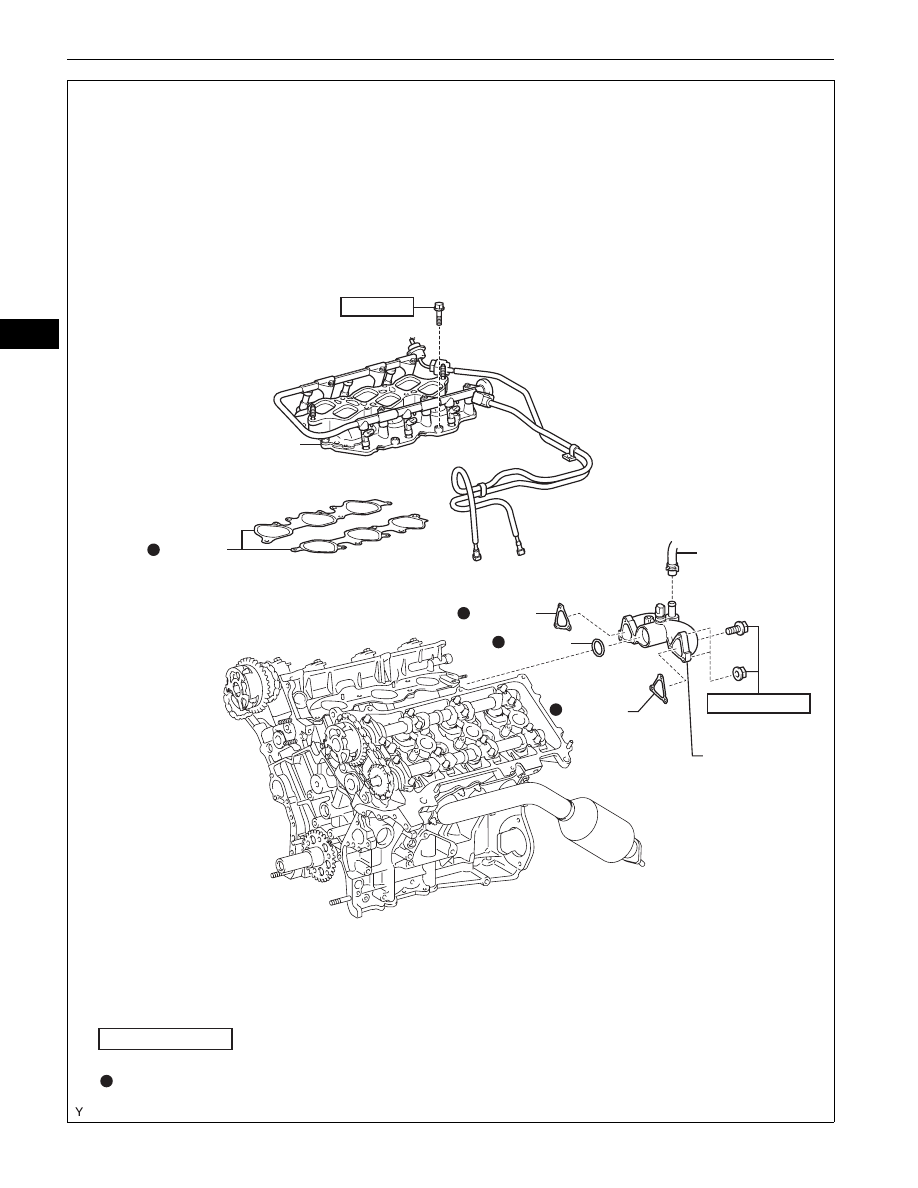

GASKET

HEATER HOSE

GASKET

O-RING

GASKET

9.0 (92, 80 in.*lbf)

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

N*m (kgf*cm, ft*lbf)  : Specified torque

INTAKE MANIFOLD

WATER BY-PASS
JOINT RR

A126432E01

1GR-FE ENGINE CONTROL SYSTEM  –  KNOCK SENSOR

ES–435

ES

GASKET

30 (306, 22)

x6

40 (408, 30)

40 (408, 30)

GASKET

40 (408, 30)

40 (408, 30)

30 (306, 22)

x6

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

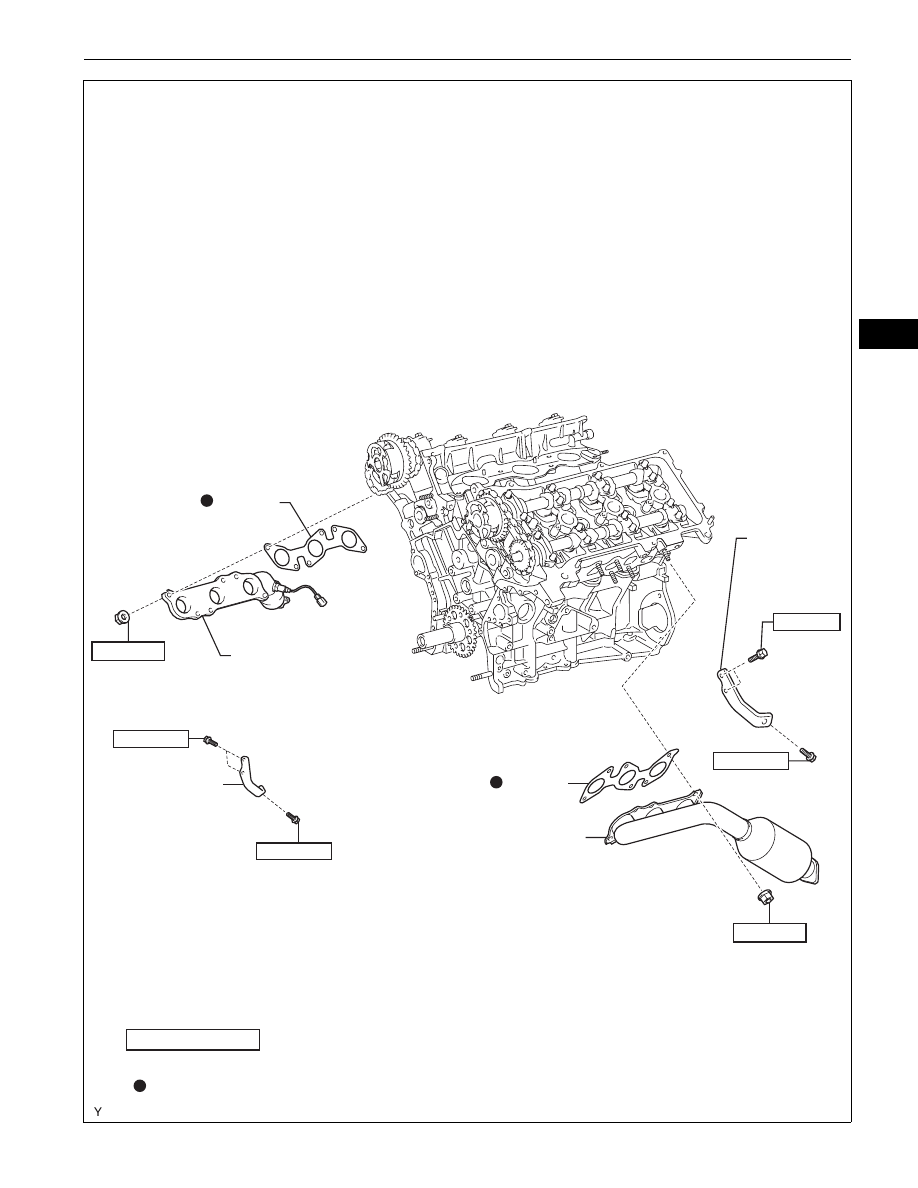

EXHAUST MANIFOLD
SUB-ASSEMBLY LH

EXHAUST MANIFOLD
SUB-ASSEMBLY RH

MANIFOLD STAY

NO. 2
MANIFOLD
STAY

A126433E01
