BODY ELECTRICAL

THEFT DETERRENT SYSTEM

BE–89

3493

(1)

Conditions that cause the panic alarm control to set
off the panic alarm:
The panic alarm control sets off the panic alarm by
pressing the PANIC switch on the wireless transmit-
ter under the following conditions.



The ignition switch is OFF.



The theft deterrent system is not in the alarm
sounding state (common to active arming
mode and passive arming mode).



The panic alarm control is not operating (the
alarm is not set off).

(2)

Conditions that cause the panic alarm control to
shut off the alarm:
The panic alarm control shuts off the panic alarm
when any of the following conditions is met during
panic alarm operation.



The ignition switch is turned ON.



Any of the switches on the wireless transmit-
ter (PANIC/LOCK/UNLOCK) is pressed.



The panic alarm ends (60 seconds have
passed).



The theft deterrent system switches to the
alarm sounding state (common to active arm-
ing mode and passive arming mode). Condi-
tions for canceling the panic alarm are the
same as for the alarm control.

HINT:
Active arming mode: See step 2
Passive arming mode: See step 3
5.

Using hand–held tester:
CHANGING METHOD OF PASSIVE MODE (ON or OFF)
(See page

DI–1684

)

6.

SWITCH TO THE ACTIVE ARMING MODE

HINT:
In each state of the passive arming mode, when the switch
condition transferring to active arming mode (disarmed state of
active arming mode

→

 arming preparation state of active arm-

ing mode) is satisfied, the system will switch to each state of the
active arming mode. In this case, the active arming mode will
continue until the system switches to the disarmed state.

State of Passive Arming Mode Before

Switching

State of Active Arming Mode After

Switching

Disarmed state

Arming preparation state

Arming preparation state

Arming preparation state (continues for

30 seconds)

Armed state (except during entry delay

time)

Armed state

I28725

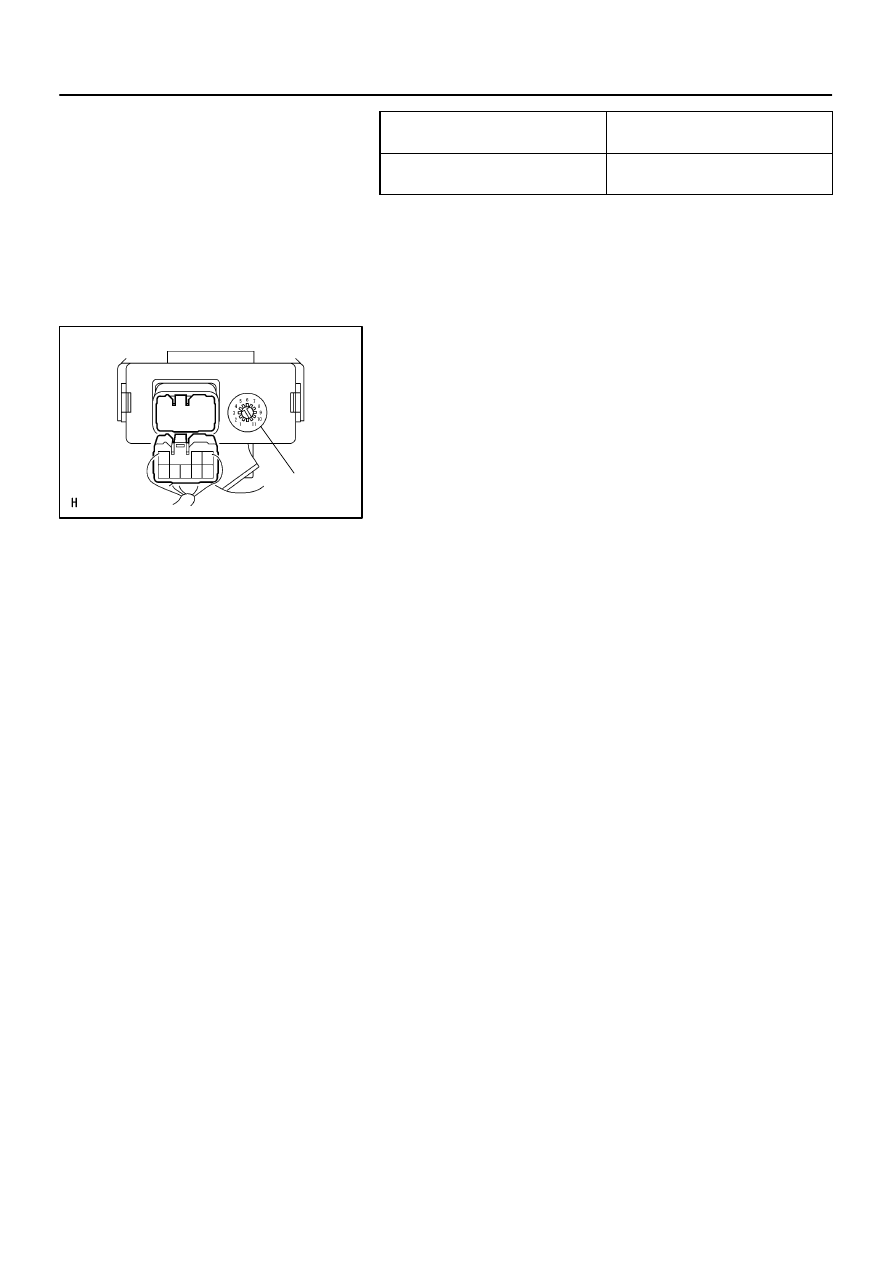

Glass Breakage Sensor:

Volume

BE–90

–

BODY ELECTRICAL

THEFT DETERRENT SYSTEM

3494

Armed state (during entry delay time)

After alarming time has elapsed, the sys-

tem will switch to the  armed state

Alarm sounding state

After alarming time has elapsed, the sys-

tem will switch to the armed state

7.

OPERATE GLASS BREAKAGE SENSOR

HINT:
The glass breakage sensor functions only during the active
arming mode.
(a)

If the glass breakage sensor detects that the glass is bro-
ken (1st time), the sensor will set off an alarm for 20 se-
conds (pre–alarm). If the glass breakage sensor detects
that the glass is broken furthermore (at 2nd time), the sen-
sor will set off an alarm for 60 seconds.

HINT:
If the 2nd detection is performed during the pre–alarming time
(20 seconds), the sensor will continuously set off the 2nd alarm.
At this time, the total alarming time of the 1st alarm (pre–alarm)
and 2nd alarm is 60 seconds.
(b)

The sensitivity of the glass breakage sensor can be ad-
justed by the volume switch in the glass breakage sensor.

HINT:
Because the glass breakage sensor has a high sensitivity, it
might set off a wrong alarm if the volume switch is adjusted too
high.

BE0CE–10

I28416

Theft Deterrent Horn

Engine Hood Courtesy Switch

Engine Room J/B

Door Lock Assembly

 Door Lock Motor

 Door Unlock Detection Switch

Ignition Switch

 Key Unlock Warning Switch

Instrument Panel J/B

Door Courtesy Light Switch

Horn

Back Door Lock Motor

Door Key Lock
and Unlock
Switch

Door Key Lock and
Unlock Switch

Headlight

Doom Light

Taillight

Body ECU
(Located behind the Instrument Panel)

Engine Room R/B No. 2

Glass Breakage Sensor ECU

Glass Breakage
Sensor Microphone

–

BODY ELECTRICAL

THEFT DETERRENT SYSTEM

BE–91

3495

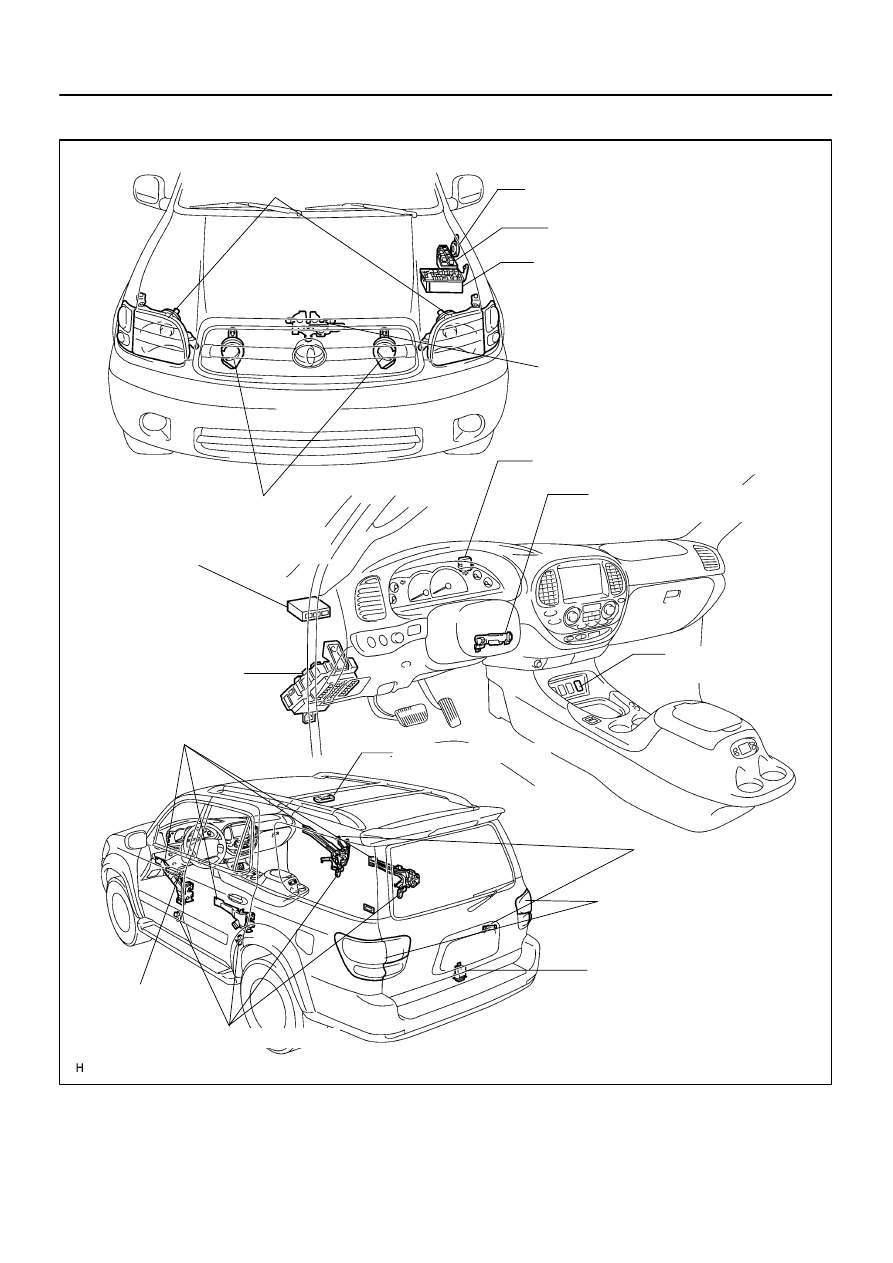

LOCATION

I04146

BE1W8–05

I04148

ON

OFF

BE–92

–

BODY ELECTRICAL

THEFT DETERRENT SYSTEM

3496

INSPECTION

1.

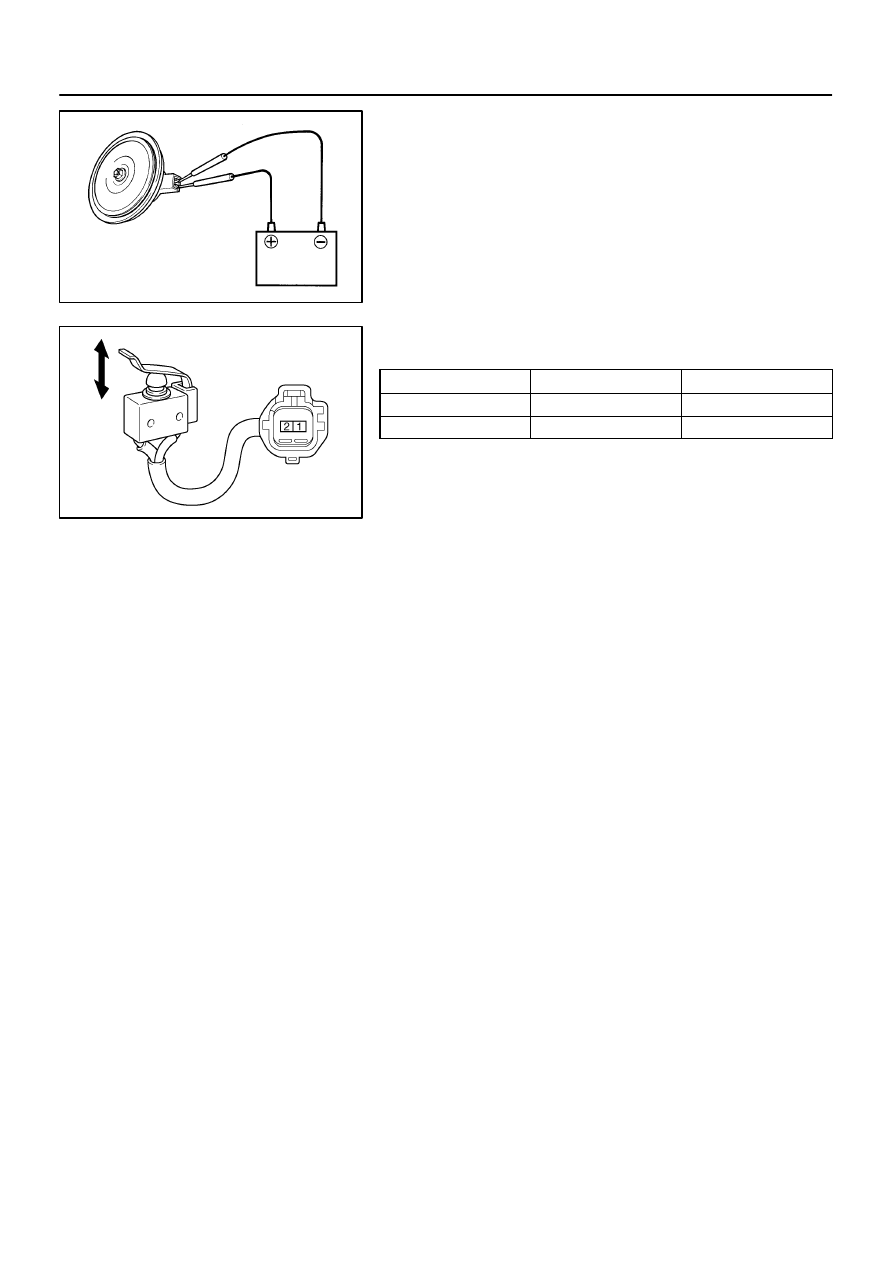

INSPECT THEFT DETERRENT HORN OPERATION

Connect the positive (+) lead from the battery to terminal 1 and
negative (–) lead to the theft deterrent horn body, and check
that the theft deterrent horn blows.
If operation is not as specified, replace the horn.

2.

INSPECT ENGINE HOOD COURTESY SWITCH CON-
TINUITY

Switch position

Tester connection

Specified condition

CLOSE (OFF)

–

No continuity

OPEN (ON)

1 – 2

Continuity

If continuity is not as specified, replace the switch.
3.

INSPECT ENGINE HOOD COURTESY SWITCH CIR-
CUIT (See page

DI–1725

)
