I18696

UNLOCK

LOCK

I18690

2

1

UNLOCK LOCK

3

–

BODY ELECTRICAL

POWER DOOR LOCK CONTROL SYSTEM

BE–81

3485

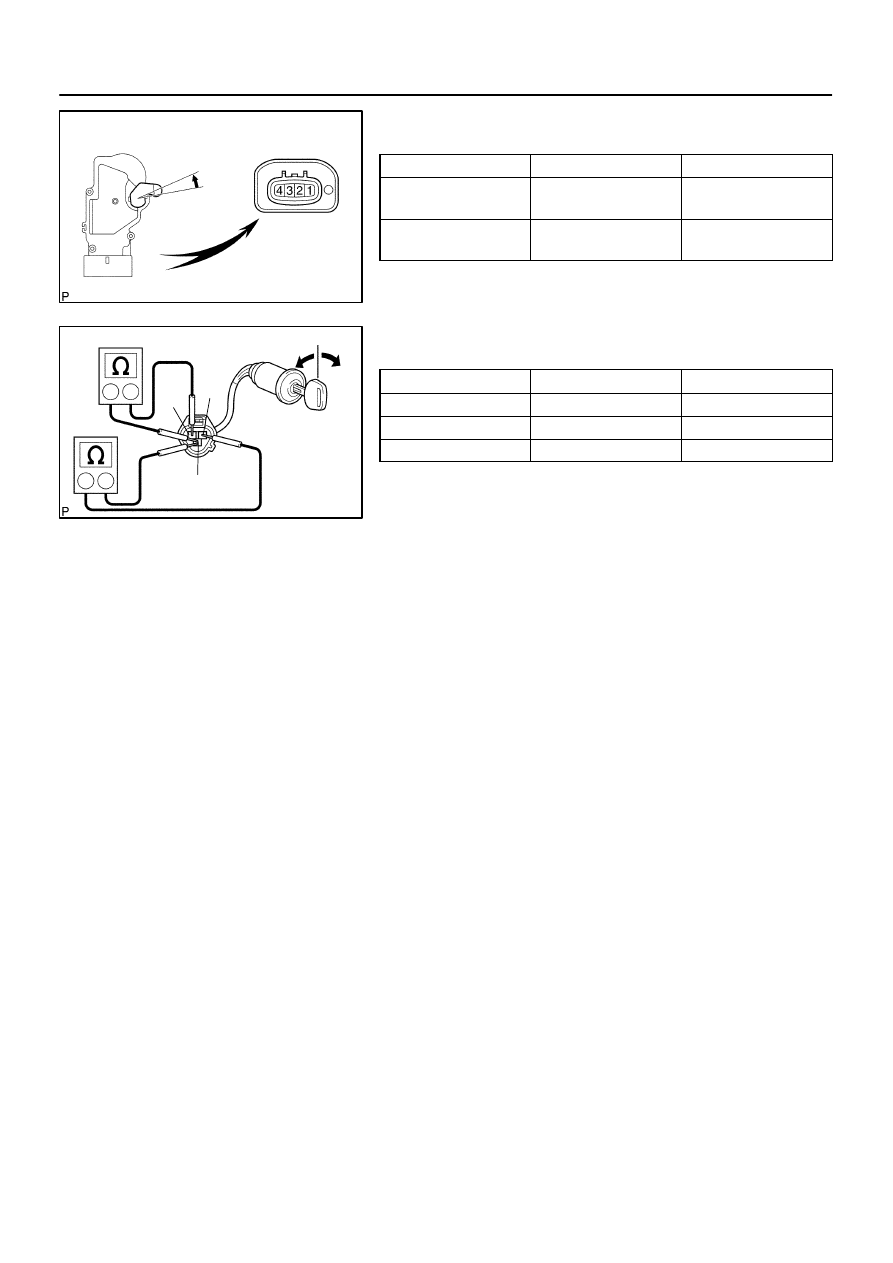

11.

INSPECT BACK DOOR UNLOCK DETECTION
SWITCH CONTINUITY

Switch position

Tester connection

Specified condition

OFF (Door Lock set to

LOCK)

–

No continuity

ON (Door Lock set to

UNLOCK)

1 – 2

Continuity

If continuity is not as specified, replace the back door lock mo-
tor.

12.

INSPECT BACK DOOR KEY LOCK AND UNLOCK
SWITCH CONTINUITY (Back Door Control switch)

Switch position

Tester connection

Specified condition

LOCK

1 – 3

Continuity

OFF

–

No continuity

UNLOCK

2 – 3

Continuity

If continuity is not as specified, replace the switch.

BE2ML–01

BE–82

–

BODY ELECTRICAL

THEFT DETERRENT SYSTEM

3486

THEFT DETERRENT SYSTEM

ON–VEHICLE INSPECTION

1.

OUTLINE OF THEFT DETERRENT SYSTEM

When the theft deterrent system detects any theft, it informs
people around by flashing lights and sound.
All initial settings are performed in active mode. It can be
switched to passive mode by using the hand–held tester. (See
step 3. CHANGING METHOD OF PASSIVE MODE.)
HINT:
There are 4 conditions in this system: disarmed state, arming
preparation, armed state and alarm sounding.

(1)

Disarmed state



Alarm function does not operate.



Theft deterrent function is not performed.

(2)

Arming preparation



Time until transferring to armed state.



Theft deterrent function is not performed.

(3)

Armed state
Theft deterrent function is ready.

(4)

Alarm sounding:
When the system detects a theft, it informs people
around the vehicle using light and sound.
Refer to the table below for alarming method or
time.

Horn

Security horn

Alarm method

Headlight

Alarm method

Taillight

Interior light

Alarm time

60 seconds

Alarm output

Continuous 0.4 secs. (ON)

0.4 secs. (OFF)

HINT:
Alarm output for the hazard is the same as the one for the haz-
ard on the vehicle.
If any of the doors is unlocked not by the key or wireless remote
control in the armed state, a force lock signal will be output.

Disarmed state

Perform any of the following and the system will go on to ”Arming preparation”:

 With all the doors, the engine hood and the back door closed, lock all doors with the key.

 With all the doors, the engine hood and the back door closed, lock all doors by the

wireless remote control.

 With all the doors, engine hood and back door locked, open and close any of the doors, the

engine hood or the back door, then close and lock all doors, the engine hood and the back door.

Arming preparation

Perform the following and the system will
go on to ”Armed state”:

 Let 30 seconds elapse with all the doors,

engine hood and the back door closed and
locked.

Perform any of the following and the system
will return to ”Disarmed state”:

 Open any of the doors, the engine hood or

the back door .

 Unlock any of the doors or the back door.

 Put the key in the key cylinder.

 Reconnect the battery.

Armed state

Perform any of the following and the system
will return to ”Disarmed state”:

 Unlock any of the doors or the back door by

the wireless remote control.

 Unlock any of the doors or the back door with

the key.

 Put the key in the key cylinder and turn it ON.

Perform any of the following and the system
will go on to ”Alarm sounding”:

 Open any of the doors or the back door.

 Unlock any of the doors or the back door in

any way other than with a key or by the wireless
remote control.

 Open the engine hood.

 Reconnect the battery.

 When input from the optional glass break sensor

is detected (Dealer option).

(Key not inserted in key cylinder.)

Alarm sounding

The vehicle’s horn and security horn will sound,
and the hazard, interior, tail and head lights come
on for 60 seconds.

After the alarm has stopped, the system will
return to ”Armed state”.

Perform any of the following and the system
will return to ”Disarmed state”:

 Unlock any of the doors and the back door by

the wireless remote control.

 Unlock any of the doors or the back door with

the key.

 Put the key in the key cylinder and turn it ON.

–

BODY ELECTRICAL

THEFT DETERRENT SYSTEM

BE–83

3487

2.

ACTIVE ARMING MODE

BE–84

–

BODY ELECTRICAL

THEFT DETERRENT SYSTEM

3488

Indicator light output:

Condition

Indicator light

Disarmed state

OFF

Arming preparation

ON

Armed state

OFF

Alarm sounding

ON

HINT:
Even in the disarmed state, the indicator light blinks. (Due to the
signal output from the immobilizer system.) The indicator al-
ways blinks receiving the signal from the immobilizer system
any time in the armed state.

Blinking frequency:
 0.2 seconds (ON)
 1.8 seconds (OFF)
