RS11T–01

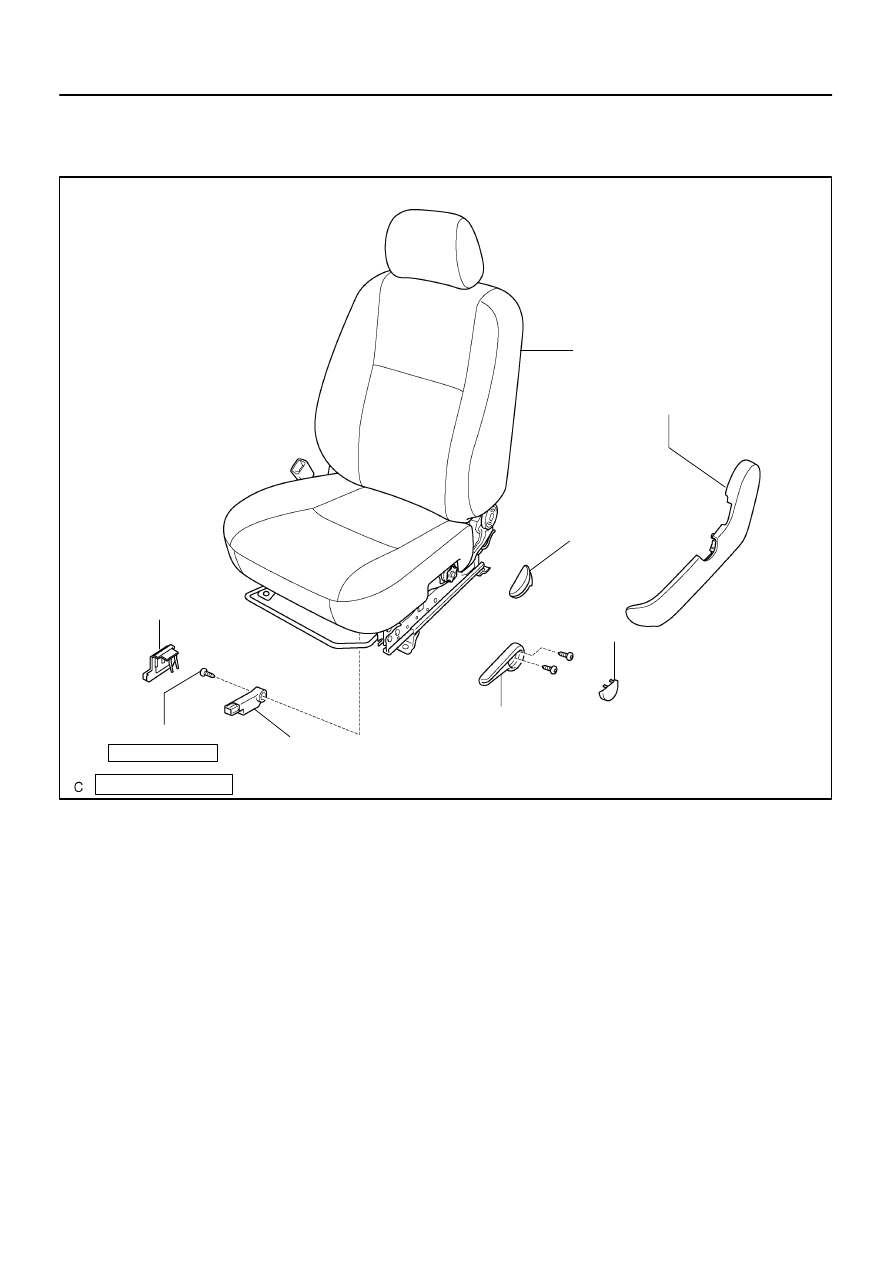

H23935

Front Seat Assembly LH

N·m (kgf·cm, ft·lbf) : Specified torque

8.0 (82, 71 in.·lbf)

Seat Cushion Outer Shield

Seat Position Sensor
Assembly Protector

Torx

®

 Screw

Separate Type (Manual Adjuster):

Seat Position
Sensor Assembly

Reclining Adjuster
Release Handle

Vertical Adjuster Handle Cap

Vertical Adjuster Handle

RS–102

–

SUPPLEMENTAL RESTRAINT SYSTEM

SEAT POSITION SENSOR ASSEMBLY

3385

SEAT POSITION SENSOR ASSEMBLY

COMPONENTS

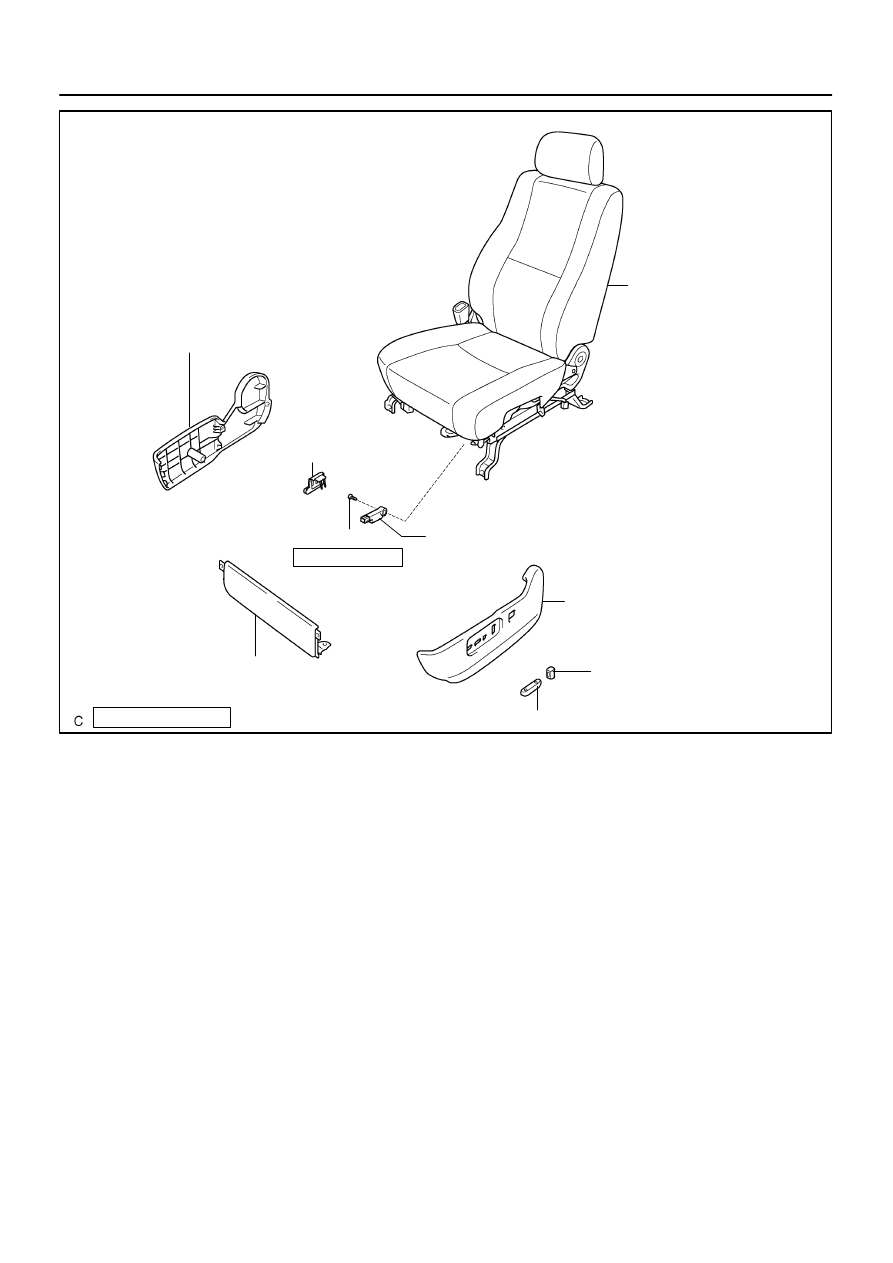

H23936

Seat Position Sensor Assembly

N·m (kgf·cm, ft·lbf) : Specified torque

8.0 (82, 71 in.·lbf)

Seat Cushion Inner Shield

Seat Position Sensor
Assembly Protector

Torx

®

 Screw

Front Seat Assembly LH

Seat Cushion Inner Shield

Seat Cushion Outer Shield

Reclining Knob

Slide Knob

Separate Type (Power Adjuster):

–

SUPPLEMENTAL RESTRAINT SYSTEM

SEAT POSITION SENSOR ASSEMBLY

RS–103

3386

RS0UV–05

RS–104

–

SUPPLEMENTAL RESTRAINT SYSTEM

SEAT POSITION SENSOR ASSEMBLY

3387

REMOVAL

NOTICE:

If the wiring connector of the SRS is disconnected
with the ignition switch in the ON position, DTCs will
be recorded.

Never use SRS parts from another vehicle. When re-
placing the parts, replace them with new ones.

Never reuse the seat position sensor assembly if the
airbag has previously deployed in a collision.

1.

PRECAUTION (SEE PAGE

RS–1

 and

RS–3

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the
airbag working.
3.

Separate type (Manual adjuster):
REMOVE FRONT SEAT ASSEMBLY LH
(SEE PAGE

BO–111

)

4.

Separate type (Manual adjuster):
REMOVE VERTICAL ADJUSTER HANDLE
(SEE PAGE

BO–125

)

5.

Separate type (Manual adjuster):
REMOVE SEAT CUSHION OUTER SHIELD
(SEE PAGE

BO–125

)

6.

Separate type (Power adjuster):
REMOVE FRONT SEAT ASSEMBLY LH
(SEE PAGE

BO–111

)

7.

Separate type (Power adjuster):
REMOVE SLIDE KNOB AND RECLINING KNOB (SEE
PAGE

BO–112

)

8.

Separate type (Power adjuster):
REMOVE SEAT CUSHION LOWER SHIELD, SEAT
CUSHION OUTER SHIELD AND SEAT CUSHION IN-
NER SHIELD (SEE PAGE

BO–112

)

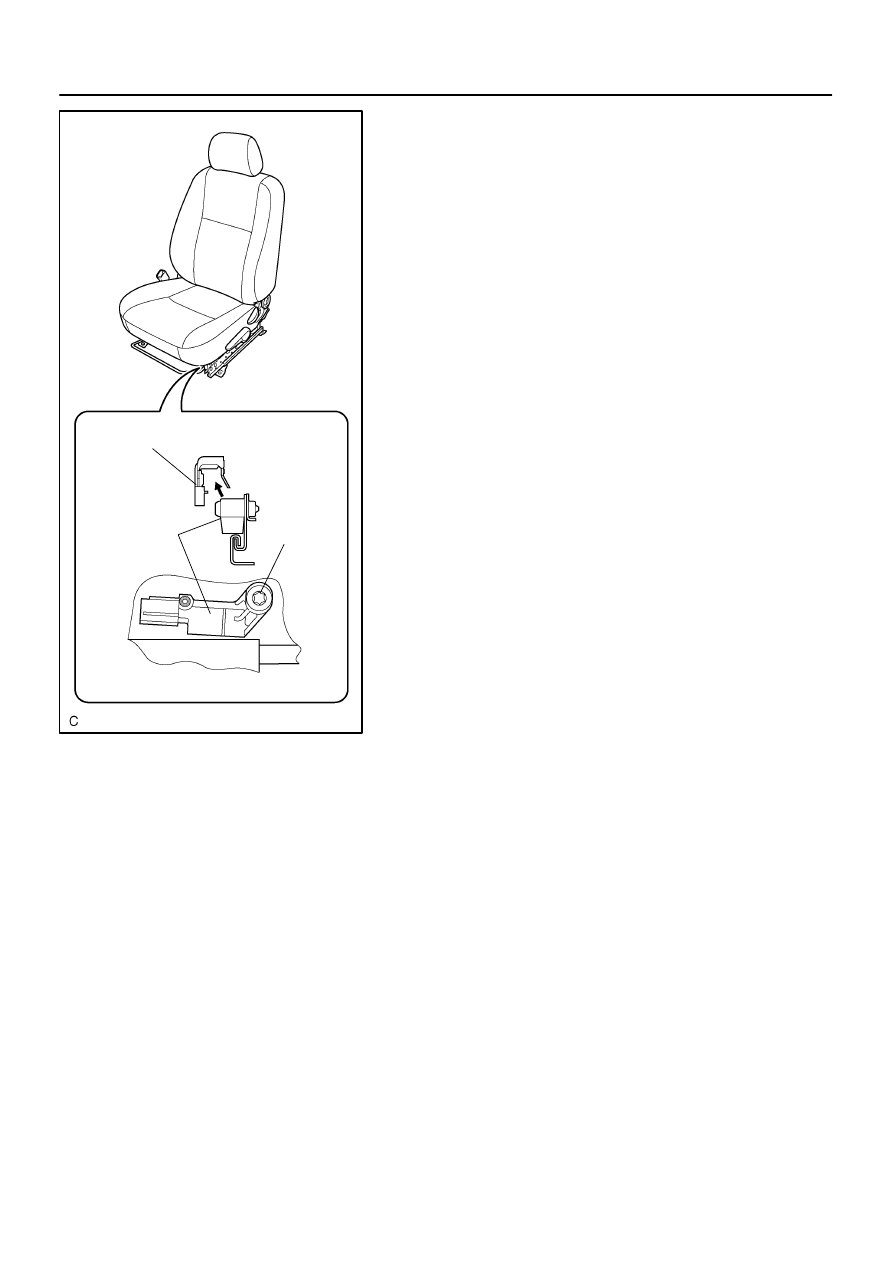

H24697

Seat Position Sensor
Assembly Protector

Seat Position
Sensor
Assembly

Torx



Screw

–

SUPPLEMENTAL RESTRAINT SYSTEM

SEAT POSITION SENSOR ASSEMBLY

RS–105

3388

9.

REMOVE SEAT POSITION SENSOR ASSEMBLY PRO-
TECTOR

Remove the seat position sensor assembly protector from the
seat position sensor assembly.
10.

REMOVE SEAT POSITION SENSOR ASSEMBLY

(a)

Disconnect the connector from the seat position sensor
assembly.

(b)

Using a torx

®

 socket wrench (T30), remove the torx

®

screw and the seat position sensor assembly.
