RS11Q–01

RS–98

–

SUPPLEMENTAL RESTRAINT SYSTEM

CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY

3381

INSPECTION

1.

VEHICLE NOT INVOLVED IN COLLISION

Perform a diagnostic system check (see page

DI–1147

).

2.

VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED

Perform a diagnostic system check (see page

DI–1147

).

3.

VEHICLE INVOLVED IN COLLISION AND AIRBAG IS DEPLOYED

Replace the curtain shield airbag sensor assembly (see page

DI–1147

).

RS11R–01

–

SUPPLEMENTAL RESTRAINT SYSTEM

CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY

RS–99

3382

REPLACEMENT

REPLACEMENT REQUIREMENTS
In the following cases, replace the curtain shield airbag sensor assembly with a new one.

The curtain shield airbag assembly has been deployed in a collision.

The curtain shield airbag sensor assembly has been found to be faulty in troubleshooting.

The curtain shield airbag sensor assembly has been dropped.

CAUTION:
For removal and installation of the curtain shield airbag sensor assembly, see page

RS–97

 and

RS–100

. Be sure to follow the correct procedure.

RS11S–01

H23905

RS–100

–

SUPPLEMENTAL RESTRAINT SYSTEM

CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY

3383

INSTALLATION

HINT:

Use the same procedures for the RH side and LH side.

The procedures listed below are for the LH side.

NOTICE:

Never use SRS parts from another vehicle. When re-
placing parts, replace them with new ones.

Never reuse the curtain shield airbag sensor assem-
bly involved in a collision when the airbag has
deployed.

If the curtain shield airbag sensor assembly center
has been dropped, or there are any cracks, dents or
other defects in the case, bracket or connector, re-
place it with a new one.

When installing the curtain shield airbag sensor as-
sembly center, be careful that the SRS wiring does
not interfere with other parts and that it is not pinched
between other parts.

After installing, shake the curtain shield airbag sen-
sor assembly to check that there is no looseness.

1.

INSTALL CURTAIN SHIELD AIRBAG SENSOR AS-
SEMBLY LH

(a)

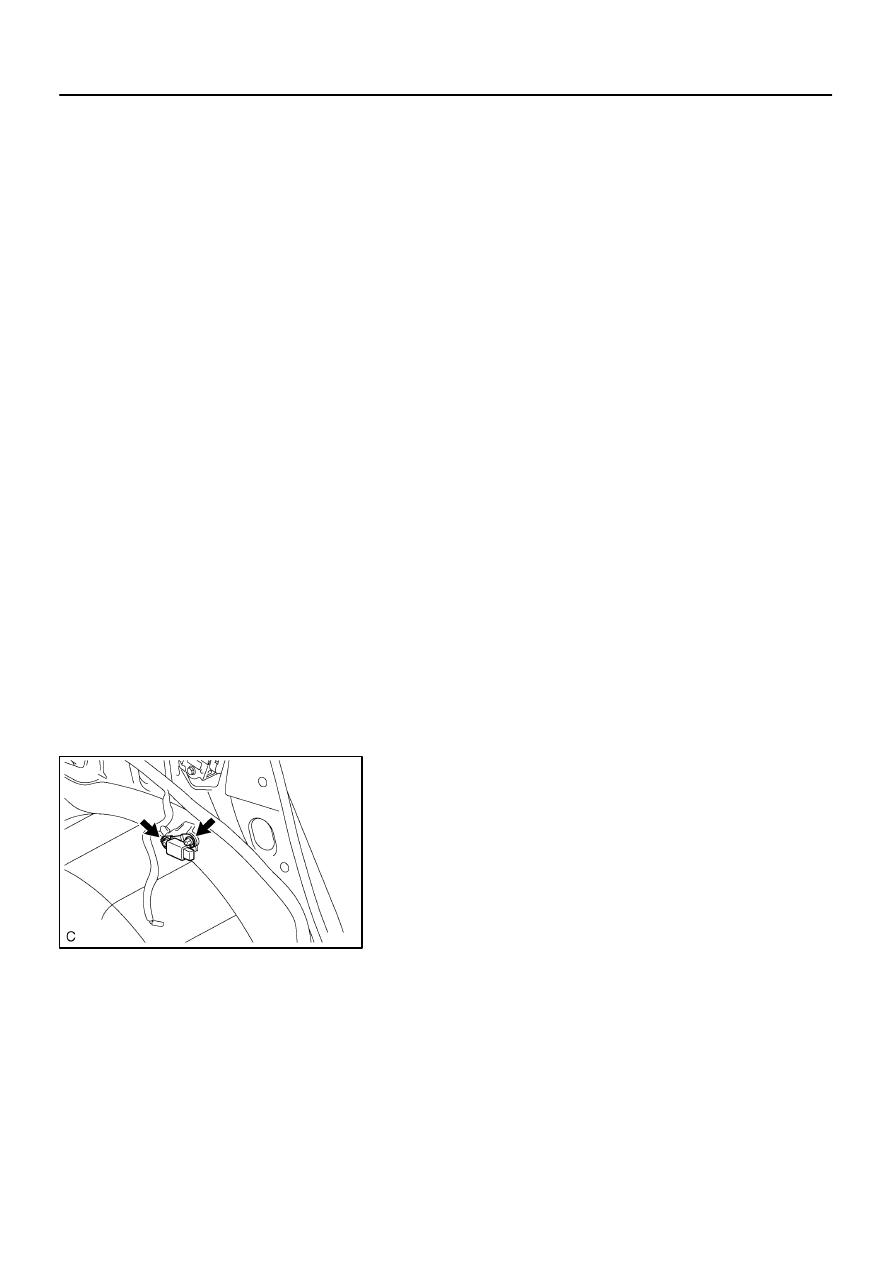

Install the curtain shield airbag  sensor assembly LH with
the 2 nuts.
Torque:17.5 N·m (179 kgf·cm, 13 ft·lbf)

(b)

Connect the curtain shield airbag sensor assembly LH
connector.

2.

INSTALL RETRACTOR OF FRONT SEAT OUTER BELT

3.

INSTALL QUARTER TRIM PLATE
(SEE PAGE

BO–108

)

4.

INSTALL REAR FLOOR PANEL SUPPORT PLATE
(SEE PAGE

BO–108

)

5.

INSTALL REAR DOOR SCUFF PLATE
(SEE PAGE

BO–108

)

6.

INSTALL REAR SEAT NO. 2 ASSEMBLY
(SEE PAGE

BO–158

)

7.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

–

SUPPLEMENTAL RESTRAINT SYSTEM

CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY

RS–101

3384

8.

PERFORM INITIALIZATION (SEE PAGE

BE–77

)

Some system need initialization when disconnecting the cable
from the negative battery terminal.
9.

INSPECT SRS WARNING LIGHT (SEE PAGE

DI–1137

)
