SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG SENSOR ASSEMBLY

3377

REPLACEMENT

REPLACEMENT REQUIREMENTS
In the following cases, replace the side airbag sensor assembly with a new one.

The side airbag assembly has been deployed in a collision.

The side airbag sensor assembly has been found to be faulty in troubleshooting.

The side airbag sensor assembly has been dropped.

CAUTION:
For removal and installation of the side airbag sensor assembly, see page

RS–92

 and

RS–95

. Be sure

to follow the correct procedure.

RS11N–01

H20066

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG SENSOR ASSEMBLY

RS–95

3378

INSTALLATION

HINT:

Use the same procedures for the RH side and LH side.

The procedures listed below are for the LH side.

NOTICE:

Never use SRS parts from another vehicle. When re-
placing parts, replace them with new ones.

Never reuse the side airbag sensor assembly in-
volved in a collision when the airbag has deployed.

If the side airbag sensor assembly center has been
dropped, or there are any cracks, dents or other de-
fects in the case, bracket or connector, replace it with
a new one.

When installing the side airbag sensor assembly, be
careful that the SRS wiring does not interfere with
other parts and that it is not pinched between other
parts.

After installing, shake the side airbag sensor assem-
bly to check that there is no looseness.

1.

INSTALL SIDE AIRBAG SENSOR ASSEMBLY LH

(a)

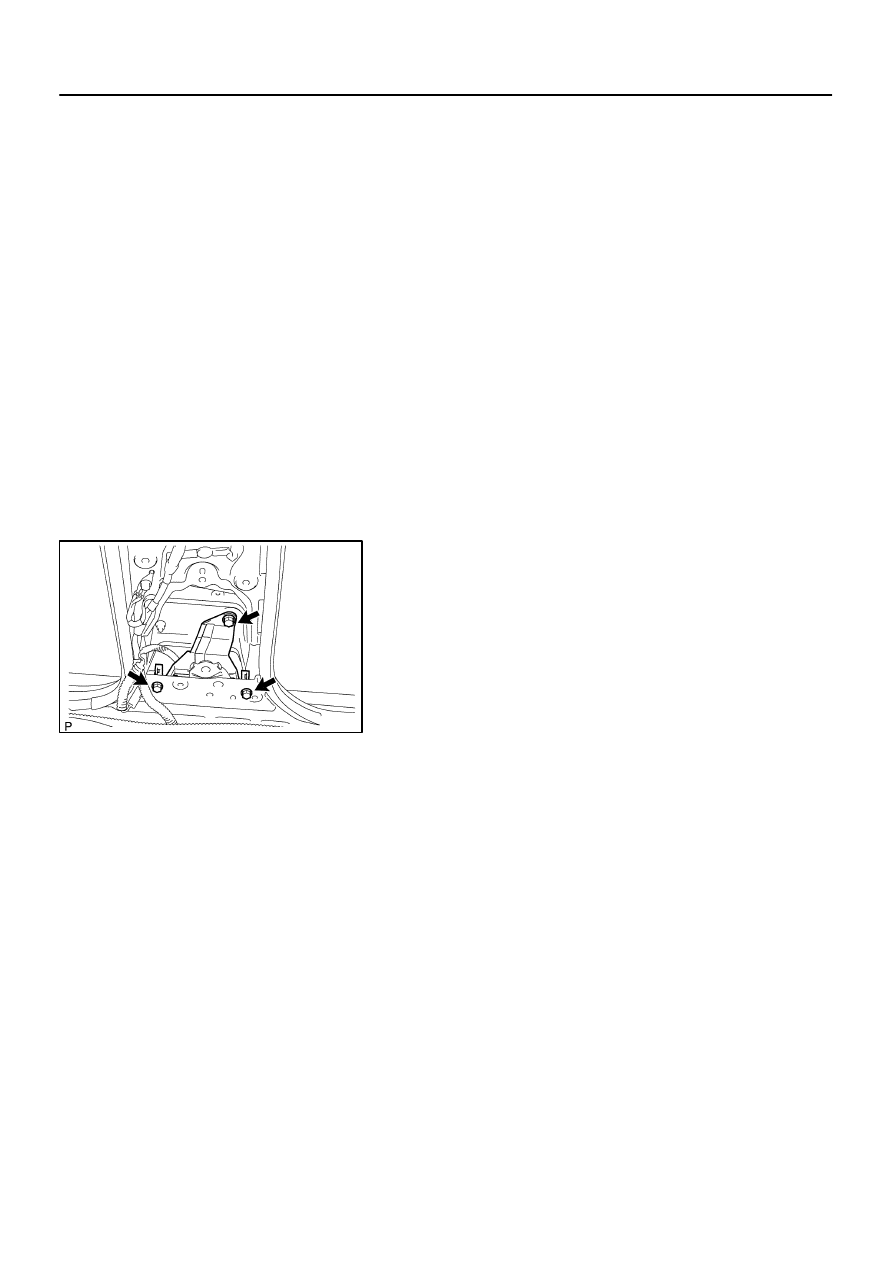

Install the side airbag sensor assembly LH with the 3
bolts.
Torque: 17.5 N·m (179 kgf·cm, 13 ft·lbf)

(b)

Connect the connector to the side airbag sensor assem-
bly LH.

2.

INSTALL FRONT SEAT OUTER BELT RETRACTOR
(SEE PAGE

BO–172

)

3.

INSTALL CENTER PILLAR LOWER GARNISH
(SEE PAGE

BO–108

)

4.

INSTALL FRONT SEAT OUTER BELT FLOOR AN-
CHOR (SEE PAGE

BO–108

 )

5.

INSTALL REAR DOOR SCUFF PLATE
(SEE PAGE

BO–97

)

6.

INSTALL FRONT DOOR SCUFF PLATE
(SEE PAGE

BO–97

)

7.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

8.

PERFORM INITIALIZATION (SEE PAGE

BE–77

)

Some system need initialization when disconnecting the cable
from the negative battery terminal.
9.

INSPECT SRS WARNING LIGHT (SEE PAGE

DI–1137

)

RS11O–01

H23904

: Specified torque

N·m (kgf·cm, ft·lbf)

Rear Door Scuff Plate

Rear Seat No. 2 Assembly

Curtain Shield Airbag
Sensor Assembly LH

Rear Floor Panel Support Plate

Quarter Trim Plate

17.5 (179, 13)

RS–96

–

SUPPLEMENTAL RESTRAINT SYSTEM

CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY

3379

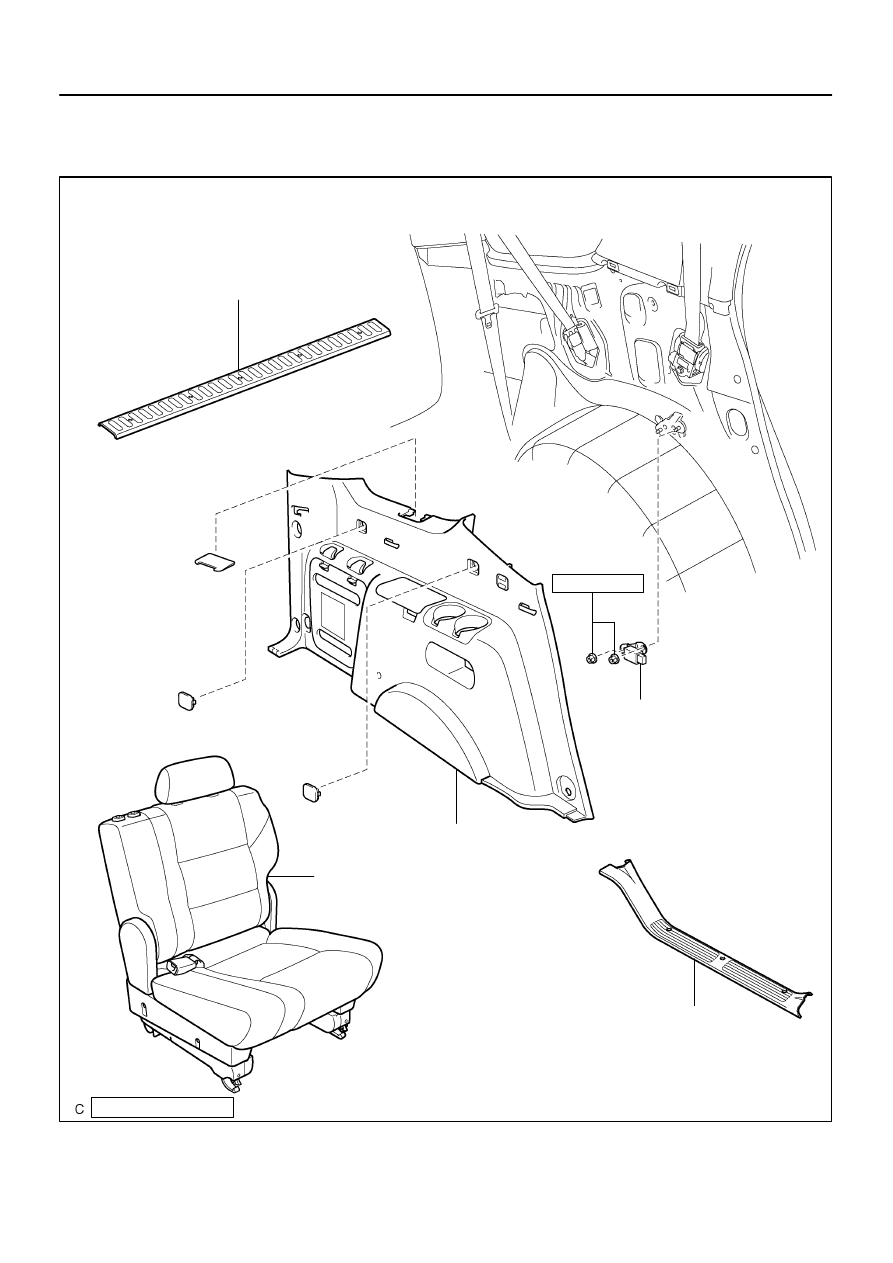

CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY

COMPONENTS

RS11P–01

H23905

–

SUPPLEMENTAL RESTRAINT SYSTEM

CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY

RS–97

3380

REMOVAL

HINT:

Use the same procedures for the RH side and LH side.

The procedures listed below are for the LH side.

NOTICE:

If the wiring connector of the SRS is disconnected
with the ignition switch in the ON position, DTCs will
be recorded.

Never use airbag parts from another vehicle. When
replacing parts, replace them with new ones.

1.

PRECAUTION (SEE PAGE

RS–1

 and

RS–3

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the
airbag working.
3.

REMOVE REAR SEAT NO. 2 ASSEMBLY
(SEE PAGE

BO–157

)

4.

REMOVE REAR DOOR SCUFF PLATE
(SEE PAGE

BO–101

)

5.

REMOVE REAR FLOOR PANEL SUPPORT PLATE
(SEE PAGE

BO–101

)

6.

REMOVE QUARTER TRIM PLATE
(SEE PAGE

BO–101

)

7.

REMOVE CURTAIN SHIELD AIRBAG SENSOR AS-
SEMBLY LH

(a)

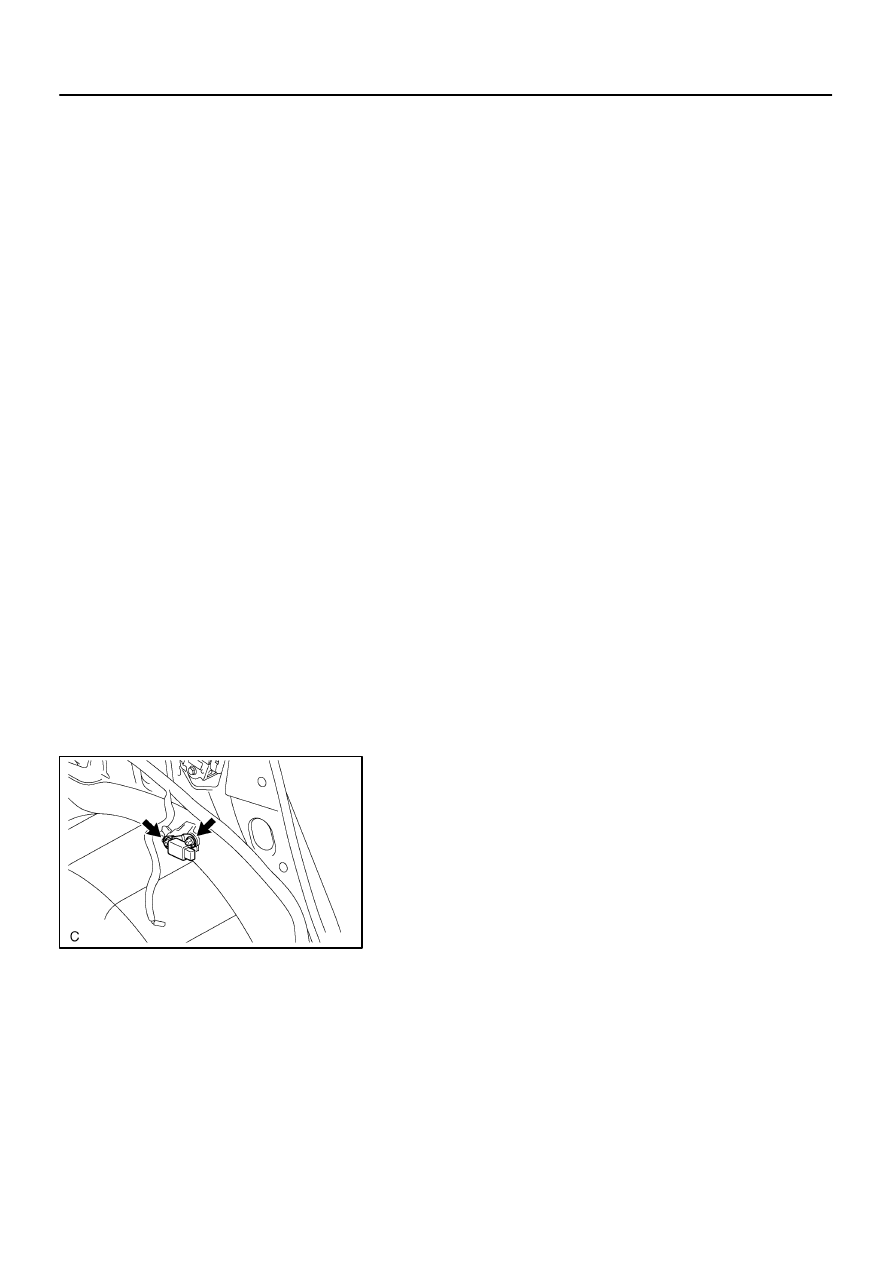

Disconnect the curtain shield airbag sensor assembly LH
connector.

NOTICE:
Disconnect the connector  with the  sensor assembly
installed.
(b)

Remove the 2 nuts and curtain shield airbag sensor as-
sembly LH.
