Toyota Sequoia (2005). Manual - part 840

RS0LJ–03

RS–66

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

3349

REPLACEMENT

REPLACEMENT REQUIREMENTS
In the following cases, replace the seat frame assembly or seatback cover with a new one.

Case

Replacing part

The side airbag has been deployed.

Seat assembly

The side airbag assembly has been found to be faulty in troubleshooting.

Seat frame assembly

The side airbag assembly has been found to have cuts while checking items

(See page

RS–64

).

Seat frame assembly

The seatback cover has been found to have cuts and frayed seams while

checking items

(See page

RS–64

).

Seatback cover

The side airbag assembly has been found to be faulty while checking items

(See page

RS–64

).

Seat frame assembly

The seatback cover has been found to be faulty while checking items

(See page

RS–64

).

Seatback cover

The seatback assembly has been dropped.

Seat frame assembly

CAUTION:
For removal and installation of the seat frame assembly, see page

RS–61

 and

RS–67

. Be sure to fol-

low the correct procedure.

RS11E–01

H24319

H24339

H24338

Hog Ring

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

RS–67

3350

INSTALLATION

HINT:

Use the same procedures for the RH side and LH side.

The procedures listed below are for the LH side.

NOTICE:

If the side airbag assembly has been dropped, or
there are cracks, dents or other defects in the case or
connector, replace the side airbag assembly with a
new one.

When installing the side airbag assembly, take care
it is not pinched between other parts.

Never use airbag parts from another vehicle. When
replacing parts, replace them with new ones.

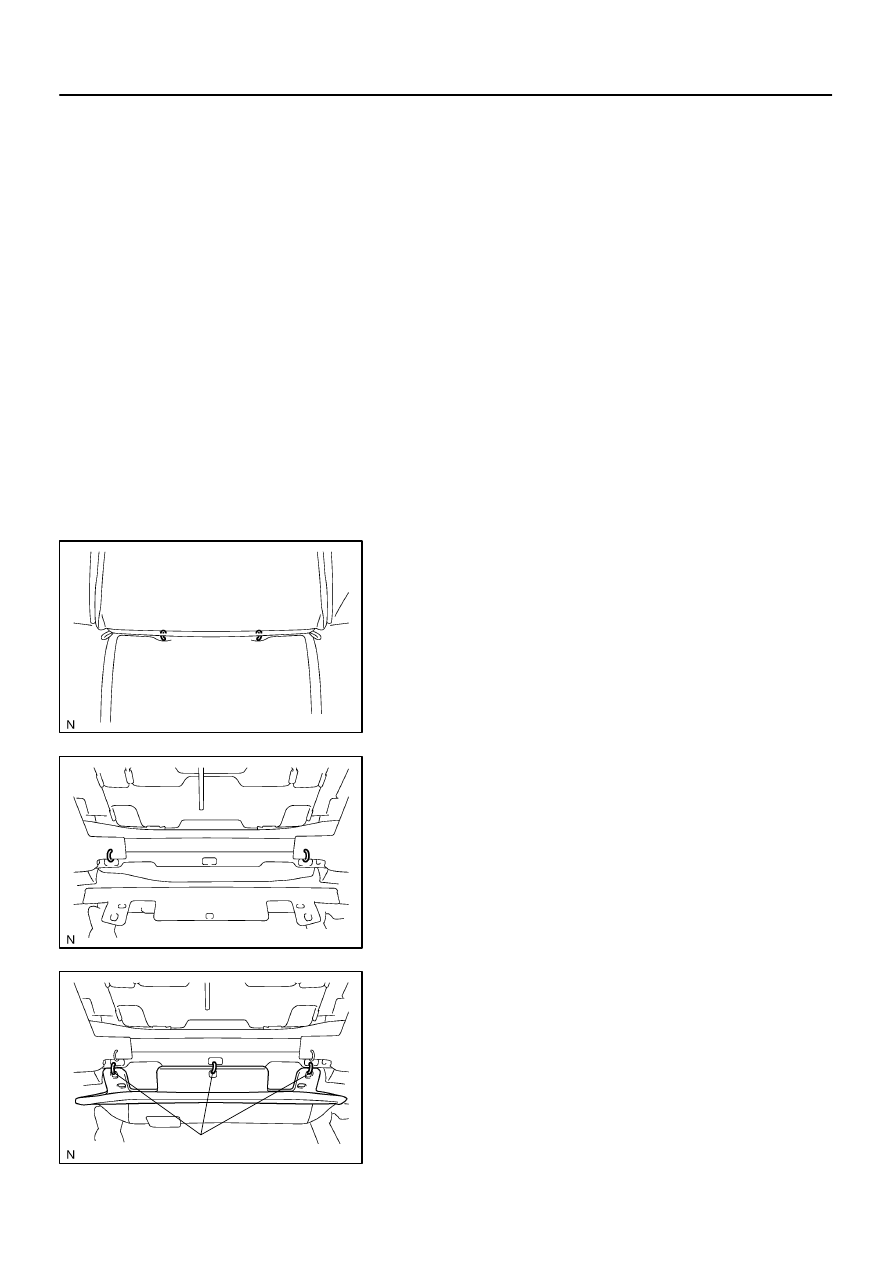

1.

INSTALL SEATBACK COVER

(a)

Install the seatback cover to the seatback pad.

(b)

Install the 2 headrest supports.

(c)

Turn up the seatback cover and install the hog rings.

2.

INSTALL SEATBACK COVER AND PAD

(a)

Install the seatback cover and pad to the seat frame as-
sembly.

(b)

Install the hog rings to the seat frame assembly.

(c)

Install the hog rings to the seat frame assembly.

H24861

H24337

H24316

H24334

Claw

Clip

RS–68

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

3351

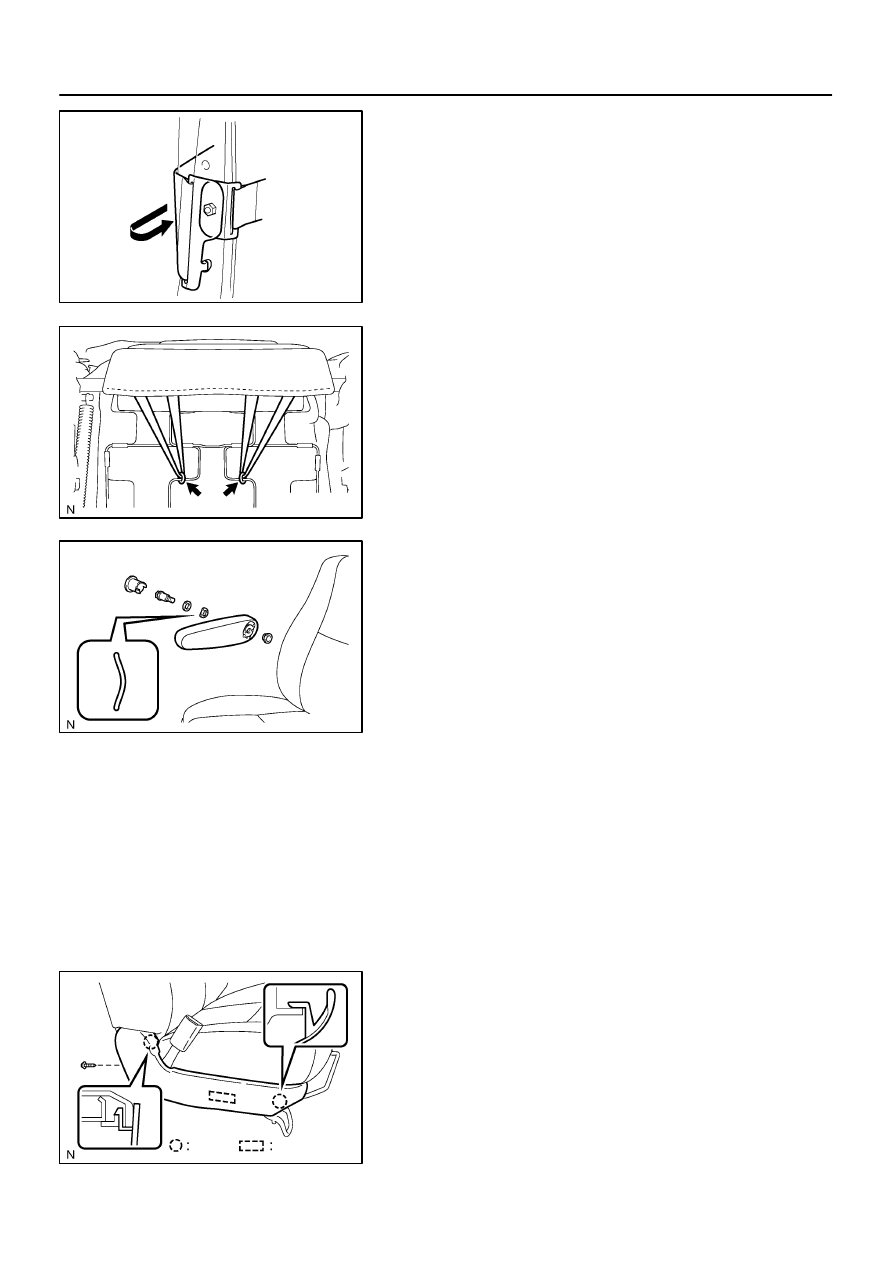

(d)

w/ Side airbag:
Connect the seatback cover bracket to the seat frame as-
sembly with the nut.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(e)

Close the fastener.

(f)

Install the hog rings to the seat frame assembly.

3.

INSTALL ARMREST ASSEMBLY

(a)

Install the spacer to the armrest assembly.

(b)

Install the armrest assembly, armrest lock plate and arm-
rest spacer with the bolt.
Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)

HINT:
Install the armrest lock plate as shown in the illustration.
(c)

Install the armrest cap.

4.

INSTALL FRONT SEAT INNER BELT

(a)

Install the front seat inner belt with the nut.
Torque: 42 N·m (428 kgf·cm, 31 ft·lbf)

(b)

Connect the connectors and wire harness clamps.

5.

INSTALL SEAT CUSHION INNER SHIELD

Install the seat cushion inner shield with the screw.

H24333

H24331

Claws

Clip

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

RS–69

3352

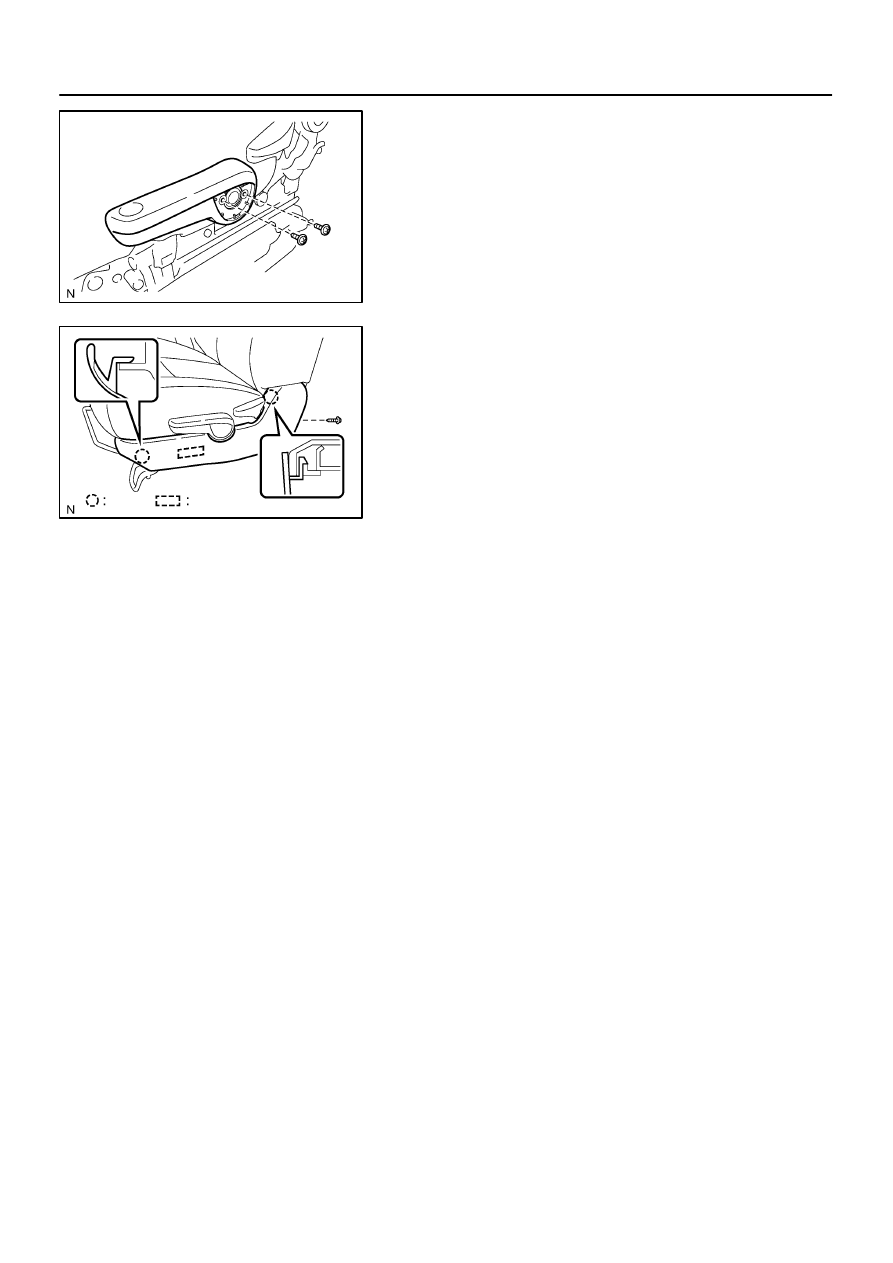

6.

INSTALL VERTICAL ADJUSTER HANDLE

(a)

Install the vertical adjuster handle with the 2 screws.

(b)

Install the vertical adjuster handle cap.

7.

INSTALL RECLINING ADJUSTER RELEASE HANDLE

8.

INSTALL SEAT CUSHION OUTER SHIELD

Install the seat cushion outer shield with the screw.
9.

INSTALL HEADREST

10.

INSTALL FRONT SEAT

Mount the front seat to the vehicle.
NOTICE:
Be careful not to damage the body.
(a)

w/ Side airbag:
Connect the airbag connector.

(b)

Connect the connectors.

(c)

Slide the front seat to the rearmost position.

(d)

Tighten the bolts on the front side temporarily, starting
from the bolt on the inner side.

(e)

Tighten them completely.
Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)

(f)

Slide the front seat to the foremost position.

(g)

Tighten the bolts on the rear side temporarily, starting
from the bolt on the inner side.

(h)

Tighten them completely.
Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)

11.

INSTALL SEAT TRACK COVERS

12.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

13.

PERFORM INITIALIZATION (SEE PAGE

BE–77

)

Some system need initialization when disconnecting the cable
from the negative battery terminal.
14.

INSPECT SRS WARNING LIGHT (SEE PAGE

DI–1137

)
