SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Power Adjuster Type)

3341

(e)

w/ Side airbag:
Connect the seatback cover bracket to the seat frame as-
sembly with the nut.
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

(f)

Close the fastener.

(g)

Install the hog rings to the seat frame assembly.

3.

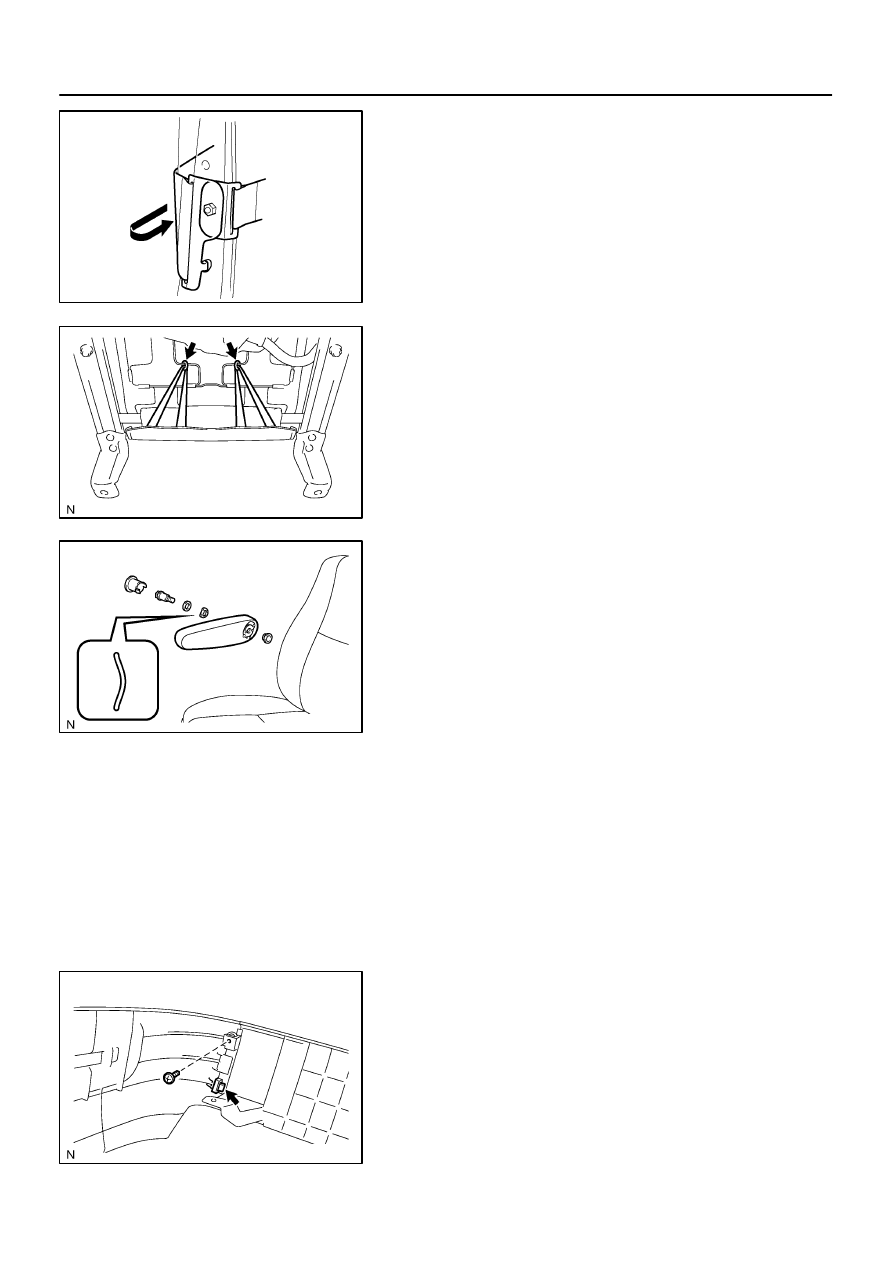

INSTALL ARMREST ASSEMBLY

(a)

Install the spacer to the armrest assembly.

(b)

Install the armrest assembly, armrest lock plate and arm-
rest spacer with the bolt.
Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)

HINT:
Install the armrest lock plate as shown in the illustration.
(c)

Install the armrest cap.

4.

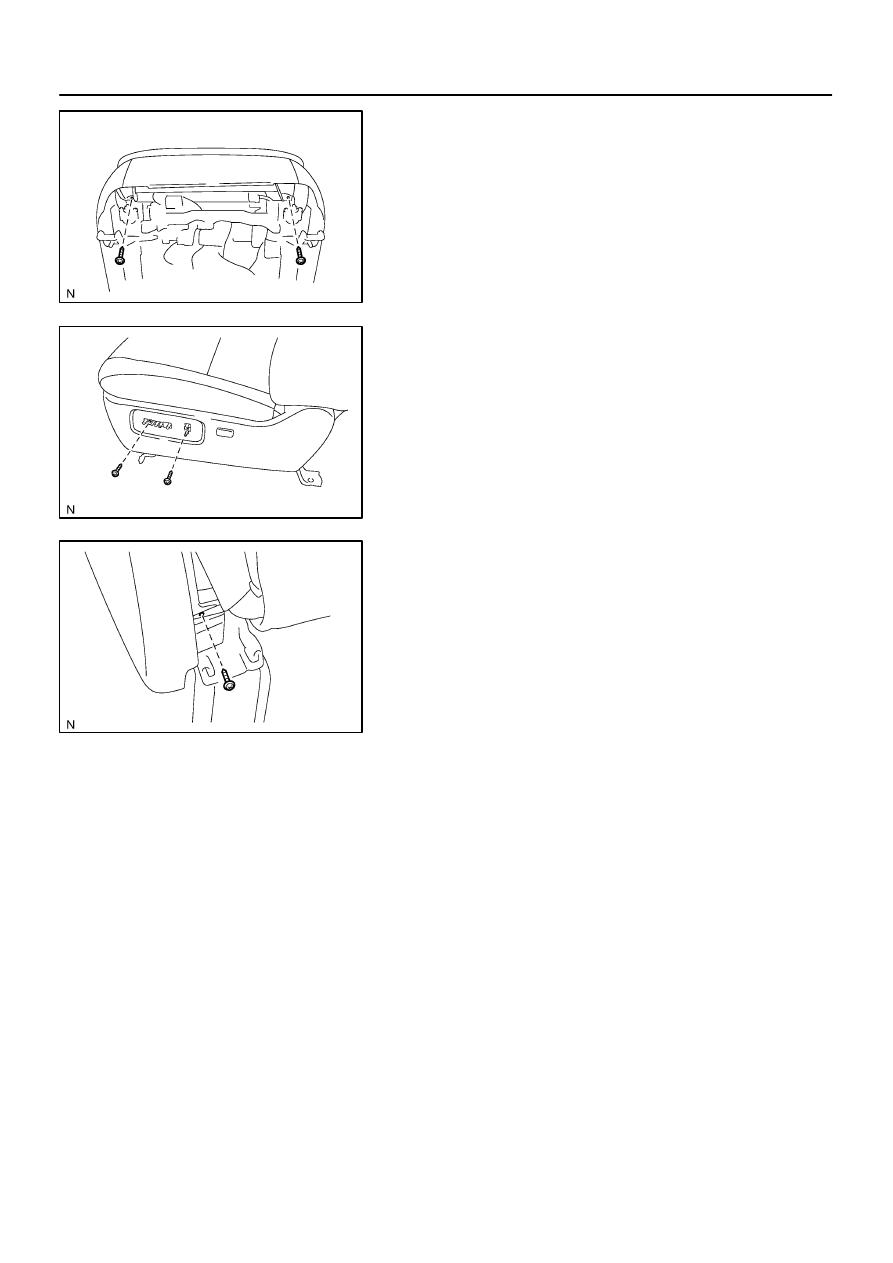

INSTALL POWER SWITCH

Install the power switch with the 3 screws.
5.

INSTALL LUMBAR SWITCH

Install the lumbar switch with the 2 screws to the seat cushion
outer shield.
6.

INSTALL FRONT SEAT INNER BELT

(a)

Install the front seat inner belt with the nut.
Torque: 42 N·m (428 kgf·cm, 31 ft·lbf)

(b)

Connect the connectors and wire harness clamps.

7.

INSTALL SEAT CUSHION LOWER SHIELD, SEAT
CUSHION OUTER SHIELD AND SEAT CUSHION IN-
NER SHIELD

(a)

Assemble the seat cushion lower shield and seat cushion
outer shield with the screw.

(b)

Perform the same procedure on the other side.

(c)

Connect the lumbar switch connector to the lumbar
switch, and install the seat cushion lower shield, outer
shield and inner shield.

H24314

H24313

H24312

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Power Adjuster Type)

RS–59

3342

(d)

Install the 2 screws to the seat cushion lower shield.

(e)

Install the 2 screws to the seat cushion inner shield.

(f)

Install the 2 screws to the seat cushion outer shield.

(g)

Install the screw to the seat cushion outer shield.

8.

INSTALL SLIDE KNOB AND RECLINING KNOB

9.

INSTALL HEADREST

10.

INSTALL FRONT SEAT

Mount the front seat to the vehicle.
NOTICE:
Be careful not to damage the body.
(a)

w/ Side airbag:
Connect the connectors.

(b)

Connect the connectors.

(c)

Slide the front seat to the rearmost position.

(d)

Tighten the bolts on the front side temporarily, starting
from the bolt on the inner side.

(e)

Tighten them completely.
Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)

(f)

Slide the front seat to the foremost position.

(g)

Tighten the bolts on the rear side temporarily, starting
from the bolt on the inner side.

(h)

Tighten them completely.
Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)

11.

INSTALL SEAT TRACK COVERS

12.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

13.

PERFORM INITIALIZATION (SEE PAGE

BE–77

)

Some system need initialization when disconnecting the cable
from the negative battery terminal.
14.

INSPECT SRS WARNING LIGHT (SEE PAGE

DI–1137

)

RS0TD–04

H24667

42 (428, 31)

37 (377, 27)

8.0 (82, 72 in.·lbf)

37 (377, 27)

37 (377, 27)

37 (377, 27)

37 (377, 27)

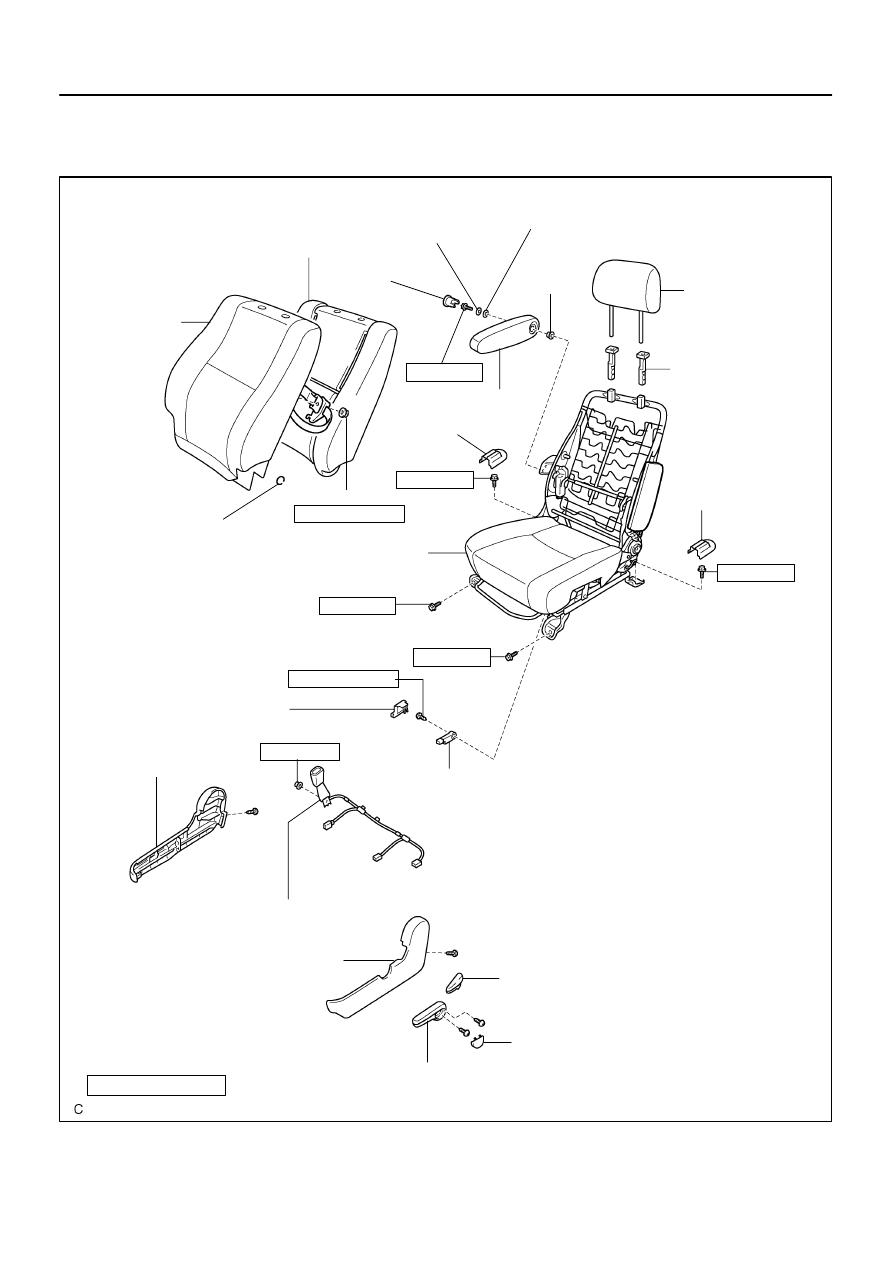

Seatback Cover

Seatback Pad

Front Seat Inner Belt

Seat Cushion Inner Shield

Seat Cushion Outer Shield

Armrest Cap

Armrest Spacer

Armrest Lock Plate

Headrest

Headrest Support

Armrest Assembly

Seat Track Cover

Seat Track Cover

Seat Position
Sensor Protector

Driver’s seat:

Seat Position Sensor

Driver’s seat:

Torx



 Screw

Seat Frame Assembly

Hog Ring

N·m (kgf·cm, ft·lbf) : Specified torque

Non–reusable part

Spacer

Reclining Adjuster Release Handle

Vertical Adjuster Handle Cap

Vertical Adjuster Handle

w/ Side Airbag:

5.5 (56, 49 in.·lbf)

RS–60

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

3343

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

COMPONENTS

RS11D–01

H24331

Claw

Clip

H24332

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

RS–61

3344

REMOVAL

HINT:

Use the same procedures for the RH side and LH side.

The procedures listed below are for the LH side.

NOTICE:

If the wiring connector of the SRS is disconnected
and the ignition switch is in the ON or ACC position,
DTCs will be recorded.

Never use airbag parts from another vehicle. When
replacing parts, replace them with new ones.

1.

PRECAUTION (SEE PAGE

RS–1

 and

RS–3

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the
airbag working.
3.

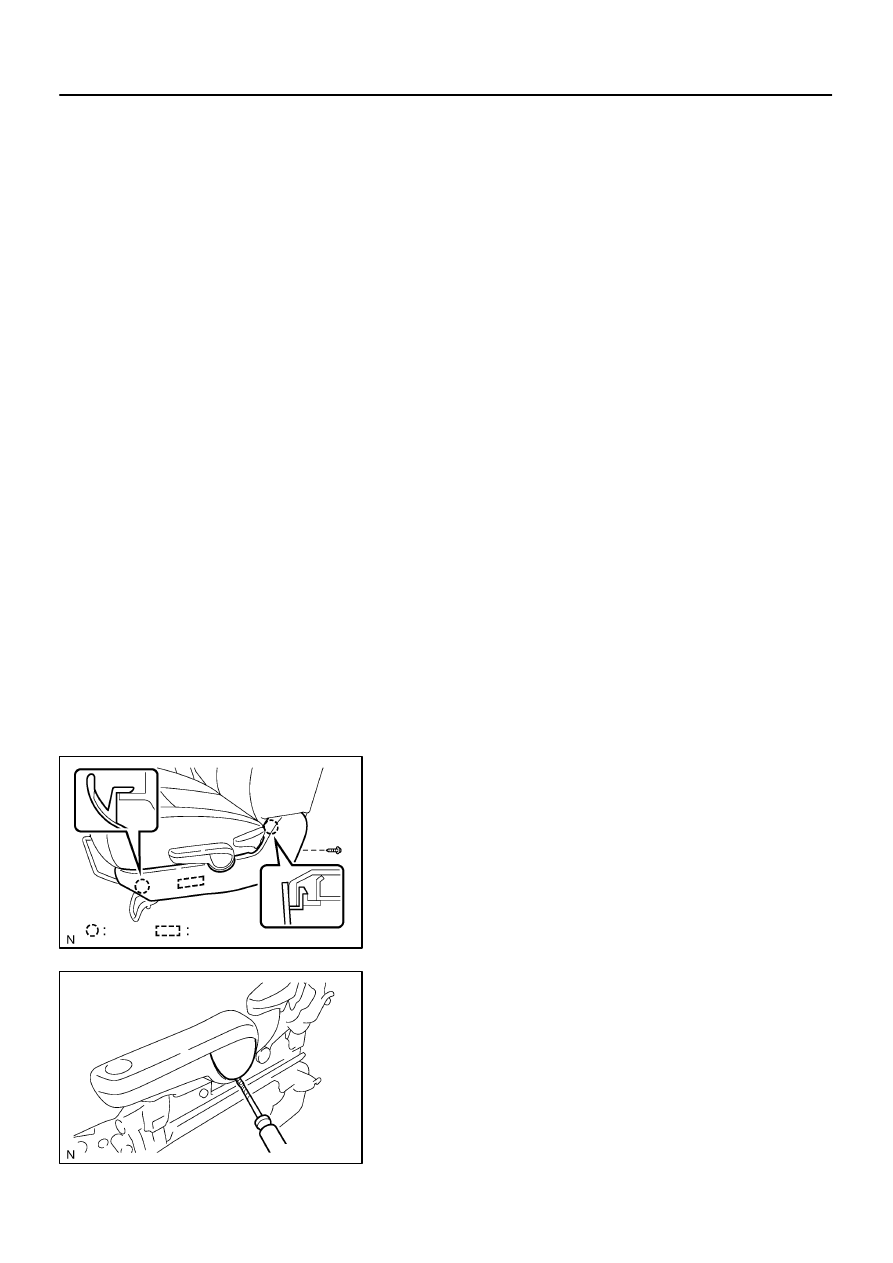

REMOVE SEAT TRACK COVERS

Using a screwdriver, remove the 2 seat track covers.
HINT:
Tape the screwdriver tip before use.
4.

REMOVE FRONT SEAT

(a)

Remove the 4 bolts.

(b)

Disconnect the connectors.

(c)

w/ Side airbag:
Disconnect the airbag connector.

(d)

Remove the front seat.

NOTICE:
Be careful not to damage the body.
5.

REMOVE HEADREST

6.

REMOVE SEAT CUSHION OUTER SHIELD

(a)

Remove the screw from the seat cushion outer shield.

(b)

Using a screwdriver, remove the seat cushion outer
shield.

HINT:
Tape the screwdriver tip before use.
7.

REMOVE RECLINING ADJUSTER RELEASE HANDLE

8.

REMOVE VERTICAL ADJUSTER HANDLE

(a)

Using a screwdriver, remove the vertical adjuster handle
cap.

HINT:
Tape the screwdriver tip before use.
