Toyota Sequoia (2005). Manual - part 839

H24333

H24334

Claw

Clip

H24316

H24337

H24861

RS–62

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

3345

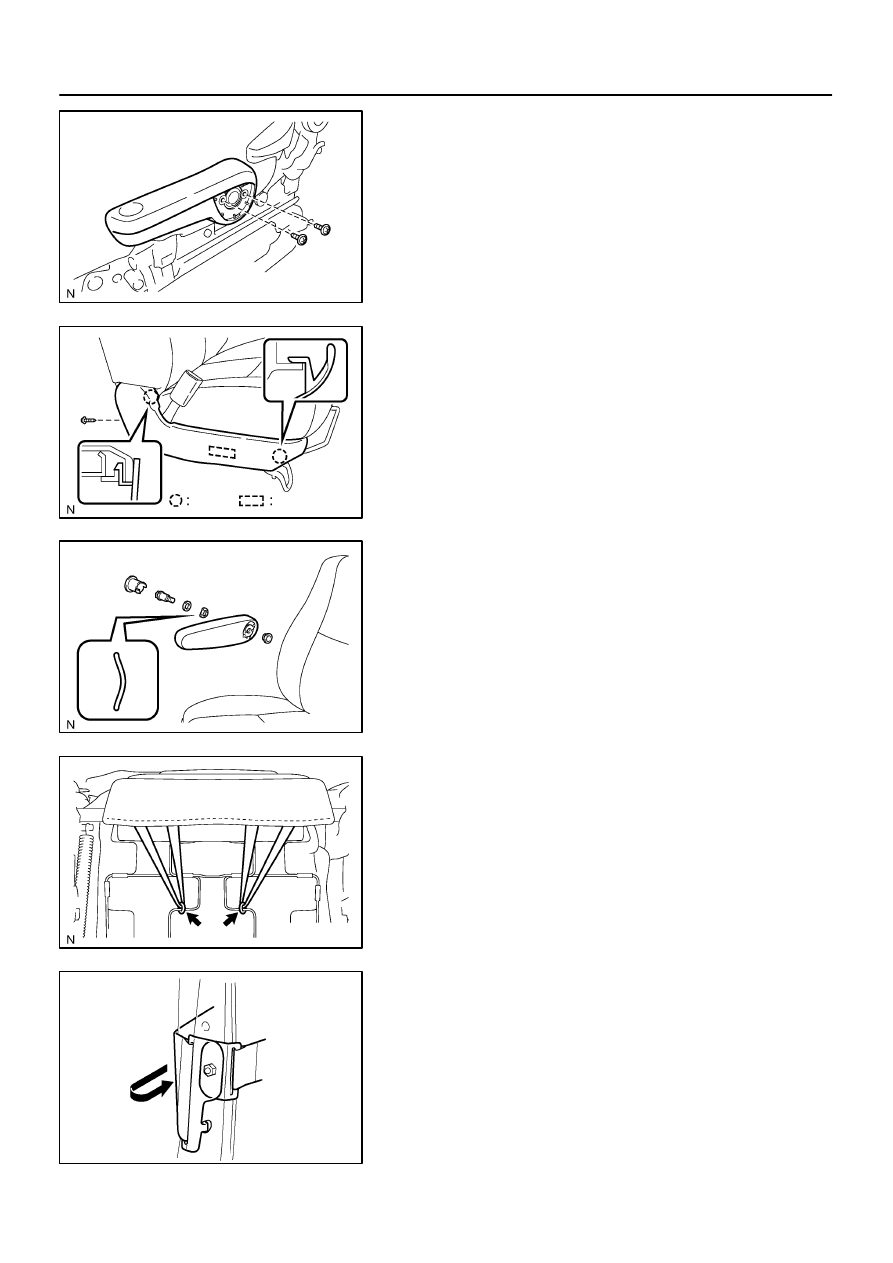

(b)

Remove the 2 screws and vertical adjuster handle.

9.

REMOVE SEAT CUSHION INNER SHIELD

(a)

Remove the screw from the seat cushion inner shield.

(b)

Using a screwdriver, remove the seat cushion inner
shield.

HINT:
Tape the screwdriver tip before use.
10.

REMOVE FRONT SEAT INNER BELT

(a)

Disconnect the wire harness clamps and connectors.

(b)

Remove the nut and front seat inner belt.

11.

REMOVE ARMREST ASSEMBLY

(a)

Using a screwdriver, remove the armrest cap.

(b)

Remove the bolt, armrest spacer, armrest lock plate and
armrest assembly.

(c)

Remove the spacer from the armrest assembly.

12.

REMOVE SEATBACK COVER AND PAD

(a)

Remove the hog rings from the seat frame assembly.

(b)

Open the fastener.

(c)

w/ Side airbag:
Remove the nut and disconnect the seatback cover
bracket from the seat frame assembly.

H24338

Hog Ring

H24339

Hog Ring

H24319

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

RS–63

3346

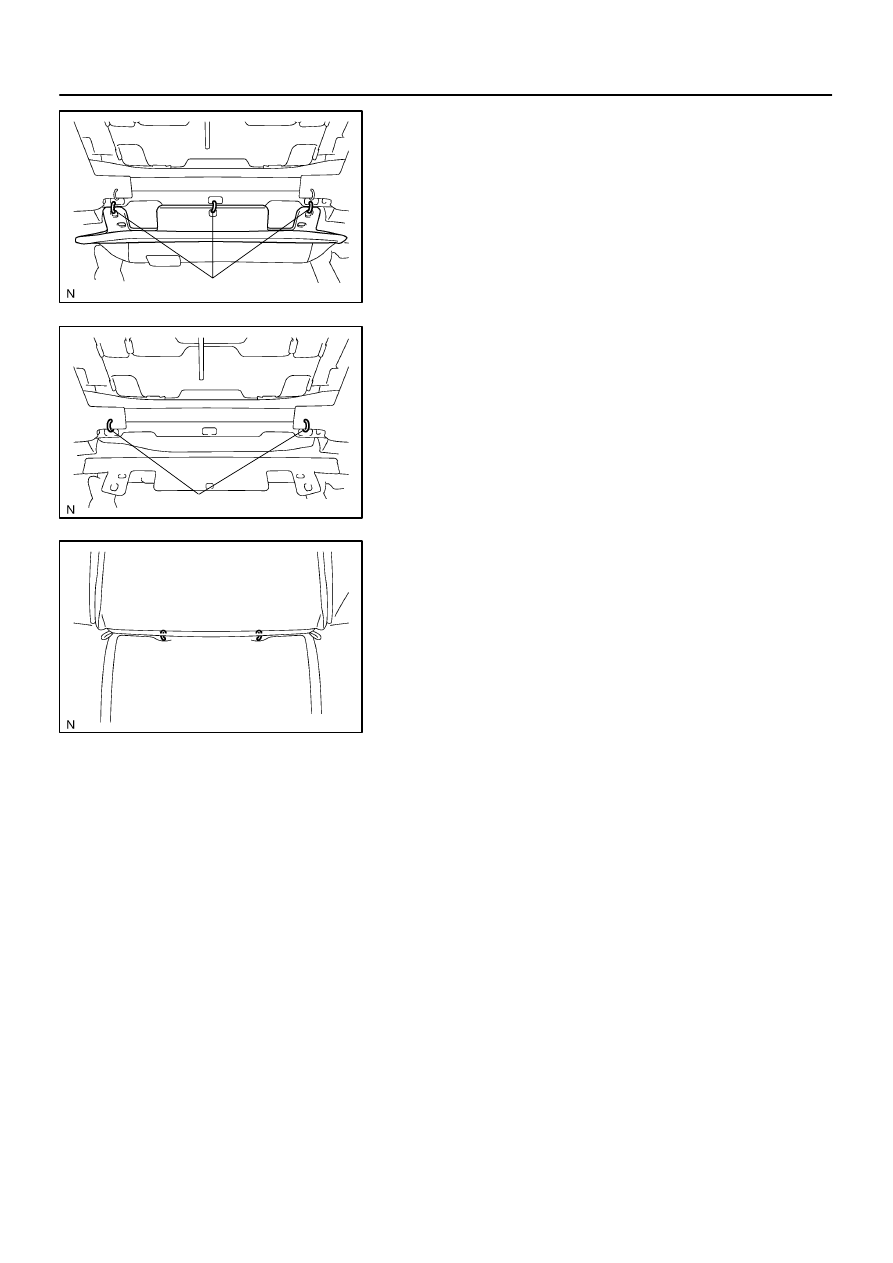

(d)

Remove the hog rings shown in the illustration from the
seat frame assembly.

(e)

Remove the hog rings from the seat frame assembly.

(f)

Remove the seatback cover and pad from the seat frame
assembly.

13.

REMOVE SEATBACK COVER

(a)

Turn up the seatback cover and remove the hog rings.

(b)

Remove the 2 headrest supports.

(c)

Remove the seatback cover from the seatback pad.

RS0LH–05

H16230

Cross Section

H23933

RS–64

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

3347

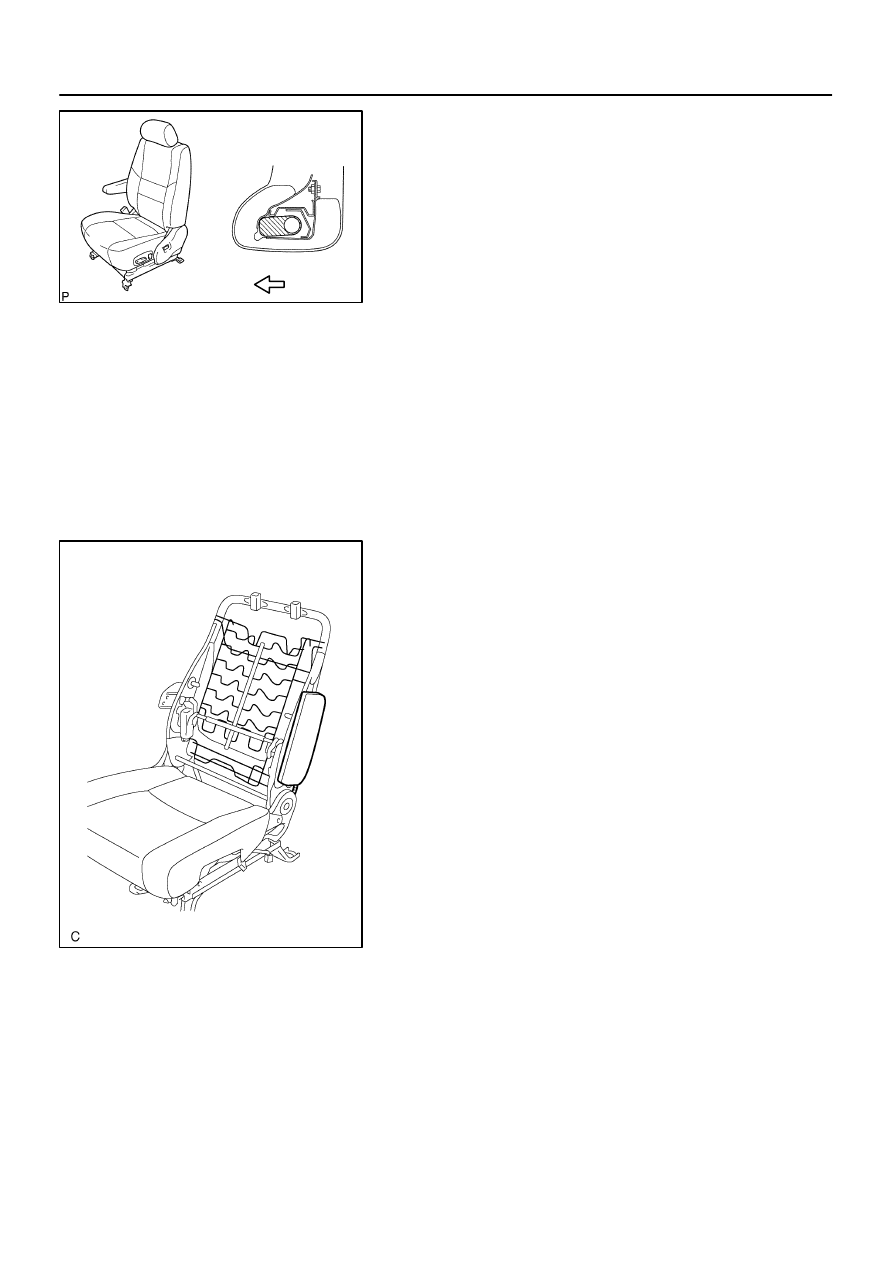

INSPECTION

1.

VEHICLE NOT INVOLVED IN COLLISION

(a)

Perform a diagnostic system check (see page

DI–1147

).

(b)

With the front seat airbag assy installed on the vehicle,
perform a visual check. If there are any defects as men-
tioned below, replace the front seatback assy with a new
one:
Cuts, minute cracks or marked discoloration on the front
seatback assy around the front seat airbag assy.

2.

VEHICLE INVOLVED IN A COLLISION AND AIRBAG IS
NOT DEPLOYED

(a)

Perform a diagnostic system check (see page

DI–1147

).

(b)

Perform a visual check which includes the following items
with the seatback assembly removed from the vehicle.

Cuts, tears and cracks on the side airbag assembly.

Cuts and cracks in wire harness, and chipping in
connectors.

CAUTION:
For removal and installation of the front seatback assem-
bly, see page

RS–61

 and

RS–67

. Be sure to follow the cor-

rect procedure.

RS0LI–03

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Manual Adjuster Type)

RS–65

3348

DISPOSAL

See page

RS–50

.
