Toyota Sequoia (2005). Manual - part 807

BR1NH–03

F16314

Connector

11 (112, 8)

Actuator Bracket

Actuator

Cushion

Actuator Assembly

11 (112, 8)

1.8 (18, 16 in.·lbf)

: Specified torque

N·m (kgf·cm, ft·lbf)

19.5 (195, 14)

15 (155, 11)

 Non–reusable part

19.5 (195, 14)

15 (155, 11)

15 (155, 11)

9.5 (97, 84 in.·lbf)

9.5 (97, 84 in.·lbf)

Skid Control ECU

Cushion

To left rear brake

To right front brake

To right rear brake

To left front brake

From master cylinder
(front port)

From master cylinder
(rear port)

15 (155, 11)

1.8 (18, 16 in.·lbf)

BR–50

–

BRAKE

ABS & VSC ACTUATOR

3217

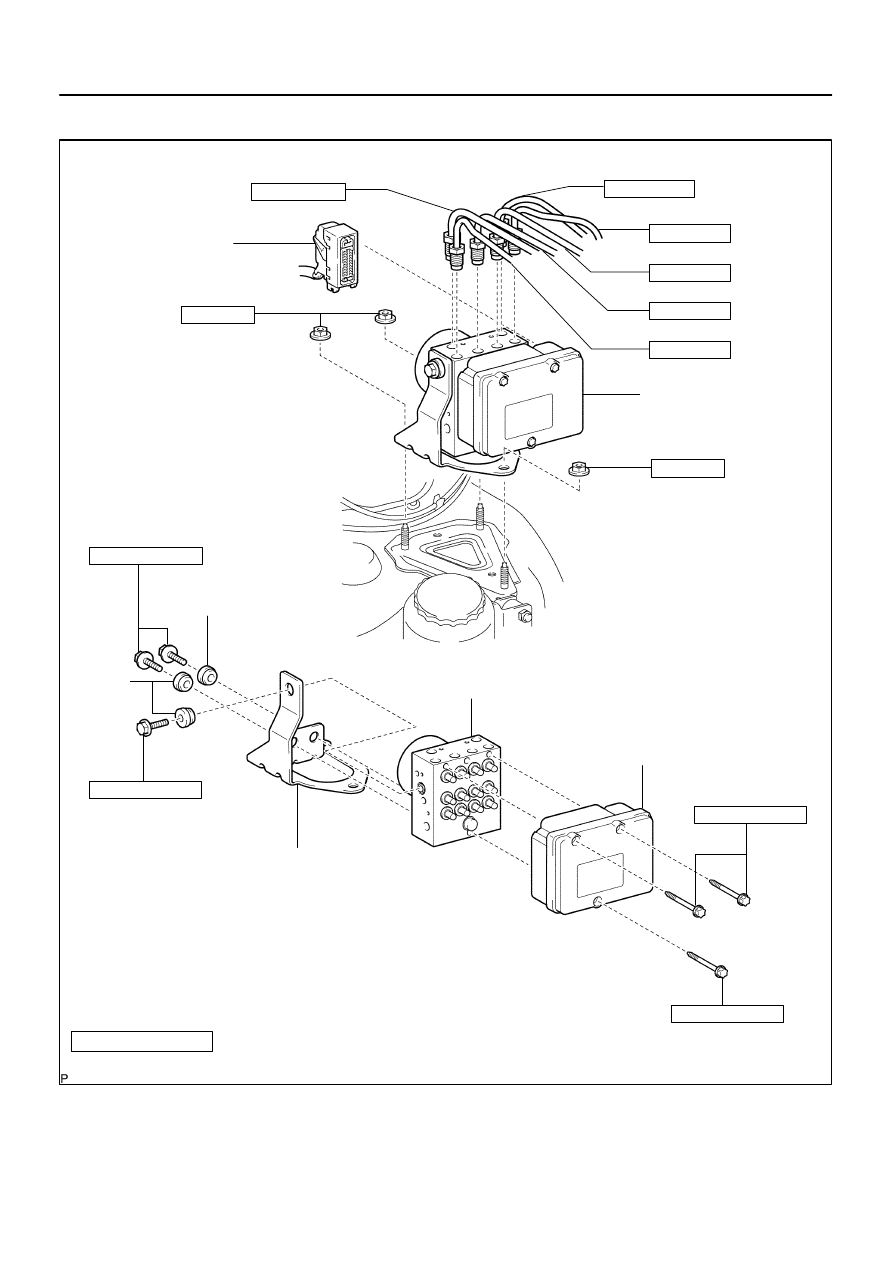

COMPONENTS

BR1NI–03

F16315

Release Bar

F16316

–

BRAKE

ABS & VSC ACTUATOR

BR–51

3218

REMOVAL

1.

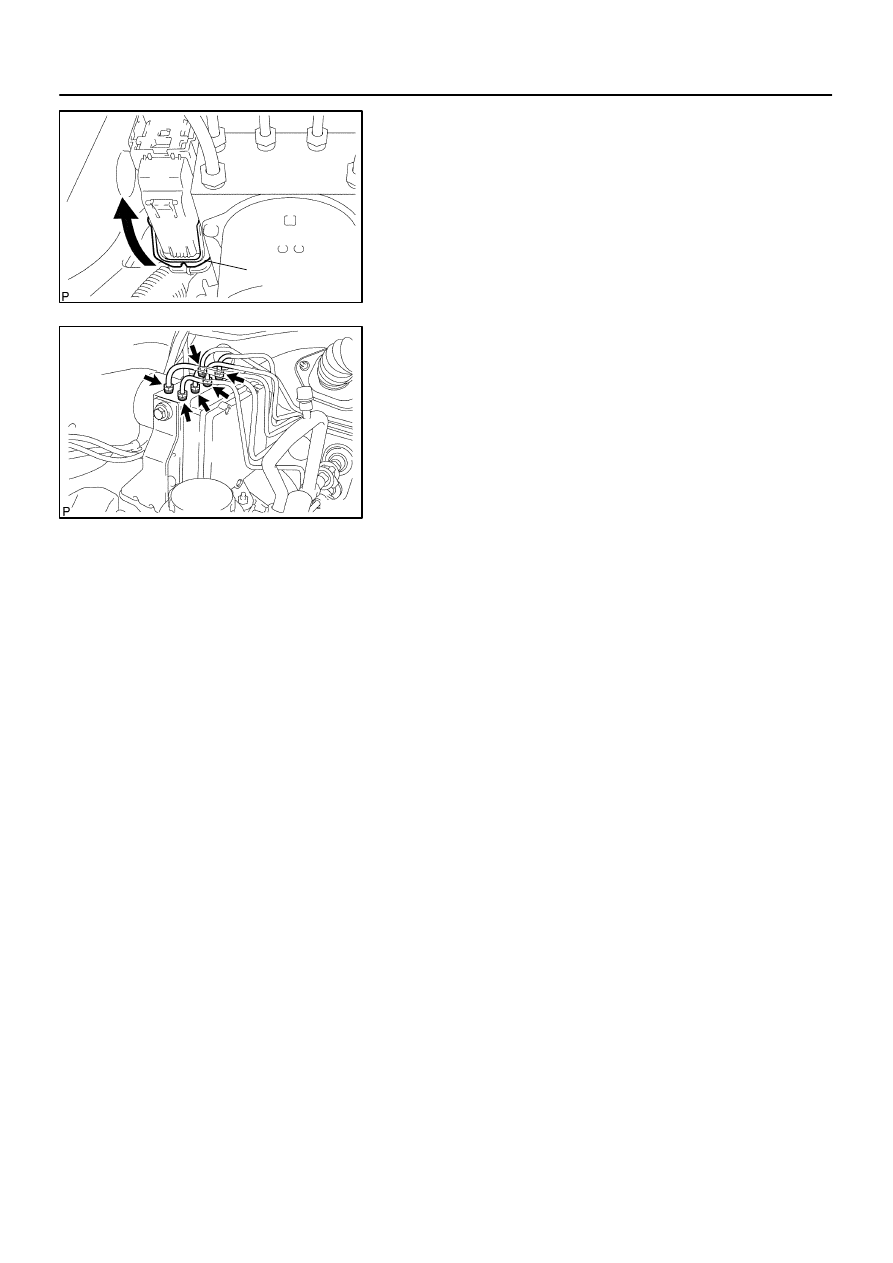

DISCONNECT CONNECTOR

Pull the release bar and disconnect the connector.

2.

DISCONNECT BRAKE LINES

Using SST, disconnect the 6 brake lines from the actuator as-
sembly.

SST

09023–00101, 09023–38201

Torque:
10 mm nut: 15 N·m (155 kgf·cm, 11 ft·lbf)
12 mm nut: 19.5 N·m (195 kgf·cm, 14 ft·lbf)

HINT:

When disconnecting the brake lines, use tags or make a
memo to identify the place to reconnect (See page

BR–50

).

At the time of installation, connect each brake line to the
correct position (See page

BR–50

).

3.

REMOVE ACTUATOR ASSEMBLY

Remove the 3 nuts and actuator assembly with the actuator
bracket.

Torque: 11 N·m (112 kgf·cm, 8 ft·lbf)

BR1NJ–03

F13898

Sealing
Surface

BR–52

–

BRAKE

ABS & VSC ACTUATOR

3219

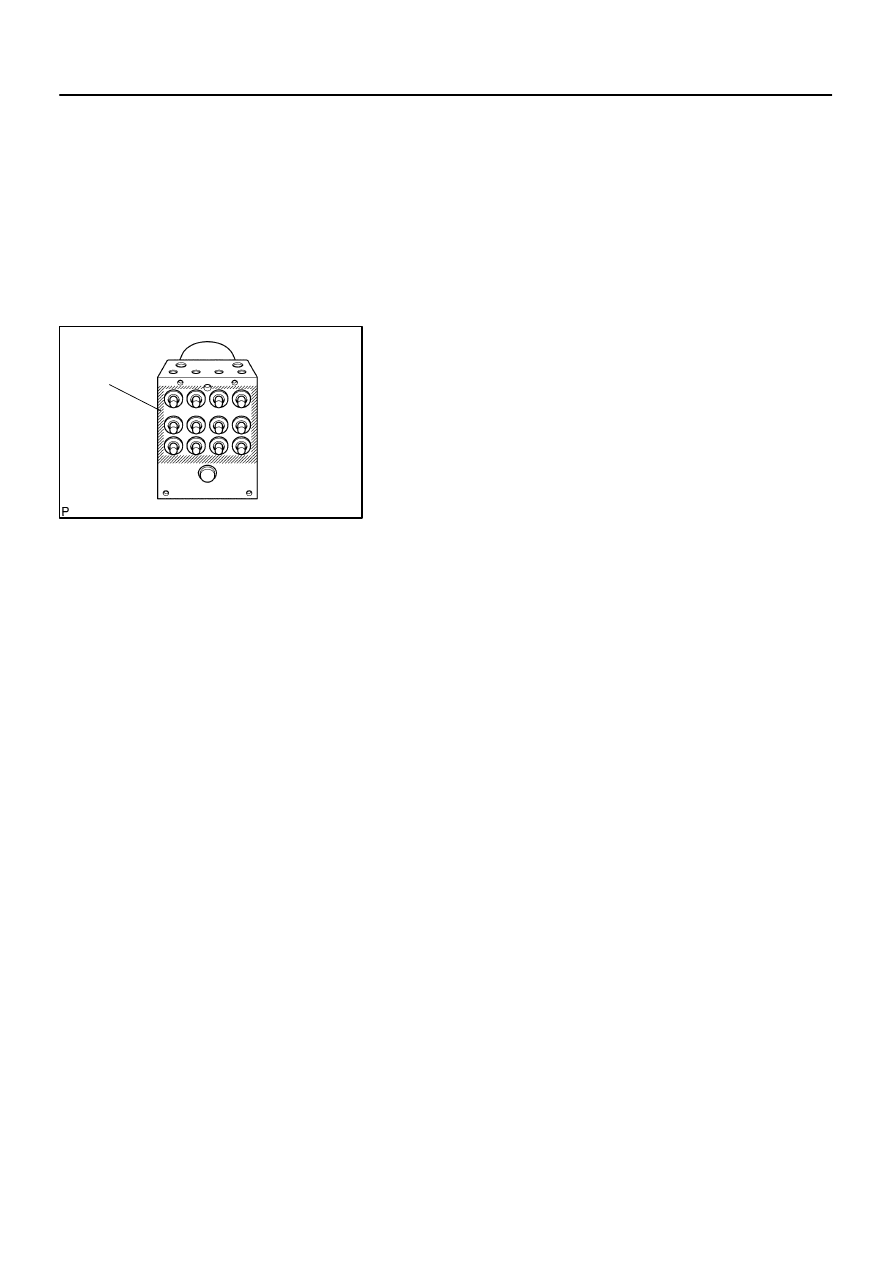

DISASSEMBLY

1.

REMOVE ACTUATOR BRACKET

(a)

Remove the 3 bolts and actuator bracket.
Torque: 9.5 N·m (97 kgf·cm, 84 in.·lbf)

(b)

Remove the 3 cushions from the actuator bracket.

2.

REMOVE SKID CONTROL ECU

Using a E5 torx

®

 wrench, remove the 3 screws and skid control

ECU.

Torque: 1.8 N·m (18 kgf·cm, 16 in.·lbf)

NOTICE:
Protect the actuator in order to prevent sealing surface
from getting dirty and causing damage on the valve body.
If the dirt and the like is stuck to the sealing surface, use
plastic tools or soft objects to remove the dirt. Do not use
chemical solvents.

BR1NK–02

–

BRAKE

ABS & VSC ACTUATOR

BR–53

3220

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

BR–52

).
